Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2011-2014 Scion xD All

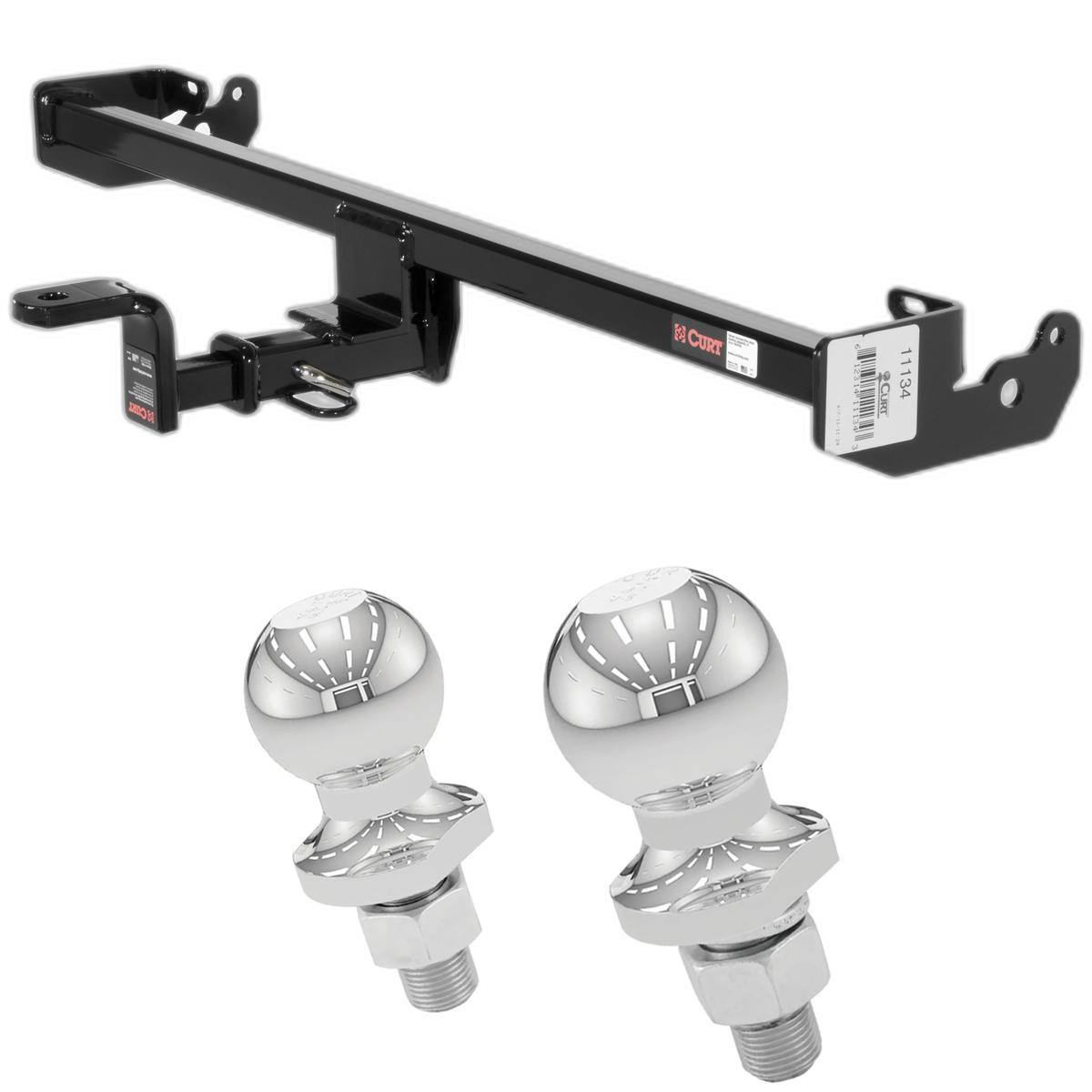

Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Scion xD (see application info to verify fitment). The hitch integrates with the vehicle's frame and provides a useful and dependable 1-1/4" x 1-1/4" receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 2,000 pounds gross trailer weight and 200 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4" trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid A-coat for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where you're headed or which season of the year you’re towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes ball mount #45521, installation hardware, pin & clip
2011, 2012, 2013, 2014 Scion xD All Class 1 Trailer Hitch, 1-1/4" Ball Mount, Select Scion xD
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2011 - 2014 | Scion xD | — |
Yes, the CURT 11134 is designed for 2011-Current Scion xD Hatchback models. The hitch is a weight-carrying style with a maximum trailer weight capacity of 2,000 lbs and tongue weight capacity of 200 lbs. Always verify your vehicle matches the specifications before purchasing.
The CURT 11134 is designed for use with ballmount #55001 or #45501. A Euro mount option is also available: #45571 (1 7/8" ball) or #45572 (2" ball). Check the product documentation for your specific ballmount to ensure compatibility.
The CURT 11134 has a maximum trailer weight capacity of 2,000 lbs and a tongue weight capacity of 200 lbs when used as a weight-carrying hitch. Never exceed your vehicle manufacturer's recommended towing capacity, as this is a critical safety limit.
Required tools are: flat head screwdriver, ratchet, 12mm socket, 9/16" socket, 15/16" socket, 9/16" boxed end wrench, 15/16" boxed end wrench, and a torque wrench. Using proper tools will greatly improve installation quality and reduce installation time.
Yes, if an underbody panel is present, you must remove it by removing 7 push-button fasteners in Step 1. You can then return the panel to the vehicle owner or trim and reinstall it in Step 5 if you select the optional trimming option.
Two people may be required to ease installation. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance. You can reach CURT Technical Support at 800.798.0813.
Remove 2 existing 8mm fasteners from the frame (one from each side: driver side and passenger side frame rail). Return these fasteners to the vehicle owner. These are replaced by the supplied fasteners during installation.
After removing the underbody panel and existing 8mm fasteners, raise the hitch into position over the exhaust and loosely install all supplied fasteners as shown in the diagram. Do not fully tighten them yet. Once all fasteners are in place, torque them to their specified values in Step 4.
Torque all 8mm fasteners to 23 ft-lbs, all 3/8" fasteners to 45 ft-lbs, and all 5/8" fasteners to 210 ft-lbs. Use a torque wrench to ensure proper tightness. Refer to the parts list to identify which fasteners correspond to each size.
No, drilling is not required. The CURT 11134 uses existing frame attachment points and does not require any holes to be drilled in the vehicle frame.
Underbody panel trimming is optional. If you choose to trim the panel, remove it in Step 1, trim it according to the trim diagram (dimensions approximately 3 5/8" x 1 5/8" x 1 5/8"), and reinstall it in Step 5. Check fit prior to completing the trim. You can also return the untrimmed panel to the vehicle owner.
Safety glasses must be worn at all times while installing this product. Read all instructions thoroughly before beginning installation. If you are hesitant to undertake this task, contact an authorized CURT installer.
All non-trailer loads (wheel-less loads) applied to this hitch must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. CURT recommends the use of 18050 stabilizing straps for all non-trailer loads.
After installation is complete, verify that all fasteners are properly torqued to their specified values (8mm to 23 ft-lbs, 3/8" to 45 ft-lbs, 5/8" to 210 ft-lbs). Ensure the hitch is positioned correctly over the exhaust and that all structural components are sound.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. Regular inspection helps maintain the integrity and safety of the hitch during use.
The kit includes: 2 M8 - 1.25 x 45 hex bolts, 2 3/8" washers, 2 3/8" lock washers, 2 3/8-16 x 1 1/2 hex bolts, 2 HFN3816 hex flange nuts, 2 5/8 - 11 x 2 hex bolts, 2 5/8" wide washers, and 2 5/8-11 hex flange nuts. All fasteners are supplied; no additional hardware is needed.
Return the 2 existing 8mm fasteners that you remove from the frame in Step 2 to the vehicle owner. These are factory fasteners and should not be discarded.
Yes, the CURT 11134 is designed for 2011-Current Scion xD Hatchback models with a 2,000 lb trailer weight capacity and 200 lb tongue weight capacity.
No, drilling is not required. The hitch uses existing frame attachment points.
Yes, you need a torque wrench, ratchet with 12mm, 9/16", and 15/16" sockets, boxed end wrenches (9/16" and 15/16"), and a flat head screwdriver.
Torque 8mm fasteners to 23 ft-lbs, 3/8" fasteners to 45 ft-lbs, and 5/8" fasteners to 210 ft-lbs.
Maximum trailer weight is 2,000 lbs and tongue weight is 200 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
No, trimming is optional. You can return the untrimmed panel to the vehicle owner or trim and reinstall it if desired.
Two people may be required to ease installation. If hesitant, contact an authorized CURT installer at 800.798.0813.
