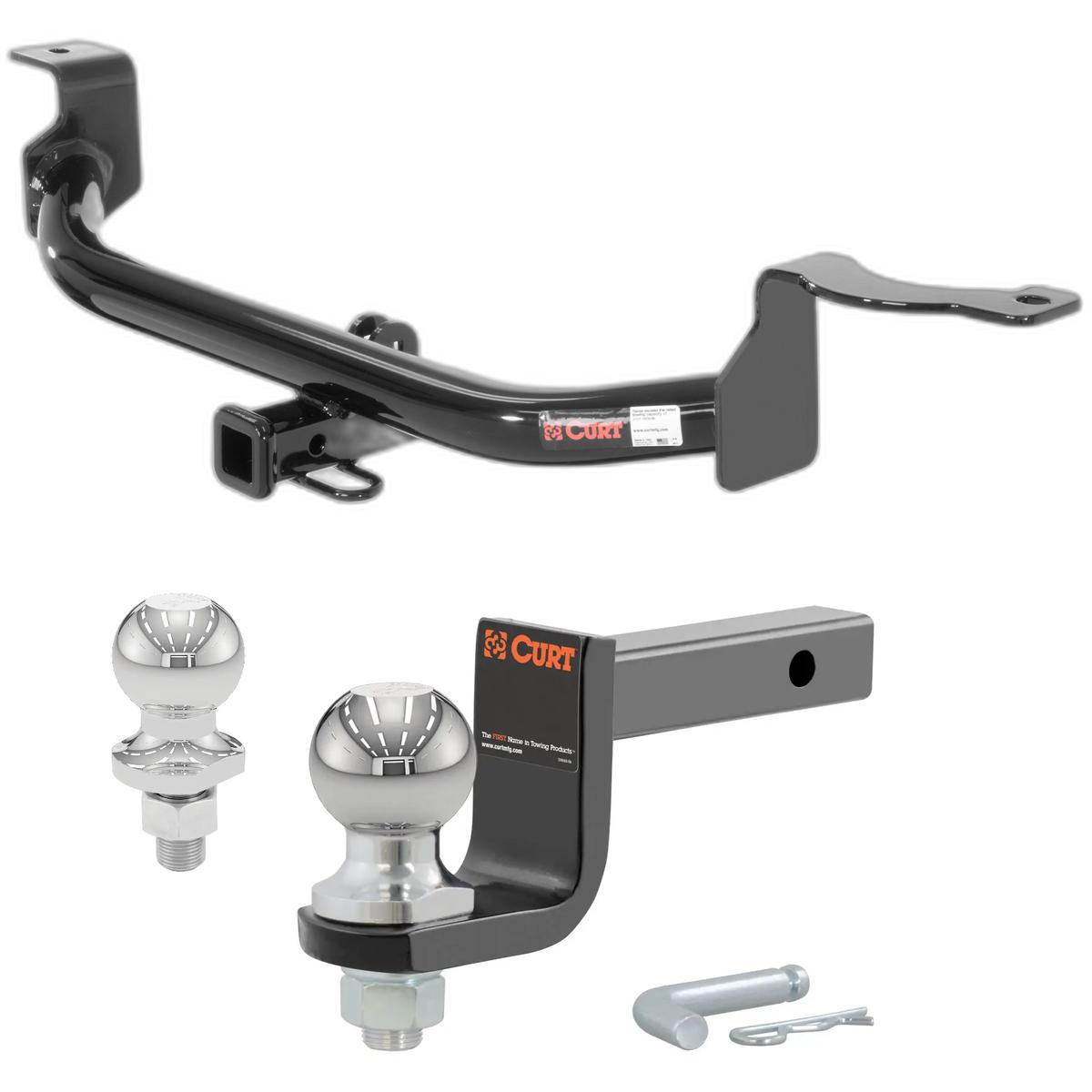

2011-2016 Honda CR-Z All Class 1 Trailer Hitch, 1-1/4" Ball MountCURTOriginal price was $378.85. Current price is $361.37.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2011 - 2016 Honda CR-Z
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2011-2016 Honda CR-Z All
However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It. Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity. Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV. This particular class 1 hitch is designed to be a custom hitch for certain years of the Honda CR-Z (to verify vehicle compatibility, see the CURT application guide at curtmfg.com). Tested in accordance with SAE J684, it offers a weight carrying capacity of 1,000 lbs. GTW and 100 lbs. TW. It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount. This class 1 hitch also comes with all necessary mounting hardware. With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier. They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches. Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding. We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes installation hardware
2011, 2012, 2013, 2014, 2015, 2016 Honda CR-Z All Class 1 Trailer Hitch, 1-1/4" Receiver, Select Honda CR-Z
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2011 - 2016 | Honda CR-Z | — |
Yes, the 2011-2016 Honda CR-Z All Class 1 Trailer Hitch, 1-1/4" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-11077-001) is designed to fit the 2011-2016 Honda CR-Z.
The 2011-2016 Honda CR-Z All Class 1 Trailer Hitch, 1-1/4" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-11077-001) fits 2011-2016 Honda CR-Z models. The 2016 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2011-2016 Honda CR-Z All Class 1 Trailer Hitch, 1-1/4" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-11077-001) fits the following vehicles: 2011-2016 Honda CR-Z. Always verify your specific year, make, and model before ordering.
The 2011-2016 Honda CR-Z All Class 1 Trailer Hitch, 1-1/4" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-11077-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT hitch 11077 is designed for the 2011 Honda CR-Z Hatchback. It is a weight-carrying hitch with a maximum trailer weight capacity of 1,000 lbs and tongue weight capacity of 100 lbs. Always verify that your vehicle's towing capacity meets or exceeds the load you intend to tow.
CURT hitch 11077 is designed for use with ball mount #D-20 / 45520. Euro mount options are also available: #45561 (1-7/8" ball) and #45562 (2" ball).
CURT hitch 11077 has a maximum trailer weight capacity of 1,000 lbs and a tongue weight capacity of 100 lbs when used as a weight-carrying hitch. You must never exceed your vehicle manufacturer's recommended towing capacity.
All non-trailer (wheel-less) loads applied to this hitch must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. See the CURT catalog or visit www.curtmfg.com for further information on stabilizing straps.
Required tools include: ratchet, torque wrench, 6" extension, 3/4" socket, 11/16" socket, die grinder, rotary tool with cutoff wheel, flat head screwdriver, and Phillips head screwdriver. Safety glasses must be worn at all times during installation.
Two people may be required to ease installation. The manual rates this as a challenging installation, so professional installation is recommended if you are hesitant to undertake the task on your own. Contact an authorized CURT installer or call technical support at 877-287-8634 for assistance.
The first step is to lower the exhaust by removing the two rubber isolators located on the vehicle muffler. This must be done before removing the underbody panels.
Remove the underbody panels from the driver and passenger side rear corners. Each panel is held by three plastic clips and two screws. One clip holds the panel to the rear fascia, the next clip is attached to the frame rail, and the last clip is located in the wheel well. The first screw is located under the rear corner of the vehicle, and the other screw is on the outside of the wheel well. Save the hardware for reinstallation, but note that two clips will not be reused during panel reinstallation.
Yes. You must locate the large holes on the driver and passenger side frame rails and enlarge the front holes to allow the supplied 7/16" carriage bolts and CM-SP11 spacers to pass into the frame rails. A die grinder or rotary tool with cutoff wheel is required for this step.
Fishwiring is a technique used to thread the 7/16" carriage bolts and CM-SP11 spacers through the enlarged holes in the frame rails and out the rear holes. The supplied 7/16" fishwire is used to guide the hardware through the frame rails before the hitch is raised into position.
Raise the hitch into position against the vehicle tow loop. Install the supplied 1/2" carriage bolt (part 10-10272) through the mount attached to the hitch and through the tow loop. Secure it with the 1/2" hex flange nut (part 20-00062). Then install 7/16" hex flange nuts (part 20-00103) onto the carriage bolts that were fishwired into position through the frame rails.
Yes. Mark the underbody panels to trim off the section where the plastic clip attached the panel to the vehicle frame rail. Trim the panel as necessary to provide clearance around the hitch side plates. The hitch requires approximately 1.00 inch of clearance.
Torque the 7/16" hardware to 70 lb-ft and the 1/2" hardware to 110 lb-ft. A torque wrench is required to achieve these specifications.
After torquing all fasteners, reinstall the underbody panels in the reverse order that they were removed, and raise the exhaust back into position by reinstalling the two rubber isolators on the muffler.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This ongoing inspection helps maintain the integrity and safety of the hitch.
The kit includes: one 1/2-13 UNC carriage bolt (10-10272), two 7/16-14 UNC carriage bolts (10-10281), two 7/16" serrated flange nuts (20-00103), one 1/2-13 UNC serrated flange nut (20-00062), two 0.250 x 1.00 x 2.50" square hole spacers (CM-SP11), and two 7/16" fishwires (7_16 FISHWIRE).
CURT Manufacturing warrants this product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT may repair or replace it at their option when returned prepaid with proof of purchase. Alteration, misuse, or improper installation voids the warranty. CURT's liability is limited to repair or replacement of defective products and excludes liability for incidental or consequential loss or damage.
Yes, CURT 11077 is designed specifically for the 2011 Honda CR-Z Hatchback. Maximum towing capacity is 1,000 lbs trailer weight and 100 lbs tongue weight.
You will need: ratchet, torque wrench, 6" extension, 3/4" and 11/16" sockets, die grinder or rotary tool with cutoff wheel, and both flat and Phillips head screwdrivers. Safety glasses are required.
Yes. You must enlarge the front holes on both frame rails using a die grinder or rotary tool, and trim the underbody panels to provide clearance around the hitch side plates.
Torque 7/16" hardware to 70 lb-ft and 1/2" hardware to 110 lb-ft. A torque wrench is required.
Maximum trailer weight is 1,000 lbs and tongue weight is 100 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
Two people may be required. This is a challenging installation; professional installation is recommended if you are hesitant. Call CURT technical support at 877-287-8634 for assistance.
CURT 11077 is designed for ball mount #D-20 / 45520. Euro mount options #45561 (1-7/8" ball) and #45562 (2" ball) are also available.
