Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2011-2025 Ram 3500 Cab & Chassis
When we came to the limits of towing capacity, we wanted to know what else was out there. What could we discover off the beaten path? So, we kept going. CURT class 5 Xtra Duty hitches begin a class of their own, beyond class 4 and beyond anything the standards dictate. They are designed for the hard road where only full-size pickup trucks, vans and SUVs dare to tread. They are capable of pulling almost any heavy-duty trailer, including toy haulers, dump trailers, logging trailers, small yacht trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component). This particular Xtra Duty class 5 trailer hitch offers a gross trailer weight capacity of 17,000 lbs. and an extra-high tongue weight capacity of 2,550 lbs. It features a 2" x 2" receiver tube opening to accept a ball mount or hitch-mounted accessory, such as a cargo carrier or winch mount. It is designed to be a custom-fit trailer hitch for certain years of the Chevy Silverado 3500, 3500 HD or 3500 Classic, Dodge Ram 3500, 4500 or 5500, GMC Sierra 3500, 3500 HD or 3500 Classic and Ram 3500, 4500 or 5500 (to verify compatibility with your vehicle, see application info). For a little extra towing power and stability, this class 5 hitch can also be used in combination with a weight distributing hitch. It is rated for 17,000 lbs. WD and 2,550 lbs. WDTW. In our drive to create a more powerful hitch, CURT has not neglected the finer details. Our class 5 trailer hitches are welded with precision and go through multiple stages of cleaning to create a smooth surface that is ready to accept our co-cured finish. To protect them from corrosion, chipping and UV damage, these hitches are immersed in a liquid A-coat and then finished in a high-quality black carbide powder coat. They come with grade-8 mounting hardware for solid installation.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Includes strong, grade-8 installation hardware
2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025 Ram 3500 Cab & Chassis Xtra Duty Class 5 Hitch, 2" Receiver, Select Chevrolet, GMC, Dodge, Ram Trucks
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2011 - 2025 | Ram 3500 | Cab & Chassis |

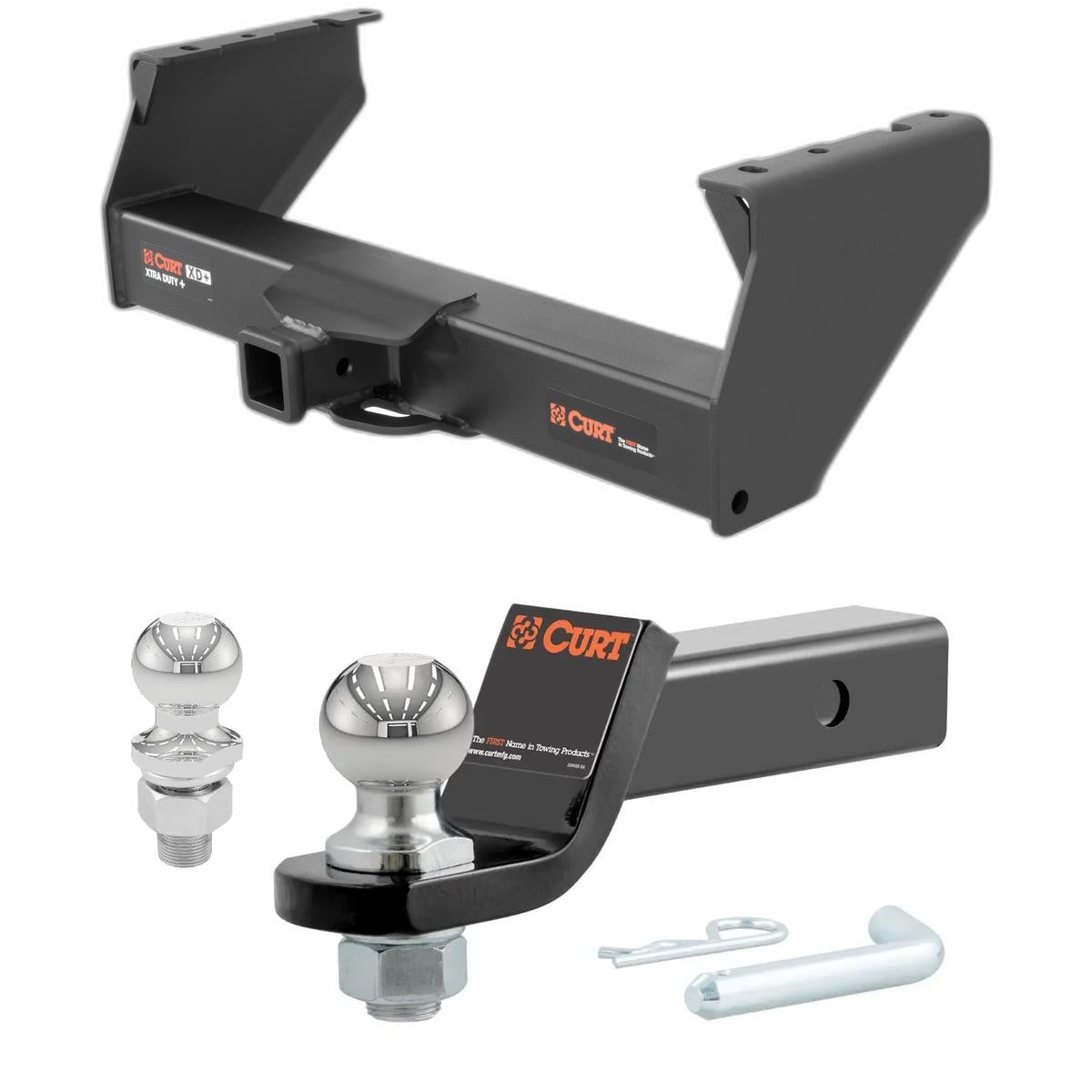

The 2011-2025 Ram 3500 Cab & Chassis Xtra Duty CURT Class 5 Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-15400-001) fits 2011-2025 Ram 3500 models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2011-2025 Ram 3500 Cab & Chassis Xtra Duty CURT Class 5 Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-15400-001) fits the following vehicles: 2011-2025 Ram 3500. Always verify your specific year, make, and model before ordering.
Yes, the 2011-2025 Ram 3500 Cab & Chassis Xtra Duty CURT Class 5 Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-15400-001) is designed to fit the 2011-2025 Ram 3500.
The 2011-2025 Ram 3500 Cab & Chassis Xtra Duty CURT Class 5 Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-15400-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the 15400 is designed for 2001-Present Chevrolet Silverado 3500 HD cab and chassis models with 34" wide frames. Confirm your frame width is 34" before purchasing.
Yes, the 15400 is compatible with 2008-Present Dodge Ram 4500/5500 HD cab and chassis models with 34" wide frames. Verify your frame width is 34" before installation.
Yes, the 15400 fits 2001-Present GMC Sierra 3500 HD cab and chassis with 34" wide frames. Ensure your frame width is 34" wide.
When used as a weight-carrying hitch, the 15400 has a gross load capacity of 17,000 lbs. trailer weight and 2,550 lbs. tongue weight. When used as a weight-distribution hitch, the capacity is also 17,000 lbs. trailer weight and 2,550 lbs. tongue weight. However, you must not exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
The hitch weight is 60 lbs.
The kit includes 6 M16x2 hex flange bolts (Class 10.9), 6 M16 flat washers, 6 M16 lock washers, and 6 M16x2 hex nuts. All fasteners are zinc-plated (YZ).
You will need: a ratchet, torque wrench, 21mm socket, drill, 25/32" drill bit, chisel, grinder, clamps, and center punch. Drilling is required for installation.
Yes. For Dodge chassis, remove the temporary license plate bracket and return bracket and hardware to the owner in Step 1. For Chevrolet/GMC models, this is also required on select models as part of Step 1a.
Yes, drilling is required. You must drill 3 holes on each side of the frame rail using a 25/32" drill bit. The hitch is used as a template to mark hole locations. On select GM models, you may need to enlarge existing holes instead of drilling new ones.
Yes. On all Dodge models, you must remove the rear-most rivet on the bottom of each frame rail. On select Chevrolet and GMC models, you must remove the rear-most rivet on the bottom of the frame rail approximately 3-1/2" from the end of the frame rails. Use a chisel and grinder to remove rivets.
On select Chevrolet and GMC models, you must remove the two rear-most fuel tank shield bolts from the frame rail and return the hardware to the owner. Support the fuel tank shield as necessary during this step. The hitch side plates will slide between the frame rail and fuel tank shield during installation.
All M16 hardware must be torqued to 195 ft-lbs. This applies to both Dodge and Chevrolet/GMC installations.
Raise the hitch into position and place the rear edges of the horizontal flanges flush with the end of the frame rails. Clamp the hitch to the frame rail before drilling.
You have two alignment options depending on your specific model: (a) Align the 1" diameter slot with the rivet on the bottom of the frame rail on each side and clamp in place, or (b) Align the rear-most rivet removed in Step 1c with the existing holes from Step 1b and clamp in place. The hitch side plates will slide between the frame rail and fuel tank shield. Choose the option that fits your application.
You must drill or enlarge 3 holes on each side of the frame rail, for a total of 6 holes. On select GM models, this includes holes in the fuel tank shield tab. Use the hitch as a template to mark hole locations.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This helps maintain safe operation and extends the life of the hitch.
No. You must not exceed your vehicle manufacturer's recommended towing capacity, even though the hitch is rated for 17,000 lbs. trailer weight and 2,550 lbs. tongue weight. Always follow your vehicle's towing limits.
The 15400 fits 2001-Present Chevrolet Silverado 3500 HD, 2001-Present GMC Sierra 3500 HD, 2007-Present Dodge Ram 3500 HD, and 2008-Present Dodge Ram 4500/5500 HD cab and chassis models with 34" wide frames.
Yes, drilling is required. You must drill 3 holes on each side using a 25/32" drill bit. A drill, chisel, grinder, clamps and center punch are required tools.
All M16 bolts must be torqued to 195 ft-lbs.
The hitch is rated for 17,000 lbs. trailer weight and 2,550 lbs. tongue weight. However, you must not exceed your vehicle manufacturer's recommended towing capacity.
On select Chevrolet and GMC models, you must remove the two rear-most fuel tank shield bolts. Support the fuel tank shield as necessary. The hitch side plates slide between the frame rail and shield.
