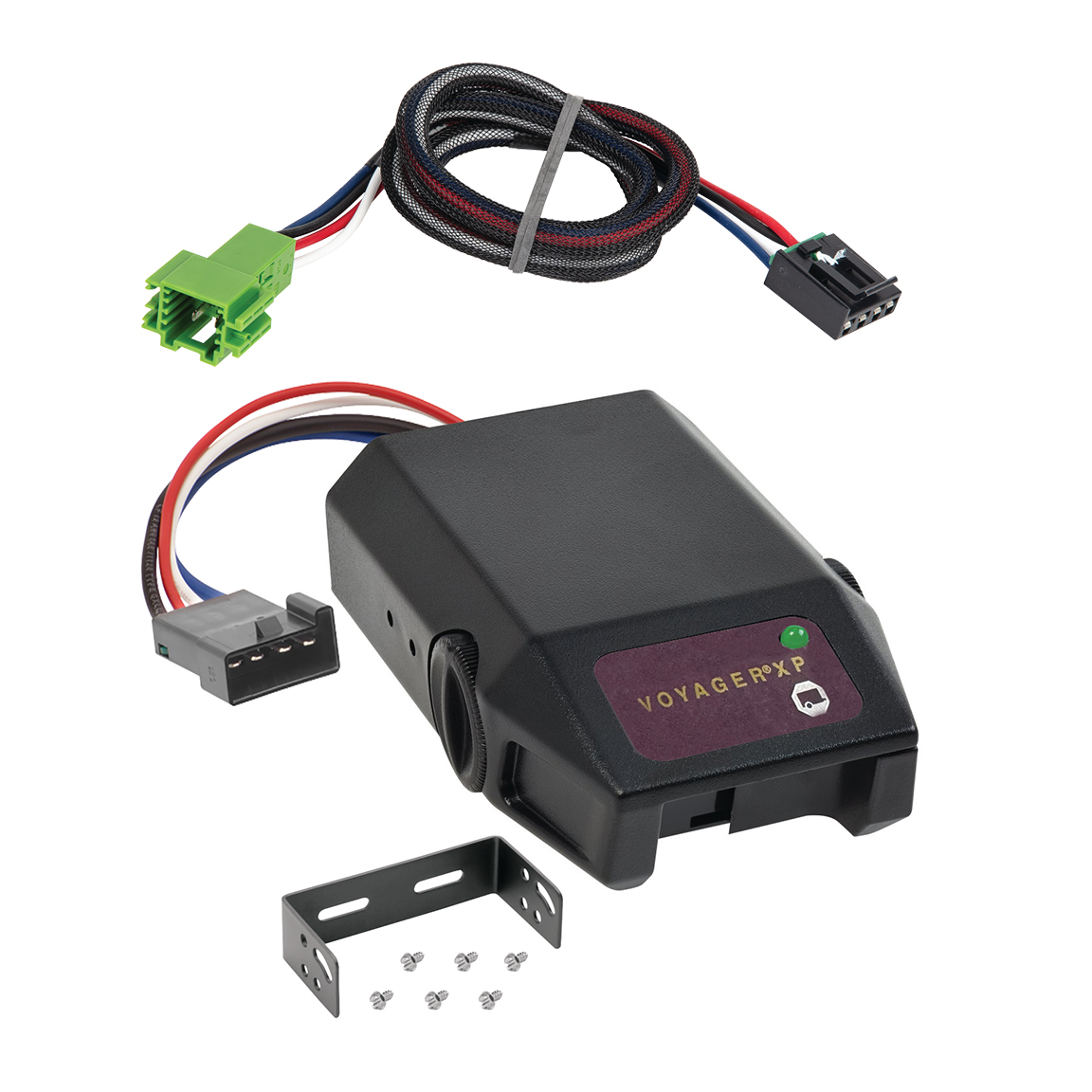

The Raybestos Voyager XP electric brake controller provides secure trailer braking when you need it most. As a tried-and-true proportional brake controller, the Voyager XP utilizes patented braking sensor technology and advanced electronics to provide a smooth braking response in any stopping situation. Its bi-colored LED brake indicator assures a complete connection between your vehicle and trailer, with the color changing gradually from green, which notes a completed circuit, to red to indicate relative braking power. This versatile controller has a compact design, a conveniently located power control knob to adjust settings, and a simple level knob for easy leveling during installation. Plus, the Voyager has a Plug & Play feature that allows for quick and easy connection with your vehicle?s wiring. The Raybestos Voyager XP trailer brake controller works with 1-4 axle trailers, comes with all the mounting hardware needed for installation.
| BRAND: | RAYBESTOS |
| PART NUMBER: | 761-9035 |
| WEIGHT: | 0.7 LBS |
| MATERIAL: | PLASTIC |
| BRAKE CONTROL TYPE: | PROPORTIONAL |
| TRAILER BRAKE WHEEL QUANTITY: | UP TO EIGHT WHEELS |
| LEVELING CAPABLE: | YES |
| BRAKE TYPE: | Electric |
| Diagnostic Capable: | YES |
| DISPLAY TYPE: | LED OUTPUT |
| HYDRAULIC CONNECTIONS: | NO |
| SOLID STATE CONSTRUCTION: | YES |
| CIRCUIT BREAKER PROTECTED: | YES |
| HOUSING COLOR: | BLACK |
| BRACKET INCLUDED: | YES |
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2012 - 2015 | Mercedes-Benz ML350 | w/Factory Tow Package |
The 2012-2015 Mercedes-Benz ML350 Raybestos Voyager XP Proportional Brake Controller for Trailers with 1 to 4 Axles Black 761-9035 (Part #761-9035 70354) fits the following vehicles: 2012-2015 Mercedes-Benz ML350. Always verify your specific year, make, and model before ordering.
The 2012-2015 Mercedes-Benz ML350 Raybestos Voyager XP Proportional Brake Controller for Trailers with 1 to 4 Axles Black 761-9035 (Part #761-9035 70354) fits 2012-2015 Mercedes-Benz ML350 models. The 2015 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2012-2015 Mercedes-Benz ML350 Raybestos Voyager XP Proportional Brake Controller for Trailers with 1 to 4 Axles Black 761-9035 (Part #761-9035 70354) is designed to fit the 2012-2015 Mercedes-Benz ML350.
The 2012-2015 Mercedes-Benz ML350 Raybestos Voyager XP Proportional Brake Controller for Trailers with 1 to 4 Axles Black 761-9035 (Part #761-9035 70354) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the 3066-037 Electric Trailer Brake Control Wiring Adapter is designed for Mercedes ML, GL, GLE SUV and GLS Series vehicles. The adapter connects to the vehicle's factory electric brake control harness located underneath the dash behind the brake pedal.

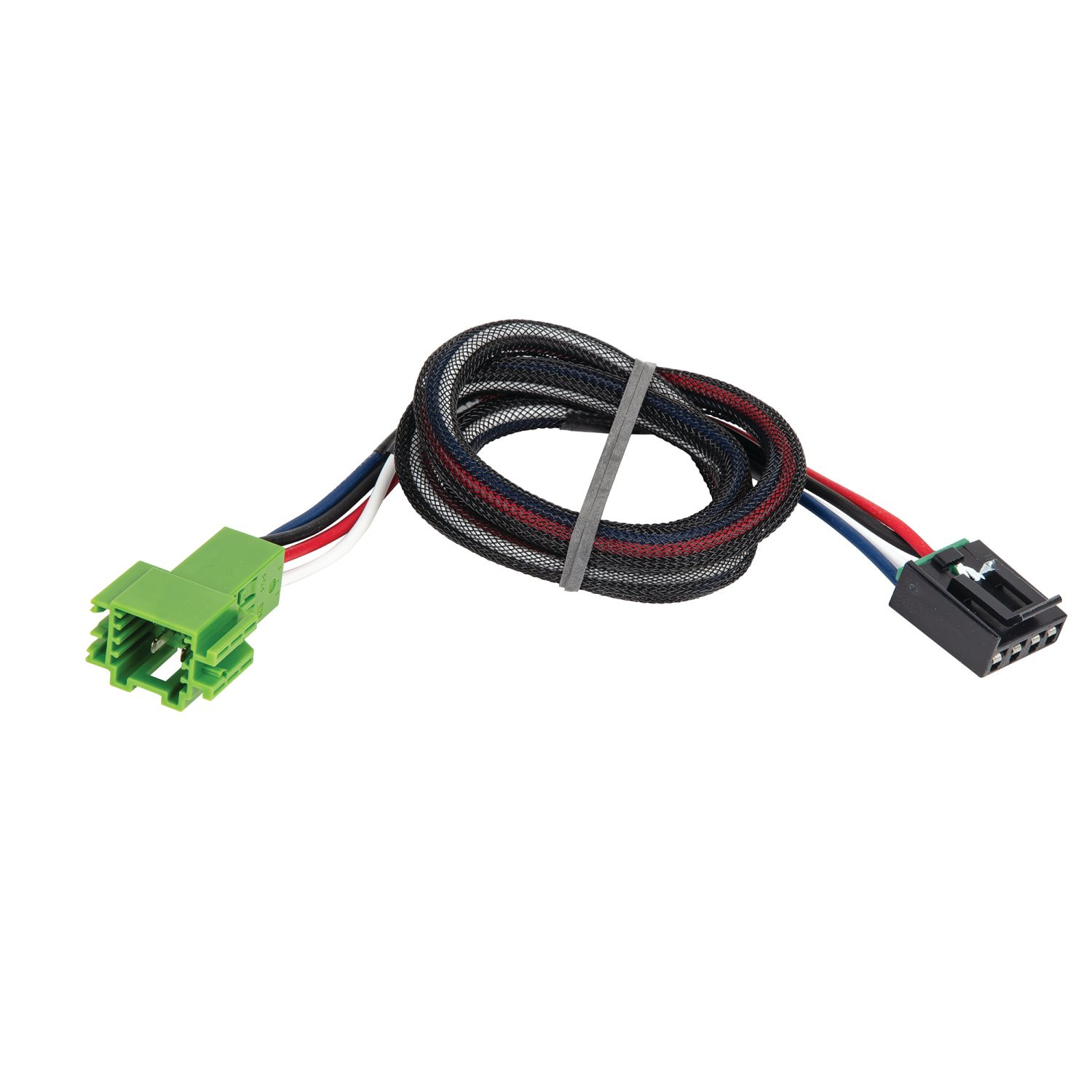

The 3066-037 is an Electric Trailer Brake Control Wiring Adapter that connects a trailer brake controller to your Mercedes vehicle's factory electric brake control system. It provides the interface between the aftermarket brake controller and the vehicle's 4-pin brake control harness connector located under the dash.
A trim panel remover is the only tool specified as required for installation. This tool is needed to access the vehicle's brake control harness located underneath the dash behind the brake pedal.
Before beginning installation, ensure the vehicle is completely off with the keys removed from the ignition. Always wear safety glasses during installation. Read and follow all warnings and instructions included with the brake control unit itself, as the adapter must be installed per the brake control manufacturer's specific instructions.
The vehicle's electric brake control harness is located underneath the dash. To access it, pull back the carpet behind the brake pedal to expose the 4-pin connector that mates with the adapter.
First, plug the brake control adapter into the mating receptacle on the backside of the brake control unit itself. Then, plug the adapter into the vehicle's 4-pin electric brake control harness connector located under the dash behind the brake pedal. This two-step connection prevents incorrect mating.
The adapter provides four connections: Trailer Brake Controller Output, Fused Trailer Brake Controller Battery Feed, Ground, and Vehicle Stop Lamp Switch to Brake Controller Input. The adapter housing contains female terminals on the wire side to accept the corresponding connections.
The adapter is rated for a maximum of 6 brakes (16 amps) on up to 3 axles. Do not exceed the lower of your towing manufacturer's rating (including the rating in your vehicle owner's manual) or this 16-amp specification. Overloading the circuit can cause fires.

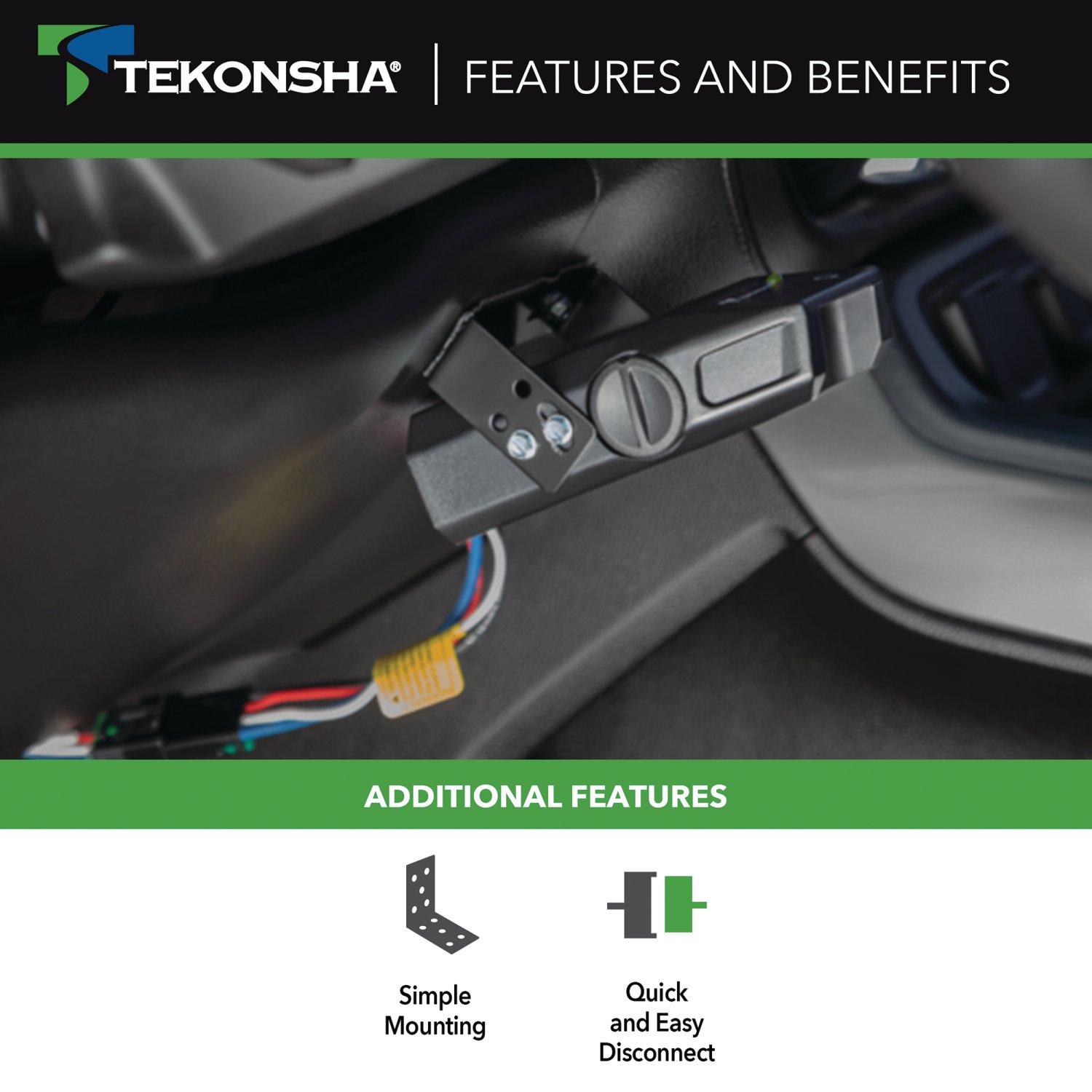

Route the wires and mount the brake controller carefully to avoid airbag deployment locations and any other points that may pinch or break the wire. Locate a routing path for the adapter to exit the bottom of the dash. Complete all routing and mounting per the brake control manufacturer's specific installation instructions.
After installation, perform all test procedures as instructed by the brake control manufacturer. The manual requires that you complete the installation per the electric brake control manufacturer's instructions and mount the unit as directed, then perform the test procedures they specify.
The 3066-037 is designed for Mercedes ML, GL, GLE SUV and GLS Series vehicles. It connects to the factory electric brake control harness under the dash.
You need a trim panel remover to access the brake control harness under the dash.
The manual does not specify battery disconnection. It requires only that the vehicle be off with keys removed from the ignition before beginning installation.
The adapter is rated for a maximum of 6 brakes (16 amps) on up to 3 axles. Do not exceed the lower of your towing manufacturer's rating or this specification.
First plug the adapter into the mating receptacle on the backside of the brake control unit, then plug it into the vehicle's 4-pin harness connector under the dash.
The adapter provides Trailer Brake Controller Output, Fused Trailer Brake Controller Battery Feed, Ground, and Vehicle Stop Lamp Switch to Brake Controller Input connections.
