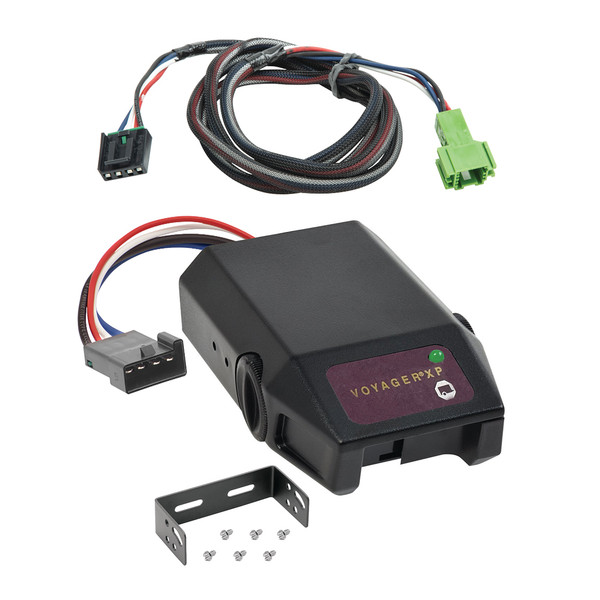

The Raybestos Voyager XP electric brake controller provides secure trailer braking when you need it most. As a tried-and-true proportional brake controller, the Voyager XP utilizes patented braking sensor technology and advanced electronics to provide a smooth braking response in any stopping situation. Its bi-colored LED brake indicator assures a complete connection between your vehicle and trailer, with the color changing gradually from green, which notes a completed circuit, to red to indicate relative braking power. This versatile controller has a compact design, a conveniently located power control knob to adjust settings, and a simple level knob for easy leveling during installation. Plus, the Voyager has a Plug & Play feature that allows for quick and easy connection with your vehicle?s wiring. The Raybestos Voyager XP trailer brake controller works with 1-4 axle trailers, comes with all the mounting hardware needed for installation.
| BRAND: | RAYBESTOS |
| PART NUMBER: | 761-9035 |
| WEIGHT: | 0.7 LBS |
| MATERIAL: | PLASTIC |
| BRAKE CONTROL TYPE: | PROPORTIONAL |
| TRAILER BRAKE WHEEL QUANTITY: | UP TO EIGHT WHEELS |
| LEVELING CAPABLE: | YES |
| BRAKE TYPE: | Electric |
| Diagnostic Capable: | YES |
| DISPLAY TYPE: | LED OUTPUT |
| HYDRAULIC CONNECTIONS: | NO |
| SOLID STATE CONSTRUCTION: | YES |
| CIRCUIT BREAKER PROTECTED: | YES |
| HOUSING COLOR: | BLACK |
| BRACKET INCLUDED: | YES |
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2012 - 2021 | Mercedes-Benz Sprinter | Except 2500 & 3500 |
The 2012-2021 Mercedes-Benz Sprinter Raybestos Voyager XP Proportional Brake Controller for Trailers with 1 to 4 Axles Black 761-9035 (Part #761-9035 70243) fits 2012-2021 Mercedes-Benz Sprinter models. The 2021 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2012-2021 Mercedes-Benz Sprinter Raybestos Voyager XP Proportional Brake Controller for Trailers with 1 to 4 Axles Black 761-9035 (Part #761-9035 70243) fits the following vehicles: 2012-2021 Mercedes-Benz Sprinter. Always verify your specific year, make, and model before ordering.
Yes, the 2012-2021 Mercedes-Benz Sprinter Raybestos Voyager XP Proportional Brake Controller for Trailers with 1 to 4 Axles Black 761-9035 (Part #761-9035 70243) is designed to fit the 2012-2021 Mercedes-Benz Sprinter.
The 2012-2021 Mercedes-Benz Sprinter Raybestos Voyager XP Proportional Brake Controller for Trailers with 1 to 4 Axles Black 761-9035 (Part #761-9035 70243) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

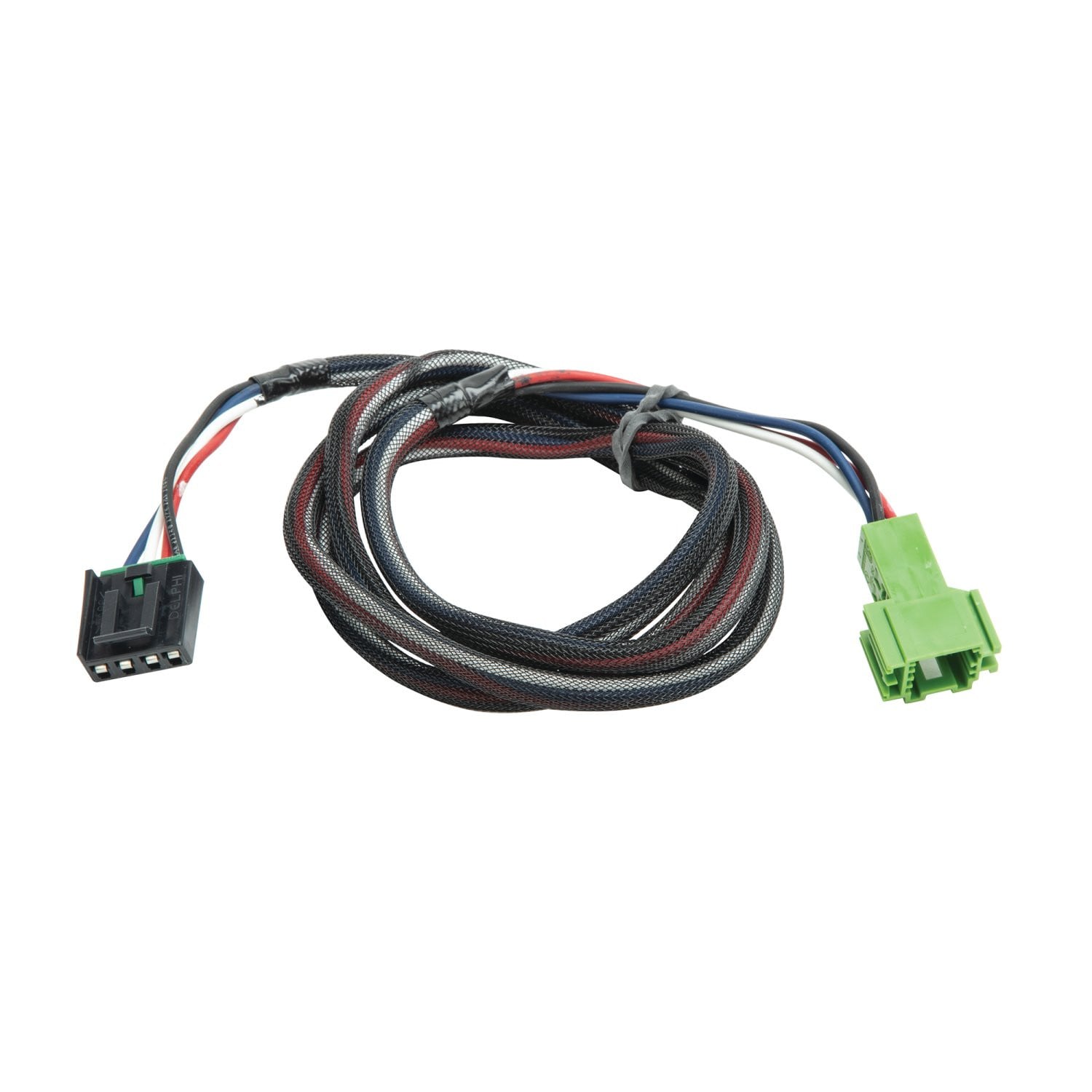

The 3030-037 Electric Trailer Brake Control Wiring Adapter is designed for Mercedes Sprinter vehicles. However, your vehicle must be equipped with an OEM trailer tow package, which includes a green 4-pin connector located under the driver side seat. If your Sprinter does not have this connector, the adapter will not be compatible.
Vehicles not equipped with an OEM trailer tow package will not have the green 4-pin connector. If your Sprinter lacks this connector, the 3030-037 adapter cannot be installed. You should verify with your vehicle's documentation or a Mercedes dealer whether your vehicle includes the OEM trailer tow package before purchasing this adapter.
You will need: a trim panel remover, a Philips screwdriver, and wire cutters.
Removal of the driver side seat may be required to access the green 4-pin connector located under the seat. The manual notes this as a possibility but does not state it is always necessary. You should first attempt to locate and access the connector without removing the seat; if you cannot reach it, seat removal will be needed.
1. Turn off the vehicle and remove the keys from the ignition. 2. Locate the green 4-pin connector under the driver side seat (you may need to remove the seat to access it). 3. Plug the brake control adapter into the vehicle's electric brake control harness connector. 4. Follow all brake control manufacturer's installation instructions for routing and mounting the unit. 5. Perform test procedures as instructed by the brake control manufacturer. 6. Replace all parts removed during installation and ensure all fasteners are reinstalled in their original positions.
Yes. The 3030-037 is a wiring adapter only. You must follow all installation instructions provided by the electric brake control manufacturer, including how to mount the unit, route the adapter to exit the bottom of the dash, and perform test procedures. The adapter simply connects your vehicle's electric brake control harness to the brake control unit.
The maximum amperage rating is 24 amps, which corresponds to a maximum of 4 axles and 8 brakes. However, you must not exceed the lower of either the towing manufacturer's rating (as stated in your vehicle's owner's manual) or this 24 amp specification. Exceeding this limit can cause fires.
Always wear safety glasses during installation. Read and understand all warnings and instructions printed on the tow vehicle's battery before beginning. Follow all warnings and instructions included with the adapter purchase. Do not exceed the amperage ratings stated on the product or in your vehicle's owner's manual, as overloading the circuit can cause fires.
The vehicle must be off with the keys removed from the ignition before you begin installation.
You must replace all parts removed during installation and ensure all fasteners removed are reinstalled into their original positions.
Yes, the 3030-037 is designed for Mercedes Sprinter with OEM trailer tow package. Your vehicle must have a green 4-pin connector under the driver side seat. Vehicles without the OEM tow package will not have this connector and cannot use this adapter.
You need a trim panel remover, Philips screwdriver, and wire cutters.
The maximum is 24 amps (4 axles, 8 brakes). Do not exceed the lower of this rating or your towing manufacturer's rating, as overloading can cause fires.
