Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2013-2020 Ford Fusion Excluding Sport

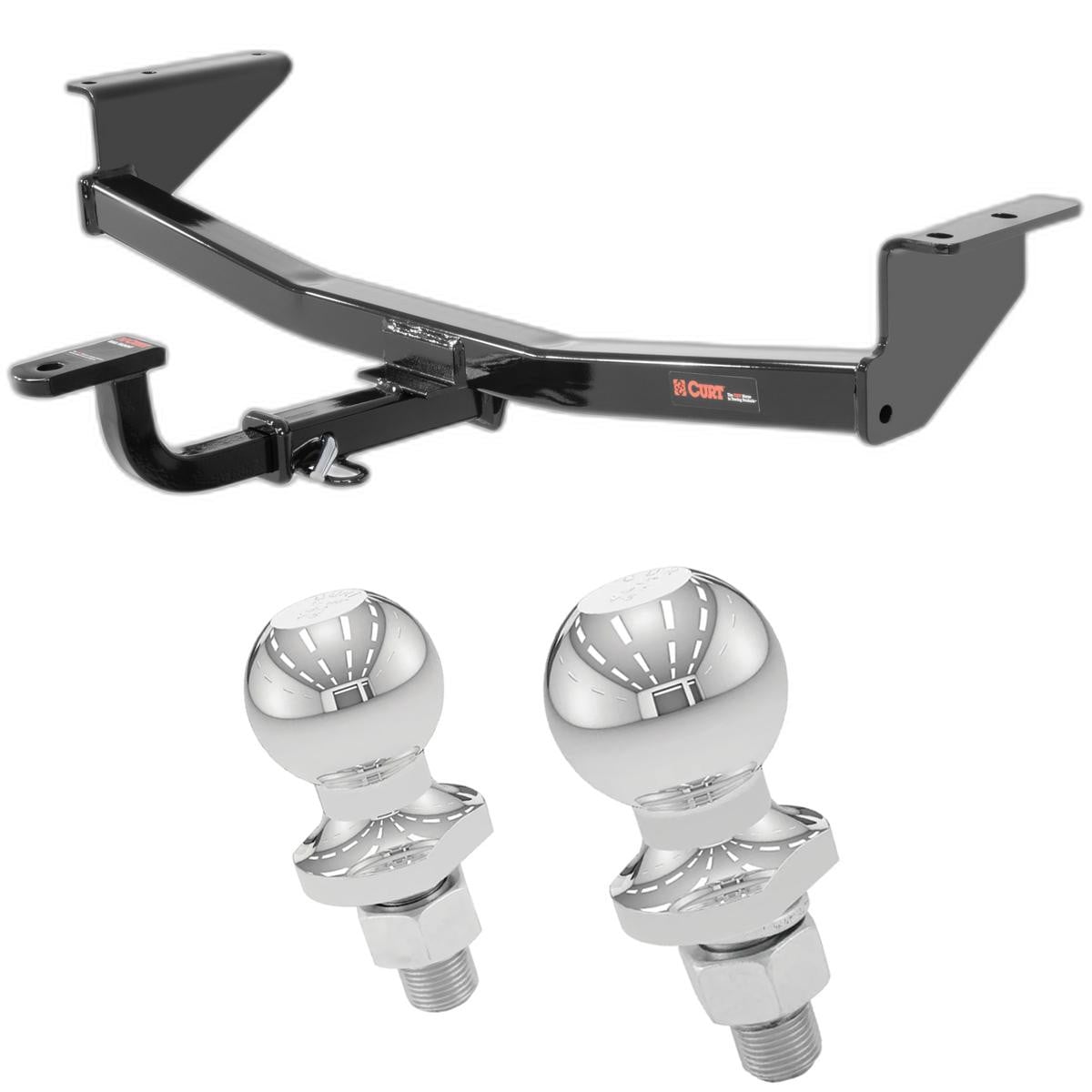

A CURT trailer hitch is the key to pursuing your passions, whether you're taking the family boat out for an afternoon on the water or packing up the mountain bikes for a day on the trails. This CURT class 2 hitch is perfect for towing a small trailer, such as a boat trailer, lightweight camper or utility trailer. It can also be used to mount a hitch cargo carrier or bike rack (never exceed the lowest-rated towing component). Like all CURT custom hitches, this class 2 trailer hitch is made for a vehicle-specific fit. It is engineered to seamlessly integrate with select years of the Ford Fusion and Lincoln MKZ (see application info to verify fitment). It is rated for 3,500 pounds gross trailer weight and 350 pounds tongue weight. It is also equipped with 1-1/4" x 1-1/4" hitch receiver to accept the included ball mount. The ball mount that comes with this hitch kit has a 3/4" trailer ball hole and can be positioned in the drop or rise orientation for level towing with your specific trailer (trailer ball not included). Like all CURT custom receiver hitches, this class 2 hitch is designed, manufactured, finished and tested with the utmost care. It is engineered for a precise fit, easy installation, maximum towing strength and an integrated look on the vehicle. It is also tested to SAE J684 protocols for safety. This class 2 trailer hitch is finished with our industry-leading dual-coat process for unparalleled rust, chip and UV resistance. It is descaled for a smooth surface, submersed in liquid A-coat for rust prevention inside and out, covered with a highly durable powder coat, and finally co-cured for a dependable shield against the elements. This class 2 hitch comes with a ball mount, hitch pin and mounting hardware for a complete installation.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes ball mount #45016, installation hardware, pin & clip
2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020 Ford Fusion Excluding Sport Class 2 Trailer Hitch, 1-1/4" Ball Mount, Select Ford Fusion, Lincoln MKZ
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2013 - 2020 | Ford Fusion | Excluding Sport |
The 2013-2020 Ford Fusion Excluding Sport Class 2 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-120913-001) fits 2013-2020 Ford Fusion models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2013-2020 Ford Fusion Excluding Sport Class 2 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-120913-001) is designed to fit the 2013-2020 Ford Fusion.
The 2013-2020 Ford Fusion Excluding Sport Class 2 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-120913-001) fits the following vehicles: 2013-2020 Ford Fusion. Always verify your specific year, make, and model before ordering.
The 2013-2020 Ford Fusion Excluding Sport Class 2 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-120913-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the CURT 12091 is designed for Ford Fusion Sedan models from 2013 to present. Before purchasing, confirm your vehicle year and body style match this specification.
The CURT 12091 is rated for a maximum of 3500 lbs trailer weight and 350 lbs tongue weight when used as a weight-carrying hitch. You must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than the hitch rating.
You will need: 7mm and 10mm sockets, 3/4" socket, ratchet, torque wrench, and safety glasses. A socket set, part removal tool, and 1/2" fishwire are also required. Using proper tools will greatly improve installation quality and reduce time required.
No, drilling is not required. The hitch uses existing access holes in the frame rails on both sides of the vehicle. The installation uses fishwiring to route the bolts and spacer blocks through these access holes.
The kit includes: 4 hex flange nuts (HFN 1213, GR8), 4 carriage bolts (1/2-13 x 1 1/2, GR8), 4 spacers (CM-SP10, .250 x 1.00 x 2.50"), and 4 pieces of 1/2" fishwire. An optional ball mount (D-45501 or 45501) is available separately and is designed for use with Euro mounts 45562 (2" ball) or 45561 (1 7/8" ball).
Before beginning installation, read all instructions thoroughly. Then remove the lower rear air deflector by removing 4 ten-millimetre nuts and 6 seven-millimetre screws from the lower body fascia. Keep the fascia piece and hardware to return to the customer.
Use the 1/2" fishwire to thread the 1/2" bolts and spacer blocks through the access hole on each side of the vehicle frame rail. The fishwire acts as a guide to pull the bolts through the frame from the inside to the outside.
Raise the hitch into position and secure it with the 1/2" hex flange nuts on both the driver and passenger sides. Do not fully tighten at this stage.
All 1/2" hardware (carriage bolts and hex flange nuts) must be torqued to 110 lb-ft. Use a calibrated torque wrench to ensure proper tightness.
Two people may be required to ease installation. While one person may be able to complete the installation, having a second person can help with positioning the hitch and managing the fishwiring process.
Safety glasses must be worn at all times while installing this product. Read all instructions thoroughly before beginning. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance.
All non-trailer loads (wheel-less loads) applied to this hitch must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. See the CURT catalog or visit www.curtmfg.com for further information.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This ongoing inspection helps maintain the integrity and safety of the installation.
CURT Manufacturing LLC. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT may repair or replace it at their option when returned prepaid with proof of purchase. Alteration, misuse, or improper installation voids the warranty. CURT's liability is limited to repair or replacement and excludes incidental or consequential loss or damage.
Call CURT Technical Support at 1-800-798-0813. You can also visit www.curtmfg.com for more information or www.hitchinfo.com for helpful towing tips.
The CURT 12091 is designed for use with optional ball mount D-45501 or 45501, which are compatible with CURT Euro mounts 45562 (2" ball) and 45561 (1 7/8" ball). These are sold separately.
Yes, the CURT 12091 is designed for Ford Fusion Sedan models 2013-present.
No, drilling is not required. The hitch uses existing frame rail access holes.
All 1/2" hardware must be torqued to 110 lb-ft using a calibrated torque wrench.
The hitch is rated for 3500 lbs trailer weight and 350 lbs tongue weight, but you must never exceed your vehicle manufacturer's recommended towing capacity.
Two people may be required to ease installation, though one person may be able to complete it.
Yes, CURT 18050 stabilizing straps are required for all non-trailer (wheel-less) loads. Failure to use them voids the warranty.
