Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2014-2019 Subaru Outback 2.5i

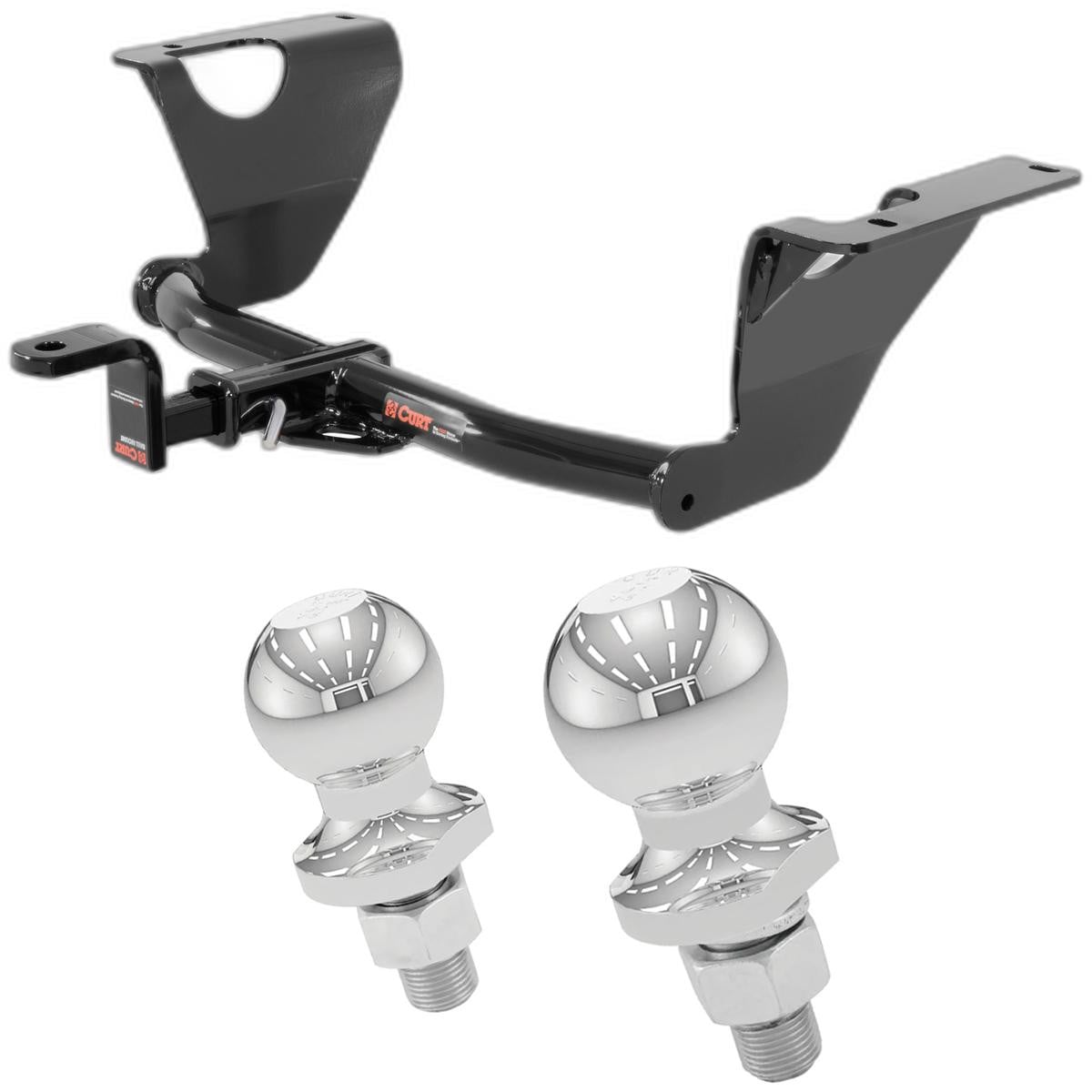

A CURT trailer hitch is the key to pursuing your passions, whether you're taking the family boat out for an afternoon on the water or packing up the mountain bikes for a day on the trails. This CURT class 2 hitch is perfect for towing a small trailer, such as a boat trailer, lightweight camper or utility trailer. It can also be used to mount a hitch cargo carrier or bike rack (never exceed the lowest-rated towing component). Like all CURT custom hitches, this class 2 trailer hitch is made for a vehicle-specific fit. It is engineered to seamlessly integrate with select years of the Subaru Outback (see application info to verify fitment). It is rated for 3,500 pounds gross trailer weight and 350 pounds tongue weight. It is also equipped with 1-1/4" x 1-1/4" hitch receiver to accept the included ball mount. The ball mount that comes with this hitch kit has a 3/4" trailer ball hole and can be positioned in the drop or rise orientation for level towing with your specific trailer (trailer ball not included). Like all CURT custom receiver hitches, this class 2 hitch is designed, manufactured, finished and tested with the utmost care. It is engineered for a precise fit, easy installation, maximum towing strength and an integrated look on the vehicle. It is also tested to SAE J684 protocols for safety. This class 2 trailer hitch is finished with our industry-leading dual-coat process for unparalleled rust, chip and UV resistance. It is descaled for a smooth surface, submersed in liquid A-coat for rust prevention inside and out, covered with a highly durable powder coat, and finally co-cured for a dependable shield against the elements. This class 2 hitch comes with a ball mount, hitch pin and mounting hardware for a complete installation.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes ball mount #45521, installation hardware, pin & clip
2014, 2015, 2016, 2017, 2018, 2019 Subaru Outback 2.5i Class 2 Trailer Hitch, 1-1/4" Ball Mount, Select Subaru Outback
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2014 - 2019 | Subaru Outback | 2.5i |
The 2014-2019 Subaru Outback 2.5i Class 2 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-121363-004) fits the following vehicles: 2014-2019 Subaru Outback. Always verify your specific year, make, and model before ordering.
The 2014-2019 Subaru Outback 2.5i Class 2 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-121363-004) fits 2014-2019 Subaru Outback models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2014-2019 Subaru Outback 2.5i Class 2 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-121363-004) is designed to fit the 2014-2019 Subaru Outback.
The 2014-2019 Subaru Outback 2.5i Class 2 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-121363-004) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, Curt part number 12136 is designed for 2014-present Subaru Outback Wagon models. The hitch is a weight-carrying receiver hitch with a maximum trailer weight capacity of 3,500 lbs and tongue weight capacity of 350 lbs. Always verify that your specific vehicle year and model match before purchasing.
The Curt 12136 is rated for a maximum trailer weight of 3,500 lbs and a tongue weight of 350 lbs when used as a weight-carrying hitch. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than the hitch rating.
The Curt 12136 is designed for use with ball mount #45521. Euro mount options are also available: #45571 (1 7/8" ball) and #45572 (2" ball).
Required tools are: 10mm and 19mm sockets, 8" extension, ratchet, torque wrench, power drill with 17/32" drill bit, rotary tool with carbide bit, and tin snips or file. Safety glasses must be worn at all times during installation.
The kit includes: 4 carriage bolts (1/2-13 x 1 1/2), 4 square hole spacers (CM-SP6, .250 x 1.00 x 3.00"), 4 hex flange nuts (HFN 1213), and 2 pieces of 1/2" fishwire.
Yes. The first installation step requires lowering the exhaust by removing the 3 rearmost rubber exhaust isolators from the frame-mounted hangers. You must support the exhaust during installation to prevent damage. The exhaust is then reinstalled in the final step.
Yes, drilling is required. You must enlarge the forward hole on each frame rail using a 17/32" drill bit to allow the carriage bolt and spacer to be inserted. Additionally, you must drill the forwardmost holes in the frame rail using the hitch as a template. These modifications are permanent.
Yes. You must remove the muffler heat shield and trim it to clear the hitch mounting plate. According to the Heat Shield Trim Diagram, trim along the bend line, removing 1.125 inches and 0.250 inches as indicated. This modification is permanent.
The forward hole on each frame rail must be enlarged to 1.125 inches. The existing hole is 0.300 inches. This enlargement allows the carriage bolt and spacer to be inserted into the frame rail.
Two people may be required to ease installation. While one person may be able to complete the installation, having a second person can help with positioning the hitch and supporting components during the process.
All 1/2" hardware must be torqued to 110 ft-lbs. This includes the carriage bolts and hex flange nuts that secure the hitch to the frame rails.
All non-trailer (wheel-less) loads applied to the hitch must be supported by Curt 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. Curt recommends the use of 18050 stabilizing straps for all non-trailer loads.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This ongoing inspection helps maintain the integrity and safety of the installation.
Fishwire is used to guide carriage bolts and spacers into the frame rail holes. In step 4, you fishwire a carriage bolt and spacer into the rearmost hole in each frame rail. In step 7, after drilling the forward holes, you fishwire a carriage bolt and spacer into each newly drilled hole. The fishwire is then removed before securing with hex flange nuts.
The installation sequence is: (1) lower the exhaust by removing 3 rubber isolators; (2) remove and trim the muffler heat shield; (3) remove 2 rubber plugs from each frame rail and enlarge the forward hole; (4) fishwire a carriage bolt and spacer into the rearmost hole in each frame rail; (5) raise the hitch into position and center it, then loosely secure with hex flange nuts; (6) mark and drill the forward holes in the frame rail using the hitch as a template; (7) fishwire a carriage bolt and spacer into each drilled hole and secure with hex flange nuts; (8) torque all 1/2" hardware to 110 ft-lbs; (9) reinstall the heat shield, raise the exhaust, and reinstall the rubber isolators.
Yes. In step 5, after raising the hitch into position, you must center the hitch on the vehicle before loosely securing it with hex flange nuts. This ensures proper alignment before the forward holes are drilled and final fasteners are installed.
Fasteners are initially loosely secured in step 5 to allow for hitch centering and template drilling. They are fully tightened only in step 8, after all holes have been drilled and all carriage bolts and spacers are in place. All 1/2" hardware must be torqued to 110 ft-lbs at this final step.
Yes, the Curt 12136 is designed for 2014-present Subaru Outback Wagon models with a 3,500 lbs trailer weight and 350 lbs tongue weight capacity.
Yes, you must remove and trim the muffler heat shield to clear the hitch mounting plate, removing 1.125 inches and 0.250 inches as shown in the Heat Shield Trim Diagram.
Required tools: 10mm and 19mm sockets, 8" extension, ratchet, torque wrench, power drill with 17/32" bit, rotary tool with carbide bit, and tin snips or file. Safety glasses must be worn.
All 1/2" hardware must be torqued to 110 ft-lbs.
Maximum trailer weight is 3,500 lbs and tongue weight is 350 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
