Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

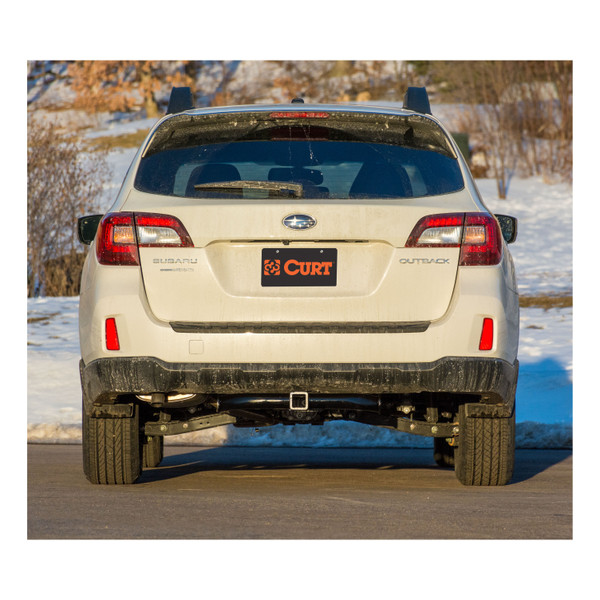

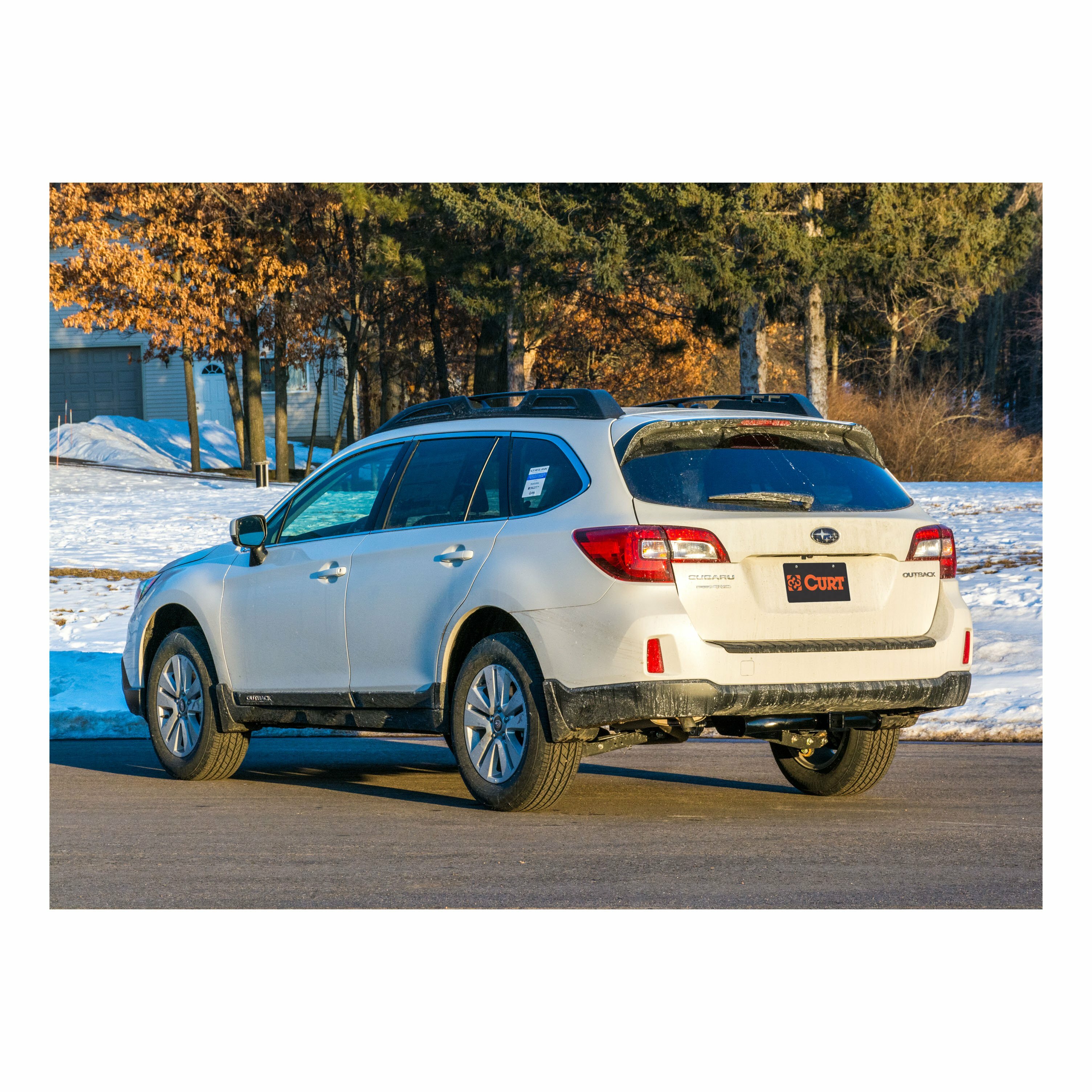

This fits: 2014-2019 Subaru Outback All
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Subaru Outback (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 4,000 lbs. GTW and 600 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes installation hardware

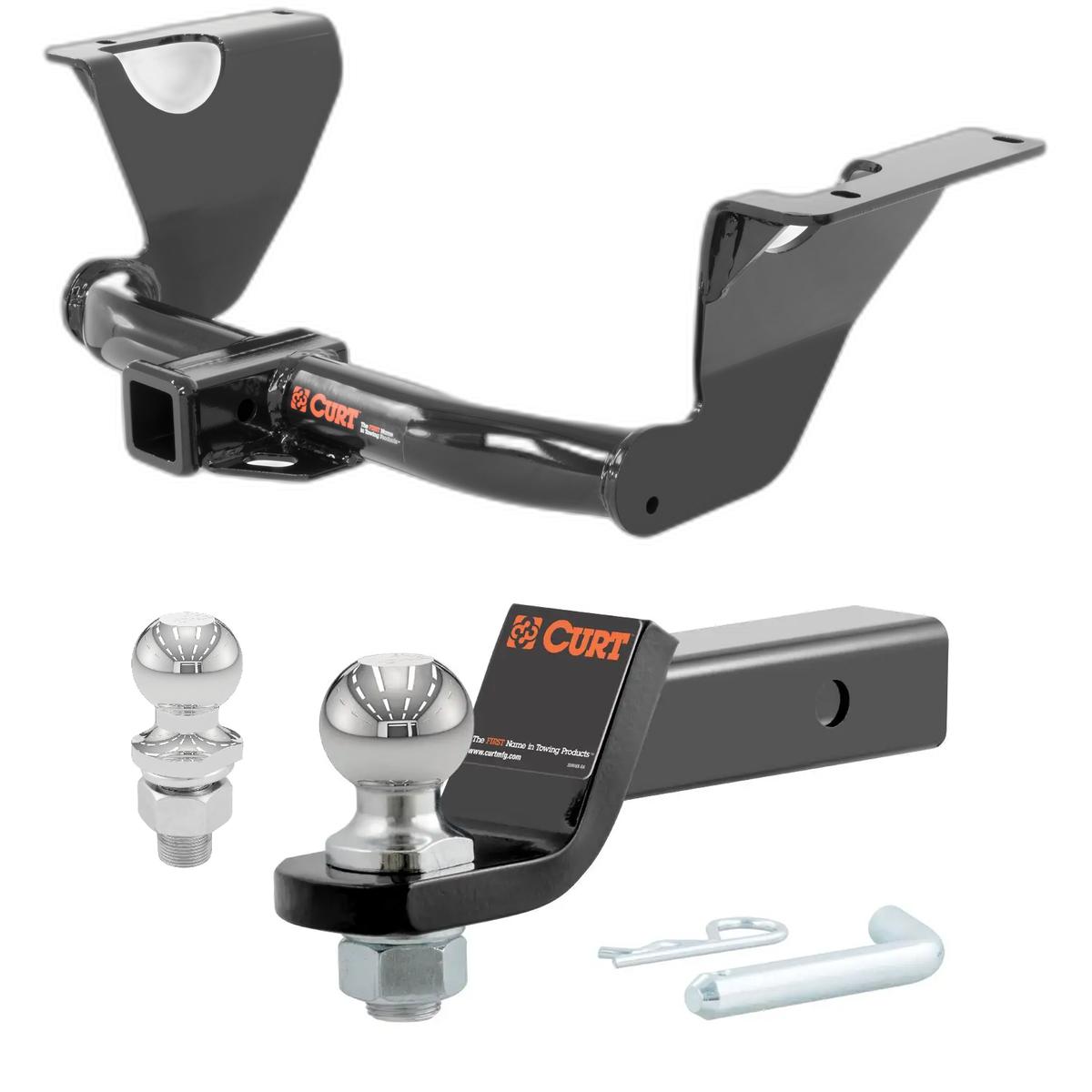

2014, 2015, 2016, 2017, 2018, 2019 Subaru Outback All Class 3 Hitch, 2" Receiver, Select Subaru Outback (Exposed Main Body, Drilling)
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2014 - 2019 | Subaru Outback | — |
The CURT 13206 has a gross trailer weight (GTW) capacity of 4,000 lbs and a tongue weight (TW) capacity of 600 lbs.
Yes, CURT stands behind its products with industry-leading warranties. To get copies of product warranties, register your purchase, or provide feedback, visit warranty.curtgroup.com/surveys.
The manual does not specify vehicle make, model, or year compatibility. Contact CURT product support at 877.287.8634 or consult a fitment database before purchasing.
Required tools are: ratchet, torque wrench, 8" socket extension, drill, 10mm socket, 19mm socket, 7/16" drill bit, aviation shears, rotary tool, and safety glasses. For a complete tools reference guide, visit curtmfg.com/trailer-hitch-installation.
Yes, a torque wrench is required. All 1/2" hardware must be torqued to 110 ft-lbs during final assembly.
The kit includes: 4 carriage bolts (1/2"-13 x 1-1/2", grade 8), 4 square-hole spacers (1/4" x 1" x 3"), 4 serrated-flange nuts (1/2"-13), and 2 fishwire tools (1/2").
The installation difficulty is rated as Moderate. Installation difficulty levels are based on time and effort involved and may vary depending on installer expertise, vehicle condition, and availability of proper tools and equipment.
Yes. Step 1 requires lowering the exhaust by removing the three rearmost rubber exhaust isolators from the frame-mounted hangers. You must support the exhaust during installation to prevent damage.
Use a 5/8" open-end wrench: slide it up to the rubber isolator, cradling the hanger rod. Place the flat edge of a pry bar between the wrench and the hanger stop or hanger rod, then rotate the pry bar toward the wrench to remove the isolator. Using lubricant or soapy water on the hanger rod and isolator helps removal.
Yes, drilling is required. The installation requires drilling the forwardmost holes in each frame rail (Step 6) and enlarging the existing forwardmost hole on each frame rail to 1.125" to accommodate the 1/2" carriage bolt and square-hole spacer (Step 3). A 7/16" drill bit is provided.
Yes. Step 2 requires removing the muffler heat shield and trimming it to clear the mounting plate along the bend line shown in the diagram.
The forwardmost hole on each frame rail must be enlarged to 1.125" to allow the 1/2" carriage bolt and square-hole spacer to be inserted into the frame rail. See the Hole Enlargement Diagram on page 3.
The fishwire technique is used to guide the carriage bolt and square-hole spacer through the frame rail without losing them inside the frame. Insert the coiled end of the fishwire through the hitch mounting hole in the vehicle frame rail and out the access hole. Pass the coiled end through the spacer and thread the bolt into the coil. Kink the wire to keep the spacer separate from the bolt, then pull the fishwire, spacer, and bolt through the frame and out the mounting hole. The fishwire also guides the hitch during mounting.
Installation proceeds in this order: (1) Lower the exhaust by removing three rearmost rubber isolators; (2) Remove and trim the muffler heat shield; (3) Remove rubber plugs and enlarge the forwardmost hole on each frame rail to 1.125"; (4) Fishwire a carriage bolt and spacer into the rearmost hole in each frame rail, leaving fishwire attached; (5) Raise the hitch into position, center it, remove fishwire, and loosely secure with serrated-flange nuts; (6) Mark and drill the forwardmost holes using the hitch as a guide, then fishwire bolts and spacers into each drilled hole and secure with serrated-flange nuts; (7) Torque all 1/2" hardware to 110 ft-lbs, reinstall the heat shield, raise the exhaust, and reinstall the rubber isolators.
Yes. In Step 5, after raising the hitch into position, you must center the hitch on the vehicle before loosely securing it with the serrated-flange nuts.
All 1/2" hardware (carriage bolts and serrated-flange nuts) must be torqued to 110 ft-lbs. This torque is applied in Step 7 after the hitch is positioned and all bolts are installed.
The kit includes four carriage bolts, 1/2"-13 x 1-1/2", grade 8.
Safety glasses must be worn at all times while installing this product. The exhaust must be supported during installation to prevent damage. Never exceed the vehicle manufacturer's recommended towing capacity. CURT recommends using CURT #18050 stabilizing straps for all non-trailer (wheel-less) loads.
Never exceed the vehicle manufacturer's recommended towing capacity. The CURT 13206 has a gross trailer weight capacity of 4,000 lbs and tongue weight capacity of 600 lbs, but your vehicle's manufacturer may specify a lower limit.
Periodic inspection of the trailer hitch should be performed to ensure all mounting hardware remains tight and structural components are secure. The manual does not specify the inspection interval.
The manual specifies that periodic inspection should be performed to ensure all mounting hardware remains tight and structural components are secure. No other maintenance procedures are detailed in the manual.
