Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2015-2019 Land Rover Discovery Sport Excluding 5+2 seating
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Land Rover Discovery Sport (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 4,500 lbs. GTW and 675 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes installation hardware (installation requires temporary panel removal, exhaust lowering and panel trimming)
2015, 2016, 2017, 2018, 2019 Land Rover Discovery Sport Excluding 5+2 seating Class 3 Trailer Hitch, 2" Receiver, Select Land Rover Discovery Sport
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2019 | Land Rover Discovery Sport | Excluding 5+2 seating |

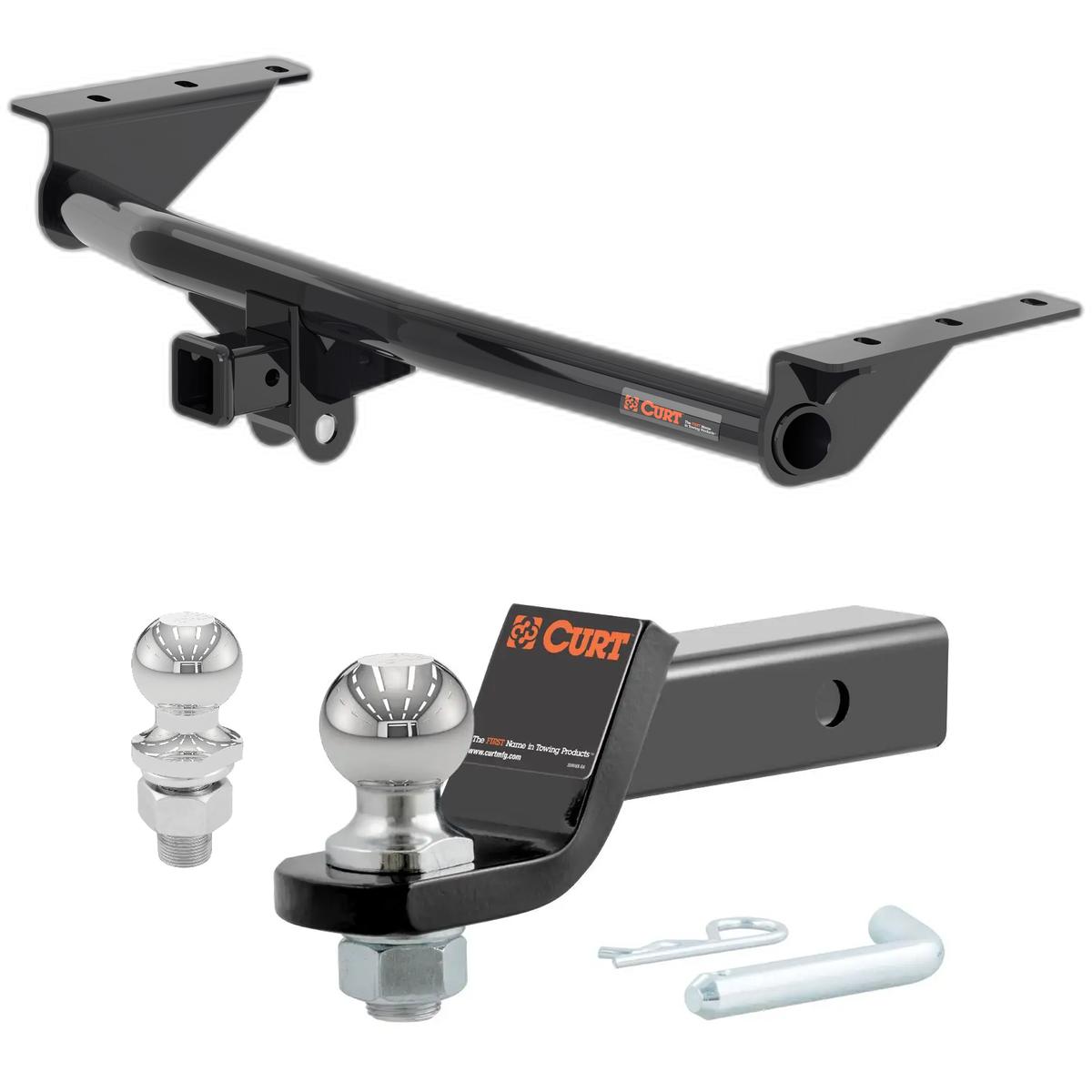

The 2015-2019 Land Rover Discovery Sport Excluding 5+2 seating CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13396-001) fits 2015-2019 Land Rover Discovery Sport models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2015-2019 Land Rover Discovery Sport Excluding 5+2 seating CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13396-001) is designed to fit the 2015-2019 Land Rover Discovery Sport.
The 2015-2019 Land Rover Discovery Sport Excluding 5+2 seating CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13396-001) fits the following vehicles: 2015-2019 Land Rover Discovery Sport. Always verify your specific year, make, and model before ordering.
The 2015-2019 Land Rover Discovery Sport Excluding 5+2 seating CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13396-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT part number 13396 is designed for 2015-present Land Rover Discovery Sport SUVs. The manual confirms fitment for this model and year range.
Yes. The manual states the hitch is designed for 2015-present Land Rover Discovery Sport, which includes 2024 models.
The CURT 13396 is rated for a maximum trailer weight of 4,500 lbs and tongue weight of 675 lbs when used as a weight-carrying hitch. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
No. The manual explicitly states 'NO DRILLING REQUIRED' for this installation.
You will need: ratchet, torque wrench, 6-inch socket extension, 10mm socket, 18mm socket, 22mm socket, die grinder with cut-off wheel, masking tape or marker, tape measure, and safety glasses. The manual notes that using proper tools will greatly improve installation quality and reduce installation time.
The kit includes 6 flat washers (part 30-00131), 6 lock washers (part 30-00132), and 6 hex bolts (part 10-10471). These fasteners are used to secure the hitch to the frame.
Two people may be required to ease installation. The manual notes this as a helpful tip to improve the installation experience.
Professional installation takes approximately 90 minutes. Novice (DIY) installation takes approximately 45 minutes. These times assume you have the proper tools and follow all instructions.
The installation is rated as moderate to challenging. Part removal is easy, but the underbody panel and lower bumper cover fascia removal is moderate, and the lower exhaust work is challenging. The manual recommends reading all instructions thoroughly before beginning and suggests contacting an authorized CURT installer if you are hesitant to undertake the task.
Yes. You must remove the plastic underbody panel and lower bumper cover fascia to access the frame for hitch installation. This requires removing 8 nuts and 10 bolts using a 10mm socket.
Yes, you must remove the lower exhaust hangers. Remove 1 bolt attaching the rubber exhaust isolator brackets to the frame using a 10mm socket, lift the brackets off, and remove 1 rubber exhaust hanger further forward under the vehicle. The manual emphasizes that you must support the forward exhaust when removing hangers to prevent damage.
If present, there are 2 hex flange bolts on the passenger side of the frame. The manual instructs you to remove these using an 18mm socket and return them to the vehicle owner. These appear to be factory fasteners that must be removed to allow hitch installation.
Raise the hitch into position and loosely install the 6 supplied hex bolts with lock washers and flat washers using a 22mm socket. Do not fully tighten at this stage. Once all bolts are installed loosely, torque all 14mm fasteners to 88 lb-ft.
All 14mm fasteners must be torqued to 88 lb-ft. Install the bolts loosely first, then apply final torque once all 6 bolts are in place.
Yes. You must trim the plastic underbody panel as needed and trim the lower bumper cover fascia as shown in the installation diagram. The manual notes that trim dimensions are reference only. After trimming, reinstall both components and the exhaust.
The manual specifies using a die grinder with a cut-off wheel to trim the plastic underbody panel and lower bumper cover fascia. Masking tape or a marker is recommended to mark trim lines before cutting.
Safety glasses must be worn at all times while installing this product. Additionally, you must support the forward exhaust when removing hangers to prevent it from dropping or being damaged. The manual also emphasizes reading all instructions thoroughly before beginning installation.
You must never exceed your vehicle manufacturer's recommended towing capacity. While the CURT 13396 is rated for 4,500 lbs trailer weight and 675 lbs tongue weight, your Land Rover Discovery Sport may have a lower manufacturer limit. Always consult your vehicle's owner manual and follow the more conservative limit.
After installation, verify that all fasteners are tight and all structural components are sound. The manual recommends periodically checking the receiver hitch to ensure all fasteners remain tight and structural components remain in good condition during ownership.
The manual recommends periodically checking the receiver hitch to ensure all fasteners are tight and all structural components are sound. While a specific interval is not provided, regular inspection before towing is a best practice.
The manual does not specify a retorque interval. However, it recommends periodically checking that all fasteners are tight. It is good practice to check fastener tightness after the first few towing trips and then periodically thereafter.
Yes, the CURT 13396 is designed for 2015-present Land Rover Discovery Sport SUVs.
4,500 lbs trailer weight and 675 lbs tongue weight. Never exceed your vehicle manufacturer's recommended towing capacity.
No drilling required. Trimming of plastic underbody panel and bumper cover fascia is required.
Ratchet, torque wrench, 6-inch socket extension, 10mm/18mm/22mm sockets, die grinder with cut-off wheel, masking tape, tape measure, and safety glasses.
Professional installation: 90 minutes. Novice DIY installation: 45 minutes. Two people may be required to ease installation.
All 14mm fasteners must be torqued to 88 lb-ft. Install bolts loosely first, then apply final torque once all 6 bolts are in place.
Wear safety glasses at all times. Support the forward exhaust when removing hangers. Never exceed vehicle manufacturer's towing capacity.
