Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2015-2019 Subaru Legacy All

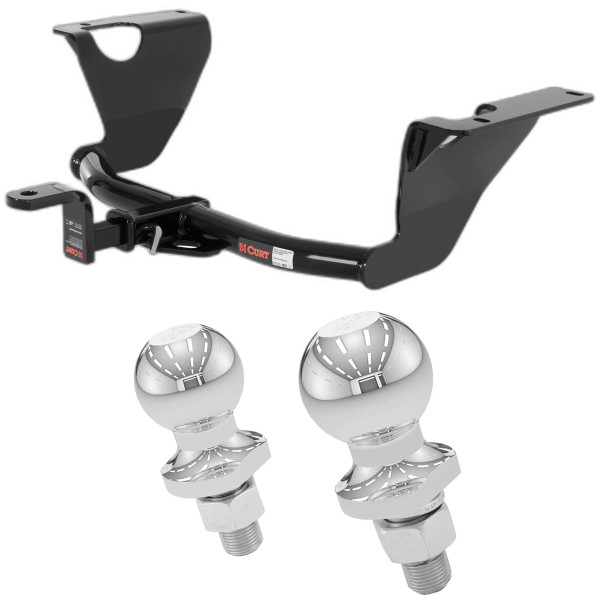

A CURT trailer hitch is the key to pursuing your passions, whether you're taking the family boat out for an afternoon on the water or packing up the mountain bikes for a day on the trails. This CURT class 2 hitch is perfect for towing a small trailer, such as a boat trailer, lightweight camper or utility trailer. It can also be used to mount a hitch cargo carrier or bike rack (never exceed the lowest-rated towing component). Like all CURT custom hitches, this class 2 trailer hitch is made for a vehicle-specific fit. It is engineered to seamlessly integrate with select years of the Subaru Legacy and Outback (see application info to verify fitment). It is rated for 3,500 pounds gross trailer weight and 350 pounds tongue weight. It is also equipped with 1-1/4" x 1-1/4" hitch receiver to accept the included ball mount. The ball mount that comes with this hitch kit has a 3/4" trailer ball hole and can be positioned in the drop or rise orientation for level towing with your specific trailer (trailer ball not included). Like all CURT custom receiver hitches, this class 2 hitch is designed, manufactured, finished and tested with the utmost care. It is engineered for a precise fit, easy installation, maximum towing strength and an integrated look on the vehicle. It is also tested to SAE J684 protocols for safety. This class 2 trailer hitch is finished with our industry-leading dual-coat process for unparalleled rust, chip and UV resistance. It is descaled for a smooth surface, submersed in liquid A-coat for rust prevention inside and out, covered with a highly durable powder coat, and finally co-cured for a dependable shield against the elements. This class 2 hitch comes with a ball mount, hitch pin and mounting hardware for a complete installation.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes ball mount #45521, installation hardware, pin & clip
2015, 2016, 2017, 2018, 2019 Subaru Legacy All Class 2 Trailer Hitch, 1-1/4" Ball Mount, Select Subaru Legacy, Outback
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2019 | Subaru Legacy | — |
The 2015-2019 Subaru Legacy All Class 2 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-122903-001) fits the following vehicles: 2015-2019 Subaru Legacy. Always verify your specific year, make, and model before ordering.
The 2015-2019 Subaru Legacy All Class 2 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-122903-001) fits 2015-2019 Subaru Legacy models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2015-2019 Subaru Legacy All Class 2 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-122903-001) is designed to fit the 2015-2019 Subaru Legacy.
The 2015-2019 Subaru Legacy All Class 2 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-122903-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, Curt hitch 12290 is designed for Subaru Outback Wagon and Legacy Sedan models. Confirm your vehicle model matches before purchasing.
Hitch 12290 is designed for use with ball mount #D-55001/45501.
Non-trailer loads can be applied to this hitch only if they are supported by auxiliary stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
Do not exceed your vehicle manufacturer's recommended towing capacity. The hitch itself has a rated capacity, but your vehicle's towing limit is the controlling factor. Consult your vehicle's owner manual for the maximum towing capacity.
Required tools are: 10 mm and 19 mm sockets, 8 inch extension, ratchet, torque wrench, drill with 17/32 inch bit, rotary tool with carbide bit, and tin snips or file.
Yes, drilling is required. You must enlarge the forwardmost hole on each frame rail using a drill with a 17/32 inch bit, and drill additional holes in the frame rail using the hitch as a template during installation.
Yes, the muffler heat shield must be removed and trimmed to clear the mounting plate. The trim line is 1.125 inches from the edge. See the Heat Shield Trim Diagram in the manual for the exact trim location.
Yes, the exhaust must be lowered before installation. Remove the three rearmost rubber exhaust isolators from the frame-mounted hangers. Support the exhaust during installation to prevent damage. After hitch installation is complete, raise the exhaust and reinstall the rubber isolators.
Fishwire hardware is a technique for inserting carriage bolts and spacers into the frame rail holes. The manual references a Fishwire Hardware Technique diagram but the detailed procedure is not fully explained in the provided text. Contact Curt Manufacturing technical support at 1-800-798-0813 for detailed instructions.
The hitch includes: 4 carriage bolts (1/2-13 x 1 1/2), 4 spacers (CM-SP6, .250 x 1.00 x 3.00 inch square hole), 4 hex flange nuts (HFN 1213), and 2 pieces of 1/2 inch fishwire.
All hardware must be torqued to 110 ft-lbs.
1. Lower the exhaust by removing the three rearmost rubber exhaust isolators. 2. Remove and trim the muffler heat shield. 3. Remove the two rubber plugs in each frame rail and enlarge the forwardmost hole. 4. Fishwire a carriage bolt and spacer into the rearmost hole in each frame rail. 5. Raise the hitch into position, center it, and loosely secure with hex flange nuts. 6. Mark and drill the forwardmost holes using the hitch as a template. 7. Fishwire a carriage bolt and spacer into each drilled hole and secure with hex flange nuts. 8. Torque all hardware to 110 ft-lbs. 9. Reinstall the heat shield, raise the exhaust, and reinstall the rubber isolators.
Loosely secure the hitch with hex flange nuts in step 5 before drilling the forwardmost holes. After drilling and installing all fasteners in step 7, torque all hardware to 110 ft-lbs in step 8.
Periodically check that all fasteners are tight and that all structural components are sound. This should be done regularly throughout the life of the hitch.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify an exact interval, so regular visual inspection before each towing use is recommended.
Subaru Outback Wagon and Legacy Sedan models.
Yes. You must enlarge existing frame rail holes and drill new holes using a 17/32 inch drill bit. Heat shield trimming is also required.
Drill with 17/32 inch bit, torque wrench, 10 mm and 19 mm sockets, ratchet, 8 inch extension, rotary tool with carbide bit, and tin snips or file.
All fasteners must be torqued to 110 ft-lbs.
Curt warrants the product free of defects in material and workmanship at retail purchase. Alteration, misuse, or improper installation voids the warranty. Non-trailer loads must be supported by auxiliary stabilizing straps or warranty is void.
