Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2015-2020 Acura TLX All

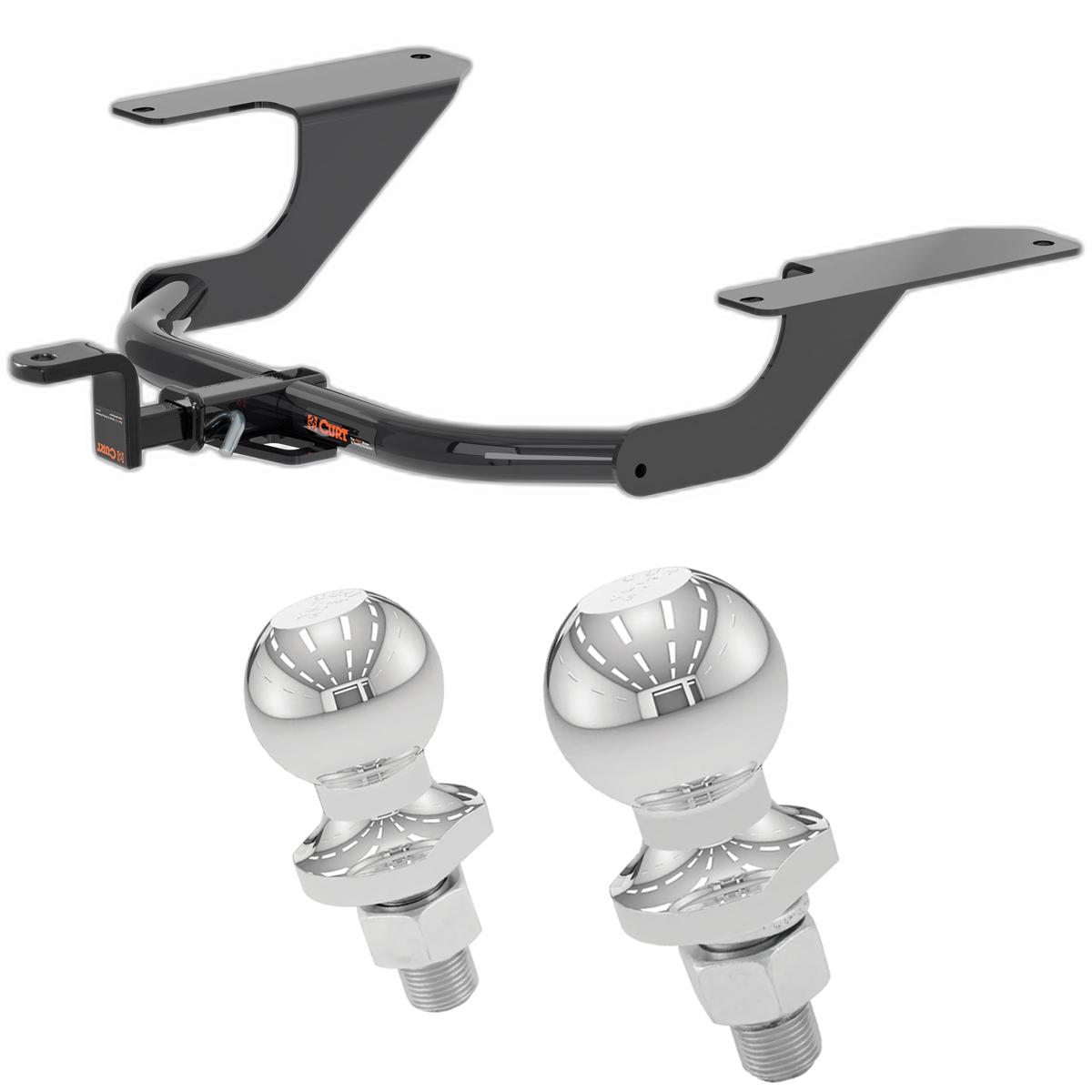

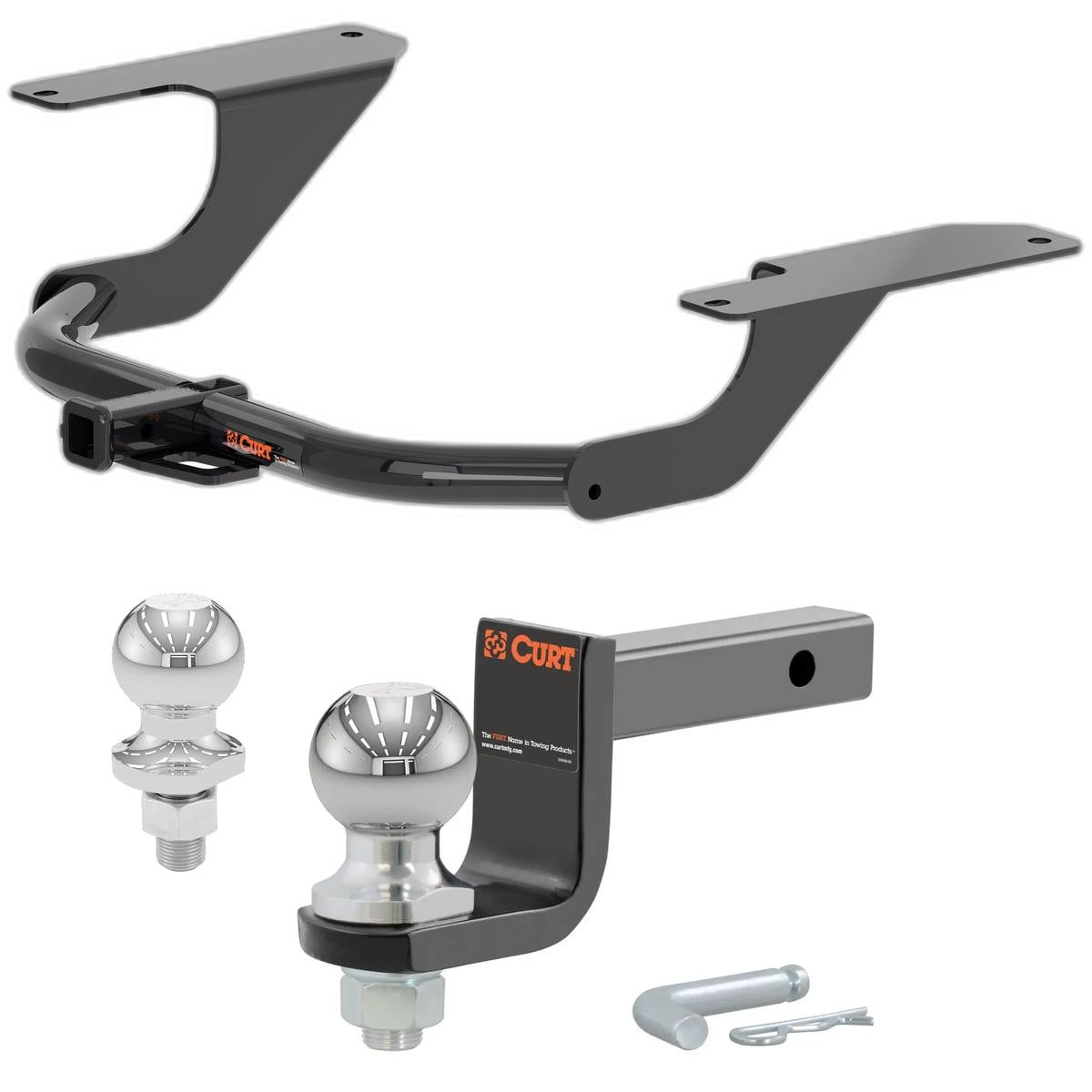

Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Acura TLX (see application info to verify fitment). The hitch integrates with the vehicle's frame and provides a useful and dependable 1-1/4" x 1-1/4" receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 2,000 pounds gross trailer weight and 200 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4" trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid A-coat for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where you're headed or which season of the year you’re towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.
Installation requires heat shield trimming and temporarily lowering the exhaust
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
2015, 2016, 2017, 2018, 2019, 2020 Acura TLX All Class 1 Trailer Hitch, 1-1/4" Ball Mount, Select Acura TLX
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2020 | Acura TLX | — |
The 2015-2020 Acura TLX All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-115353-001) fits the following vehicles: 2015-2020 Acura TLX. Always verify your specific year, make, and model before ordering.
The 2015-2020 Acura TLX All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-115353-001) fits 2015-2020 Acura TLX models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2015-2020 Acura TLX All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-115353-001) is designed to fit the 2015-2020 Acura TLX.
The 2015-2020 Acura TLX All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-115353-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT part number 11535 is designed for 2015-Present Acura TLX Sedan models. Confirm your vehicle matches this year range and body style before purchasing.
CURT hitch 11535 is designed for use with ball mount #45521. CURT also offers available Euro ball mounts #45571 (1 7/8" ball) and #45572 (2" ball) as options.
CURT hitch 11535 has a gross load capacity of 2,000 lbs trailer weight and 200 lbs tongue weight when used as a weight carrying hitch. You must never exceed your vehicle manufacturer's recommended towing capacity.
Yes, but all non-trailer loads applied to this hitch must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. See the CURT catalog or visit www.curtmfg.com for further information on stabilizing straps.
You will need: pry bar, ratchet, 10mm socket, 9/16" socket, 11/16" socket, torque wrench, aviation shears, tape measure, and safety glasses. Safety glasses must be worn at all times during installation.
No, drilling is not required. The hitch uses existing holes in the frame rails and access holes in the trunk pan for installation.
Two people may be required to ease installation. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance.
The first step is to lower the exhaust by removing four rubber exhaust isolators. See the rubber isolator removal diagram in the installation instructions for guidance.
Remove the heat shields by removing two bolts per shield. After the hitch is installed and torqued, you will trim the heat shields around the hitch and reinstall them.
Fishwire is used to guide the 7/16" carriage bolts with SP2 spacers into position through the access holes in both frame rails. The fishwire is left attached during this step, then removed after the hitch is raised into position and secured with the U-bolt.
Insert the 3/8" U-bolt through the tow hook, then raise the hitch into position. Secure the hitch to the U-bolt using 3/8" hex flange nuts. After securing, remove the fishwires and attach 7/16" hex nuts to the carriage bolts.
Yes, heat shield trimming is required. After the hitch is installed and torqued, trim the heat shields around the hitch and reinstall them as shown in the heat shield trimming diagram. Trim dimensions are approximate; confirm fit prior to trimming.
Torque 3/8" fasteners to 43 lb-ft and all 7/16" fasteners to 69 lb-ft. Use a torque wrench to ensure proper tightness.
The U-bolt is 3/8" - 16 x 1.00 x 1.88. It is inserted through the tow hook and secured with 3/8" hex flange nuts, which are torqued to 43 lb-ft.
The carriage bolts are 7/16-14 x 1 1/4. Four bolts are used with SP2 spacers and are torqued to 69 lb-ft.
The kit includes: four 7/16-14 hex flange nuts, two HFN3816 hex flange nuts, one 3/8" - 16 x 1.00 x 1.88 U-bolt, four 7/16-14 x 1 1/4 carriage bolts, four CM-SP2 square hole spacers (0.250 x 0.88 x 2.25"), and four 7/16" fishwires.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This maintenance is important for safe towing.
Safety glasses must be worn at all times while installing this product. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance.
Yes, CURT 11535 is designed for 2015-Present Acura TLX Sedan models.
2,000 lbs trailer weight and 200 lbs tongue weight. Never exceed your vehicle manufacturer's recommended towing capacity.
No, drilling is not required. The hitch uses existing holes in the frame rails.
Yes, heat shield trimming is required. Trim dimensions are approximate; confirm fit prior to trimming.
Torque 3/8" fasteners to 43 lb-ft and 7/16" fasteners to 69 lb-ft.
Pry bar, ratchet, 10mm and 9/16" and 11/16" sockets, torque wrench, aviation shears, tape measure, and safety glasses.
Yes, but all non-trailer loads must be supported by CURT 18050 stabilizing straps. Failure to do so voids the warranty.
