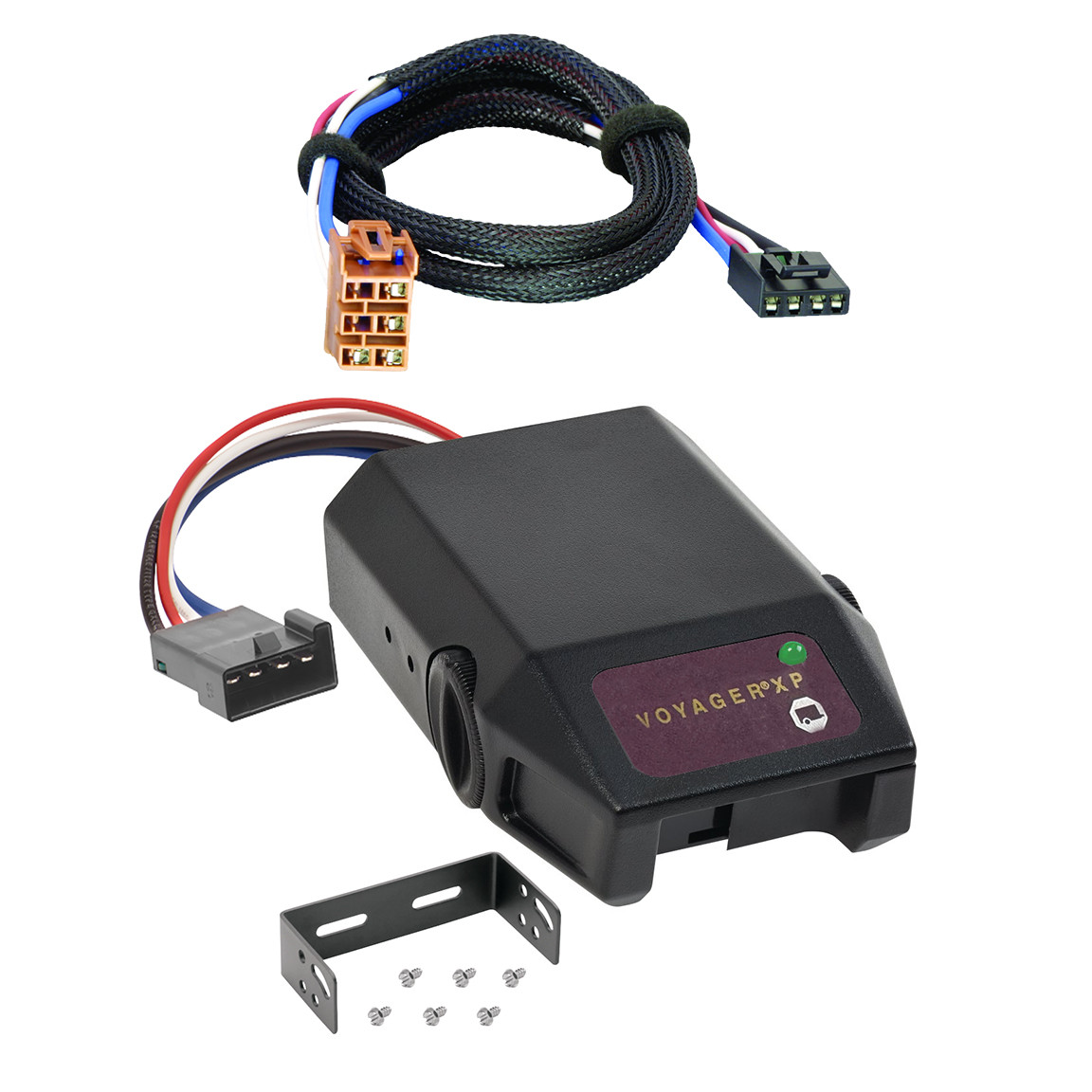

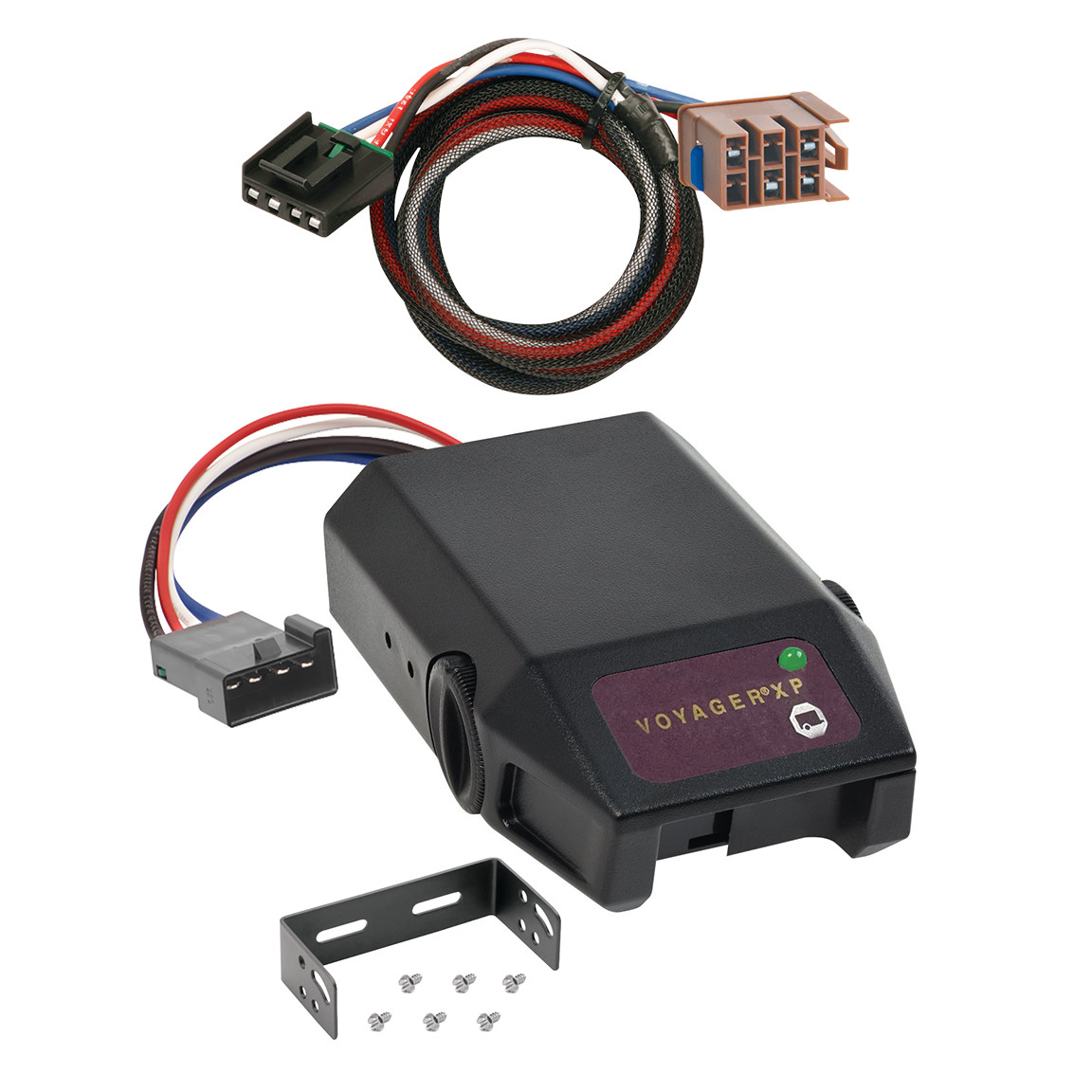

The Raybestos Voyager XP electric brake controller provides secure trailer braking when you need it most. As a tried-and-true proportional brake controller, the Voyager XP utilizes patented braking sensor technology and advanced electronics to provide a smooth braking response in any stopping situation. Its bi-colored LED brake indicator assures a complete connection between your vehicle and trailer, with the color changing gradually from green, which notes a completed circuit, to red to indicate relative braking power. This versatile controller has a compact design, a conveniently located power control knob to adjust settings, and a simple level knob for easy leveling during installation. Plus, the Voyager has a Plug & Play feature that allows for quick and easy connection with your vehicle?s wiring. The Raybestos Voyager XP trailer brake controller works with 1-4 axle trailers, comes with all the mounting hardware needed for installation.
| BRAND: | RAYBESTOS |
| PART NUMBER: | 761-9035 |
| WEIGHT: | 0.7 LBS |
| MATERIAL: | PLASTIC |
| BRAKE CONTROL TYPE: | PROPORTIONAL |
| TRAILER BRAKE WHEEL QUANTITY: | UP TO EIGHT WHEELS |
| LEVELING CAPABLE: | YES |
| BRAKE TYPE: | Electric |
| Diagnostic Capable: | YES |
| DISPLAY TYPE: | LED OUTPUT |
| HYDRAULIC CONNECTIONS: | NO |
| SOLID STATE CONSTRUCTION: | YES |
| CIRCUIT BREAKER PROTECTED: | YES |
| HOUSING COLOR: | BLACK |
| BRACKET INCLUDED: | YES |
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2023 | Chevrolet Suburban | — |
The 2015-2023 Chevrolet Suburban Raybestos Voyager XP Proportional Brake Controller for Trailers with 1 to 4 Axles Black 761-9035 (Part #761-9035 70191) fits 2015-2023 Chevrolet Suburban models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2015-2023 Chevrolet Suburban Raybestos Voyager XP Proportional Brake Controller for Trailers with 1 to 4 Axles Black 761-9035 (Part #761-9035 70191) fits the following vehicles: 2015-2023 Chevrolet Suburban. Always verify your specific year, make, and model before ordering.
Yes, the 2015-2023 Chevrolet Suburban Raybestos Voyager XP Proportional Brake Controller for Trailers with 1 to 4 Axles Black 761-9035 (Part #761-9035 70191) is designed to fit the 2015-2023 Chevrolet Suburban.
The 2015-2023 Chevrolet Suburban Raybestos Voyager XP Proportional Brake Controller for Trailers with 1 to 4 Axles Black 761-9035 (Part #761-9035 70191) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The adapter is designed for Chevrolet pickup trucks equipped with a black Electric Junction Box located under the dashboard, left of the steering column, just above the carpet. Confirm your vehicle has this junction box before purchasing. The manual does not specify which model years or cab styles are compatible, so contact the manufacturer or your installer to verify fitment for your specific truck.
The kit includes the T-Connector adapter housing (containing female terminals on the wire side) and butt connectors. The manual does not specify the exact quantity of butt connectors or list any other included hardware. Refer to your kit contents or contact the manufacturer if components are missing.
You will need a trim panel remover and wire crimpers. The trim panel remover is used to access the Electric Junction Box under the dashboard. Wire crimpers are required to attach the butt connectors (if using the 1 Plug Option) to the adapter and brake control wires.
The black Electric Junction Box is located in the interior of the pickup, underneath the dashboard, left of the steering column, just above the carpet. You will need to remove the cover to access the mating connection point for the electric trailer brakes.
Option 1 (Plug Option): Use the provided butt connectors to attach the adapter wires to the corresponding wires on the electric brake control, following the brake control manufacturer's instructions, before connecting to the vehicle junction box. Option 2 (Plug Option): Plug the brake control adapter directly into the mating receptacle on the back of the brake control before connecting to the vehicle junction box. Choose the method that matches your brake control design.
Yes. You must follow all brake control manufacturer's installation instructions in addition to the T-Connector instructions. The adapter connects between your vehicle's junction box and the brake control, so both sets of instructions must be completed. Mount the brake control unit as directed by its manufacturer and perform all test procedures as instructed.
Do not exceed the lower of your towing manufacturer's rating or a maximum of 4 axles with 8 brakes (24 amps). Overloading the circuit can cause fires. Consult your vehicle's owner's manual and the brake control instruction sheet for additional information on your specific towing capacity.
Wear safety glasses during installation. Read and follow all vehicle warnings and installation instructions before beginning. Follow all brake control manufacturer's installation instructions and mount the unit as directed. Perform all test procedures as instructed. Do not exceed the circuit capacity (maximum 4 axles, 8 brakes, 24 amps) to prevent fire hazard.
Yes, if your truck has a black Electric Junction Box under the dashboard, left of the steering column. The manual does not list specific model years, so confirm with the manufacturer or installer.
Trim panel remover and wire crimpers.
You have two options: (1) use provided butt connectors to wire the adapter to the brake control, or (2) plug the adapter directly into the mating receptacle on the back of the brake control. Choose based on your brake control design.
Maximum 4 axles with 8 brakes (24 amps). Do not exceed the lower of your towing manufacturer's rating or this limit to prevent circuit overload and fire.
Yes. Complete the installation per the brake control manufacturer's instructions, mount the unit as directed, and perform all test procedures as instructed.
