Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2015-2024 Ford Edge All

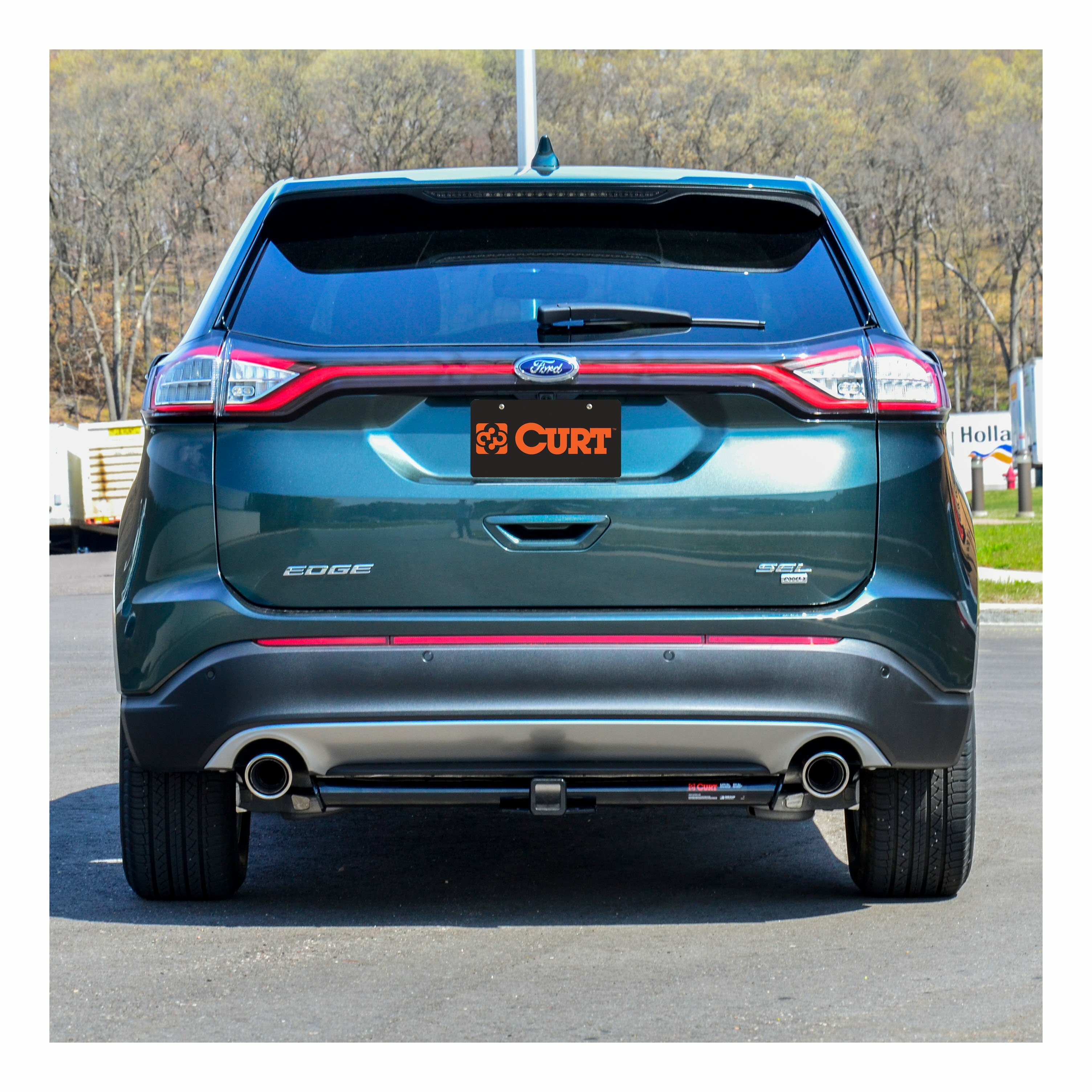

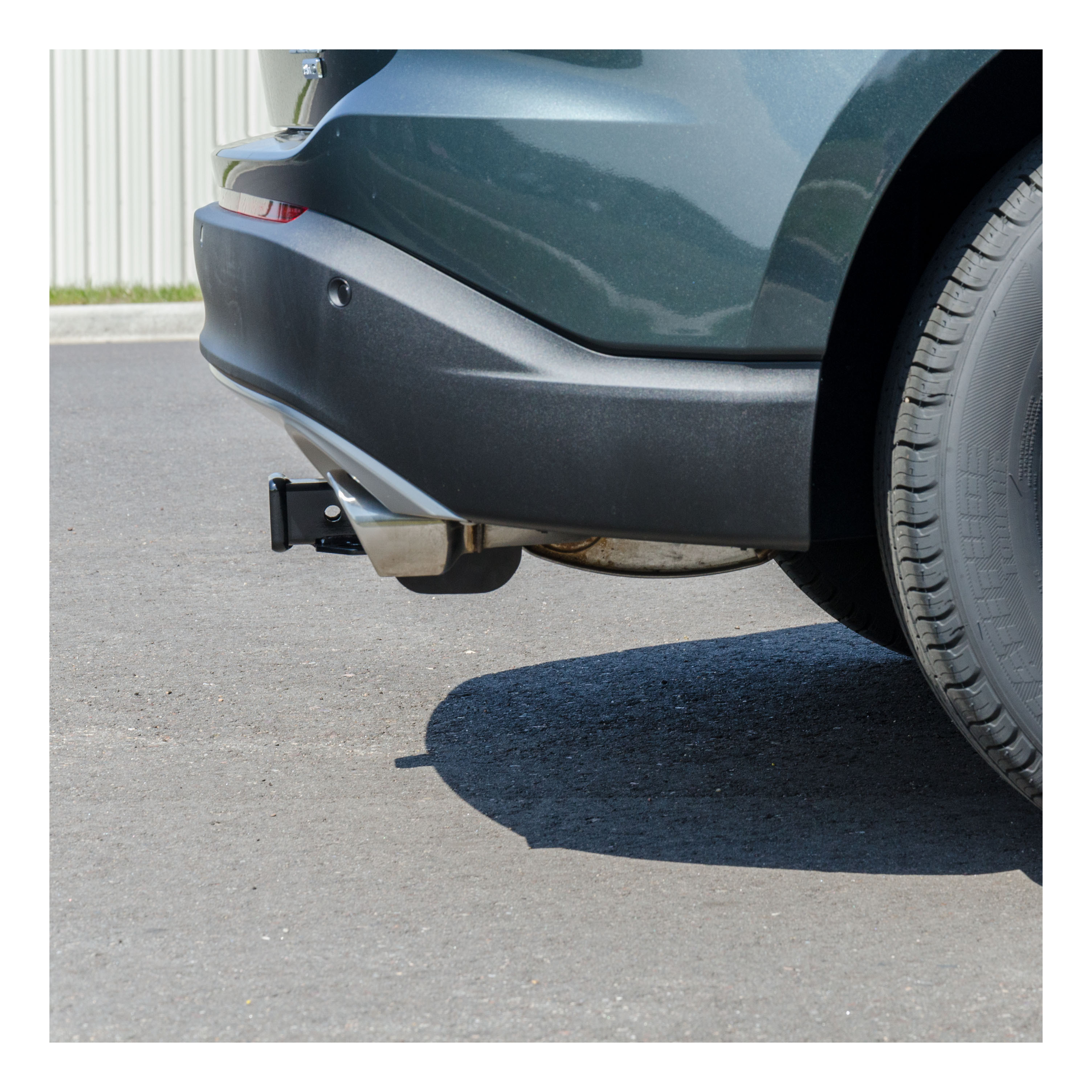

Whatever the next checkpoint is on your adventure -- whether it's getting your bike on the trail before sunrise or making it to the campground before dark -- CURT class 2 hitches let you Bring It with confidence. These receiver hitches are made to handle most light-duty towing applications and offer a custom fit for your vehicle. Typically used on full-size cars, crossovers, compact SUVs, minivans or even compact pickup trucks, a CURT class 2 trailer hitch complements the design of smaller vehicles. This particular class 2 hitch is made to be a custom hitch for certain years of the Ford Edge (to verify vehicle compatibility, see application info). It offers a weight carrying capacity of 3,500 lbs. GTW and 350 lbs. TW. Class 2 trailer hitches can typically be used to tow a variety of lightweight trailers, such as a small utility trailer, small fishing boat trailer or popup camper (NOTE: Never exceed the lowest weight capacity of any towing component). They are also perfect for adding cargo space to your vehicle with a bike rack or cargo carrier. This class 2 hitch features a 1-1/4" receiver tube to accept a ball mount shank or other hitch-mounted accessory. For safety, it is tested in accordance with SAE J684. A custom trailer hitch design requires extra care, and as such, CURT class 2 hitches are engineered using real vehicles and hands-on research. We use high-strength steel, robotic welding and rigorous testing to produce hitches that are built to fit your lifestyle. To ensure that each hitch will be a reliable extension of your vehicle, we also finish our hitches in a co-curing of liquid A-coat and black powder coat, giving them long-lasting rust and wear resistance.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes installation hardware
2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024 Ford Edge All Class 2 Trailer Hitch, 1-1/4" Receiver, Select Ford Edge
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2024 | Ford Edge | — |
The 2015-2024 Ford Edge All Class 2 Trailer Hitch, 1-1/4" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-12140-001) fits 2015-2024 Ford Edge models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2015-2024 Ford Edge All Class 2 Trailer Hitch, 1-1/4" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-12140-001) fits the following vehicles: 2015-2024 Ford Edge. Always verify your specific year, make, and model before ordering.
Yes, the 2015-2024 Ford Edge All Class 2 Trailer Hitch, 1-1/4" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-12140-001) is designed to fit the 2015-2024 Ford Edge.
The 2015-2024 Ford Edge All Class 2 Trailer Hitch, 1-1/4" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-12140-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT part number 12140 is designed for 2015-present Ford Edge SUVs. It is a Class II weight-carrying receiver hitch with a 3,500 lbs trailer weight capacity and 350 lbs tongue weight capacity.
You will need: 7/32" socket, 3/4" socket, 10mm socket, T20 Torx bit (for Sport models), ratchet, torque wrench, aviation shears, and safety glasses. Sport models also require a 5.5mm socket.
No, drilling is not required. The hitch uses existing frame holes and fishwiring to secure the mounting hardware.
Yes. You must trim 3/8" off the center underbody panel outer tabs and trim the removed underbody side panels as shown in the trim diagram to allow easier mounting and reinstallation.
All 1/2" fasteners must be torqued to 110 lb-ft.
The CURT 12140 is rated for a maximum of 3,500 lbs trailer weight and 350 lbs tongue weight. Never exceed your vehicle manufacturer's recommended towing capacity.
Yes. All non-trailer (wheel-less) loads must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads voids the product warranty.
The kit includes 4 CM-SP4 spacers (.250 x 1.50 x 3.00" square hole), 4 carriage bolts (1/2-13 x 1 1/2, Grade 8), 4 hex flange nuts (HFN 1213, Grade 8), and 4 pieces of 1/2" fishwire for installation.
Professional installation takes approximately 60 minutes. Novice (DIY) installation takes approximately 90 minutes.
Two people may be required to ease installation. The manual recommends having assistance available, though it is not explicitly stated as mandatory.
Safety glasses must be worn at all times while installing this product.
Yes. You must support and lower the exhaust by removing 2 rubber isolators mounted to the muffler. After hitch installation, you raise the exhaust back into position and reinstall the rubber isolators. If you have a Sport model, you must also remove the exhaust bezels using a 5.5mm socket and T20 Torx bit, then reinstall them after the hitch is mounted.
Underbody panels are protective covers located behind the rear wheels. You must remove 2 panels by removing 2 hex nuts with a 10mm socket and 2 screws with a 7/32" socket. After trimming them as shown in the diagram, you reinstall them using the hardware removed in step 1.
Fishwiring is a technique using 1/2" wire to thread spacers and carriage bolts into the frame mounting holes before the hitch is raised into position. This allows you to align the hitch with the mounting holes without having to hold the hardware in place manually. The fishwires are removed once the hitch is positioned and the hex flange nuts are installed.
The hitch side plates must be located between the center underbody panel tabs and the frame rails. After trimming the underbody panels and lowering the exhaust, you raise the hitch over the exhaust, thread the fishwires into the mounting holes, raise the hitch into mounting position, remove the fishwires, and install the 4 hex flange nuts.
Trim 3/8" off the center underbody panel outer tabs. The trim diagram on page 3 shows the specific areas to trim on both the center panel and the side panels to allow easier mounting and reinstallation.
Yes. Trimming the underbody panels is a permanent modification required for proper hitch installation and panel reinstallation. The trim diagram shows exactly which portions of the outer tabs must be removed.
The hitch uses 4 carriage bolts (1/2-13 x 1 1/2, Grade 8) and 4 hex flange nuts (HFN 1213, Grade 8). These are torqued to 110 lb-ft. The underbody panels are reinstalled using the original 2 hex nuts and 2 screws removed in step 1.
The carriage bolts are 1/2-13 x 1 1/2 inches, Grade 8 material. Four bolts are supplied with the kit.
The spacers are .250 x 1.50 x 3.00" square hole spacers (part number CM-SP4). Four spacers are supplied with the kit.
The CURT 12140 is designed for use with ball mount #45521. Euro mount options are available: #45571 (1 7/8" ball) and #45572 (2" ball).
On vehicles equipped with a hands-free lift gate, perform the kick motion on the left or right side of the receiver tube after installation is complete.
Yes. The washer/nut may require trimming for reinstallation of the underbody panels. Check fit before final tightening.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This should be done regularly to maintain safe operation.
The tongue weight capacity is 350 lbs. This is the maximum downward force that can be applied to the ball mount.
The trailer weight capacity is 3,500 lbs. This is the maximum weight of the trailer that can be towed. Never exceed your vehicle manufacturer's recommended towing capacity.
The CURT 12140 is a weight-carrying hitch. It is designed to carry the tongue weight directly on the ball mount.
The CURT 12140 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Yes. Before you begin installation, read all instructions thoroughly. This will help you understand the complete process and avoid mistakes.
The installation difficulty level is rated as Moderate. It requires careful attention to the steps, proper tools, and may benefit from having a second person to assist.
CURT Manufacturing warrants the product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT may repair or replace it at their option when returned prepaid with proof of purchase. Alteration, misuse, or improper installation voids the warranty. Failure to properly support non-trailer loads also voids the warranty.
Call CURT Technical Support at 877-287-8634. You can also visit www.curtmfg.com for more information or www.hitchinfo.com for helpful towing tips.
The washer/nut may require trimming for reinstallation. Check the fit of the trimmed panels before final tightening. Refer to the trim diagram on page 3 to ensure you have trimmed the correct dimensions (3/8" off the center panel outer tabs, with the side panels trimmed as shown).
