Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2017-2018 Hyundai Santa Fe SE Ultimate
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Hyundai Santa Fe (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 6,000 lbs. GTW and 900 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 8,000 lbs. WD and 900 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes installation hardware

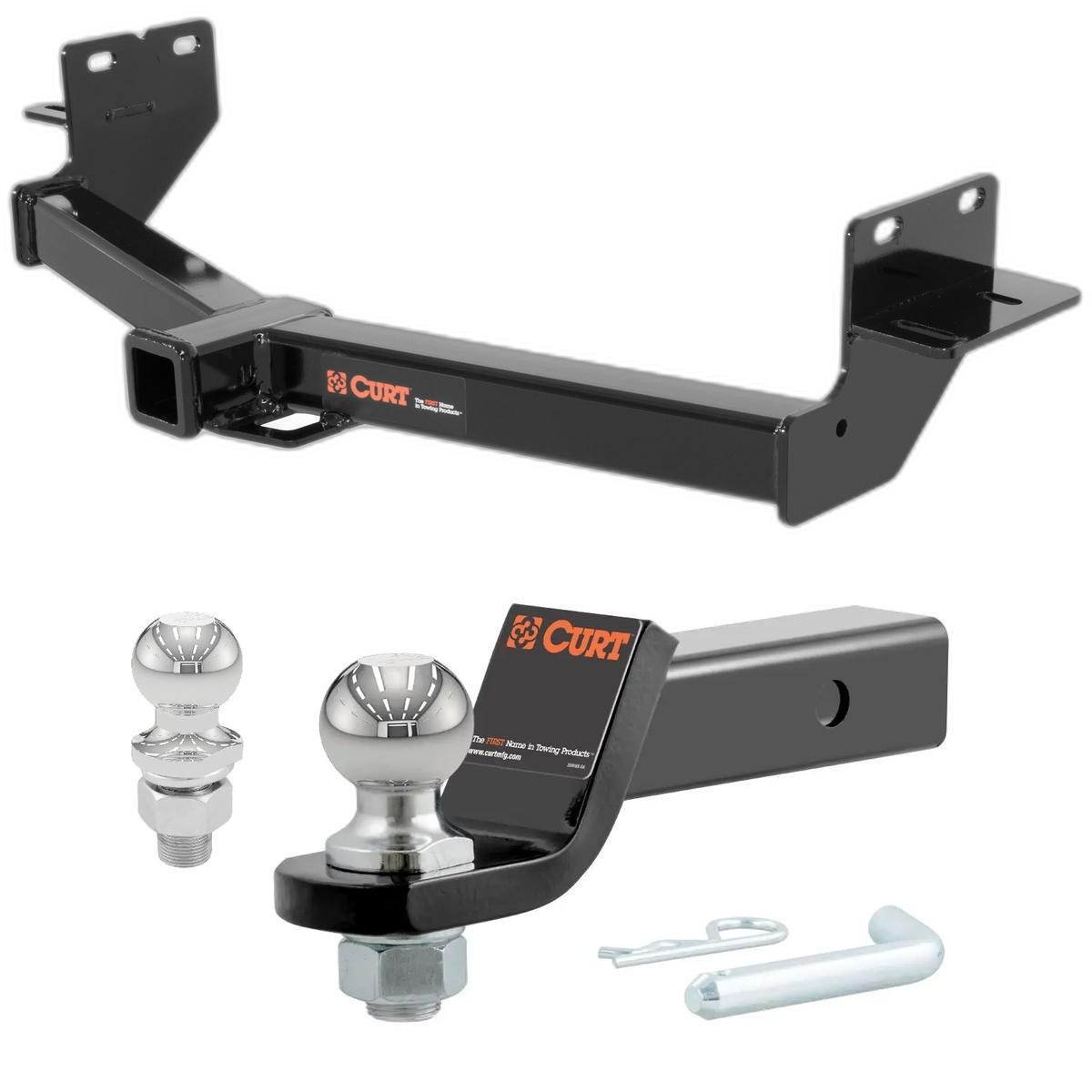

2017, 2018 Hyundai Santa Fe SE Ultimate Class 3 Trailer Hitch, 2" Receiver, Select Hyundai Santa Fe
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2017 - 2018 | Hyundai Santa Fe | SE Ultimate |
Model 13153 is designed for 2013–2018 Hyundai Santa Fe with the 3.3L V6 engine. If your Santa Fe has a different engine size, this hitch is not compatible. Verify your engine displacement before purchasing.
When used as a weight-carrying hitch, the maximum trailer weight is 6,000 lbs with a tongue weight of 900 lbs. When used as a weight-distribution hitch, the maximum trailer weight is 8,000 lbs with a tongue weight of 900 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
The hitch weight is 15 lbs.
You will need: a ratchet, torque wrench, 6-inch socket extension, 3/4-inch socket, 17mm socket, screwdriver, and safety glasses. Safety glasses must be worn at all times during installation.
No. The installation notes explicitly state 'NO DRILLING' is required. The hitch uses existing weldnuts on the frame and does not require any drilling into the vehicle.
Yes. The installation notes state 'LOWER SPARE TIRE' is required. You may need to lower the spare tire for additional clearance when raising the hitch into position. After installation is complete, you will raise the spare tire back into position.
Two people may be required to ease installation. While one person may be able to complete the installation, having a second person available is recommended to help raise the hitch into position and manage other tasks.
You may need to bend or trim the bumper locator pin on both sides to allow hardware clearance. The manual includes an illustration showing a bent bumper locator pin. This modification is necessary only if the pin interferes with the carriage bolts during installation.
1. Remove two fascia screws and lower the center bumper fascia panel. 2. Raise the hitch into position and secure to existing weldnuts with M10-1.25 x 25mm bolts and 7/16-inch conical toothed washers. 3. Insert 1/2-13 x 4.5-inch carriage bolts through the side plates and frame rails, and secure using 1/2-13 flange nuts. 4. Torque all fasteners. 5. Raise the spare tire and reinstall the bumper fascia panel.
All 1/2-inch hardware must be torqued to 110 ft-lbs.
All 10mm hardware must be torqued to 48 ft-lbs.
The hitch includes: 4 carriage bolts (1/2-13 UNC, 4.5 inches, Grade 8, part 10-10297); 4 hex head cap screws (M10 x 1.25 x 25mm, Class 10.9, part 10-10373); 4 serrated flange nuts (1/2-13 UNC, Grade 8, part 20-00062); and 4 conical toothed washers (7/16 inch, part 30-00163).
You do not need to remove the entire bumper. You only need to remove two fascia screws and lower the center bumper fascia panel. The panel can be reinstalled after hitch installation is complete.
Safety glasses must be worn at all times while installing this product. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance. Never exceed your vehicle manufacturer's recommended towing capacity.
After installation, verify that all fasteners are tight and all structural components are sound. Periodically check the receiver hitch to ensure all fasteners remain tight and all structural components remain sound during the life of the product.
You should periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. The manual does not specify an exact interval, but regular inspection before towing is recommended.
Yes, model 13153 is designed for 2013–2018 Hyundai Santa Fe with 3.3L V6 engine only. Verify your engine size before purchasing.
Weight-carrying: 6,000 lbs trailer, 900 lbs tongue. Weight-distribution: 8,000 lbs trailer, 900 lbs tongue. Never exceed your vehicle manufacturer's recommended towing capacity.
No drilling is required. The hitch uses existing weldnuts on the frame.
Ratchet, torque wrench, 6-inch socket extension, 3/4-inch socket, 17mm socket, screwdriver, and safety glasses.
Yes, you must lower the spare tire for clearance during installation, then raise it back after the hitch is secured.
1/2-inch hardware: 110 ft-lbs. 10mm hardware: 48 ft-lbs.
You may need to bend or trim the bumper locator pin on both sides to allow hardware clearance.
