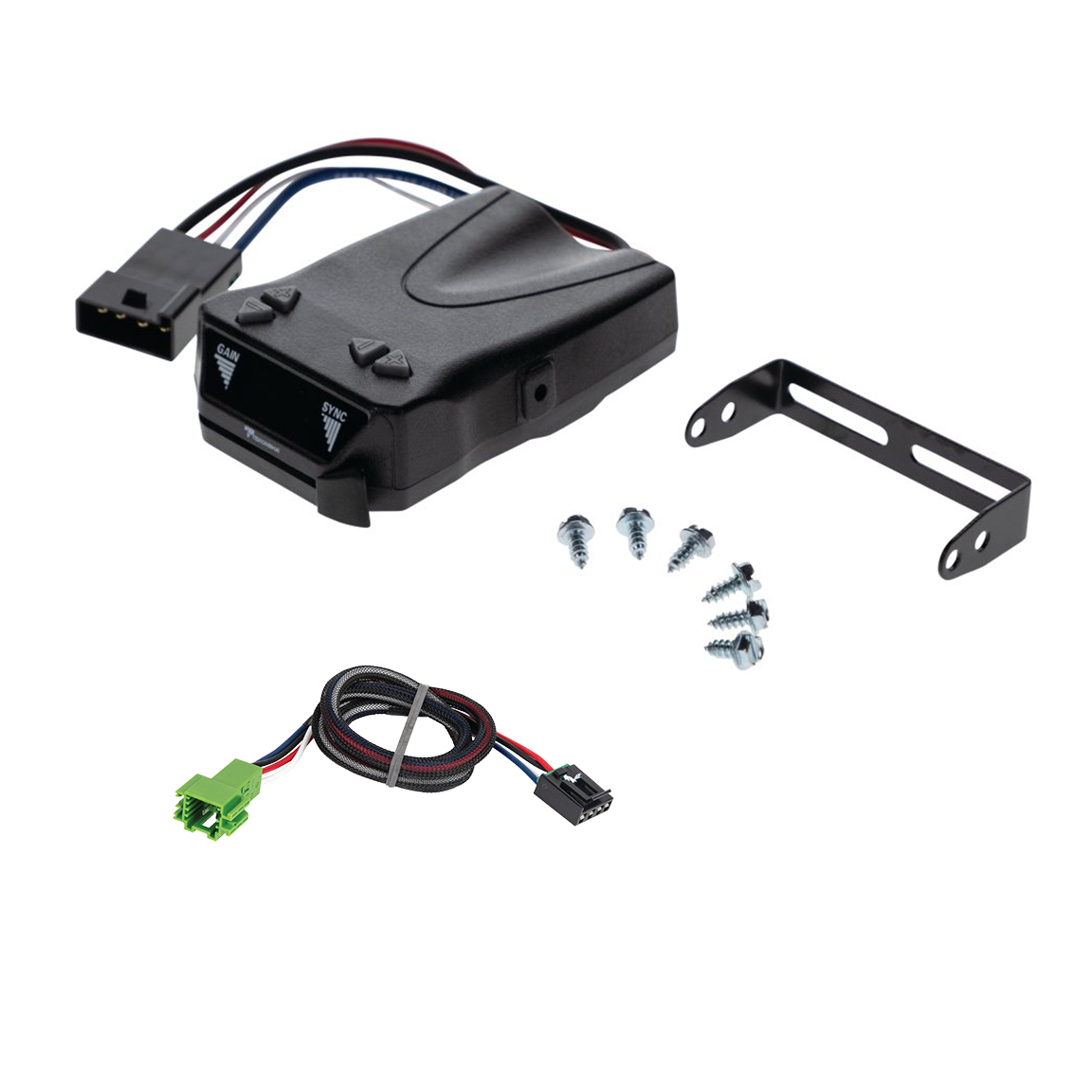

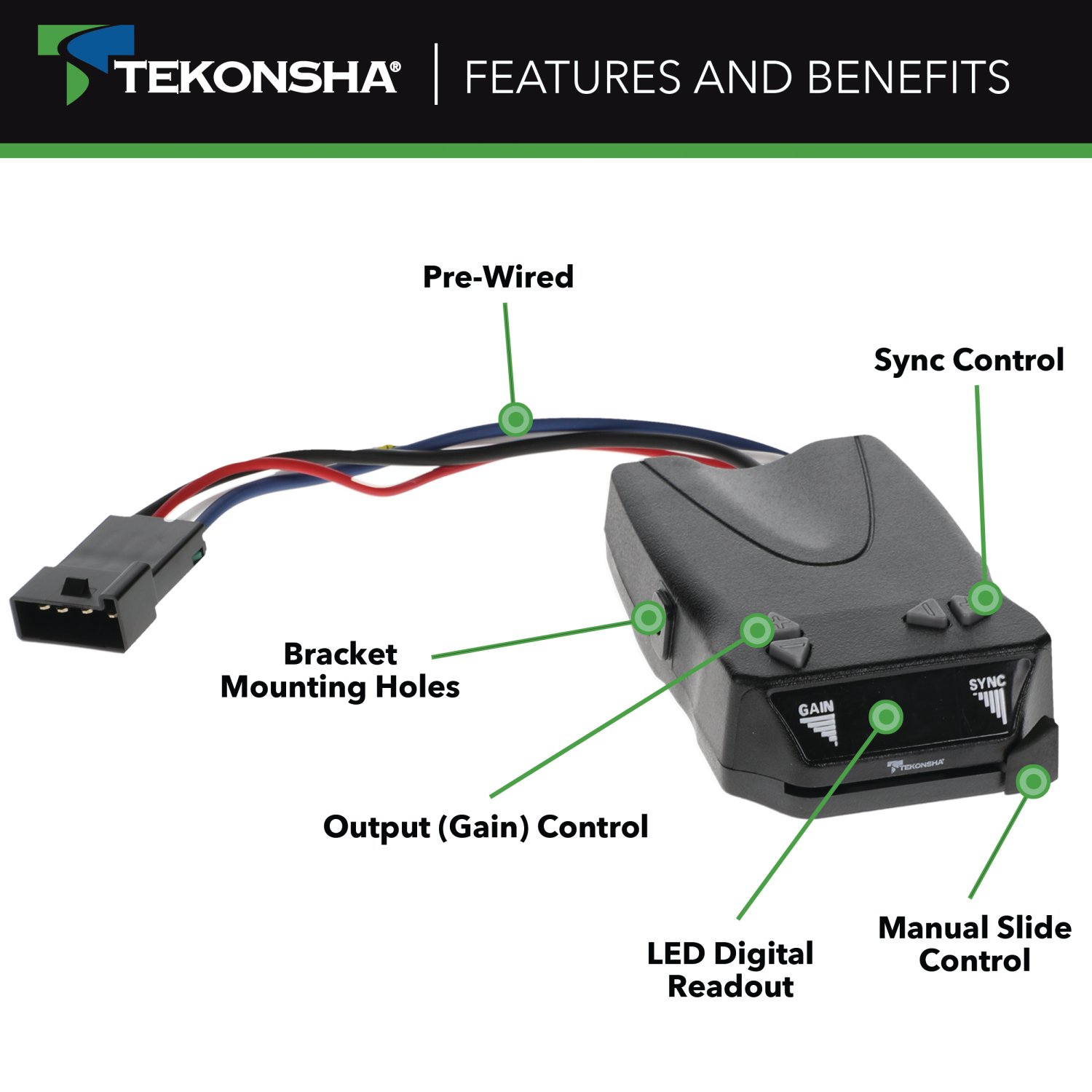

The Tekonsha Brakeman IV digital trailer brake controller provides safety and connection when you need it most. As a time-based controller, the Brakeman IV is a great choice for basic, light-duty towing needs. This compact controller works by electronically connecting your vehicle and your trailer. When you hit the brakes in your tow vehicle, it generates an output signal that ramps up, or increases over a period of time, applying braking power to your trailer at a fixed rate. The Brakeman IV has up-front buttons so you can easily adjust power output, the sync ? or aggressiveness with which the controller applies the brakes, and engage manual override to help you brake safely when an unexpected stop pops up. It also works with electric or electric over hydraulic braking systems, and features advanced internal circuit protection, real time comprehensive diagnostics, and short circuit protection. Because the Brakeman IV is a time-based controller, there?s no requirement that it be positioned in the direction of travel; it can be installed anywhere you like as long as it is within reach of the driver. Plus, the Plug & Play feature allows for quick and easy connection with your vehicle?s wiring. The Brakeman IV trailer brake controller works with1-4 axle trailers, comes with all the mounting hardware needed for installation, and is backed by a limited lifetime warranty.
| BRAND: | Reese Towpower |
| PART NUMBER: | 8507111 |
| WEIGHT: | 0.6 LBS |
| MATERIAL: | PLASTIC |
| BRAKE CONTROL TYPE: | TIMED |
| TRAILER BRAKE WHEEL QUANTITY: | UP TO EIGHT WHEELS |
| BRAKE TYPE: | Electric |
| Diagnostic Capable: | YES |

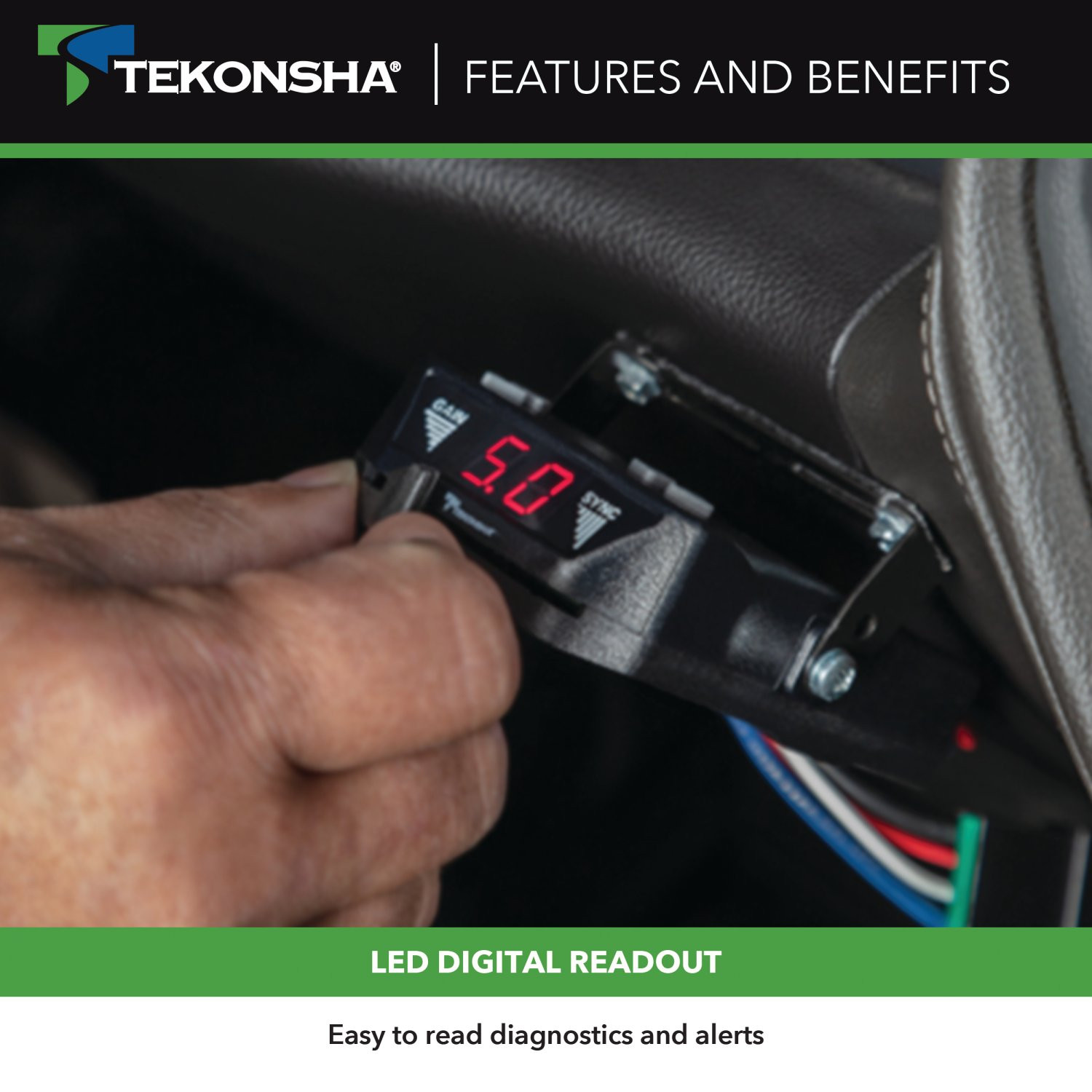

| DISPLAY TYPE: | DIGITAL OUTPUT |
| HYDRAULIC CONNECTIONS: | NO |
| SOLID STATE CONSTRUCTION: | YES |
| CIRCUIT BREAKER PROTECTED: | YES |
| HOUSING COLOR: | BLACK |

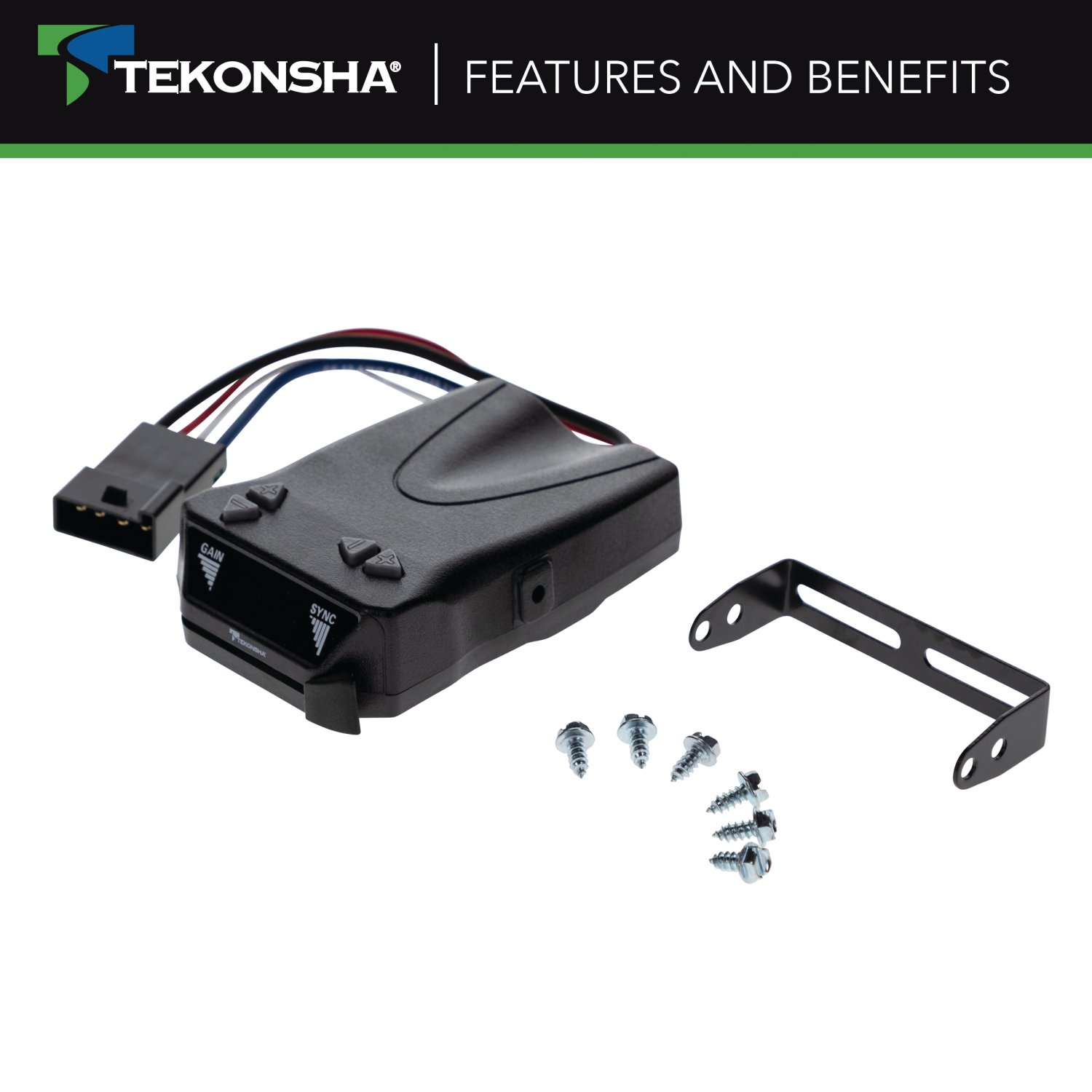

| BRACKET INCLUDED: | YES |
Reese Towpower delivers the towing hardware most drivers reach for: receiver hitches across multiple classes, ball mounts, hitch balls, pins, clips, safety chains, wiring and hitch accessories. Backed by a towing pedigree dating to 1952, the line uses all-welded construction and corrosion-resistant finishes, with custom-fit hitches matched to vehicle make, model and year.
The Reese story starts in 1952, when Margaret Reese challenged her husband TJ to do something about travel trailers rocking whenever anyone walked through them. A few years later he built the first pair of stabilising jacks. The idea was simple and it worked, and it changed how the RV industry thought about trailer stability. From that beginning the Reese name grew into a full towing line covering fifth wheel hitches, pin boxes, weight distribution systems and accessories, and Reese Towpower carries that engineering into the products most owners buy off the shelf.
Receiver trailer hitches anchor the range, offered across the classes needed for everything from a small utility trailer to livestock and job-site loads. Construction is all-welded rather than bolted at the stress points, and each hitch is tested against published standards for strength and safety. Custom-fit hitches are engineered to the vehicle manufacturer's weight specifications for a given model and model year, so mounting points line up with existing frame holes and the finished installation sits where it should. Exclusive paint finishes resist rust and corrosion through years of road salt, and hitches carry a nationwide limited lifetime warranty.
No towing setup is complete without the connecting hardware, and Reese Towpower covers it comprehensively. Ball mounts come in fixed, adjustable and specialty forms with a range of rises and drops to level a trailer properly. Hitch balls are offered in the standard diameters and shank sizes, matched to coupler and load rating.
The towing accessories line fills in everything else: hitch pins and clips, locks, receiver tube covers, and safety chains rated to the load being pulled. For most drivers this is where a towing purchase actually begins, and having the whole chain of components from one engineering source keeps ratings consistent end to end.
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2017 - 2023 | Mercedes-Benz GLS450 | w/Factory Tow Package |

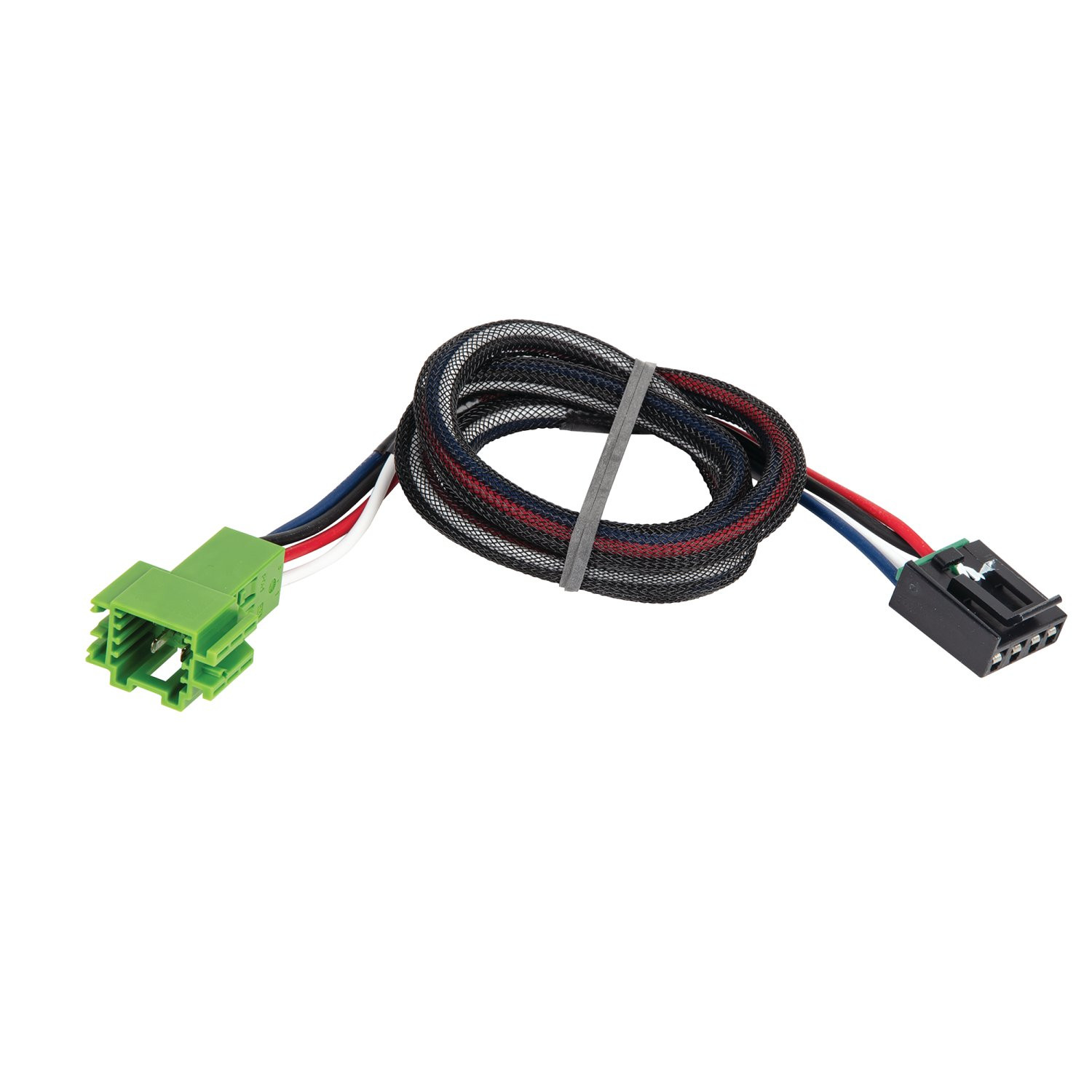

Yes, the 3066-037 Electric Trailer Brake Control Wiring Adapter is designed for Mercedes ML, GL, GLE SUV and GLS Series vehicles. The adapter connects to the vehicle's factory electric brake control harness located underneath the dash behind the brake pedal.
The 3066-037 is an Electric Trailer Brake Control Wiring Adapter that connects a trailer brake controller to your Mercedes vehicle's factory electric brake control system. It provides the interface between the aftermarket brake controller and the vehicle's 4-pin brake control harness connector located under the dash.
A trim panel remover is the only tool specified as required for installation. This tool is needed to access the vehicle's brake control harness located underneath the dash behind the brake pedal.
Before beginning installation, ensure the vehicle is completely off with the keys removed from the ignition. Always wear safety glasses during installation. Read and follow all warnings and instructions included with the brake control unit itself, as the adapter must be installed per the brake control manufacturer's specific instructions.
The vehicle's electric brake control harness is located underneath the dash. To access it, pull back the carpet behind the brake pedal to expose the 4-pin connector that mates with the adapter.
First, plug the brake control adapter into the mating receptacle on the backside of the brake control unit itself. Then, plug the adapter into the vehicle's 4-pin electric brake control harness connector located under the dash behind the brake pedal. This two-step connection prevents incorrect mating.
The adapter provides four connections: Trailer Brake Controller Output, Fused Trailer Brake Controller Battery Feed, Ground, and Vehicle Stop Lamp Switch to Brake Controller Input. The adapter housing contains female terminals on the wire side to accept the corresponding connections.
The adapter is rated for a maximum of 6 brakes (16 amps) on up to 3 axles. Do not exceed the lower of your towing manufacturer's rating (including the rating in your vehicle owner's manual) or this 16-amp specification. Overloading the circuit can cause fires.
Route the wires and mount the brake controller carefully to avoid airbag deployment locations and any other points that may pinch or break the wire. Locate a routing path for the adapter to exit the bottom of the dash. Complete all routing and mounting per the brake control manufacturer's specific installation instructions.
After installation, perform all test procedures as instructed by the brake control manufacturer. The manual requires that you complete the installation per the electric brake control manufacturer's instructions and mount the unit as directed, then perform the test procedures they specify.
The 3066-037 is designed for Mercedes ML, GL, GLE SUV and GLS Series vehicles. It connects to the factory electric brake control harness under the dash.
You need a trim panel remover to access the brake control harness under the dash.
The manual does not specify battery disconnection. It requires only that the vehicle be off with keys removed from the ignition before beginning installation.
The adapter is rated for a maximum of 6 brakes (16 amps) on up to 3 axles. Do not exceed the lower of your towing manufacturer's rating or this specification.
First plug the adapter into the mating receptacle on the backside of the brake control unit, then plug it into the vehicle's 4-pin harness connector under the dash.
The adapter provides Trailer Brake Controller Output, Fused Trailer Brake Controller Battery Feed, Ground, and Vehicle Stop Lamp Switch to Brake Controller Input connections.
