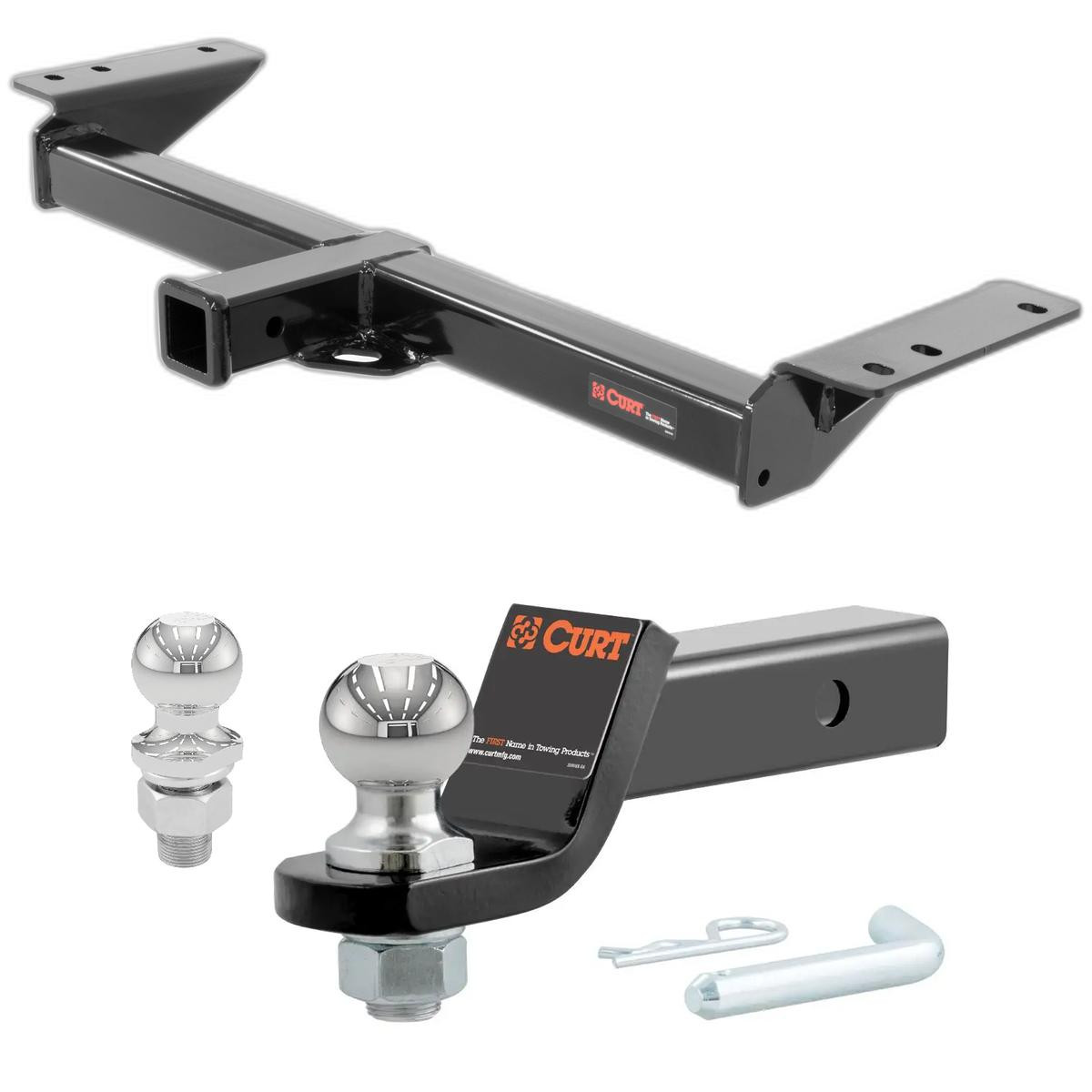

Complete CURT Class 3 2" trailer hitch and 7-way custom wiring kit engineered for the 2017 - 2026 XT5 Excluding Platinum. Vehicle-specific fit, plug-and-play installation, supports trailers with electric brakes, auxiliary 12V power and reverse lights.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!

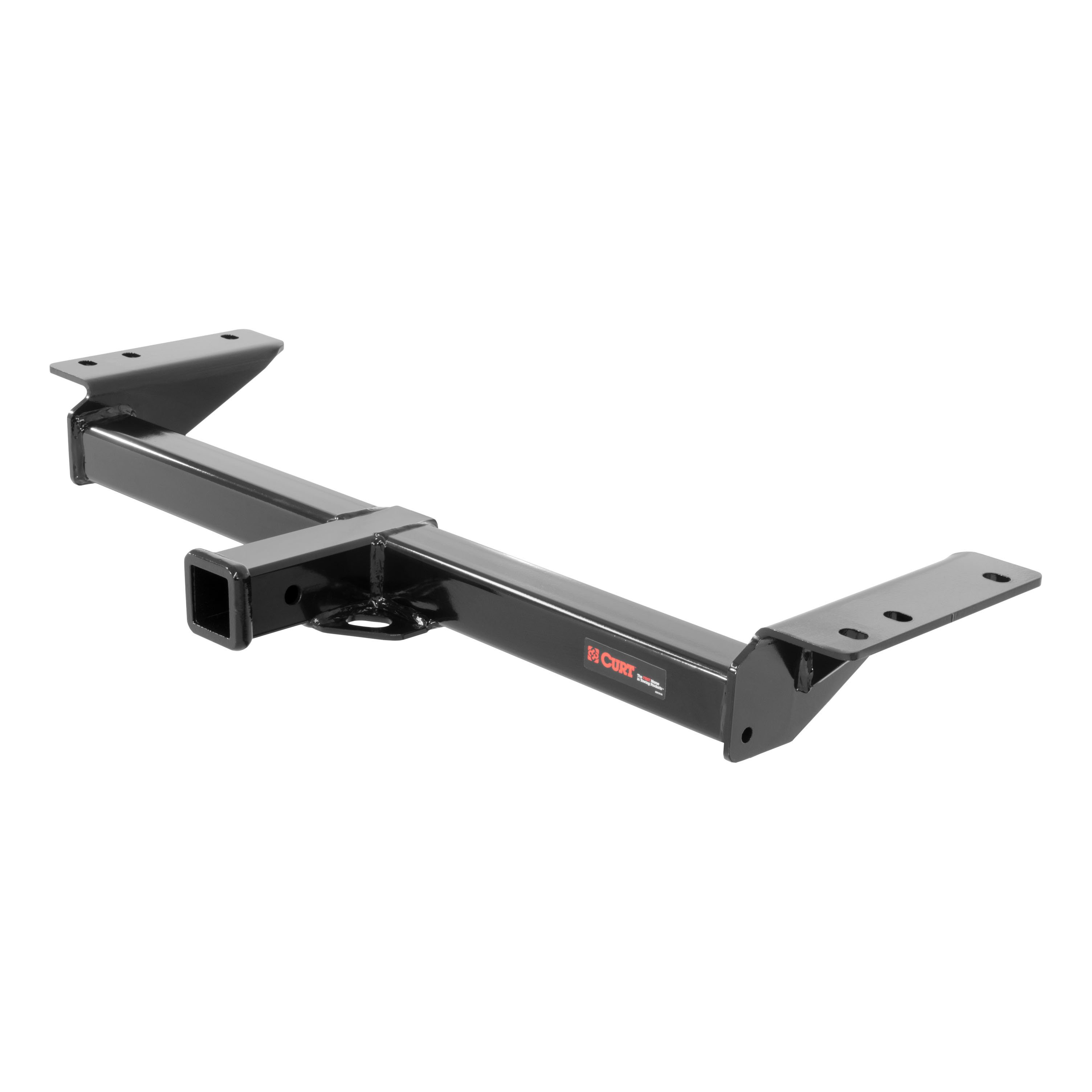

Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Cadillac XT5 (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 5,000 lbs. GTW and 750 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 6,000 lbs. WD and 750 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
CURT custom wiring connectors and harnesses are the easiest way to outfit your vehicle with a trailer wiring connection for towing. Each one is custom-fitted to work with a specific make and model. This particular 7-way RV blade socket is designed to be a custom wiring option for certain years of the Chevy Blazer, Cadillac XT5, XT6 and GMC Acadia (see application info to verify fitment). It provides a universal trailer connection for the tail lights, brake lights, reverse lights, turn signals, electronic trailer brakes and auxiliary power. 7prong taillight wiring can be used as a replacement or new wiring and is typically used for towing fifth wheel and gooseneck trailers. This 7 way female outlet comes with all necessary hardware to establish a solid connection, as well as a dust cover to keep the connector socket clean when not in use. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this factory tow package socket is not equipped on every vehicle, a CURT custom wiring connector (also called a T-connector) utilizes the socket for simple, stress-free installation. Instead of cutting, splicing and soldering into your vehicle's wiring system, the custom wiring connector uses a single OEM compatible plug and instantly provides a standard vehicle-to-trailer hitch wiring connection. To ensure long-lasting reliability, all CURT custom tconnector wiring is thoroughly tested for optimal functionality.
Experts available to answer your questions
Call 888-634-9494Yes, CURT part number 13285 is designed for 2017-present Cadillac XT5 SUVs. Before purchasing, verify that your vehicle matches this year range and model. If you have a different model year or variant, contact CURT technical support at 877-287-8634 to confirm fitment.
When used as a weight carrying hitch, the CURT 13285 supports a maximum trailer weight of 5,000 lbs and tongue weight of 750 lbs. When used as a weight distribution hitch, it supports a maximum trailer weight of 6,000 lbs and tongue weight of 750 lbs. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than these hitch ratings.
The hitch weight is 38 lbs.
You will need: a ratchet, a torque wrench, 7mm and 11/16" sockets, an 8" extension, and safety glasses. No power tools or drilling equipment is required.
The kit includes: 6 square hole spacers (CM-SP2, .250 x .88 x 2.25"), 6 carriage bolts (7/16-14 UNC, 1-1/4", grade 8, yellow zinc), 6 serrated flange nuts (7/16-14 UNC, grade 8, yellow zinc), and 6 pieces of 7/16" fishwire. All fasteners are grade 8 and yellow zinc plated.
No. The CURT 13285 requires no drilling. It uses existing holes on the vehicle frame and the fishwire hardware technique to route fasteners through access holes.
Two people may be required to ease installation. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance.
Professional installation takes approximately 20 minutes. Novice (DIY) installation takes approximately 40 minutes.
Remove the access panel by using a 7mm socket to remove the 2 screws, then pull the access panel straight down and away from the vehicle. Set the panel and screws aside for reinstallation.
Use the fishwire technique to route 3 CM-SP2 spacers and 3 carriage bolts through the access hole and out the mounting holes on each side of the vehicle. The manual references a fishwire technique diagram for detailed routing instructions. Raise the hitch into position and secure with 3 flange nuts on each side.
All 7/16" hardware must be torqued to 70 ft-lbs using an 11/16" socket.
When the hitch is not in use, reinstall the access panel that was removed in step 1. Use the original 2 screws to secure it.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This ongoing inspection helps maintain the safety and integrity of the installation.
Safety glasses must be worn at all times while installing this product. Before you begin installation, read all instructions thoroughly. Using proper tools will greatly improve the quality of the install and reduce the time required.
Never exceed your vehicle manufacturer's recommended towing capacity. Although the CURT 13285 is rated for up to 5,000 lbs trailer weight (weight carrying) or 6,000 lbs (weight distribution), your Cadillac XT5 may have a lower manufacturer-recommended limit. Always follow your vehicle's specifications.
Yes, the CURT 13285 is designed for 2017-present Cadillac XT5 SUVs.
No, the CURT 13285 requires no drilling. It uses existing vehicle holes and fishwire hardware.
You need a ratchet, torque wrench, 7mm and 11/16" sockets, 8" extension, and safety glasses.
Torque all 7/16" hardware to 70 ft-lbs using an 11/16" socket.
Weight carrying: 5,000 lbs trailer, 750 lbs tongue. Weight distribution: 6,000 lbs trailer, 750 lbs tongue. Never exceed your vehicle manufacturer's recommended capacity.
Wear safety glasses at all times during installation. Never exceed your vehicle manufacturer's recommended towing capacity.
Yes, CURT part 56326 is designed for the Cadillac XT5. The wiring connector is installed behind the rear bumper in the center of the vehicle.
CURT part 56326 is compatible with GMC Acadia models, with one exception: it does not fit the Acadia Limited trim. Check your vehicle's trim level before purchasing.
The manual does not specify a maximum towing capacity. The product has a rating that must not be exceeded. Do not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower. Refer to your vehicle owner's manual or contact the vehicle manufacturer for your specific tow vehicle lamp load rating.
You will need a wire cutter. This is the only tool listed as required for installation.
Yes, you must disconnect the negative battery terminal before beginning installation. The battery is located on the driver side under the hood. Reconnect the negative battery terminal after all installation steps are complete.
The vehicle connector is located behind the rear bumper in the center of the vehicle. It will be similar in appearance to the CURT wiring connector you are installing.
1. Separate the vehicle connectors from the weather seal connectors, taking care not to damage the locking tabs. 2. Insert the CURT wiring connector end into the vehicle connector. 3. Make sure the connectors are fully inserted with locking tabs in place. 4. Route the other end of the wiring connector along the inside of the bumper towards the center of the vehicle to the 7-way mounting location. 5. Insert the 7-way connector end between the separated 7-way connectors. 6. Ensure the connectors are fully inserted with locking tabs in place.
The fuse ratings are: Stop/Turn Light - 10 amps; Taillights - 10 amps; Backup - 10 amps; Power Circuit - 30 amps; Trailer Brakes (3 Axles / 6 Brakes) - 20 amps.
Exceeding the product rating can cause loss of warranty, overheating, and potential fire. Do not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower.
Test for proper function by using a test light or connecting a properly wired trailer. For the initial test, reset the electrical system of the vehicle by temporarily removing the vehicle's key from the ignition. All connections must be complete for the wiring harness to function. Test and verify installation after completing all steps.
After all connections are complete, reinstall all items removed during installation and reconnect the negative battery terminal. Then test the installation using a test light or by connecting a properly wired trailer.
CURT 56326 fits Cadillac XT5 and GMC Acadia (excluding Limited trim).
Only a wire cutter is required.
Yes, disconnect the negative battery terminal before starting installation and reconnect it after all steps are complete.
Stop/Turn Light and Taillights: 10 amps each; Backup: 10 amps; Power Circuit: 30 amps; Trailer Brakes (3 Axles/6 Brakes): 20 amps.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. Exceeding the rating can cause loss of warranty, overheating, and potential fire.
Use a test light or connect a properly wired trailer. Reset the electrical system by temporarily removing the vehicle key from the ignition before testing.
