Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2018-2021 Mitsubishi Eclipse Cross All
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Mitsubishi Eclipse Cross (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 3,500 lbs. GTW and 525 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Installation requires temporary lowering of exhaust and removal of tow loop

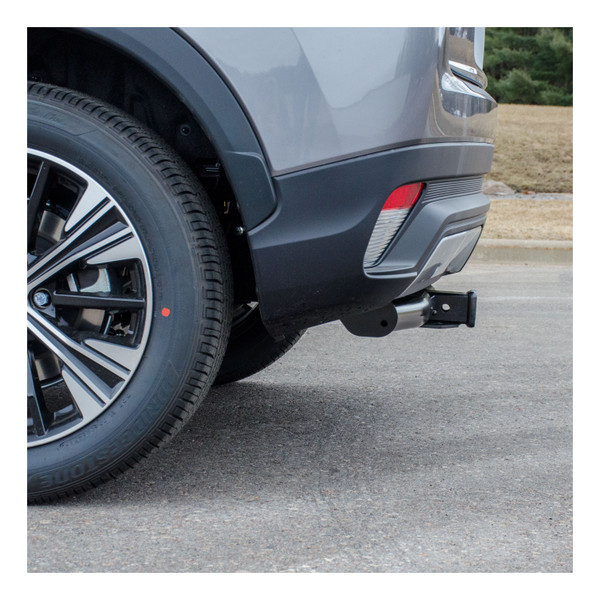

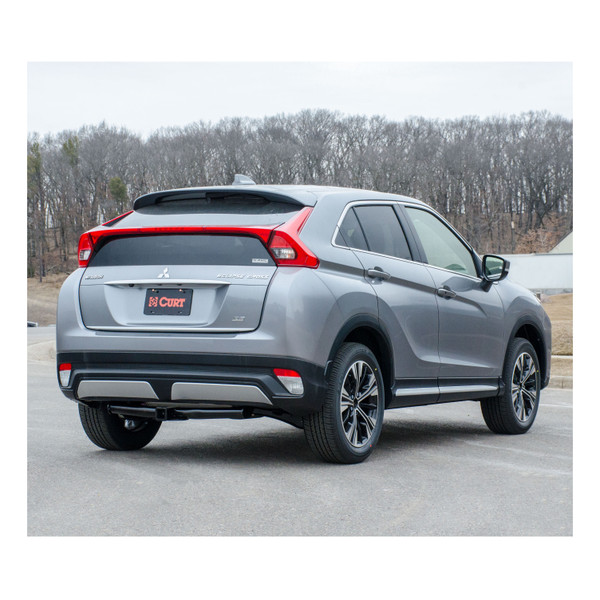

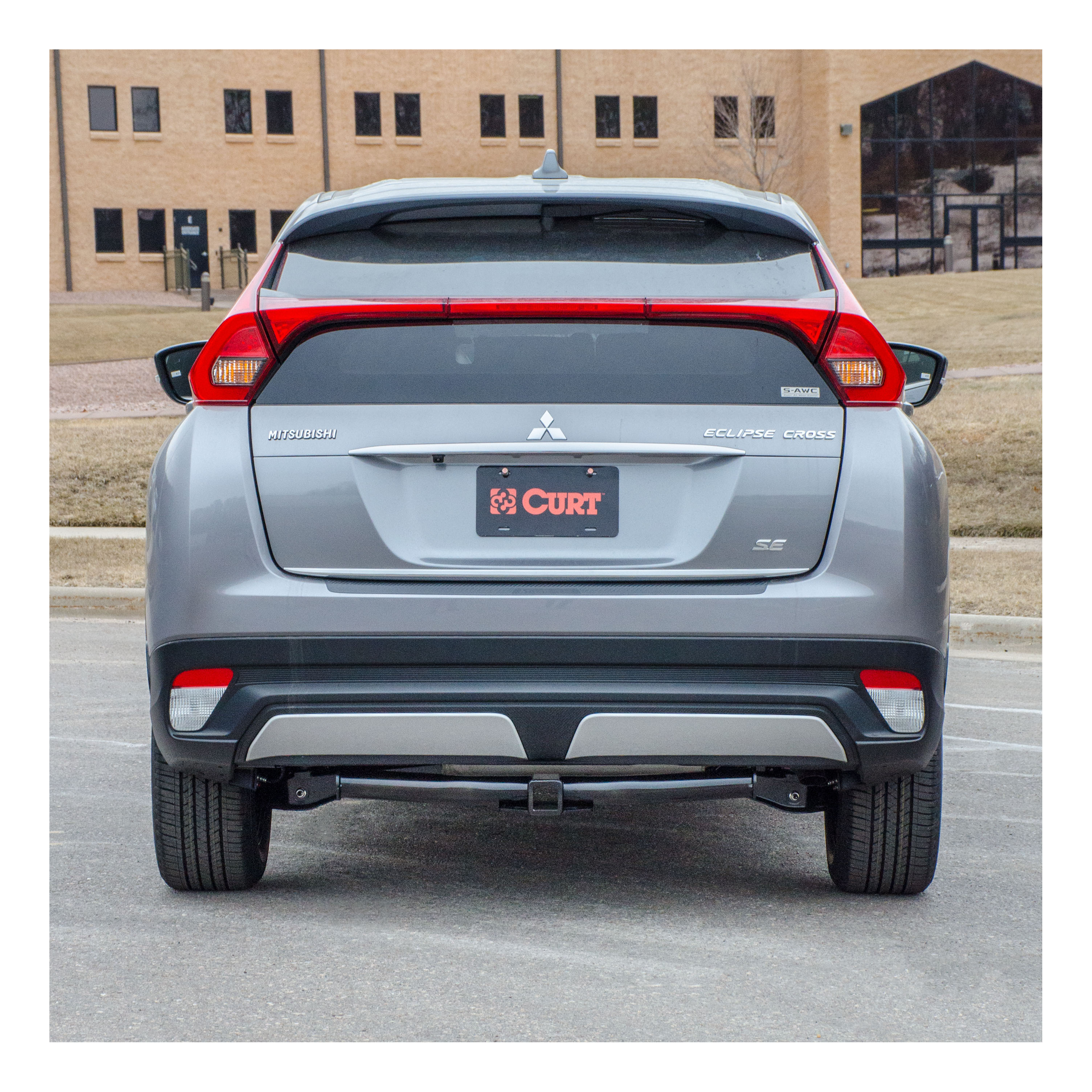

2018, 2019, 2020, 2021 Mitsubishi Eclipse Cross All Class 3 Trailer Hitch, 2" Receiver, Select Mitsubishi Eclipse Cross
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2018 - 2021 | Mitsubishi Eclipse Cross | — |

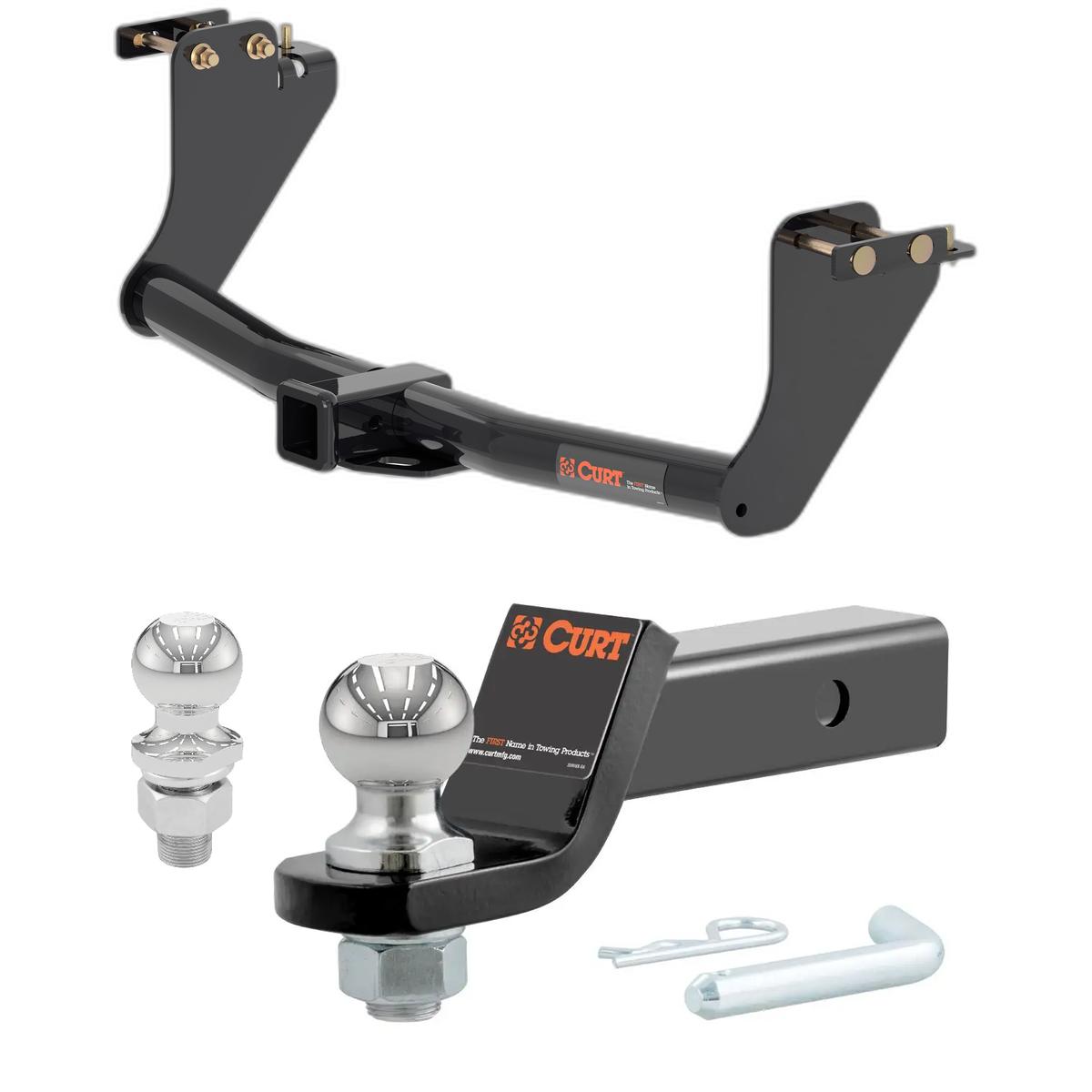

Yes, the 2018-2021 Mitsubishi Eclipse Cross All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13273-001) is designed to fit the 2018-2021 Mitsubishi Eclipse Cross.
The 2018-2021 Mitsubishi Eclipse Cross All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13273-001) fits 2018-2021 Mitsubishi Eclipse Cross models. The 2021 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2018-2021 Mitsubishi Eclipse Cross All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13273-001) fits the following vehicles: 2018-2021 Mitsubishi Eclipse Cross. Always verify your specific year, make, and model before ordering.
The 2018-2021 Mitsubishi Eclipse Cross All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13273-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT part number 13273 is designed for 2018-Present Mitsubishi Eclipse Cross CUV models. Before purchasing, verify your vehicle matches this model and year range, and confirm your vehicle's towing capacity with your manufacturer to ensure it meets the hitch rating of 3500 lbs trailer weight and 525 lbs tongue weight.
The CURT 13273 hitch is rated for a maximum of 3500 lbs trailer weight and 525 lbs tongue weight when used as a weight-carrying hitch. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than the hitch rating.
You will need: ratchet, torque wrench, 6-inch extension, 3/4-inch socket, 14mm socket, 17mm socket, and safety glasses. No power tools, drilling, or cutting equipment is required.
The kit includes: 4× 1/2-13 UNC carriage bolts (part 10-10297), 4× 1/2-13 UNC serrated flange nuts (part 20-00062), 2× M10×1.25 hex cap screws (part 10-10373), 2× 3/8-inch washers (part 30-00148), 2× 7/16-inch fishwire (part 7_16 FISHWIRE), 2× 0.250×1.00×2.50-inch square hole spacers (part CM-SP11), 2× 7/16-14 UNC carriage bolts (part 10-10281), 2× 7/16-14 UNC serrated flange nuts (part 20-00103), and 2× spacers (part 13273-SP).
If a tow loop is present on the passenger side of the vehicle frame, it must be removed during installation. The tow loop and its bolts should be returned to the vehicle owner.
Yes, you must temporarily lower the exhaust system by removing three rubber hangers: two by the muffler and one just forward of the muffler. Be sure to support the exhaust when removing the hangers. The hangers are reinstalled after the hitch installation is complete.
No, drilling is not required. The hitch uses existing frame holes and does not require any modifications to the vehicle frame.
No, trimming is not required. The installation does not involve cutting, grinding, or modifying any vehicle components.
Two people may be required to ease installation. While one person may be able to complete the installation, having a second person available is recommended to help position and support the hitch during assembly.
All 10mm fasteners (M10×1.25 hex cap screws, part 10-10373) must be torqued to 48 lb-ft.
All 1/2-inch fasteners (1/2-13 UNC carriage bolts and serrated flange nuts) must be torqued to 110 lb-ft.
No. When raising the hitch into position and installing the hex flange nuts and hex bolts with conical washers, they should be installed loosely first. Final torquing to specification (48 lb-ft for 10mm fasteners and 110 lb-ft for 1/2-inch fasteners) occurs after all fasteners are in place.
The teeth on the conical washers must be against the hitch mounting plate. This ensures proper seating and load distribution.
If no weld nuts are present in the frame, the supplied short carriage bolts and spacers will need to be fishwired instead and secured with the supplied flange nuts. Fishwire is included in the kit for this purpose.
No, removing the canister fastener is not required. Temporary removal of the fastener supporting the canister on the driver side frame rail will aid access to the mounting area, but it is optional. If removed, it must be reinstalled after the hitch installation is complete.
After installation, verify that all fasteners are properly torqued to specification (48 lb-ft for 10mm fasteners and 110 lb-ft for 1/2-inch fasteners), the exhaust hangers are fully reinstalled, and the hitch is securely mounted. Periodically check the hitch to ensure all fasteners remain tight and all structural components are sound.
You should periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. Regular inspection helps prevent loosening due to vibration and wear.
Safety glasses must be worn at all times while installing this product. When lowering the exhaust system, be sure to support it properly to prevent injury. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance.
Never exceed your vehicle manufacturer's recommended towing capacity. While the CURT 13273 is rated for 3500 lbs trailer weight and 525 lbs tongue weight, your vehicle manufacturer may specify a lower limit. Always follow the more restrictive specification.
Yes, CURT 13273 is designed for 2018-Present Mitsubishi Eclipse Cross CUV. Verify your vehicle year and model before purchasing.
3500 lbs trailer weight and 525 lbs tongue weight. Never exceed your vehicle manufacturer's recommended towing capacity.
Ratchet, torque wrench, 6-inch extension, 3/4-inch socket, 14mm socket, 17mm socket, and safety glasses. No drilling or cutting required.
No drilling or trimming required. You must temporarily lower the exhaust by removing three rubber hangers and remove the tow loop if present.
10mm fasteners: 48 lb-ft. 1/2-inch fasteners: 110 lb-ft. Install fasteners loosely first, then torque to final specification.
Wear safety glasses at all times. Support the exhaust when removing hangers. Never exceed vehicle manufacturer's towing capacity. Contact an authorized CURT installer if hesitant.
Verify all fasteners are torqued to specification (48 lb-ft for 10mm, 110 lb-ft for 1/2-inch), exhaust hangers are reinstalled, and the hitch is secure. Periodically recheck fasteners.
