Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2018-2025 Jeep Compass All
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Jeep Compass (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 4,000 lbs. GTW and 600 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Installation requires hole enlargement, temporary removal of heat shield and temporary lowering of exhaust (hardware included)
2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025 Jeep Compass All Class 3 Trailer Hitch, 2" Receiver, Select Jeep Compass
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime

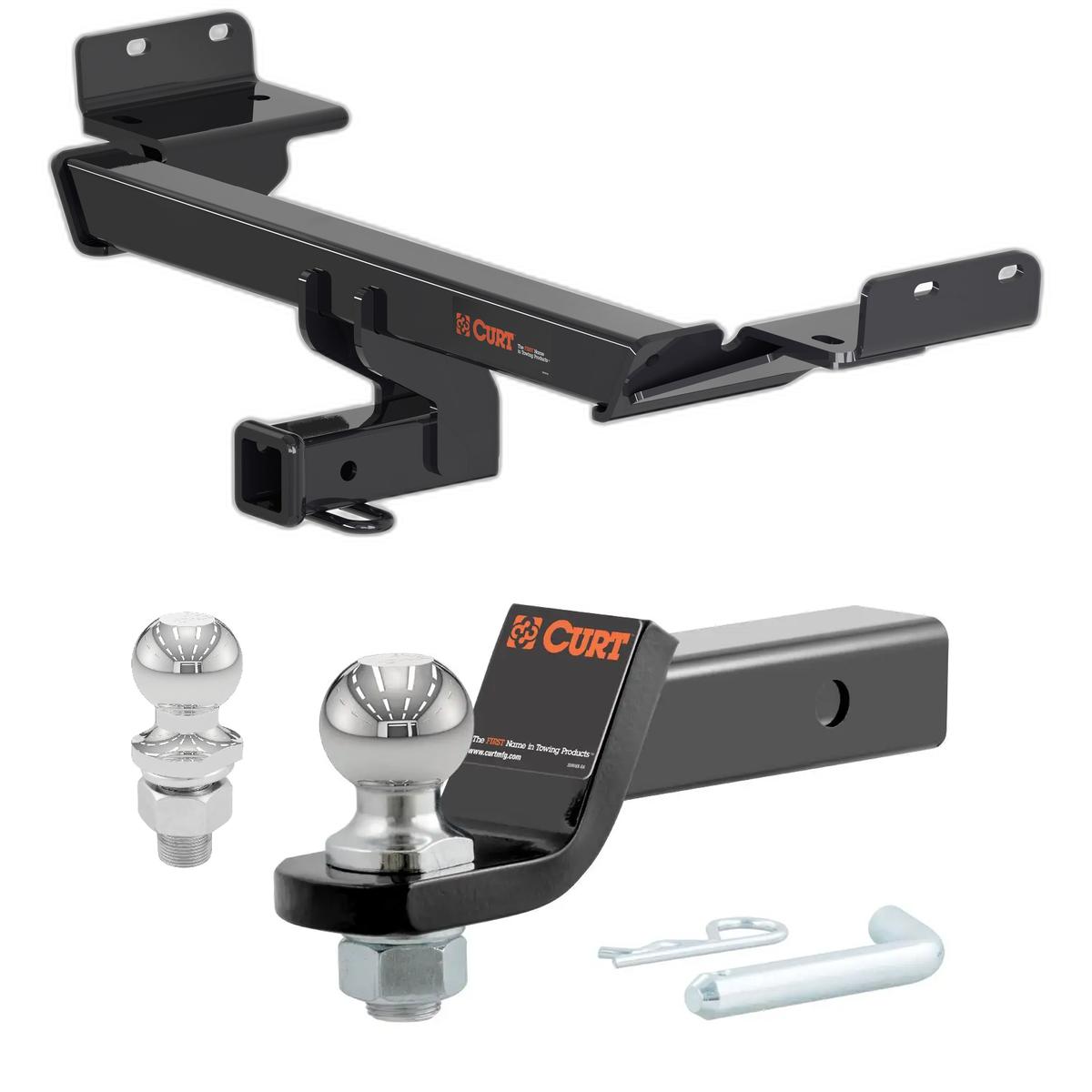

The 2018-2025 Jeep Compass All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13363-002) fits 2018-2025 Jeep Compass models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2018-2025 Jeep Compass All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13363-002) is designed to fit the 2018-2025 Jeep Compass.
The 2018-2025 Jeep Compass All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13363-002) fits the following vehicles: 2018-2025 Jeep Compass. Always verify your specific year, make, and model before ordering.
The 2018-2025 Jeep Compass All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13363-002) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT part number 13363 is designed for Jeep Compass models from 2017.5-Present. Confirm your model year falls within this range before purchasing.
The CURT 13363 is rated for a maximum trailer weight of 4,000 lbs and a tongue weight of 600 lbs when used as a weight-carrying hitch. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
The hitch weight is 90 lbs.
Professional installation takes approximately 42 minutes. DIY (novice) installation takes approximately 45 minutes. The manual rates this as a challenging installation and recommends 2 people may be required to ease installation.
Required tools include: ratchet, torque wrench, safety glasses, T30 Torx bit, sockets (11mm, 13mm, 15mm, 21mm, 3/4"), 6" socket extension, masking tape, tape measure, aviation shears, die grinder, pliers, and marker. Safety glasses must be worn at all times during installation.
The kit includes: 6× 1/2-13 UNC carriage bolts, 1-3/4" grade 8 (part 10-10272); 2× M8x1.25 hex cap screws, 45mm class 10.9 (part 10-10464); 6× 1/2-13 UNC serrated flange nuts grade 8 (part 20-00062); 6× 0.250 x 1.00 x 2.50" square hole spacers (part CM-SP10); 6× 1/2" fishwire (part 1_2 FISHWIRE); and 2× 3/8" S-con washers (part 30-00148).
You do not need to fully remove the bumper, but you must remove the 2 screws attaching the bumper fascia to the body mounts using a T30 Torx bit (step 1). You will also need to trim a 3 3/8" side-to-side by 2 5/8" lengthwise cutout from the lower bumper cover (step 5). The bumper fascia screws are reinstalled at the end (step 9).
You must remove the bolts on the 2 rearward-most exhaust hanger brackets using a 13mm socket (step 2). Support the exhaust before removing these fasteners to prevent damage. The manual notes that temporarily removing the exhaust will ease installation; if you choose to do this, loosen the nut at the bolted connection in the middle of the vehicle with a 15mm socket. The exhaust is reinstalled at the end (step 9).
Yes. Remove the 3 sheet metal nuts holding the heat shield in position using an 11mm socket (step 3). Remove the heat shield and trim the exhaust attachment tabs from it. Reinstall the heat shield center onto the vehicle after trimming.
No drilling is required. However, you must use a die grinder to enlarge the rearward-most holes in the bottom of the frame to allow the supplied carriage bolts and spacers to pass through (step 4). You must also trim a 3 3/8" side-to-side by 2 5/8" lengthwise cutout from the lower bumper cover using tin snips or aviation shears (step 5). These dimensions are reference only; verify hitch location on your vehicle before trimming.
The trim cutout is 3 3/8" side-to-side and 2 5/8" lengthwise. These dimensions are reference only; the manual instructs you to check hitch location on your vehicle prior to trimming to ensure proper fit.
Yes. Using pliers, bend the 2 small locator tabs flat on each exhaust bracket or remove them entirely (step 6).
Torque all 1/2" fasteners to 110 lb-ft. Torque all M14 fasteners to 126 lb-ft. (Step 8). The manual does not provide a torque specification for the M8x1.25 fasteners (part 10-10464).
1. Remove bumper fascia screws (T30 Torx bit). 2. Remove exhaust hanger bracket bolts (13mm socket) and support exhaust. 3. Remove and trim heat shield (11mm socket). 4. Enlarge frame holes with die grinder and fishwire carriage bolts and spacers into position. 5. Mark and trim bumper cover cutout (3 3/8" × 2 5/8"). 6. Bend or remove exhaust bracket locator tabs (pliers). 7. Thread fishwires into hitch mounting holes, raise hitch into position, and install flange nuts. 8. Torque all fasteners. 9. Reinstall exhaust and bumper fascia screws. For tow hook equipped models, skip steps 3-4 and use the 6 existing 14mm hex bolts from the vehicle frame instead.
Thread fishwires into the hitch mounting holes and raise the hitch into mounting position with the main body on the rearward side of the bumper fascia body mounts. Pull downward on the rear bumper cover approximately 5" to accomplish getting the hitch in position. Remove the fishwires and install the 6 supplied 1/2" hex flange nuts (step 7).
The CURT 13363 is rated for 4,000 lbs trailer weight and 600 lbs tongue weight. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than the hitch rating. Always follow your vehicle's towing guidelines.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This maintenance is critical for safe towing operation.
The manual states that the hitch may interfere with the lift gate kick sensor on TrailHawk models. If you have a TrailHawk model, verify clearance and sensor function after installation.
Yes. For tow hook equipped models, use the 21mm socket to remove the 6 existing 14mm hex bolts from the vehicle frame and use them to attach the hitch. Follow steps 2, 3, 5, 6, 8, and 9 (skip steps 1 and 4). This simplifies installation by eliminating the need to enlarge frame holes and use carriage bolts.
The manual recommends that 2 people may be required to ease installation. The installation is rated as challenging. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance. Technical support is available at 877-287-8634.
Yes, CURT 13363 fits Jeep Compass 2017.5-Present. Verify your model year before purchasing.
4,000 lbs trailer weight, 600 lbs tongue weight. Never exceed your vehicle manufacturer's recommended towing capacity.
Ratchet, torque wrench, T30 Torx bit, sockets (11mm, 13mm, 15mm, 21mm, 3/4"), 6" extension, die grinder, aviation shears, pliers, tape measure, marker, masking tape, and safety glasses.
No drilling required. You must use a die grinder to enlarge existing frame holes and trim the bumper cover (3 3/8" × 2 5/8" cutout).
Torque all 1/2" fasteners to 110 lb-ft. Torque all M14 fasteners to 126 lb-ft.
Professional: 42 minutes. DIY: 45 minutes. Rated as challenging; 2 people recommended.
The hitch may interfere with the lift gate kick sensor on TrailHawk models. Verify clearance and sensor function after installation.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2018 - 2025 | Jeep Compass | — |
