Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2019-2025 BMW X5 Excluding M Versions
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the BMW X5 (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 7,000 lbs. GTW and 700 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 7,000 lbs. WD and 700 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid Bonderite and black powder coat for superior resistance to rust, chipping and UV damage.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes installation hardware

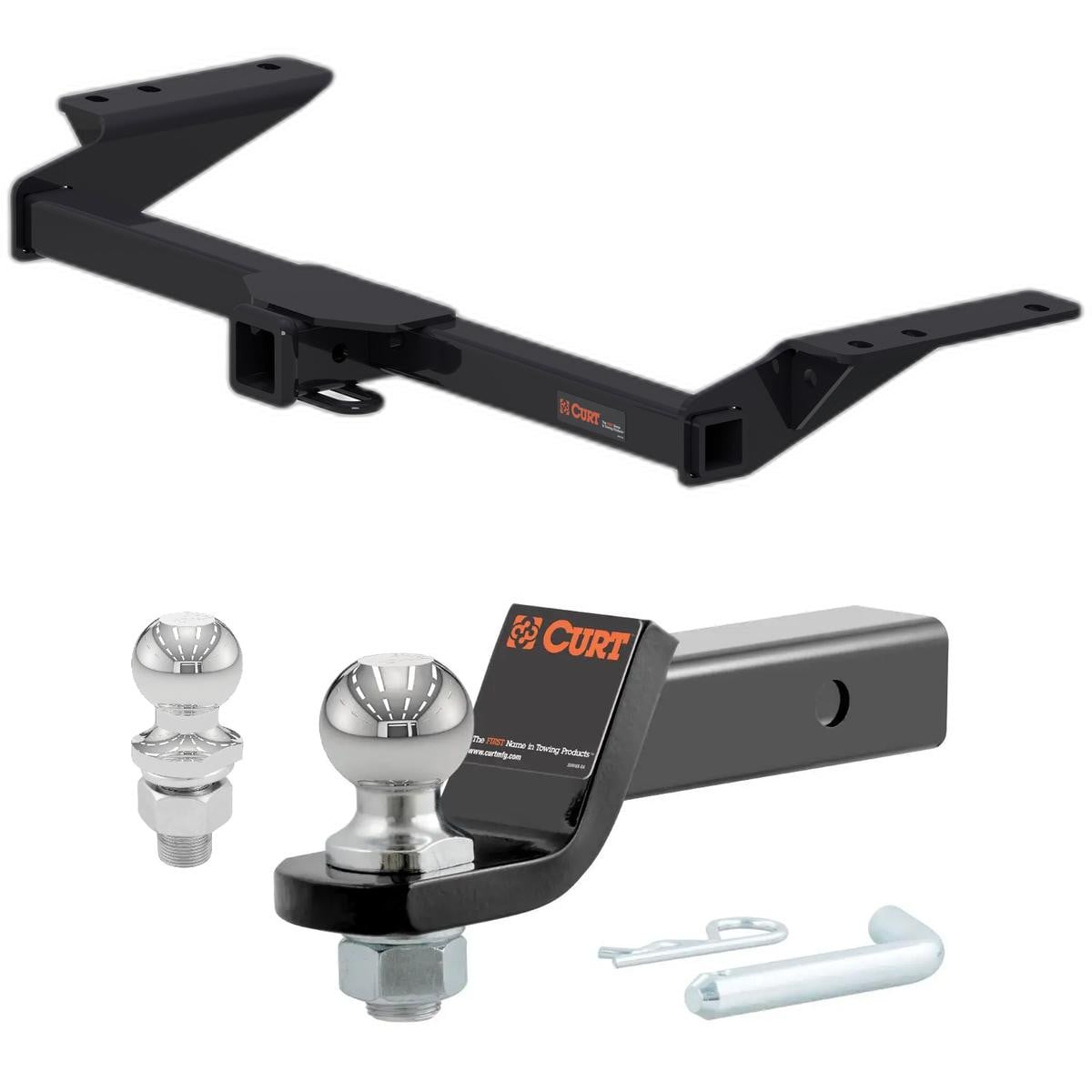

2019, 2020, 2021, 2022, 2023, 2024, 2025 BMW X5 Excluding M Versions Class 3 Trailer Hitch, 2" Receiver, Select BMW X5
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2025 | BMW X5 | Excluding M Versions |
Yes, the 2019-2025 BMW X5 Excluding M Versions CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13451-001) is designed to fit the 2019-2025 BMW X5.
The 2019-2025 BMW X5 Excluding M Versions CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13451-001) fits 2019-2025 BMW X5 models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2019-2025 BMW X5 Excluding M Versions CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13451-001) fits the following vehicles: 2019-2025 BMW X5. Always verify your specific year, make, and model before ordering.
The 2019-2025 BMW X5 Excluding M Versions CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13451-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The CURT 13451 trailer hitch has a gross trailer weight (GTW) capacity of 7,000 lbs. and a tongue weight (TW) capacity of 700 lbs. For weight distribution towing, the weight distribution (WD) capacity is 7,000 lbs. with a WD tongue weight (WDTW) of 700 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
Yes. The CURT 13451 requires trimming of both the bumper beam mounting plate and the lower fascia panel. The bumper beam mounting plate must be trimmed by 1" on both sides. The lower fascia panel must be marked and trimmed according to the trim diagram provided in the manual (4" width, 1" height, 3-3/4" depth reference). You must obtain the vehicle owner's permission before performing any trimming.
Required tools include: ratchet, drill, sockets (8mm, 13mm, 18mm), 3/16" drill bit, 6" socket extension, flathead screwdriver, plastic rivet gun, tape measure, panel trim removal tool, rotary tool or reciprocating saw, and torque wrench. A tools reference guide is available at curtmfg.com/trailer-hitch-installation.
The CURT 13451 includes one trailer hitch and four plastic rivets (6mm). The manual notes that rivets cannot be reused and the supplied replacements are for use during reinstallation of the wheel well trim.
Installation requires removal of: rear wheel well trim on both sides, hidden rivets under the wheel well trim and fascia (drilled out with 3/16" bit), three underbody panels (24 fasteners using 8mm socket), rear reflectors on both sides, rear fascia (with electrical harness disconnection on passenger side), four push fasteners from appearance panels, exhaust system (one nut per side using 13mm socket), backup sensor and hands-free sensor from bumper beam, and the bumper beam itself (eight M12 nuts using 18mm socket). All components are reinstalled after hitch installation.
All M12 fasteners securing the hitch must be torqued to 55 ft-lbs. These are the eight M12 bolts that secure the hitch and trimmed bumper beam in place, using the same nuts that were removed from the original bumper beam mounting.
Yes. A 3/16" drill bit is required to drill out the center of rivets hidden under the wheel well trim on each side and rivets located on the underside of the fascia on each side. These rivets cannot be reused. The supplied plastic rivets (6mm) are replacements for reinstallation of the wheel well trim.
Two trimming operations are required: (1) Trim the bumper beam mounting plate by 1" on both sides using the trim diagram as reference. (2) Mark and trim the lower fascia panel according to the trim diagram (4" width, 1" height, 3-3/4" depth). Additional trimming of the rear appearance panels may be needed during reinstallation if interference with the bumper beam is noticed. Owner permission must be obtained before any trimming.
Safety glasses must be worn at all times during installation. When lowering the exhaust system, it must be properly supported. Never exceed the vehicle manufacturer's recommended towing capacity. After installation, periodic inspection of the trailer hitch should be performed to ensure all mounting hardware remains tight and structural components are secure.
Periodic inspection of the trailer hitch should be performed to ensure all mounting hardware remains tight and structural components are secure. The manual does not specify the frequency of inspection or which specific components require checking.
Yes. The eight M12 nuts removed from the original bumper beam mounting in Step 8 are reused to secure the hitch and trimmed bumper beam in Step 10. These nuts must be torqued to 55 ft-lbs.
Yes. The backup sensor and hands-free sensor must be disconnected from the bumper beam before removal (Step 7) and reconnected when the hitch and trimmed bumper beam are raised into place (Step 10). The electrical harness on the passenger side of the rear fascia must also be disconnected during removal (Step 5) and reconnected during reinstallation (Step 12).
Yes. The bumper beam mounting plate must be trimmed by 1" on both sides, and the lower fascia panel must be trimmed according to the provided diagram. Owner permission is required before trimming.
A drill with 3/16" bit, sockets (8mm, 13mm, 18mm), torque wrench, panel trim removal tool, and rotary tool or reciprocating saw are essential. A complete tools list is available at curtmfg.com/trailer-hitch-installation.
All M12 fasteners must be torqued to 55 ft-lbs. Use a torque wrench to ensure proper tightening.
Gross trailer weight capacity is 7,000 lbs. with 700 lbs. tongue weight. Weight distribution capacity is also 7,000 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
Safety glasses must be worn at all times during installation. The exhaust system must be properly supported when lowered.
Yes. The eight M12 nuts removed from the original bumper beam are reused and must be torqued to 55 ft-lbs.
