Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2019-2025 Ram 1500 All

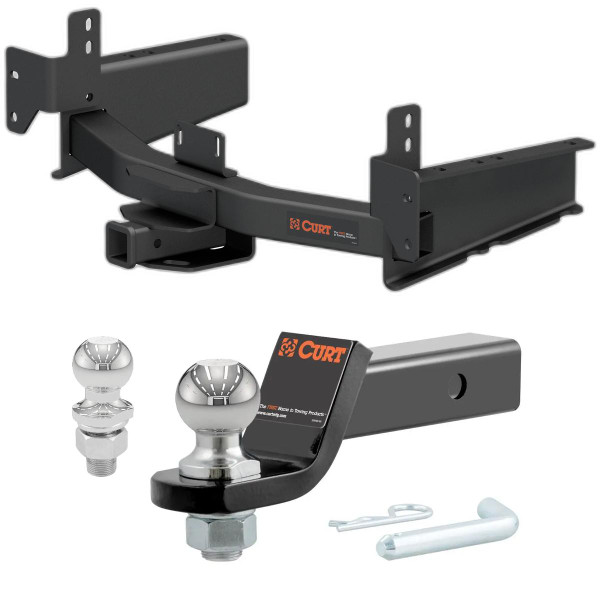

When we came to the limits of towing capacity, we wanted to know what else was out there. What could we discover off the beaten path? So, we kept going. CURT class 5 Xtra Duty hitches begin a class of their own, beyond class 4 and beyond anything the standards dictate. They are designed for the hard road where only full-size pickup trucks, vans and SUVs dare to tread. They are capable of pulling almost any heavy-duty trailer, including toy haulers, dump trailers, logging trailers, small yacht trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component). This particular Xtra Duty class 5 trailer hitch offers a gross trailer weight capacity of 15,000 lbs. and an extra-high tongue weight capacity of 1,700 lbs. It features a 2" x 2" receiver tube opening to accept a ball mount or hitch-mounted accessory, such as a cargo carrier or winch mount. It is designed to be a custom-fit trailer hitch for certain years of the Ram 1500 (to verify compatibility with your vehicle, see application info). For a little extra towing power and stability, this class 5 hitch can also be used in combination with a weight distributing hitch. It is rated for 17,000 lbs. WD and 1,700 lbs. WDTW. In our drive to create a more powerful hitch, CURT has not neglected the finer details. Our class 5 trailer hitches are welded with precision and go through multiple stages of cleaning to create a smooth surface that is ready to accept our co-cured finish. To protect them from corrosion, chipping and UV damage, these hitches are immersed in a liquid A-coat and then finished in a high-quality black carbide powder coat. They come with grade-8 mounting hardware for solid installation.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Includes strong, grade-8 installation hardware
2019, 2020, 2021, 2022, 2023, 2024, 2025 Ram 1500 All Xtra Duty Class 5 Trailer Hitch, 2" Receiver, Select Ram 1500
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2025 | Ram 1500 | — |
Yes, the 2019-2025 Ram 1500 All Xtra Duty CURT Class 5 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-15005-001) is designed to fit the 2019-2025 Ram 1500.
The 2019-2025 Ram 1500 All Xtra Duty CURT Class 5 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-15005-001) fits the following vehicles: 2019-2025 Ram 1500. Always verify your specific year, make, and model before ordering.
The 2019-2025 Ram 1500 All Xtra Duty CURT Class 5 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-15005-001) fits 2019-2025 Ram 1500 models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2019-2025 Ram 1500 All Xtra Duty CURT Class 5 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-15005-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. CURT part number 15005 is designed for the 2019 RAM 1500 in all styles.
The CURT 15005 is rated for a maximum of 15,000 lbs trailer weight and 1,700 lbs tongue weight when used as a weight carrying hitch, or 17,000 lbs trailer weight and 1,700 lbs tongue weight when used as a weight distribution hitch. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
The hitch weight is 68 lbs.
Required tools are: safety glasses, ratchet, 6" socket extension, 10mm, 15mm, 16mm, 17mm, 21mm, and 22mm sockets, 3/4" and 7/8" sockets, a pry tool, a torque wrench, and a hammer. A clean weldnut socket is also listed.
No. The CURT 15005 requires no drilling.
Yes. Fishwiring is required. In step 6, you must fishwire the 1/2" carriage bolts and spacers through the end of the frame rail to the three mounting holes on both frame rails.
Two people may be required to ease installation, though the manual does not state this is mandatory.
Yes. Step 1 requires you to locate and remove the spare tire and set it aside for reinstallation later.
The manual does not specify whether the battery must be disconnected. Contact CURT technical support at 877-287-8634 for clarification.
Save the factory M14 bolts removed in step 4 (3 from the outside of the driver side frame rail, 1 from the underside, and the same on the passenger side). These are reinstalled in steps 7 and 8. The factory M6 bolts removed from the exhaust heat shield in step 5 should be returned to the customer per the manual.
In step 5, remove the 2 factory M6 bolts from the passenger side and 1 M6 bolt from the driver side from the exhaust heat shield. Using a hammer, flatten the heat shield tabs against the frame. The heat shield tabs will be pinched between the hitch side plates and the frame.
In step 9, secure each bumper bracket to the hitch using 1 x 1/2" hex bolt, 1 x conical tooth washer, and 1 x 1/2" hex flange nut. Repeat on both driver and passenger sides.
In step 10, align the bumper mounting studs with the mounting holes in the bumper brackets. Secure the bumper to the bumper brackets using 4 x M10 hex flange nuts. Then secure the center bumper mounts to the bumper plate on the hitch using 2 x M10 hex bolts, 2 x M10 flat washers, and 2 x M10 hex flange nuts.
All 1/2" fasteners must be torqued to 110 ft-lbs.
All M14 fasteners must be torqued to 126 ft-lbs.
Safety glasses should be worn at all times while installing this product. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance.
Never exceed your vehicle manufacturer's recommended towing capacity. The CURT 15005 hitch has its own capacity ratings, but your vehicle's manufacturer may impose a lower limit that must be respected.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This is an ongoing maintenance requirement, not a one-time check.
The manual states to periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound, but does not specify an exact interval. Regular inspection before towing is recommended.
Yes, the CURT 15005 is designed for all 2019 RAM 1500 styles.
15,000 lbs trailer weight and 1,700 lbs tongue weight as a weight carrying hitch, or 17,000 lbs trailer and 1,700 lbs tongue as a weight distribution hitch. Never exceed your vehicle manufacturer's towing capacity.
No drilling is required. Fishwiring is required to route carriage bolts through the frame rails.
Ratchet, socket set (10mm through 22mm and 3/4", 7/8"), 6" extension, pry tool, torque wrench, hammer, and safety glasses.
Torque all 1/2" fasteners to 110 ft-lbs and M14 fasteners to 126 ft-lbs. This is done in the final step after all components are assembled.
Never exceed your vehicle manufacturer's recommended towing capacity. Wear safety glasses during installation. Periodically check all fasteners are tight and structural components are sound.
