Complete CURT Class 3 2" trailer hitch and 7-way custom wiring kit engineered for the 2019 - 2026 Blazer Excluding Premier. Vehicle-specific fit, plug-and-play installation, supports trailers with electric brakes, auxiliary 12V power and reverse lights.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!

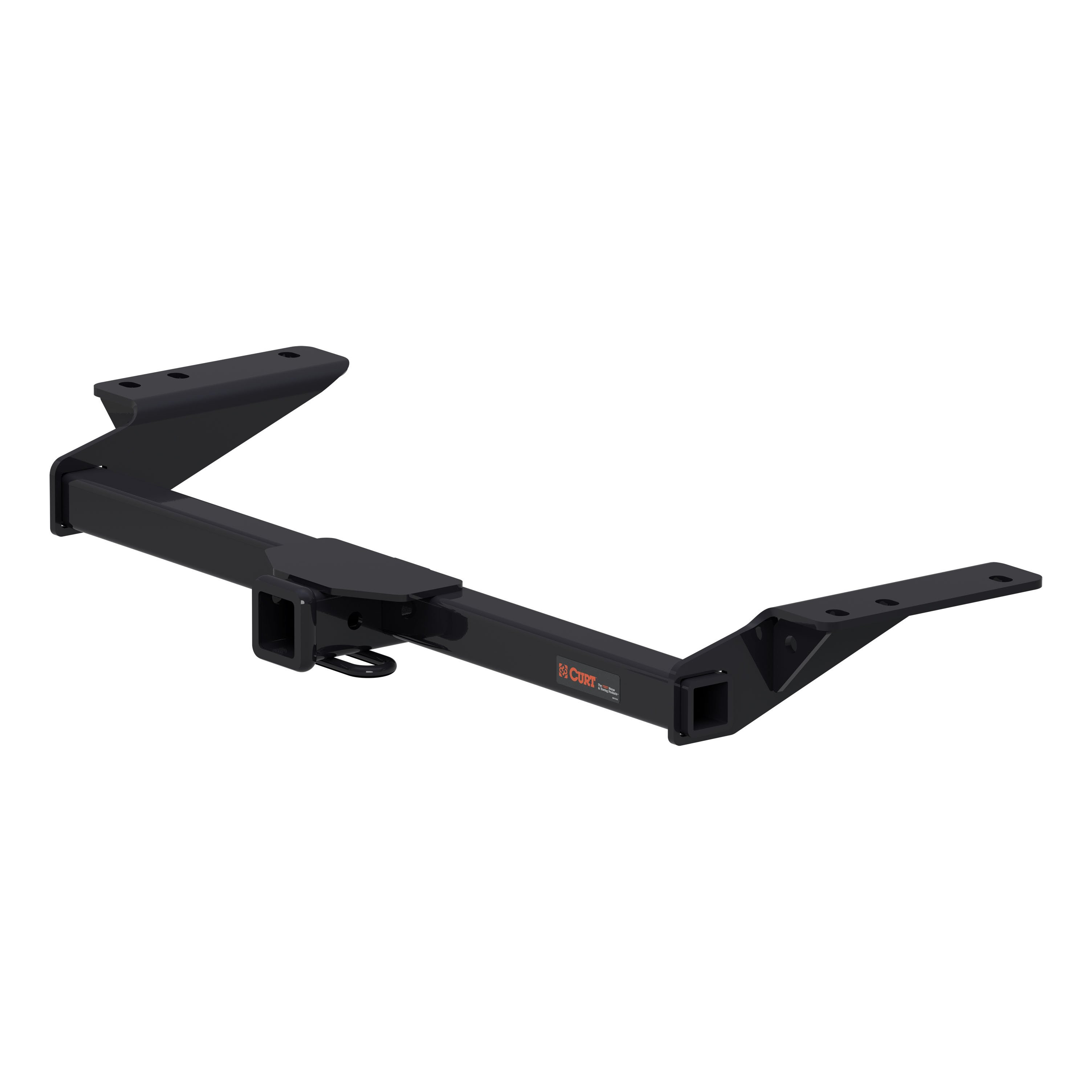

Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Chevrolet Blazer (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 5,000 lbs. GTW and 750 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 6,000 lbs. WD and 750 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.

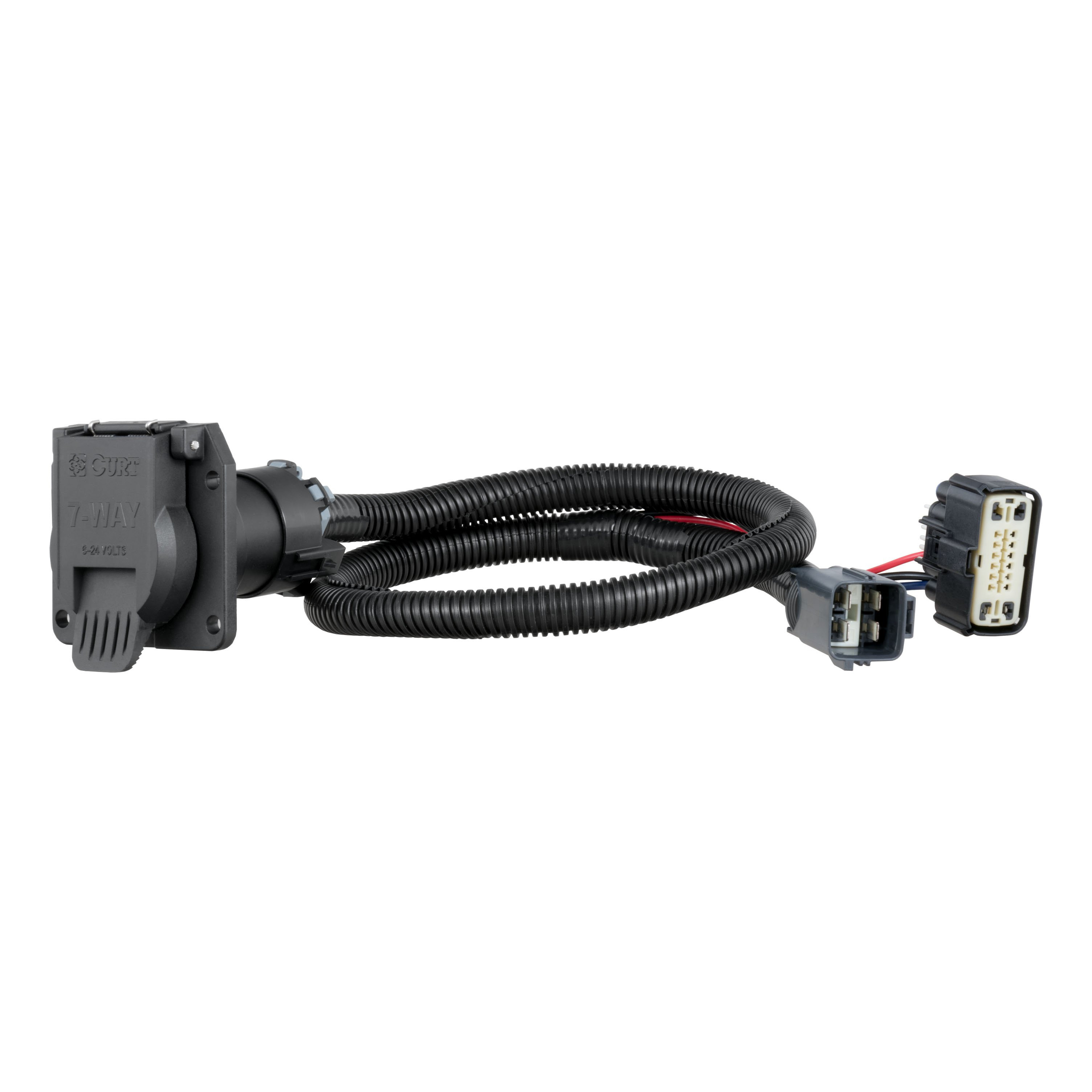

CURT custom wiring connectors and harnesses are the easiest way to outfit your vehicle with a trailer wiring connection for towing. Each one is custom-fitted to work with a specific make and model. This particular 7-way RV blade socket is designed to be a custom wiring option for certain years of the Chevy Blazer, Cadillac XT5, XT6 and GMC Acadia (see application info to verify fitment). It provides a universal trailer connection for the tail lights, brake lights, reverse lights, turn signals, electronic trailer brakes and auxiliary power. 7prong taillight wiring can be used as a replacement or new wiring and is typically used for towing fifth wheel and gooseneck trailers. This 7 way female outlet comes with all necessary hardware to establish a solid connection, as well as a dust cover to keep the connector socket clean when not in use. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this factory tow package socket is not equipped on every vehicle, a CURT custom wiring connector (also called a T-connector) utilizes the socket for simple, stress-free installation. Instead of cutting, splicing and soldering into your vehicle's wiring system, the custom wiring connector uses a single OEM compatible plug and instantly provides a standard vehicle-to-trailer hitch wiring connection. To ensure long-lasting reliability, all CURT custom tconnector wiring is thoroughly tested for optimal functionality.
Experts available to answer your questions
Call 888-634-9494Yes, CURT part number 13418 is designed for 2019-Present Chevrolet Blazer SUVs. Verify your vehicle matches this year range and model before purchasing.
When used as a weight-carrying hitch, the CURT 13418 supports a maximum of 5,000 lbs trailer weight and 750 lbs tongue weight. When used as a weight-distribution hitch, it supports 6,000 lbs trailer weight and 750 lbs tongue weight. You must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than these ratings.
The hitch weight is 40 lbs.
You will need: a ratchet, a torque wrench, 7mm and 3/4" sockets, a T-15 Torxbit socket, an 8" socket extension, and safety glasses. Safety glasses must be worn at all times during installation.
The kit includes: 6 bolts (part 10-10287, 1/2-13 UNC, 1-1/2", Grade 8, yellow zinc), 6 pieces of 1/2" fishwire, 6 spacers (CM-SP10, .250 x 1.00 x 2.50" square hole), and 6 serrated flange nuts (part 20-00062, 1/2-13 UNC, Grade 8, yellow zinc).
No, drilling is not required. The CURT 13418 uses fishwire hardware to thread through existing access holes and mounting holes on the vehicle frame.
Two people may be required to ease installation. While one person may be able to complete the installation, having a second person will help with handling the hitch and supporting components during the process.
The manual does not specify whether the battery must be disconnected. Contact CURT Technical Support at 877-287-8634 for clarification on this step.
The first step is to unfasten the rear vehicle brackets from the fascia using a T-15 Torxbit socket to remove 2 screws. Set these screws aside for reinstallation. Then lower the exhaust by removing 3 hangers. Support the exhaust when lowering to avoid damage.
Remove the access panel by removing 2 wing nuts, then pull the access panel down and away from the vehicle and set it aside. Fishwire 3 CM-SP10 spacers and 3 1/2" carriage bolts through the access hole and out the mounting holes on each side of the vehicle. This allows you to thread the hardware through without drilling.
Raise the hitch into position and secure it with 3 1/2" flange nuts on each side (6 nuts total). Use a 3/4" socket and torque all 1/2" hardware to 110 ft-lbs.
All 1/2" hardware (bolts and flange nuts) must be torqued to 110 ft-lbs using a 3/4" socket.
After securing the hitch with the flange nuts and torquing to 110 ft-lbs, reinstall the vehicle bracket hardware and exhaust system as they were removed in Step 1. When the hitch is not in use, reinstall the access panel that was removed in Step 2.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This maintenance is important for safe towing.
Never exceed your vehicle manufacturer's recommended towing capacity. The CURT 13418 is rated for up to 5,000 lbs (weight-carrying) or 6,000 lbs (weight-distribution) trailer weight, but your vehicle's manufacturer may specify a lower limit that must be observed.
Supporting the exhaust when lowering it prevents damage to the exhaust system. The manual specifically notes this to avoid costly repairs.
CURT rates the installation difficulty as Easy. The manual estimates a novice DIY installation takes 40 minutes and a professional installation takes 20 minutes. However, if you are hesitant to undertake this task on your own, you should contact an authorized CURT installer for additional assistance.
Call CURT Technical Support at 877-287-8634. You can also visit www.curtmfg.com for more information or www.hitchinfo.com for helpful towing tips.
CURT Manufacturing warrants the product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT may repair or replace it at their option when returned prepaid with proof of purchase. Alteration, misuse, or improper installation voids the warranty. CURT's liability is limited to repair or replacement of defective products and excludes liability for incidental or consequential loss or damage.
The CURT 13418 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Yes, the CURT 13418 is designed for 2019-Present Chevrolet Blazer SUVs.
No, the CURT 13418 requires no drilling. It uses fishwire hardware to thread through existing access holes and mounting holes.
You need a ratchet, torque wrench, 7mm and 3/4" sockets, T-15 Torxbit socket, 8" socket extension, and safety glasses.
All 1/2" hardware must be torqued to 110 ft-lbs using a 3/4" socket.
Weight-carrying: 5,000 lbs trailer, 750 lbs tongue. Weight-distribution: 6,000 lbs trailer, 750 lbs tongue. Never exceed your vehicle manufacturer's recommended capacity.
Never exceed your vehicle manufacturer's recommended towing capacity. Periodically check all fasteners are tight and structural components are sound.
Yes, CURT part 56326 is designed for the Cadillac XT5. The wiring connector is installed behind the rear bumper in the center of the vehicle.
CURT part 56326 is compatible with GMC Acadia models, with one exception: it does not fit the Acadia Limited trim. Check your vehicle's trim level before purchasing.
The manual does not specify a maximum towing capacity. The product has a rating that must not be exceeded. Do not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower. Refer to your vehicle owner's manual or contact the vehicle manufacturer for your specific tow vehicle lamp load rating.
You will need a wire cutter. This is the only tool listed as required for installation.
Yes, you must disconnect the negative battery terminal before beginning installation. The battery is located on the driver side under the hood. Reconnect the negative battery terminal after all installation steps are complete.
The vehicle connector is located behind the rear bumper in the center of the vehicle. It will be similar in appearance to the CURT wiring connector you are installing.
1. Separate the vehicle connectors from the weather seal connectors, taking care not to damage the locking tabs. 2. Insert the CURT wiring connector end into the vehicle connector. 3. Make sure the connectors are fully inserted with locking tabs in place. 4. Route the other end of the wiring connector along the inside of the bumper towards the center of the vehicle to the 7-way mounting location. 5. Insert the 7-way connector end between the separated 7-way connectors. 6. Ensure the connectors are fully inserted with locking tabs in place.
The fuse ratings are: Stop/Turn Light - 10 amps; Taillights - 10 amps; Backup - 10 amps; Power Circuit - 30 amps; Trailer Brakes (3 Axles / 6 Brakes) - 20 amps.
Exceeding the product rating can cause loss of warranty, overheating, and potential fire. Do not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower.
Test for proper function by using a test light or connecting a properly wired trailer. For the initial test, reset the electrical system of the vehicle by temporarily removing the vehicle's key from the ignition. All connections must be complete for the wiring harness to function. Test and verify installation after completing all steps.
After all connections are complete, reinstall all items removed during installation and reconnect the negative battery terminal. Then test the installation using a test light or by connecting a properly wired trailer.
CURT 56326 fits Cadillac XT5 and GMC Acadia (excluding Limited trim).
Only a wire cutter is required.
Yes, disconnect the negative battery terminal before starting installation and reconnect it after all steps are complete.
Stop/Turn Light and Taillights: 10 amps each; Backup: 10 amps; Power Circuit: 30 amps; Trailer Brakes (3 Axles/6 Brakes): 20 amps.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. Exceeding the rating can cause loss of warranty, overheating, and potential fire.
Use a test light or connect a properly wired trailer. Reset the electrical system by temporarily removing the vehicle key from the ignition before testing.
