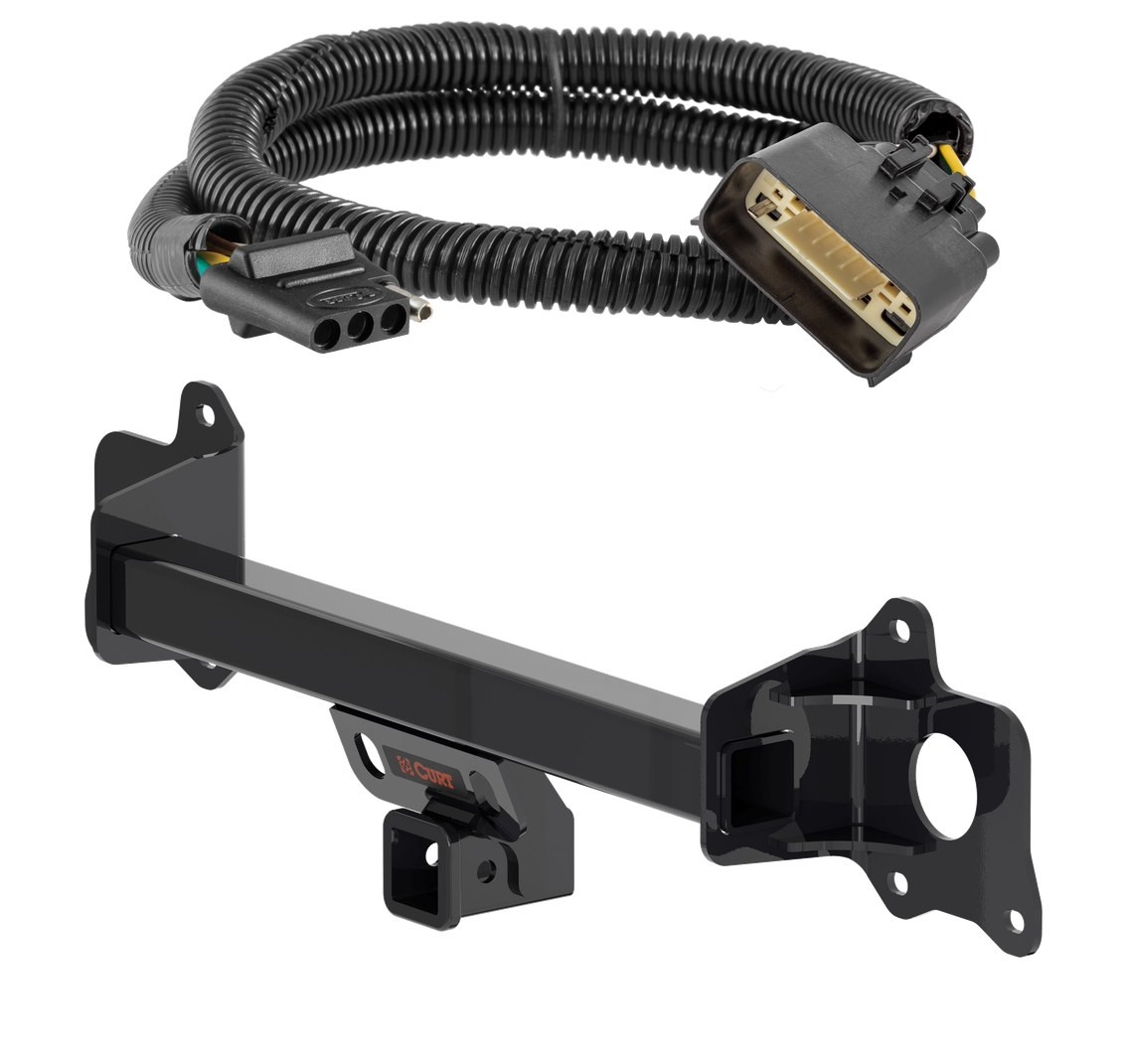

Complete CURT Class 3 2" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 2020 - 2023 Tesla Y. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Tesla Model Y (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 3,500 lbs. GTW and 525 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Tesla Model Y (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2020 - 2023 | Tesla Y | — |

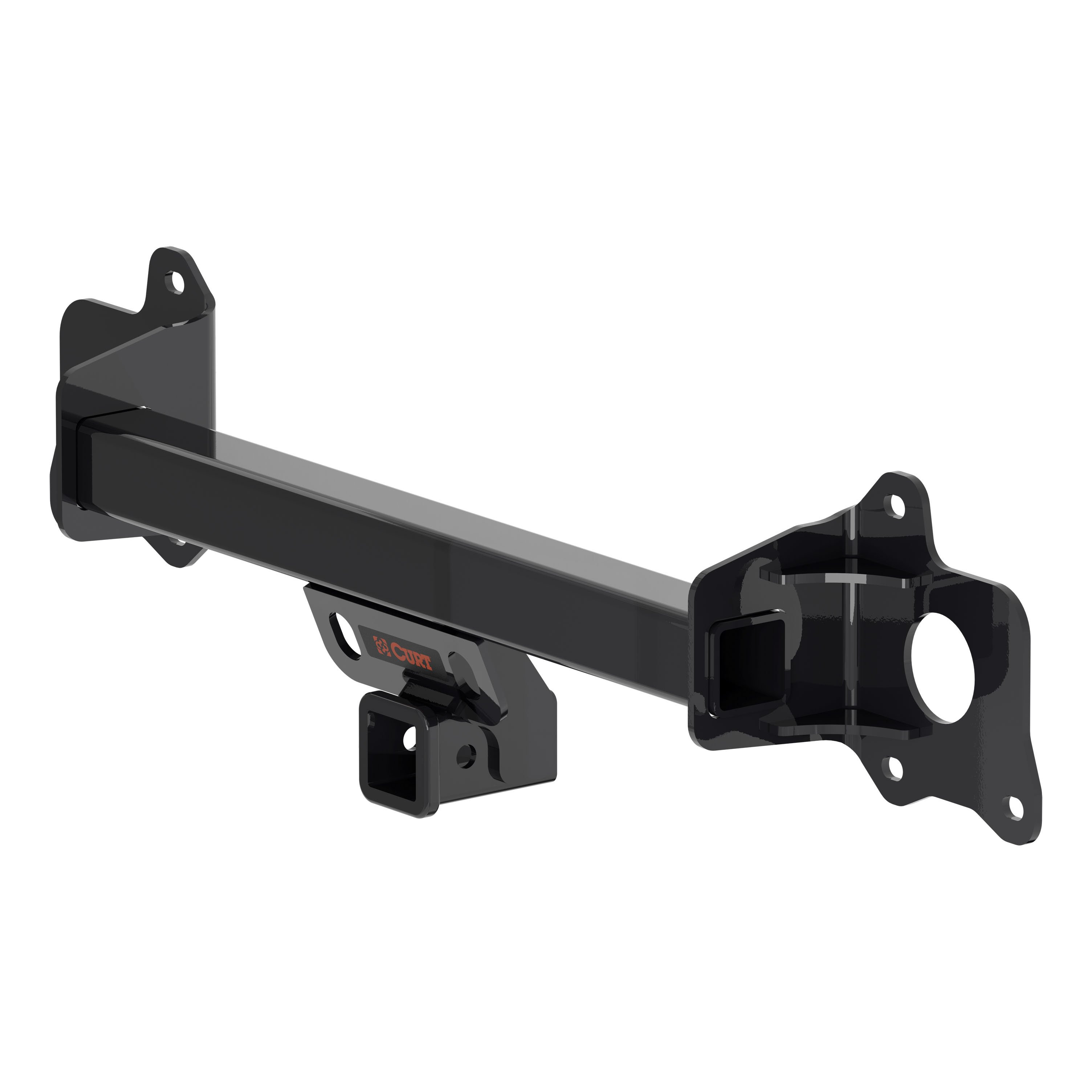

The CURT 13598 has a gross trailer weight (GTW) capacity of 3,500 lbs and a tongue weight (TW) capacity of 525 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
No, the CURT 13598 requires no drilling.
Installation requires removal of the taillights, underbody panel, bumper cover, and aluminum bumper beam. The wheel well liners must also be loosened to access fasteners behind them.
The sensor bar above the aluminum bumper must be temporarily loosened by removing four bolts during installation. The manual does not specify whether the sensor bar is permanently relocated, reinstalled in its original position, or if it remains functional after hitch installation.
Required tools: ratchet, 6" socket extension, torque wrench, T-25 Torx bit, 8mm socket, 10mm socket, 15mm socket, flathead screwdriver, panel trim removal tool, and safety glasses. A tools reference guide is available at curtmfg.com/trailer-hitch-installation.
Yes, a torque wrench is required. All hitch fasteners must be torqued to 42 ft-lbs.
The CURT 13598 is rated as a Difficult installation based on time and effort involved. Installation difficulty may vary depending on installer expertise, vehicle condition, and availability of proper tools and equipment. The manual does not explicitly recommend professional installation.
Remove the large rearmost underbody panel using a 10mm socket and T-25 Torx bit to remove eleven screws. Then use a screwdriver to remove three plastic push fasteners along the outer edges and four push fasteners along the lower edge of the wheel well liner.
Use a plastic trim pry tool to remove two clips from the lower end and four clips along the side of the wheel well trim. Repeat on both sides of the vehicle. Then remove the plastic fastener in the middle of the liner by hand, and remove one bolt per side behind the wheel well liner with a 10mm socket.
Open the rear hatch and carefully pry between the trunk panel and rubber trim to remove the trunk panels. This provides access to the taillight wiring connector and fasteners. Remove the two nuts per taillight with a 10mm socket and unclip the taillight wiring for each taillight.
Remove the one bolt under each taillight opening that attach to the bumper cover with a 10mm socket. Working from the wheel well towards the center of the bumper, carefully unclip the edge of the bumper cover using a plastic pry tool if necessary. Reach behind the passenger side of the cover and unclip any wiring for sensors. Place the bumper cover in a safe location to prevent damage.
Remove the aluminum bumper beam from the vehicle by removing six flange nuts with a 15mm socket. Return the bumper beam to the vehicle owner. These same nuts are then reused to install the hitch.
Raise the hitch into position and loosely install the factory nuts (the six flange nuts removed from the bumper beam in the previous step) before torquing.
All hitch fasteners must be torqued to 42 ft-lbs.
The six flange nuts removed from the aluminum bumper beam are reused to install the hitch. These nuts are loosely installed in Step 9 and then torqued to 42 ft-lbs in Step 10.
Reassemble the vehicle in the reverse order of disassembly, making sure to check that all wiring is assembled and functioning properly. This includes reinstalling the bumper cover, taillights, wheel well liners, and underbody panel.
Safety glasses must be worn at all times while installing this product. Never exceed your vehicle manufacturer's recommended towing capacity.
Periodic inspection of the trailer hitch should be performed to ensure all mounting hardware remains tight and structural components are secure.
Visit www.curtmfg.com for a full-color copy of the instruction manual, helpful videos, guides, and a tools reference guide at curtmfg.com/trailer-hitch-installation. For towing safety information, visit curtmfg.com/understanding-towing. Product support is available at 877.287.8634.
Visit warranty.curtgroup.com/surveys to register your purchase, get copies of product warranties, or provide feedback. CURT stands behind its products with industry-leading warranties.

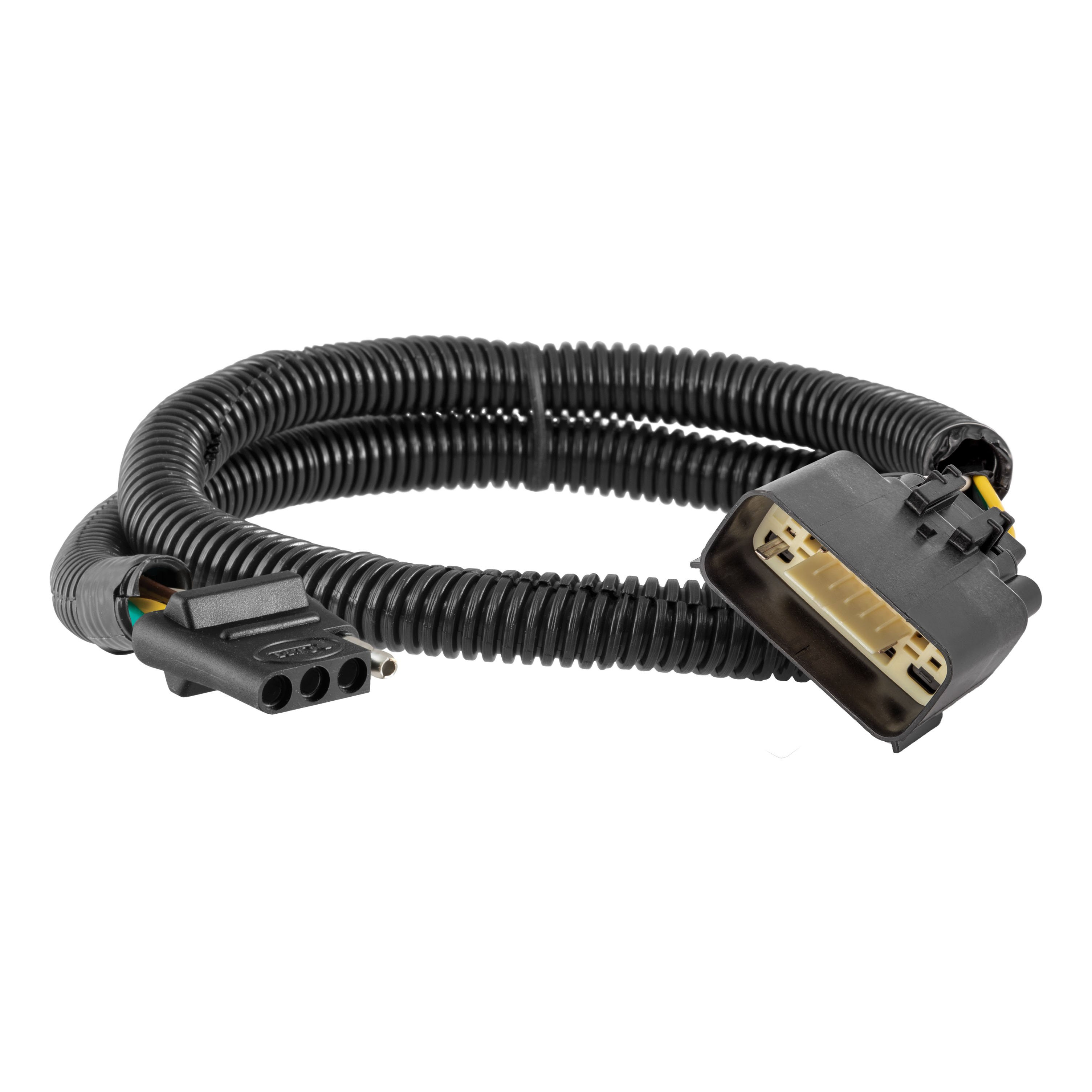

The Curt 56532 is a wiring harness designed for SUVs and vans. It connects to a custom wiring harness attached to the sensor bar and mates with a T-connector harness to route power to the trailer hitch area. The harness is routed along the rear bumper and secured with cable ties.
The Curt 56532 is designed for SUVs and vans designated as 'S-series' vehicles. The manual does not specify individual vehicle makes, model years, or trim levels. Consult the manufacturer or a fitment database to confirm compatibility with your specific vehicle.
You will need: ratchet, 10mm socket, 10mm wrench, panel trim removal tool, flathead screwdriver, Torx bit T-25, and insulating gloves. Insulating gloves are essential to protect from shock and electrocution when working on live circuitry.
Yes. Step 1 requires you to power off the MCU (Main Computer Unit) via the vehicle's touchscreen before beginning installation. Step 11 instructs you to reinstall the battery loop that was disconnected in Step 2, and if the negative battery terminal was disconnected at the beginning, reconnect it after testing. Insulating gloves are required when working on live circuitry.
Open the driver door and vehicle hood and leave them open to force recalibration of the windows and doors. On the front touchscreen, select the small car icon in the lower left corner, then select 'Safety and Security' and 'Power Off'. Confirm power off on the pop-up dialog. This powers off the MCU (Main Computer Unit).
From under the hood, remove the upper hood cover. Locate the large red wire with the orange and black tag attached. The black housing contains the battery connector. Release the lock by pulling the red tab on the secondary lock on the back of the housing. Note that the red secondary lock can be brittle and may break the tab. Press the primary locking tab to separate the housing.
Remove the large, rearmost underbody panel by removing eleven screws using a 10mm socket and a T-25 Torx bit. Use a screwdriver or trim tool to remove the three plastic push fasteners along the outer edges of the panel and the four push fasteners along the lower edge of the wheel well liner securing it to the underbody panel.
Use a plastic trim pry tool to remove two clips from the lower end and four clips along the side of the wheel well trim. Repeat this process on both sides of the vehicle.
Remove the plastic fastener in the middle of each liner by hand. Then remove one bolt per side behind the wheel well liner using a 10mm socket.
Open the rear hatch and remove the carpet panel. Carefully pry between the trunk panel and rubber trim to remove the trunk panels and gain access to the taillight wiring connector and fasteners. Remove the two nuts per taillight using a 10mm socket and unclip the taillight wiring for each taillight.
Remove the one bolt under each taillight opening securing it to the bumper cover using a 10mm socket. Working from the wheel well towards the center of the bumper, carefully unclip the edge of the bumper cover using a plastic pry tool if necessary. Once unclipped, reach behind the passenger side of the cover and unclip any wiring for sensors that may be present. Place the bumper cover in a safe location to avoid damage during the rest of the installation.
Locate the custom wiring harness on the driver side of the vehicle attached to the sensor bar. This connector will mate to the T-connector harness. Insert the connector and lock it into place. Note that the protective cap on the connector may need to be removed before insertion of the T-connector harness.
Route the harness to the hitch area along the rear bumper using the provided cable ties to secure the harness under the vehicle next to the receiver hitch.
Reinstall the battery loop disconnected in Step 2. Verify that the harness is functioning by attaching the battery and testing with a test light, 4-flat tester, or a functioning trailer. If the negative battery terminal was disconnected at the beginning of installation, reconnect it after testing. Install the provided 4-flat dust cover to help prevent corrosion.
Complete the trailer hitch installation steps or reassemble the vehicle in the reverse order of disassembly, making sure to check that all wiring is assembled and functioning properly. Install the provided 4-flat dust cover to help prevent corrosion.
The Curt 56532 has a Difficult installation difficulty level. Installation difficulty levels are based on time and effort involved and may vary depending on the installer's level of expertise, condition of the vehicle, and proper tools and equipment.
Wear insulating gloves to protect from shock and electrocution when working on live circuitry. Do not lay tools across the positive terminal (typically noted with red covers or a red '+' symbol), as this can cause a ground short resulting in sparks and/or electrical shocks. Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower.
Periodic inspection of all wires and connections should be performed to ensure there is no visible damage or loose connections. The manual does not specify the inspection interval.
Yes. The manual states: 'For ease of installation, it is recommended to install the wiring harness the same time as the trailer hitch installation.'
The Curt 56532 is designed for SUVs and vans (S-series). Confirm your specific vehicle's compatibility with the manufacturer or a fitment database.
Ratchet, 10mm socket, 10mm wrench, panel trim removal tool, flathead screwdriver, Torx bit T-25, and insulating gloves.
Yes. Power off the MCU via the vehicle's touchscreen (Step 1), and the battery loop is disconnected in Step 2. Reconnect after testing in Step 11.
Reinstall the battery and test with a test light, 4-flat tester, or a functioning trailer. Install the provided 4-flat dust cover to prevent corrosion.
Wear insulating gloves to prevent shock and electrocution. Do not lay tools across the positive terminal (red covers or '+' symbol) as this can cause sparks and electrical shocks.
Periodically inspect all wires and connections for visible damage or loose connections. The manual does not specify an inspection interval.
