Complete CURT Class 3 2" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 2022 - 2026 Mitsubishi Eclipse Cross. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!

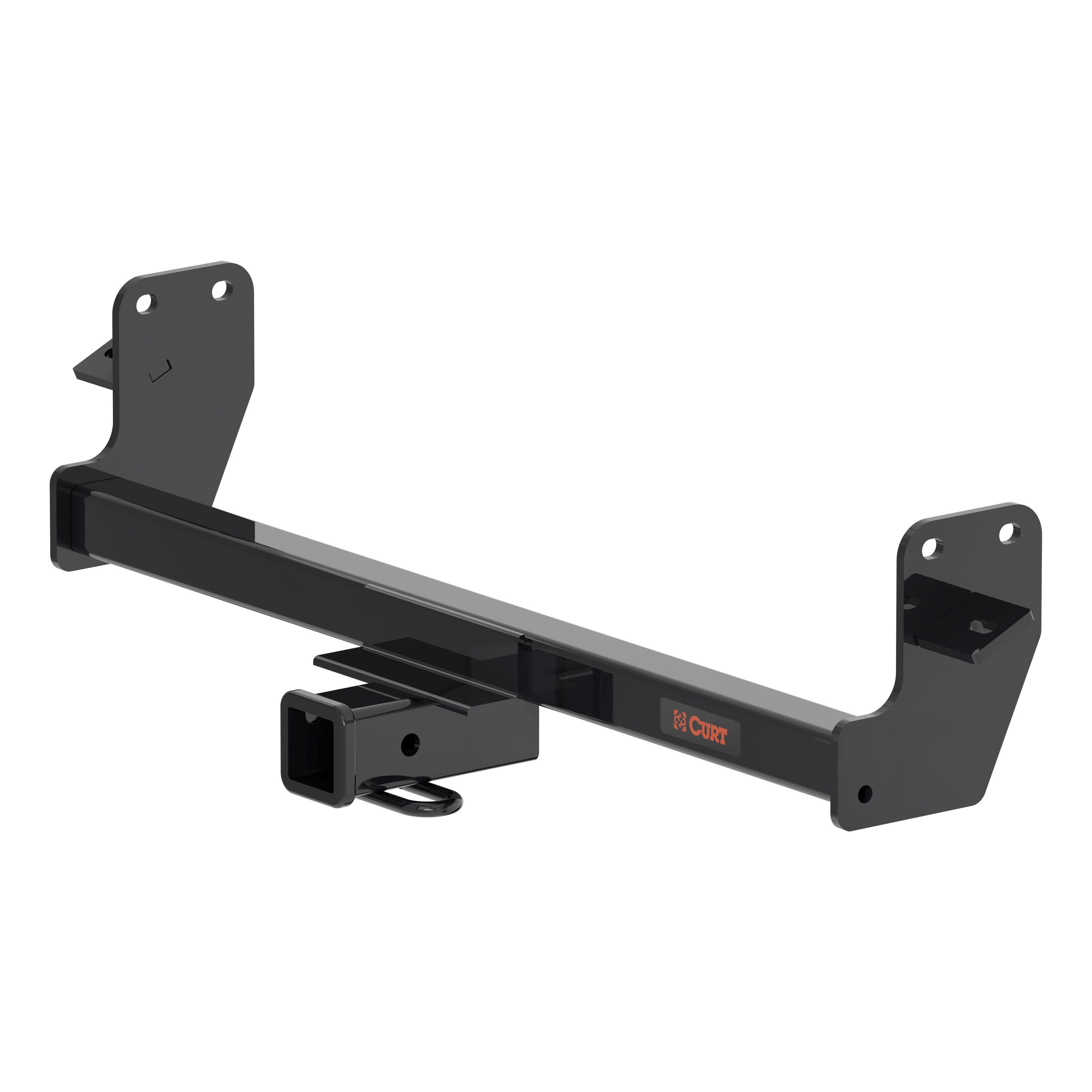

Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Mitsubishi Eclipse Cross (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 3,500 lbs. GTW and 525 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.

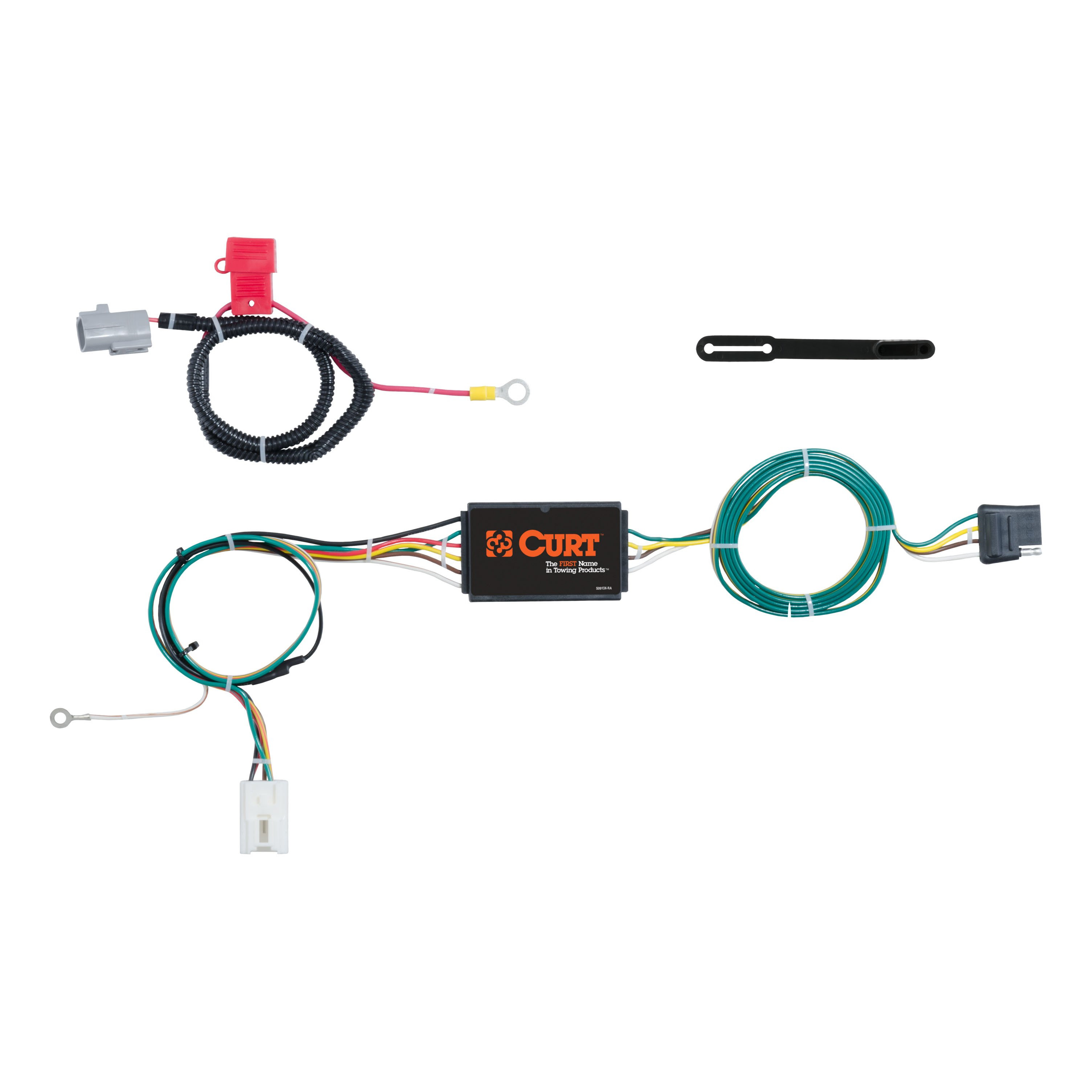

CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection. They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this special socket is not equipped on every vehicle, a CURT custom wiring connector -- also called a T-connector -- utilizes the socket for simple, stress-free installation. Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard, universal vehicle-to-trailer wiring connection, typically in the form a 4-way flat. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. This particular plug-in connector provides a 4-way flat socket and is designed to be a custom wiring option for certain years of the Mitsubishi Outlander and Eclipse Cross (factory tow package required; to verify your vehicle compatibility, see application info). It comes with all necessary hardware to establish a solid connection. It also comes with a dust cover to keep the connector socket clean when not in use. To ensure long-lasting reliability, all CURT custom wiring connectors are thoroughly tested for optimal functionality. Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot. At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Limited Lifetime (One-year finish, one-year parts)
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2022 - 2026 | Mitsubishi Eclipse Cross | — |
Yes, the Curt 56296 Custom Wiring Connector is designed for the Mitsubishi Outlander in the SUVs, Mini & Full-Sized Vans category. However, your vehicle must have a factory trailer harness power wire connector in the engine compartment and a white tow/trailer housing in the rear cargo area. Check your vehicle owner's manual or contact the vehicle manufacturer to confirm your specific model year and trim level are equipped with these factory components.
The Curt 56296 has two amperage ratings: Signal Circuits are rated at 3.0 amps per side, and Tail/Running Circuits are rated at 6.0 amps total. You must not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating and potential fire.
You will need: 10mm socket, 14mm socket, ratchet, Phillips screwdriver, flat blade screwdriver, and a cutting tool. These tools are required to disconnect the battery, remove interior trim panels, secure fasteners, and route wiring.
Yes. The first step of installation is to locate the vehicle battery on the driver side under the hood and disconnect the negative battery terminal. You must reconnect it only after all other installation steps are complete, in Step 12.
The vehicle trailer harness power wire connector is located on the driver side in the engine compartment in front of the fuse box. It will be similar in appearance to the custom wiring connector. You will remove the cover and insert the custom wiring connector into it, ensuring the connectors are fully inserted with locking tabs in place.
You must use a 10-amp fuse. The battery connection must be fuse-protected with a 10-amp maximum. Insert the 10-amp fuse into the red fuse holder on the power harness. Do not exceed this rating, as it can cause loss of warranty, overheating and potential fire.
Route the power wire from the vehicle trailer harness connector to the battery positive (+) terminal, avoiding any areas that may cut or pinch the wire. Connect the ring terminal to the positive battery terminal. Secure any loose wires with the provided cable ties.
You must remove: all trunk floor coverings, the storage tray (after removing its fasteners), the scuff panel (by pulling out at the bottom then up, taking care not to damage alignment tabs), and the side trim panel on the driver side (after removing two Phillips screws and the cargo holder). The white tow/trailer housing will be visible after pulling outward on the side trim panel.
The white tow/trailer housing is located in the rear cargo area. To access it, open the tailgate, fold down the rear seats, remove trunk floor coverings and the storage tray, remove the scuff panel, and remove the side trim panel on the driver side by removing two Phillips screws and the cargo holder. Pull outward on the side trim panel to reveal the housing.
Insert the custom wiring connector housing into the vehicle tow/trailer housing. Make sure that the housings are fully inserted with the locking tabs in place. The connector will be similar in appearance to the vehicle housing.
You may be able to use an existing screw with nut in the vehicle frame as a grounding point. If no suitable existing point is available, you will need to drill a 3/32" pilot hole for the provided screw. The area should be free of rust, dirt and paint. Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame, or drill a 3/32" pilot hole for the provided screw. The area should be free of rust, dirt and paint. Secure the white ground wire using the ring terminal and the provided screw.
Locate a flat spot behind the side trim panel and adhere the black converter box using the provided double-sided tape. The converter box should be mounted in a location that does not interfere with the reinstallation of trim panels.
Route the 4-flat behind the rear trim panel to the back of the vehicle, under the removed scuff panel, to the center of the vehicle and out into the rear cargo area. When in use, route the 4-flat out of the trunk. When not in use, roll it up and store in a convenient, out-of-the-way location inside the trunk. Secure any loose wires with the provided cable ties.
Reinstall all items removed during installation, including trunk floor coverings, storage tray, scuff panel and side trim panel. Reconnect the negative battery terminal. Install the provided 4-flat dust cover to help prevent corrosion. Test for proper function by using a test light or connecting a properly wired trailer.
Once installed, test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring connector will function properly.
The maximum fuse rating is 10 amps. The battery connection must be fuse-protected, 10-amp max. Exceeding this rating can cause loss of warranty, overheating and potential fire.
Exceeding the product rating can cause loss of warranty, overheating and potential fire. You must not exceed the product rating (Signal Circuits 3.0 amps per side, Tail/Running Circuits 6.0 amps total) or your tow vehicle's lamp load rating, whichever is lower.
Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury. This is especially important when drilling the 3/32" pilot hole for the ground screw.
Yes, the Curt 56296 is designed for Mitsubishi Outlander SUVs. Your vehicle must have a factory trailer harness power wire connector in the engine compartment and a white tow/trailer housing in the rear cargo area. Confirm with your vehicle manufacturer that your specific model year and trim level have these components.
You need: 10mm socket, 14mm socket, ratchet, Phillips screwdriver, flat blade screwdriver, and a cutting tool.
Yes, disconnect the negative battery terminal before starting installation. Reconnect it only after all other steps are complete.
Drilling may be required for the ground connection. If no existing screw with nut is available in the vehicle frame, you will need to drill a 3/32" pilot hole for the provided screw. Check for hidden items before drilling.
Use a 10-amp fuse. The battery connection must be fuse-protected, 10-amp max. Do not exceed this rating.
Signal Circuits: 3.0 amps per side. Tail/Running Circuits: 6.0 amps total. Do not exceed these ratings or your vehicle's lamp load rating, whichever is lower.
The CURT 13616 has a gross trailer weight (GTW) capacity of 3,500 lbs and a tongue weight (TW) capacity of 525 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
Yes. The CURT 13616 installation requires removal of the tie-down bracket located on the passenger-side frame rail. This bracket is secured by three bolts and should be returned to the vehicle owner after removal.
You will need: ratchet, 14mm socket, 3/4" wrench, 17mm socket, torque wrench, and 3/4" socket. A tools reference guide is available at curtmfg.com/trailer-hitch-installation.
The kit includes: 2 hex bolts M10-1.25 x 35, 4 hex bolts 1/2"-13 x 4-1/2", 4 serrated-flange nuts 1/2"-13, 4 flat washers 1/2", and 2 conical-toothed washers 3/8".
Yes. Before installation, remove debris from the frame weldnuts by spraying lubricant or compressed air into the hole. For heavy debris, use a wire brush. Take care not to damage the threads.
No. During Step 2, loosely secure all fasteners first. Tighten them to final torque specifications only in Step 3 after the hitch is positioned and all fasteners are hand-tight.
The 1/2" fasteners (hex bolts, serrated-flange nuts, and flat washers) must be torqued to 90 ft-lbs.
The M10 fasteners (hex bolts M10-1.25 x 35 with conical-toothed washers) must be torqued to 45 ft-lbs.
The conical-toothed washers (item #5) are placed under the M10 hex bolts. The manual shows the orientation in the assembly diagram on page 2, with the washer positioned between the bolt head and the hitch side plate.
Safety glasses must be worn at all times during installation. Additionally, never exceed your vehicle manufacturer's recommended towing capacity when using the hitch.
Periodic inspection of the trailer hitch should be performed to ensure all mounting hardware remains tight and structural components are secure. The manual recommends referring to specified torque specifications when securing hardware.
The manual does not specify which vehicle makes, models, or years are compatible. Contact CURT product support at 877.287.8634 or visit curtmfg.com to confirm fitment for your specific vehicle.
Yes. A torque wrench is required to properly tighten the fasteners to the specified torque values of 90 ft-lbs for 1/2" fasteners and 45 ft-lbs for M10 fasteners.
Yes. You must remove the tie-down bracket from the passenger-side frame rail using a 14mm socket. The bracket and bolts should be returned to the vehicle owner.
The tongue weight capacity is 525 lbs. The gross trailer weight capacity is 3,500 lbs.
No. Loosely secure all fasteners first, then tighten to final torque specifications (90 ft-lbs for 1/2" fasteners, 45 ft-lbs for M10 fasteners) only after the hitch is positioned.
The hitch has a gross trailer weight capacity of 3,500 lbs and tongue weight capacity of 525 lbs, but you must never exceed your vehicle manufacturer's recommended towing capacity.
