Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2022 GMC Sierra 1500 Limited With Factory Receiver
When we came to the limits of towing capacity, we wanted to know what else was out there. What could we discover off the beaten path? So, we kept going. CURT class 5 Xtra Duty hitches begin a class of their own, beyond class 4 and beyond anything the standards dictate. They are designed for the hard road where only full-size pickup trucks, vans and SUVs dare to tread. They are capable of pulling almost any heavy-duty trailer, including toy haulers, dump trailers, logging trailers, small yacht trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component). This particular Xtra Duty class 5 trailer hitch offers a gross trailer weight capacity of 16,000 lbs. and an extra-high tongue weight capacity of 2,000 lbs. It features a 2" x 2" receiver tube opening to accept a ball mount or hitch-mounted accessory, such as a cargo carrier or winch mount. It is designed to be a custom-fit trailer hitch for certain years of the Chevrolet Silverado 1500 or GMC Sierra 1500 (to verify compatibility with your vehicle, see application info). For a little extra towing power and stability, this class 5 hitch can also be used in combination with a weight distributing hitch. It is rated for 17,000 lbs. WD and 2,000 lbs. WDTW. In our drive to create a more powerful hitch, CURT has not neglected the finer details. Our class 5 trailer hitches are welded with precision and go through multiple stages of cleaning to create a smooth surface that is ready to accept our co-cured finish. To protect them from corrosion, chipping and UV damage, these hitches are immersed in a liquid A-coat and then finished in a high-quality black carbide powder coat. They come with grade-8 mounting hardware for solid installation.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Includes strong, grade-8 installation hardware

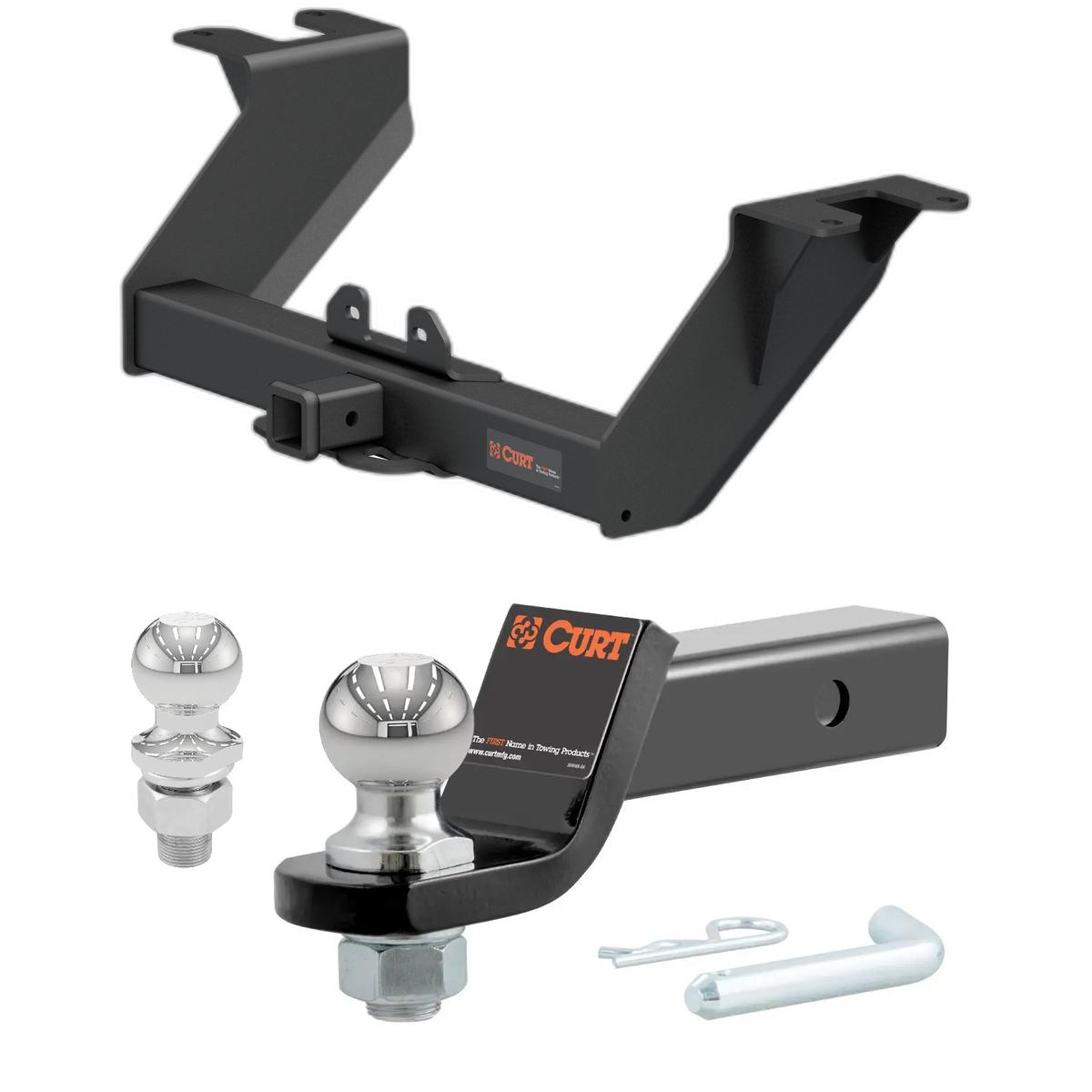

2022 GMC Sierra 1500 Limited With Factory Receiver Xtra Duty Class 5 Hitch, 2" Receiver, Select Chevy Silverado, GMC Sierra 1500
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2022 | GMC Sierra 1500 Limited | With Factory Receiver |
Yes, the 2022 GMC Sierra 1500 Limited With Factory Receiver Xtra Duty CURT Class 5 Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-15307-003) is designed to fit the 2022 GMC Sierra 1500 Limited.
The 2022 GMC Sierra 1500 Limited With Factory Receiver Xtra Duty CURT Class 5 Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-15307-003) fits the following vehicles: 2022 GMC Sierra 1500 Limited. Always verify your specific year, make, and model before ordering.
The 2022 GMC Sierra 1500 Limited With Factory Receiver Xtra Duty CURT Class 5 Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-15307-003) fits 2022 GMC Sierra 1500 Limited models. The 2022 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2022 GMC Sierra 1500 Limited With Factory Receiver Xtra Duty CURT Class 5 Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-15307-003) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the CURT 15307 is designed for 2019-Present Chevrolet Silverado 1500 and GMC Sierra 1500 Pickup models. Before purchasing, verify your vehicle matches this year range and model. The hitch is a weight-carrying style with a 16,000 lbs. trailer weight capacity and 2,000 lbs. tongue weight capacity when used without weight distribution, or 17,000 lbs. trailer weight and 2,000 lbs. tongue weight with weight distribution.
Yes, the CURT 15307 is compatible with 2019-Present GMC Sierra 1500 Pickup models. It has the same specifications as the Silverado 1500 version: 16,000 lbs. trailer weight and 2,000 lbs. tongue weight capacity for weight-carrying use, or 17,000 lbs. trailer weight and 2,000 lbs. tongue weight with weight distribution.
The hitch weight is 75 lbs.
The CURT 15307 has two capacity ratings depending on how it is used. As a weight-carrying hitch: 16,000 lbs. trailer weight and 2,000 lbs. tongue weight. As a weight distribution hitch: 17,000 lbs. trailer weight and 2,000 lbs. tongue weight. You must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than these hitch ratings.
You will need: 10mm socket, 15mm socket, 21mm socket, 7/8" socket, ratchet, 6" extension, and torque wrench. Safety glasses must be worn at all times during installation.
The kit includes: (2) carriage bolts 9/16-12 x 1 3/4, Grade 8; (2) hex flange nuts 9/16-12, Grade 8; and (2) spacers (part number 15307-SP). The installation also reuses existing factory M14 bolts from the vehicle frame.
No, drilling is not required. The hitch mounts to existing factory holes on the frame.
No, trimming is not required.
You may need to temporarily lower the exhaust. If your vehicle has a dual exhaust system, you will need to remove the exhaust hanger bracket on the driver side and remove the hardware from the passenger side exhaust hanger bracket (leaving the bracket on the exhaust hanger). You will also need to remove three hex bolts securing the driver side exhaust bezel. If your vehicle has a single exhaust system, you do not need to perform these steps.
You may need to temporarily lower the spare tire during installation.
Two people may be required to ease installation, though the manual does not state whether a second person is strictly necessary.
Professional installation time is approximately 64 minutes. Novice (DIY) installation time is approximately 120 minutes.
The factory M14 bolts must be torqued to 126 ft-lbs.
The 9/16" carriage bolts must be torqued to 130 ft-lbs.
1. Using a 15mm socket, remove the exhaust hanger bracket on the driver side. Remove the passenger side exhaust hanger bracket hardware but leave the bracket on the exhaust hanger. 2. Using a 10mm socket, locate and remove the three hex bolts securing the driver side exhaust bezel and save them for reinstallation. 3. Remove the two existing hex bolts from the frame on both sides of the vehicle. 4. Raise the hitch into position and loosely secure the side plates to the frame using the factory hardware, moving the exhaust out of the way if necessary. 5. Insert two 9/16" carriage bolts and 15307-SP spacers through the factory safety chain plate and top plate of the hitch, securing them with two 9/16" hex flange nuts. 6. Torque the factory hardware to 126 ft-lbs and the 9/16" hardware to 130 ft-lbs. 7. Reinstall the exhaust hanger brackets and bezel removed in steps 1 and 2.
1. Remove the two existing hex bolts from the frame on both sides of the vehicle. 2. Raise the hitch into position and loosely secure the side plates to the frame using the factory hardware. 3. Insert two 9/16" carriage bolts and 15307-SP spacers through the factory safety chain plate and top plate of the hitch, securing them with two 9/16" hex flange nuts. 4. Torque the factory hardware to 126 ft-lbs and the 9/16" hardware to 130 ft-lbs.
Safety glasses must be worn at all times while installing this product. Before beginning installation, read all instructions thoroughly. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance.
Never exceed your vehicle manufacturer's recommended towing capacity. While the CURT 15307 has a rated capacity of 16,000 lbs. trailer weight (weight-carrying) or 17,000 lbs. (weight distribution), your vehicle's manufacturer may specify a lower limit. Always follow the lower of the two limits.
After installation, periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This maintenance is important for safe towing.
Yes, the CURT 15307 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Yes. The CURT 15307 is designed for 2019-Present Chevrolet Silverado 1500 and GMC Sierra 1500 Pickup models.
No, drilling is not required. The hitch mounts to existing factory frame holes.
You will need 10mm, 15mm, 21mm, and 7/8" sockets, a ratchet, 6" extension, and a torque wrench. Safety glasses are also required.
Torque factory M14 bolts to 126 ft-lbs and 9/16" carriage bolts to 130 ft-lbs.
Weight-carrying: 16,000 lbs. trailer, 2,000 lbs. tongue. Weight distribution: 17,000 lbs. trailer, 2,000 lbs. tongue. Never exceed your vehicle manufacturer's recommended capacity.
Wear safety glasses at all times during installation. Read all instructions before beginning. If hesitant, contact an authorized CURT installer.
Periodically check that all fasteners are tight and all structural components are sound.
