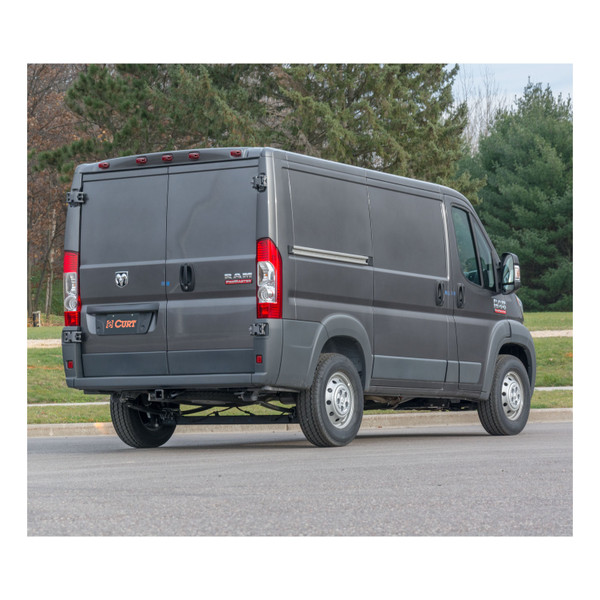

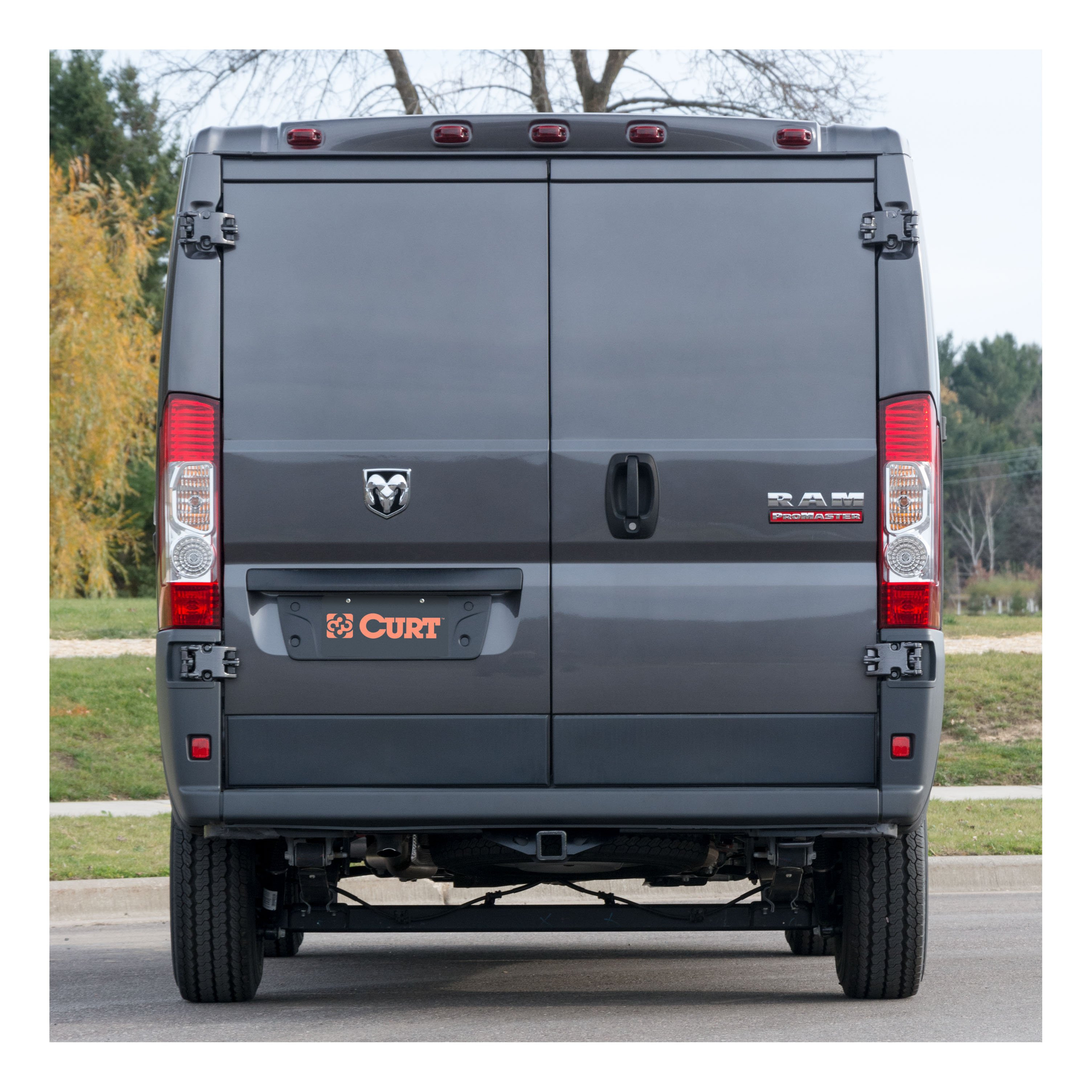

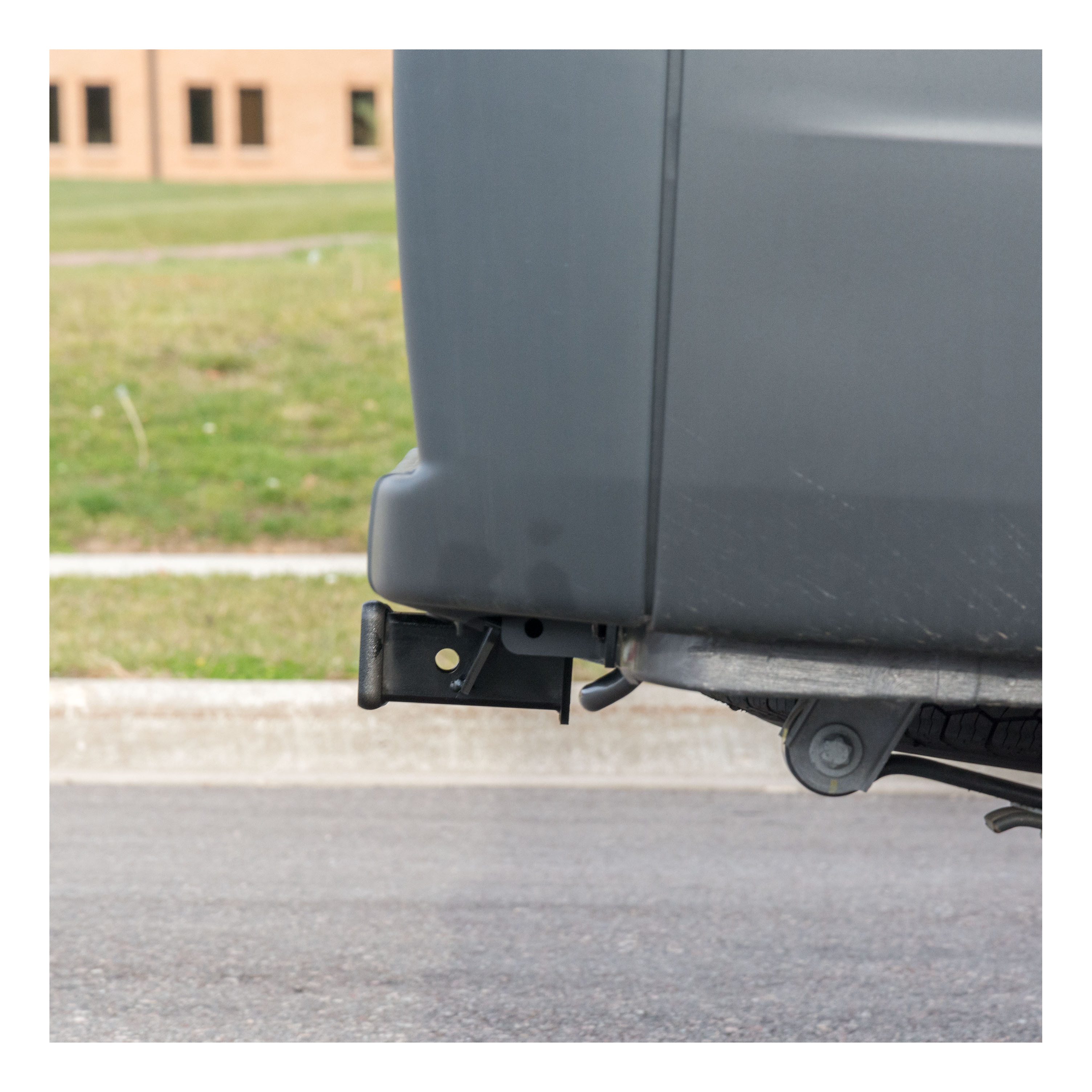

Complete CURT Class 3 2" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 2022 - 2026 RAM ProMaster 3500 Excluding remote proximity keyless entry. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Ram ProMaster 1500, 2500 and 3500 (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 5,000 lbs. GTW and 500 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Ram ProMaster 1500, 2500 and 3500 (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2022 - 2024 | Ram ProMaster 3500 | Excluding remote proximity keyless entry |
The 22 - 24 Ram ProMaster 3500 Excluding remote proximity keyless entry Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13295 (Part #5W-CHW-2647) fits 2022-2024 Ram ProMaster 3500 models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
The 22 - 24 Ram ProMaster 3500 Excluding remote proximity keyless entry Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13295 (Part #5W-CHW-2647) fits the following vehicles: 2022-2024 Ram ProMaster 3500. Always verify your specific year, make, and model before ordering.
Yes, the 22 - 24 Ram ProMaster 3500 Excluding remote proximity keyless entry Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13295 (Part #5W-CHW-2647) is designed to fit the 2022-2024 Ram ProMaster 3500.
The 22 - 24 Ram ProMaster 3500 Excluding remote proximity keyless entry Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13295 (Part #5W-CHW-2647) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT part number 13295 is designed to fit 2014-current RAM ProMaster vans. However, you should verify your specific vehicle year and model match this range before purchasing. If you have questions about fitment for your exact vehicle, contact CURT technical support at 877-287-8634.
The CURT 13295 is rated for a maximum trailer weight of 5,000 lbs and a tongue weight of 500 lbs when used as a weight-carrying hitch. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than the hitch rating. Always check your RAM ProMaster owner's manual for the vehicle's maximum towing limit.
No. All non-trailer (wheel-less) loads applied to this hitch must be supported by CURT 18050 stabilizing straps. Do not attach cargo carriers, roof boxes, or similar items without these straps. See the CURT catalog or visit www.curtmfg.com for further information on the 18050 stabilizing straps.
You will need: a ratchet, torque wrench, 15mm socket, 16mm socket, 3/4" socket, T30 torx bit, and safety glasses. The installation requires no drilling. You may also want to have 2 people available to help with the installation.
The manual does not specify whether the battery must be disconnected. However, the installation does involve removing the bumper cover, which may have a rear back-up sensor that must be disconnected before complete removal. If you are unsure, contact CURT technical support at 877-287-8634.
Yes, you must temporarily remove the bumper cover. Open the rear vehicle doors to expose the bumper cover and fasteners. Using a T30 torx bit, remove 8 fasteners and the bumper cover. If a rear back-up sensor is present, disconnect it before completely removing the cover. The bumper cover is reinstalled at the end of the installation.
No, drilling is not required. The installation uses existing holes in the bumper beam and frame. The hitch is secured using fishwire hardware and existing fastener locations.
1. Open rear doors and remove 8 T30 torx fasteners to remove the bumper cover (disconnect back-up sensor if present). 2. Remove 2 M10 bolts and 1 M10 nut from each side of the bumper beam (use 16mm socket for bolts, 15mm socket for nuts). 3. Fishwire the 1/2" carriage bolts and SP6 spacers through access holes and out existing bumper beam holes. 4. With hitch side plates flat on ground, align center holes with fishwired bolts and loosely secure with 1/2" flange nuts. 5. Raise hitch and bumper beam into position, aligning holes with frame holes, and secure with M10-1.25 x 30mm hex flange bolts and the M10 nuts from step 2. 6. Torque all 1/2" hardware to 110 ft-lbs and all M10 hardware to 48 ft-lbs. 7. Reinstall bumper cover with original fasteners, starting with outside bottom fasteners and working in. Reconnect back-up sensor if present.
Torque all 1/2" hardware (carriage bolts and flange nuts) to 110 ft-lbs. Torque all M10 hardware (M10-1.25 x 30mm hex flange bolts and M10 nuts) to 48 ft-lbs. Use a torque wrench to ensure proper tightness.
Fishwire is a technique for routing fasteners through access holes. In step 3, you thread the 1/2" carriage bolts and SP6 spacers through the access holes in the bumper and out through the existing holes in the bumper beam. This allows you to position the bolts before raising the hitch into place. The manual provides 1/2" fishwire as part of the hardware kit to assist with this process.
In step 4, you loosely secure the hitch to the bumper beam with 1/2" flange nuts. Do not fully tighten these yet. After raising the hitch and bumper beam into position in step 5 and securing with the M10 hardware, then torque all fasteners to their final specifications in step 6: 1/2" hardware to 110 ft-lbs and M10 hardware to 48 ft-lbs.
The kit includes: 2 carriage bolts (1/2-13 UNC, 1-1/4", grade 8, part 10-10278); 2 serrated flange nuts (1/2-13 UNC, grade 8, part 20-00062); 4 M10x1.25 x 30mm hex flange bolts (class 10.9, part 10-10279); 2 square hole spacers (0.250 x 1.00 x 3.00", part CM-SP6); and 2 pieces of 1/2" fishwire (part 1_2 FISHWIRE). The M10 nuts and bolts securing the bumper beam are reused from the vehicle.
Yes. In step 2, you remove 2 M10 bolts and 1 M10 nut from each side of the bumper beam. These original fasteners are reused in step 5 to secure the hitch and bumper beam to the frame. Do not discard them.
In step 7, reinstall the bumper cover using the 8 T30 torx fasteners that were removed in step 1. Start with the outside bottom fasteners and work inward. You may need to gently flex the bumper cover to align it with the fastener holes. If a back-up sensor was disconnected, reconnect it before fully securing the cover.
Wear safety glasses at all times while installing this product. The manual recommends reading all instructions thoroughly before beginning and notes that 2 people may be required to ease installation. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance. You can reach CURT technical support at 877-287-8634.
After installation, periodically check that all fasteners are tight and all structural components are sound. This is an ongoing maintenance requirement, not a one-time check. Regularly inspect the hitch before towing to ensure it remains in safe working condition.
The manual states you should periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. It does not specify an exact interval. As a best practice, inspect the hitch before each towing trip and at regular maintenance intervals. If fasteners become loose, retorque them to the original specifications: 1/2" hardware to 110 ft-lbs and M10 hardware to 48 ft-lbs.
CURT Manufacturing warrants this product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT may repair or replace it at their option when returned prepaid with proof of purchase. Warranty is voided by alteration, misuse, or improper installation. CURT's liability is limited to repair or replacement of defective products and excludes liability for incidental or consequential loss or damage.
Yes, the CURT 13295 fits 2014-current RAM ProMaster vans. Verify your vehicle year matches this range.
Maximum 5,000 lbs trailer weight and 500 lbs tongue weight. Never exceed your vehicle manufacturer's recommended towing capacity.
Ratchet, torque wrench, 15mm/16mm/3/4" sockets, T30 torx bit, and safety glasses. Two people may be required.
Torque 1/2" hardware to 110 ft-lbs and M10 hardware to 48 ft-lbs.
No. Non-trailer loads must be supported by CURT 18050 stabilizing straps. See www.curtmfg.com for details.
Part 56478 is designed for SUVs and Vans. The manual does not list specific vehicle makes, models or years. Contact Curt Manufacturing or consult a fitment database to confirm compatibility with your vehicle before purchasing.
The 56478 is a wiring converter for SUVs and Vans that integrates with the vehicle's taillight wiring system. It includes a converter box, custom wiring harness with color-coded wires (yellow for left turn, green for right turn, red for brake, brown for taillight), a power lead that connects to the vehicle battery, and a 4-flat connector for external use. The manual does not specify whether it is for trailer lighting, towing, or another application.
Yes. The converter system is designed only for 12-volt negative ground electrical systems. Do not use on any other system type.
Required tools are: ratchet, 10 mm socket, Phillips screwdriver, flathead screwdriver, panel trim removal tool, wire stripper, wire crimper, electrical tape, and cutting tool. Proper tools will improve installation quality and reduce time required.
Yes. You must disconnect the negative battery terminal before beginning installation. The battery is located under the driver-side floor panel, secured by six fasteners. Remove the floor panel to access it. Reconnect the negative battery terminal after all other installation steps are complete and before installing the fuse.
Mount the black converter box on the upper corner inside the rear cargo door frame on the driver side using the provided double-sided tape. The area should be flat and clean. Ensure the area is free of rust, dirt and paint before adhering.
Open the rear cargo doors. On the driver side, remove seven Phillips screws from the plastic cover to locate the vehicle taillight wiring harness connectors. Separate the connectors from the taillight housing, taking care not to damage the locking tabs. Insert the custom wiring harness end with the yellow wire between the separated connectors, ensuring they are fully inserted with locking tabs in place. Repeat this process on the passenger side using the custom wiring harness end with the green wire.
Route the custom wiring harness end with the green wire to the passenger side through the opening that runs up and over the rear cargo doors. This connects the passenger-side taillight connector to the converter system.
Drilling may be required for the ground wire connection. Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no suitable point exists, drill a 3/32" pilot hole for the provided screw. The area should be free of rust, dirt and paint. Before drilling, check for miscellaneous items that may be behind or under the surface to avoid personal injury or property damage.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame, or drill a 3/32" pilot hole for the provided screw. The area must be free of rust, dirt and paint. Remove the nut from the existing screw or the provided screw, install the white ground wire ring terminal, and replace the nut to secure it.
Route the black power wire from the vehicle battery as follows: start at the wiring harness converter box, along the top of the driver-side cargo area and down along the frame located behind the driver seat. Continue from the cargo area along the bottom of the driver-side seat frame and route the power wire under the floor panel section to the battery. Use the provided cable ties to secure any loose wires. When passing the power wire through sheet metal, use an existing grommet, add a grommet, or use silicone to protect the wire from sharp edges. Avoid pinch points and hot or rotating components.
Remove the Phillips screws from the plastic seat belt trim panel and the trim around the driver-side seat and floor. Remove all plastic trim panels to allow routing of the power wire from the converter box to the battery. These panels are reinstalled after the power wire is routed.
Use a 10-amp fuse maximum. The battery connection must be fuse-protected with a 10-amp max fuse. Install the fuse after all other installation steps are complete. Do not exceed this rating, as exceeding the product rating can cause loss of warranty, overheating and potential fire.
Signal circuits are rated at 7.5 amps per side. Tail/running circuits are rated at 7.5 amps total. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
Yellow = Left turn; Green = Right turn; Red = Brake; Brown = Taillight. The converter also includes a white ground wire and a black power wire that connects to the vehicle battery positive terminal.
Use 12-gauge wire or larger for the power connection from the converter to the vehicle battery. The manual specifies '12 GA wire or larger' for the power lead.
When in use, route the 4-flat connector to the center of the vehicle and out of the cargo area. When not in use, roll it up and store in a convenient, out-of-the-way location inside the trunk. Install the provided 4-flat dust cover to help prevent corrosion.
Disconnect the negative battery terminal before beginning installation. Do not lay tools across the positive battery terminal (typically noted with red covers or a red '+' symbol), as this can cause a ground short, resulting in sparks and/or electrical shocks. Use a ring terminal for the battery connection. Disconnect the negative battery cable before wiring the power wire to the battery.
Before drilling, check for miscellaneous items that may be behind or under the surface to avoid personal injury or property damage. This is especially important when drilling the 3/32" pilot hole for the ground wire connection.
Once installed, test for proper function by using a test light or connecting a properly wired trailer. All installation steps must be followed to ensure the product functions properly.
Perform periodic inspection of all wires and connections to ensure there is no visible damage or loose connections. No other maintenance intervals are specified in the manual.
The installation difficulty is rated as Easy. Installation difficulty levels are based on time and effort involved and may vary depending on the installer's level of expertise, condition of the vehicle, and proper tools and equipment.
Open the rear cargo doors. On each side (driver and passenger), remove seven Phillips screws from the plastic cover to locate the vehicle taillight wiring harness connectors. These covers provide access to the connectors you need to separate and integrate with the custom wiring harness.
The 56478 is designed for SUVs and Vans. Consult a fitment database or contact Curt Manufacturing to confirm compatibility with your specific vehicle make, model and year.
Yes, disconnect the negative battery terminal before starting. The battery is under the driver-side floor panel, secured by six fasteners. Reconnect it after all other steps are complete, before installing the fuse.
Drilling may be required. If no existing screw with nut is available for the ground wire connection, drill a 3/32" pilot hole. Before drilling, check for items behind or under the surface to avoid injury or damage.
Use a 10-amp fuse maximum. Install it after all other steps are complete. Do not exceed this rating to avoid loss of warranty, overheating and potential fire.
Use 12-gauge wire or larger for the power lead from the converter to the battery. Route it avoiding pinch points and hot or rotating components.
The converter is designed only for 12-volt negative ground electrical systems. Do not use on any other system type.
Perform periodic inspection of all wires and connections to ensure there is no visible damage or loose connections.
