Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
| Receiver Tube Size | 1-1/4 IN |
| Side Application Type Description | Not Applicable |
| Tongue Weight (TW) | 200 LBS |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Weight Carrying Capacity (WC) | 2,000 LBS |
| 1775 | No |
| Finish | GLOSS BLACK POWDER COAT |
| Class | I |
| Main Body Shape | Square |
| Material | Carbon Steel |
| Mount Type Description | Not Applicable |
| Side Application Type Description | Blank |
| Tongue Weight (TW) | 350 LB |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Drop | 3-1/4 IN |
| Finish | GLOSS BLACK POWDER COAT |
| Gross Trailer Weight (GTW) | 3,500 LB |
| Material | Blank |
| Mount Type Description | Blank |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2022 - 2024 | Subaru WRX | — |
Yes, the 22 - 24 Subaru WRX -- 1.25in. CURT Trailer Hitch + Ball Mount + Cover + Lock Kit by CURT HWA2321 (Part #HWA2321) is designed to fit the 2022-2024 Subaru WRX.
The 22 - 24 Subaru WRX -- 1.25in. CURT Trailer Hitch + Ball Mount + Cover + Lock Kit by CURT HWA2321 (Part #HWA2321) fits the following vehicles: 2022-2024 Subaru WRX. Always verify your specific year, make, and model before ordering.
The 22 - 24 Subaru WRX -- 1.25in. CURT Trailer Hitch + Ball Mount + Cover + Lock Kit by CURT HWA2321 (Part #HWA2321) fits 2022-2024 Subaru WRX models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
The 22 - 24 Subaru WRX -- 1.25in. CURT Trailer Hitch + Ball Mount + Cover + Lock Kit by CURT HWA2321 (Part #HWA2321) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The CURT 11663 has a gross trailer weight (GTW) capacity of 2,000 lbs. and a tongue weight (TW) capacity of 200 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
Required tools are: ratchet, aviation shears, torque wrench, die grinder, 3/4" socket, 10mm socket, and safety glasses. A tools reference guide is available at curtmfg.com/trailer-hitch-installation.
The installation difficulty is rated as Moderate. This rating is based on time and effort involved and may vary depending on installer expertise, vehicle condition, and availability of proper tools and equipment.
Installation requires removal of five rear rubber exhaust isolators, removal and trimming of the heat shield, and enlargement of frame access holes on both sides to allow 1/2" fasteners to pass through. You must also remove six rubber plugs (one large and two small from each frame rail). Plastic underbody panels may need removal to access outside exhaust hangers.
You do not need to fully remove the exhaust, but you must lower it by removing the five rear rubber isolators. The manual recommends supporting the exhaust as required during this process. The exhaust is then reinstalled after the hitch is mounted.
Drilling is not required. However, the installation does require trimming of the heat shield and enlargement of existing frame access holes on both sides to allow 1/2" fasteners to pass through. A die grinder is listed as a required tool for this work.
The fishwire tool is used to guide the 1/2" carriage bolts and square hole spacers through the frame rails without losing them inside the frame. You insert the coiled end of the fishwire through the hitch mounting hole and out the access hole, pass it through the spacer, thread the bolt into the coil, kink the wire to keep the spacer separate from the bolt, then pull the fishwire, spacer, and bolt through the frame and out the mounting hole.
All 1/2" fasteners must be torqued to 110 ft-lbs. Use a torque wrench to ensure proper tightening during final assembly.

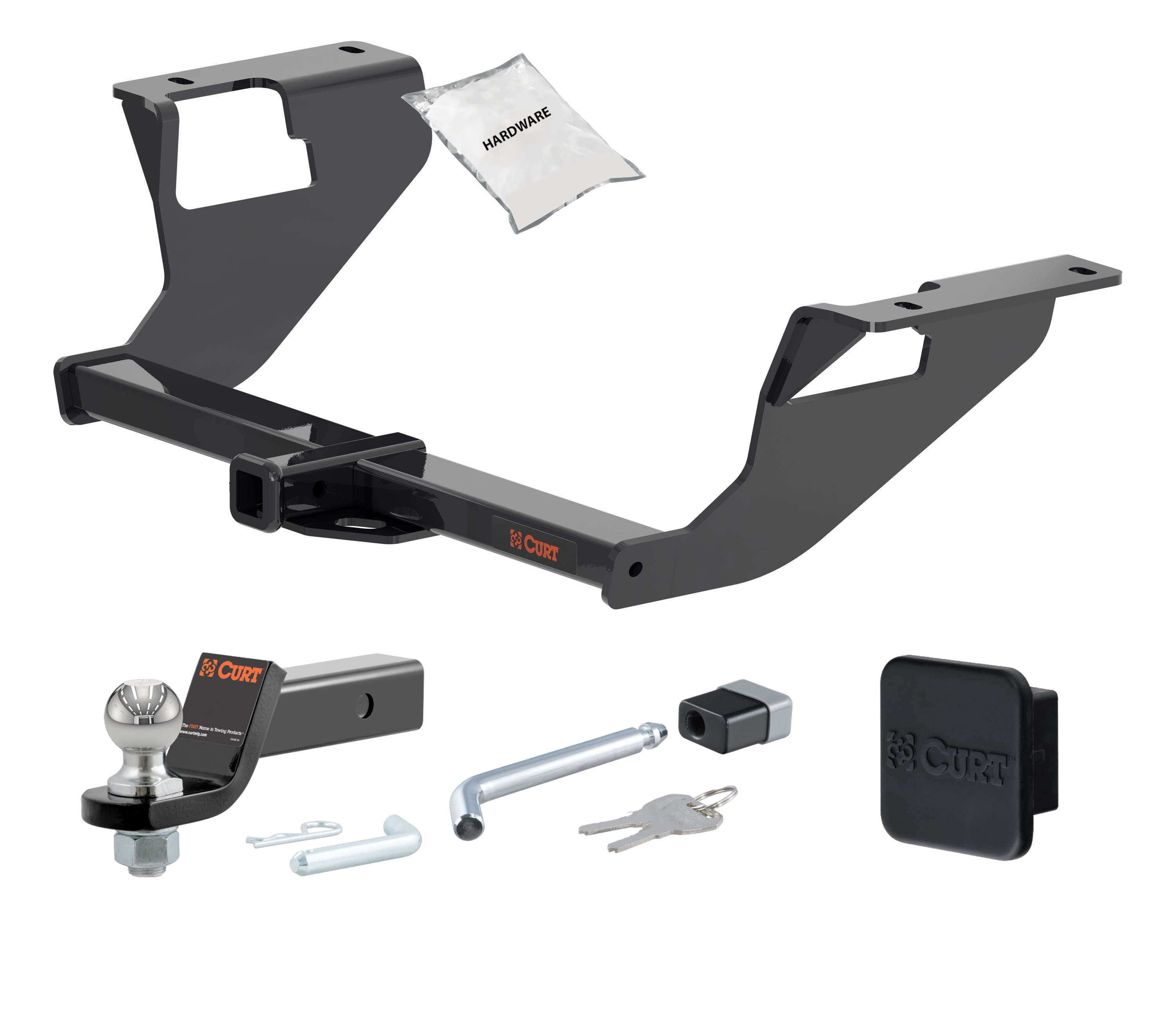

The kit includes: four 1/2" carriage bolts, four 1/2" serrated-flange nuts, four square hole spacers (1/4" x 1" x 3"), and four 1/2" fishwire tools.
Remove the heat shield by removing four small screws with a 10mm socket. Cut a hole in the heat shield as shown in the diagram. After fishwiring the 1/2" hardware into position, reinstall the heat shield with three of the fasteners, leaving out the one between the mounting holes. The heat shield will be sandwiched between the hitch and vehicle frame rails.
1. Lower the exhaust by removing five rear rubber isolators and support it. 2. Remove the heat shield (four small screws, 10mm socket) and cut a hole in it. 3. Remove six rubber plugs from the frame and enlarge the access holes on both sides. 4. Fishwire the 1/2" hardware through access holes into position on both sides, then reinstall the heat shield with three fasteners. 5. Raise the hitch into position. 6. Torque all 1/2" fasteners to 110 ft-lbs. 7. Reinstall the exhaust and underbody panels.
Safety glasses must be worn at all times during installation. Support the exhaust as required when removing the rear rubber isolators. Never exceed your vehicle manufacturer's recommended towing capacity when using the hitch.
Periodic inspection of the trailer hitch should be performed to ensure all mounting hardware remains tight and structural components are secure. This helps prevent damage to the product or vehicle.
No drilling is required. The installation involves trimming the heat shield and enlarging existing frame access holes with a die grinder to allow 1/2" fasteners to pass through.
All 1/2" fasteners must be torqued to 110 ft-lbs.
The tongue weight capacity is 200 lbs. The gross trailer weight capacity is 2,000 lbs.
Four 1/2" carriage bolts, four 1/2" serrated-flange nuts, four square hole spacers (1/4" x 1" x 3"), and four 1/2" fishwire tools.
