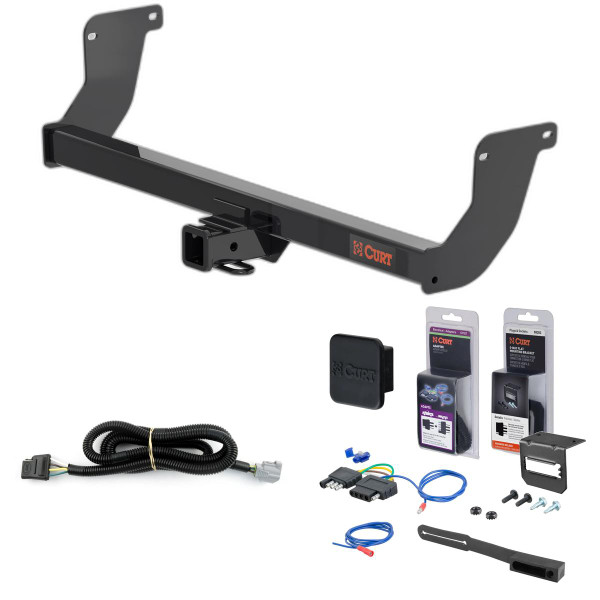

Complete CURT Class 3 2" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 2023 Lexus RX350. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!

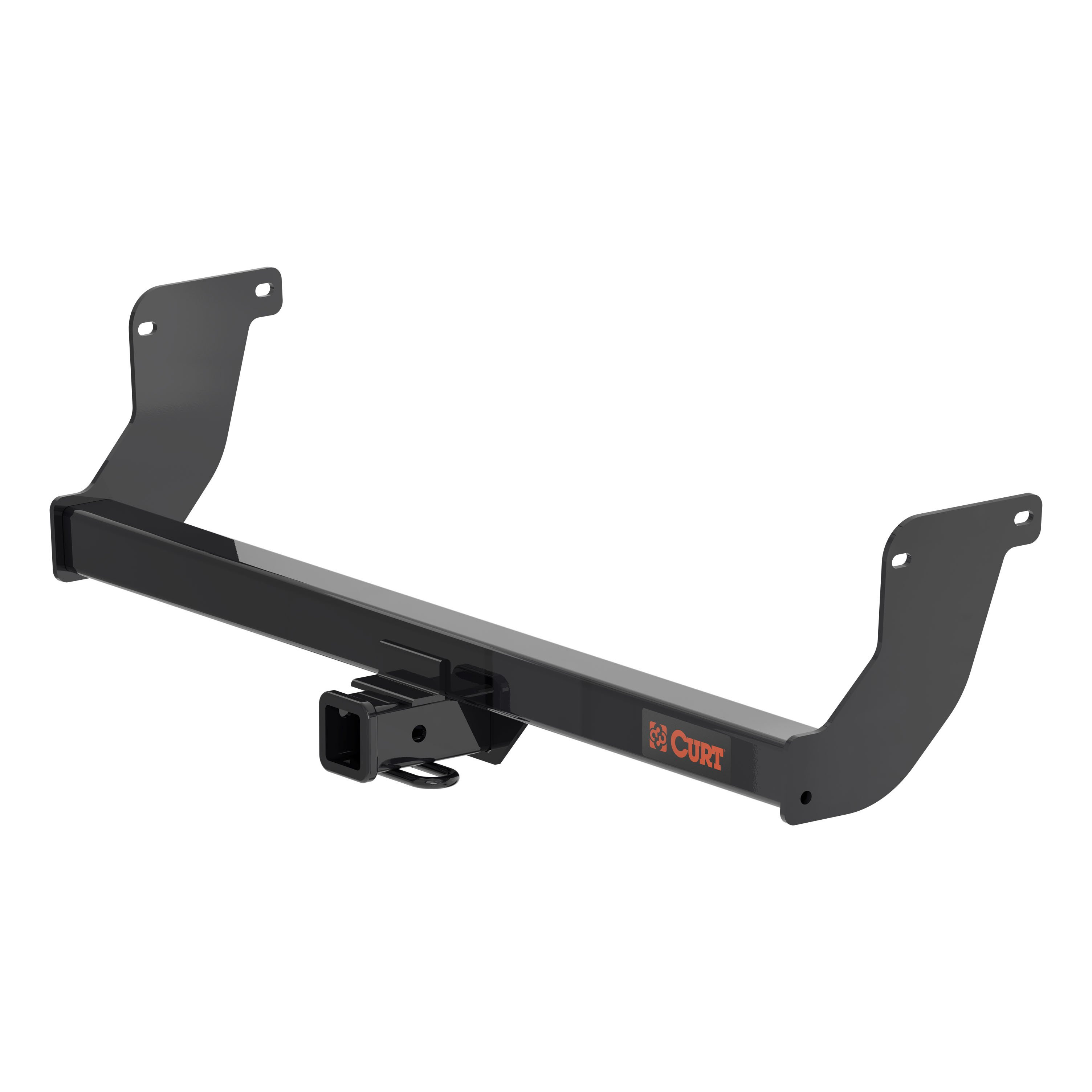

Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Lexus RX 350, RX 350h and RX 500h (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 3,500 lbs. GTW and 350 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection. They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this special socket is not equipped on every vehicle, a CURT custom wiring connector -- also called a T-connector -- utilizes the socket for simple, stress-free installation. Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard, universal vehicle-to-trailer wiring connection, typically in the form a 4-way flat. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. This particular plug-in connector provides a 4-way flat socket and is designed to be a custom wiring option for certain years of the Lexus RX350 and RX450h (factory tow package required; to verify your vehicle compatibility, see application info). It comes with all necessary hardware to establish a solid connection. It also comes with a dust cover to keep the connector socket clean when not in use. To ensure long-lasting reliability, all CURT custom wiring connectors are thoroughly tested for optimal functionality. Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot. At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2023 | Lexus RX350 | — |
The 2023 Lexus RX350 Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13579 (Part #5W-CHW-2152) fits 2023 Lexus RX350 models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2023 Lexus RX350 Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13579 (Part #5W-CHW-2152) fits the following vehicles: 2023 Lexus RX350. Always verify your specific year, make, and model before ordering.
Yes, the 2023 Lexus RX350 Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13579 (Part #5W-CHW-2152) is designed to fit the 2023 Lexus RX350.
The 2023 Lexus RX350 Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13579 (Part #5W-CHW-2152) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The Curt 56083 custom wiring connector is designed for Lexus RX 350 models equipped with a tow package. If your RX 350 has the tow package, the connector will fit. If you are unsure whether your vehicle has the tow package, check your vehicle owner's manual or contact the vehicle manufacturer.
Yes, the Curt 56083 custom wiring connector is compatible with the Lexus RX 450h.
Some RX 350 models may need to be programmed to accept the custom wiring connector. This programming must be done by a Lexus dealer. Check with your dealer to determine whether your specific vehicle requires programming.
The Curt 56083 includes the custom wiring connector, a protective cap for the vehicle plug, cable ties for securing loose wires, and a 4-flat dust cover to help prevent corrosion.
1. Locate the vehicle taillight wiring connector and remove the protective cap. 2. Insert the custom wiring connector end into the vehicle connector, ensuring the connectors are fully inserted with locking tabs in place. 3. Route the 4-flat connector to the center of the vehicle and out of the trunk when in use; roll up and store inside the trunk when not in use. Secure loose wires with the provided cable ties. 4. Some models may require dealer programming. 5. Reinstall all removed items and install the provided 4-flat dust cover.
The vehicle taillight wiring connector is located behind the driver side rear bumper. The manual refers to this location as 'S5' and shows a representative vehicle diagram, but for specific location details on your model, check your vehicle owner's manual or contact the vehicle manufacturer.
When not in use, roll up the 4-flat connector and store it in a convenient, out-of-the-way location inside the trunk. When in use, route the 4-flat to the center of the vehicle and out of the trunk. Secure any loose wires with the provided cable ties.
Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating and potential fire. For the specific product rating, refer to the product documentation or contact Curt Manufacturing.
Test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring connector will function properly.
The provided 4-flat dust cover helps prevent corrosion of the connector. Install it after completing the wiring connector installation.
Yes, the Curt 56083 is designed for Lexus RX 350 with tow package and RX 450h. Some models may require dealer programming.
The manual lists no tools as needed for installation. The connector plugs directly into the vehicle taillight wiring connector.
The manual does not specify whether bumper removal is required. The connector is located behind the driver side rear bumper. Check your vehicle owner's manual or contact the vehicle manufacturer for access instructions.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. Exceeding the rating can cause loss of warranty, overheating and potential fire. Refer to product documentation for the specific rating.
Test for proper function using a test light or by connecting a properly wired trailer.
The gross trailer weight (GTW) capacity is 3,500 lbs. and the tongue weight (TW) capacity is 350 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
The manual does not specify vehicle compatibility. Contact CURT product support at 877-287-8634 or visit curtmfg.com to confirm fitment for your vehicle.
You will need a ratchet, flathead screwdriver, torque wrench, 19mm socket, and an exhaust isolator removal tool. For a tools reference guide, visit curtmfg.com/trailer-hitch-installation.
The kit includes four hex bolts (M12 x 1.25) and four conical-toothed washers (1/2"). All fasteners are supplied; no additional hardware is required.
No. The manual states that no drilling is required for this installation.
No. The manual states that no trimming is required for this installation.
Some models require temporarily lowering the exhaust. To lower it, unhook the three rearmost exhaust hangers and support the exhaust to prevent damage or injury. After installation, raise the exhaust back into position and reinstall the isolators.
1. Remove four plastic plugs from the frame rails (two per side). 2. If required for your model, lower the exhaust by unhoking the three rearmost hangers and supporting it. 3. Raise the hitch into position and install the four hex bolts and four conical-toothed washers. 4. Torque all M12 fasteners to 86 ft-lbs. 5. Raise the exhaust back into position and reinstall isolators if lowered.
Spray lubricant or compressed air into the weldnut holes to remove debris. For heavy debris, use a wire brush. Take care not to damage the threads.
The manual shows the conical-toothed washer orientation in the assembly diagram on page 2, with the washer positioned between the hex bolt and the hitch side plate. Ensure washers are installed on all four bolts.
All M12 fasteners must be torqued to 86 ft-lbs. Use a torque wrench to ensure proper tightness and prevent damage to the product or vehicle.
Wear safety glasses at all times during installation. When lowering the exhaust, support it before removal to prevent damage or injury. Never exceed your vehicle manufacturer's recommended towing capacity when using the hitch.
Periodic inspection of the trailer hitch should be performed to ensure all mounting hardware remains tight and structural components are secure. Refer to the specified torque specifications (86 ft-lbs for M12 fasteners) when checking hardware.
Vehicle compatibility is not specified in the manual. Contact CURT at 877-287-8634 or visit curtmfg.com to confirm fitment.
No drilling or trimming is required. Some models may require temporarily lowering the exhaust.
All M12 fasteners must be torqued to 86 ft-lbs using a torque wrench.
Gross trailer weight capacity is 3,500 lbs.; tongue weight capacity is 350 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
Perform periodic inspection to ensure all mounting hardware remains tight and structural components are secure. Retorque fasteners to 86 ft-lbs if needed.
