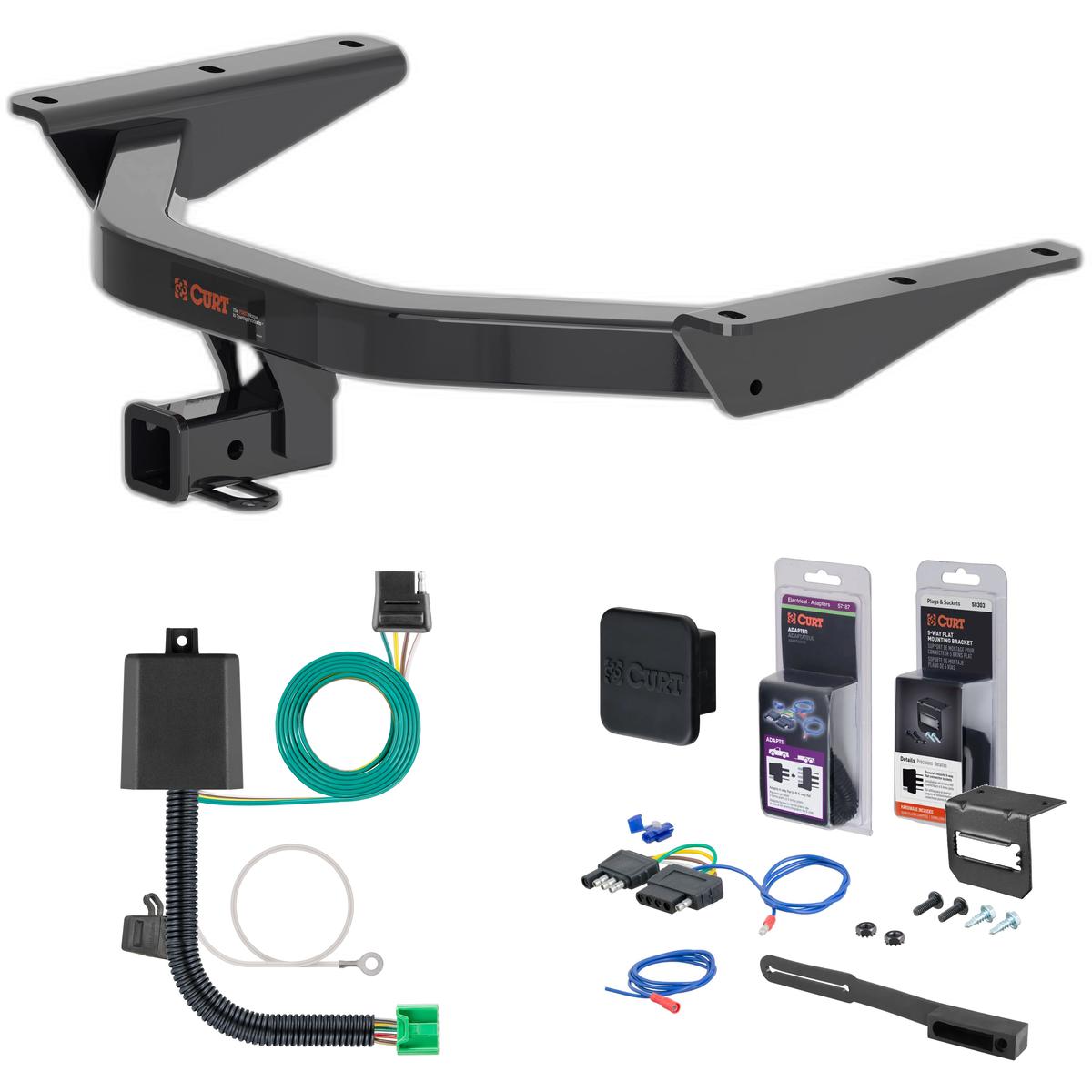

Complete CURT Class 3 2" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 2023 - 2026 Honda Pilot. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Acura MDX and Honda Pilot (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 6,000 lbs. GTW and 900 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 8,000 lbs. WD and 900 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Honda Pilot (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494One-Year Limited
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2023 - 2025 | Honda Pilot | — |
Yes, the 23 - 25 Honda Pilot Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13472 (Part #5W-CHW-1786) is designed to fit the 2023-2025 Honda Pilot.
The 23 - 25 Honda Pilot Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13472 (Part #5W-CHW-1786) fits the following vehicles: 2023-2025 Honda Pilot. Always verify your specific year, make, and model before ordering.
The 23 - 25 Honda Pilot Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13472 (Part #5W-CHW-1786) fits 2023-2025 Honda Pilot models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
The 23 - 25 Honda Pilot Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13472 (Part #5W-CHW-1786) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Models with hands-free liftgates require a factory sensor relocation kit. Check your vehicle's liftgate type before installation.
Required tools: ratchet, torque wrench, 22mm socket, 6" socket extension, and wire pipe brush. Safety glasses must be worn during installation.
Yes. Lowering the spare tire is required before installation. Use the tools provided with your vehicle, located under the storage compartment.
Torque M14 hex bolts to 136 lb-ft.
Tongue weight (TW) capacity is 900 lbs. Gross trailer weight (GTW) capacity is 6,000 lbs.
Weight distribution (WD) capacity is 8,000 lbs. with a WD tongue weight (WDTW) of 900 lbs.
The CURT 13472 has a gross trailer weight (GTW) capacity of 6,000 lbs. and a tongue weight (TW) capacity of 900 lbs. For weight distribution towing, the weight distribution (WD) capacity is 8,000 lbs. with a WD tongue weight (WDTW) of 900 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
The CURT 13472 can be installed on vehicles with hands-free liftgates, but a factory sensor relocation kit is required. Consult the manufacturer or your dealer to determine if your vehicle requires this kit and to obtain the correct part.
Clean all weldnuts before installation. To remove debris, spray lubricant or compressed air into the hole. For heavy debris, use a wire brush. Take care not to damage the threads during cleaning.
1. Lower the spare tire using the tools provided with your vehicle, located under the storage compartment. 2. Clean all weldnuts. 3. Raise the hitch into position and loosely install three M14 hex bolts and conical-toothed washers into the existing weldnuts on both sides of the vehicle. 4. Torque M14 bolts to 136 lb-ft. 5. Raise the spare tire back into place and inspect for adequate clearance between the hitch and tire.

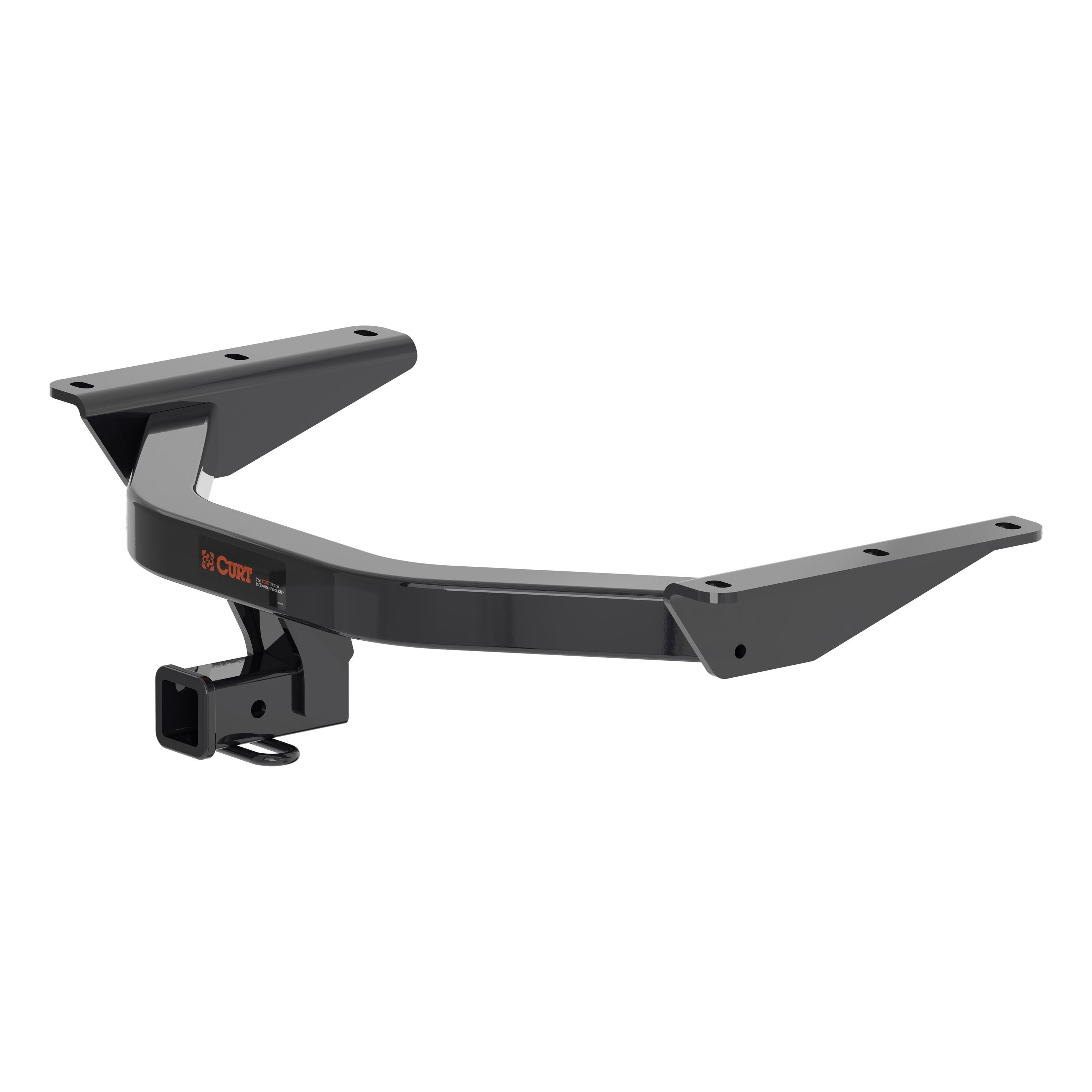

The CURT 13472 includes 6 hex bolts (M14-1.5 x 40mm, CL10.9) and 6 conical-toothed washers (9/16"). The hitch uses existing weldnuts on the vehicle frame.
The CURT 13472 uses M14-1.5 x 40mm hex bolts, class 10.9. Six bolts are included. They are torqued to 136 lb-ft during installation.
Yes. The spare tire must be lowered before installation using the tools provided with your vehicle. After the hitch is installed and torqued, the spare tire is raised back into place. During this step, inspect the hitch and tire to ensure adequate clearance. If additional clearance is needed, push the tire forward while raising it.
No. The bolts are loosely installed first, then torqued to 136 lb-ft. After torquing is complete, the spare tire is raised back into place.
Three M14 hex bolts are installed on each side of the vehicle (six total). Each bolt is paired with a conical-toothed washer and fastened into an existing weldnut on the frame.
The conical-toothed washers (9/16") are installed between the hex bolt and the hitch side plate. The manual includes a diagram showing the correct orientation with the conical teeth facing the hitch.
Safety glasses must be worn at all times during installation. Never exceed your vehicle manufacturer's recommended towing capacity. Proper tools will improve installation quality and reduce installation time. Before beginning, read all instructions thoroughly.
After installation, inspect the hitch and spare tire to ensure there is adequate clearance between them. If additional clearance is needed, push the tire forward while raising it. Periodic inspection of the trailer hitch should be performed to ensure all mounting hardware remains tight and structural components are secure.
Periodic inspection of the trailer hitch should be performed to ensure all mounting hardware remains tight and structural components are secure. The manual does not specify the exact inspection interval; consult the manufacturer for detailed maintenance recommendations.
If additional clearance is needed between the hitch and tire, push the tire forward while raising it. If clearance is still insufficient, consult the manufacturer or a professional installer to determine if the hitch position can be adjusted or if a different mounting configuration is required.
Debris or corrosion in the weldnuts may prevent proper bolt seating. Clean the weldnuts thoroughly using lubricant spray or compressed air, and use a wire brush for heavy debris. Take care not to damage the threads. If the bolts still will not tighten, the weldnuts may be damaged and require professional repair.
Part number 56519 is a custom wiring harness with converter box manufactured by Curt Manufacturing. It provides electrical connections for towing on SUVs and vans, converting the vehicle's electrical system to a 4-flat trailer connector. The harness includes a black converter box that mounts inside the vehicle and a 4-flat connector that routes out through the rear hatch to the trailer.
Part number 56519 is designed for SUVs and vans. The manual does not specify which exact vehicle models, years, or configurations are compatible. Contact the manufacturer or check the product fitment database to confirm compatibility with your specific vehicle before purchasing.
The manual recommends proper tools to improve installation quality and reduce time, but does not specify which tools are required. Based on the installation steps, you will likely need: a screwdriver (for twist hold-downs and fasteners), a drill with a 3/32" bit (if drilling a ground hole), an abrasive pad or paper (to clean rust and paint from the grounding point), and a test light, 4-flat tester, or functioning trailer (to verify proper function after installation). Contact the manufacturer for a complete tool list.
The kit includes: a custom wiring harness with white connector housing, a white ground wire with ring terminal, a black converter box, a pink 30-amp fuse, a yellow 20-amp fuse, a provided ground screw (for use if drilling is required), double-sided tape (to adhere the converter box), cable ties (to secure loose wires), and a 4-flat dust cover (to prevent corrosion).
Yes. Step 1 requires you to disconnect the negative battery terminal before beginning installation. After completing all installation steps, you must reconnect the negative battery terminal. Be sure to fasten the disconnected wire down and away from the battery during the installation process.
The installation difficulty is rated as Moderate. This rating is based on time and effort involved and may vary depending on the installer's level of expertise, the condition of the vehicle, and whether proper tools and equipment are available.
The white connector housing from the custom wiring harness attaches to a mating housing located on the driver-side wheel well body in the upper left side of the storage cubby. To access it, open the rear hatch, remove the floor board, and lift the storage cubby cover (which has two 1/4 turn twist hold-downs) on the driver side.
Open the vehicle rear hatch and remove the floor board to access the storage area. On the driver side, locate the storage cubby with two 1/4 turn twist hold-downs. Twist and lift this cover up (you may need to remove items stored in the cubby first) to access the tire tool kit area and the mating connector housing.
Drilling may be required. Step 4 instructs you to locate a grounding point using either an existing screw or bolt in the vehicle frame, or to drill a 3/32" pilot hole if no existing fastener is available. Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury. The area must be free from rust, dirt, and paint; use an abrasive pad or paper to clean it.
If an existing screw or bolt is not available, drill a 3/32" pilot hole for the ground screw. Before drilling, ensure the area is free from rust, dirt, and paint by using an abrasive pad or paper. Always check for hidden items behind or under any surface before drilling to avoid damage and personal injury.
The product has the following electrical ratings: Signal circuits are rated at 3.0 amps per side, and Tail/Running circuits are rated at 6.0 amps total. The battery connection must be fuse-protected with a 10-amp max fuse. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower, as exceeding the rating can cause loss of warranty, overheating, and potential fire.
Open the hood and locate the fuse panel on the driver side. Release the four cover locks by lifting straight up. Install the pink 30-amp fuse in location 7 and the yellow 20-amp fuse in location 12. Note: some vehicles do not have all fuses needed in the engine compartment fuse box; contact your vehicle manufacturer if the required locations are not available.
The kit includes a pink 30-amp fuse and a yellow 20-amp fuse. The pink 30-amp fuse installs in fuse location 7, and the yellow 20-amp fuse installs in fuse location 12 in the engine compartment fuse panel.
The white ground wire has a ring terminal and is part of the custom wiring harness. It must be secured to a grounding point on the vehicle frame. You can use an existing screw or bolt, or drill a 3/32" pilot hole and use the provided ground screw. The grounding area must be free from rust, dirt, and paint; use an abrasive pad or paper to clean it before securing the ring terminal.
When in use, route the 4-flat connector with the center of the vehicle and out of the hatch to the trailer. Be sure to stay clear of the hatch's latching mechanism. When not in use, roll up and store in a convenient, out-of-the-way location. Secure any loose wires with the provided cable ties.
Locate a flat spot inside the vehicle and adhere the black converter box using the provided double-sided tape. Choose a location that is convenient and out of the way, and ensure the 4-flat connector can be routed out through the rear hatch without interference from the hatch's latching mechanism.
Do not lay tools across the positive battery terminal (typically noted with red covers or a red '+' symbol), as this can cause a ground short, resulting in sparks and/or electrical shocks. Disconnect the negative battery terminal before beginning installation and reconnect it only after all installation steps are complete. Fasten the disconnected wire down and away from the battery during the installation process.
Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury. Ensure the grounding area is free from rust, dirt, and paint; use an abrasive pad or paper to clean it before drilling or securing the ground wire.
After installation, test for proper function by using a test light, 4-flat tester, or by connecting a properly wired trailer. This verification step is required to ensure the product will function properly. Install the provided 4-flat dust cover to help prevent corrosion.
Periodic inspection of all wires and connections should be performed to ensure there is no visible damage or loose connections. The manual does not specify the inspection interval. Refer to your vehicle owner's manual or contact the vehicle manufacturer for additional maintenance recommendations.
The battery connection must be fuse-protected with a maximum of 10 amps. Exceeding this rating can cause loss of warranty, overheating, and potential fire. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
Part 56519 is designed for SUVs and vans. Confirm compatibility with your specific vehicle model and year before purchasing by contacting the manufacturer or checking the product fitment database.
Yes. Disconnect the negative battery terminal before starting installation and reconnect it after all steps are complete. Fasten the disconnected wire down and away from the battery during installation.
Drilling may be required. If no existing vehicle frame fastener is available for the ground wire, drill a 3/32" pilot hole. Always check for hidden items before drilling to avoid damage.
Install a pink 30-amp fuse in location 7 and a yellow 20-amp fuse in location 12 in the engine compartment fuse panel. The battery connection must be fuse-protected with a 10-amp max.
Signal circuits: 3.0 amps per side. Tail/Running circuits: 6.0 amps total. Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower.
Test for proper function using a test light, 4-flat tester, or a properly wired trailer. Install the provided 4-flat dust cover to prevent corrosion.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. Refer to your vehicle owner's manual for the specific towing capacity and lamp load rating.
