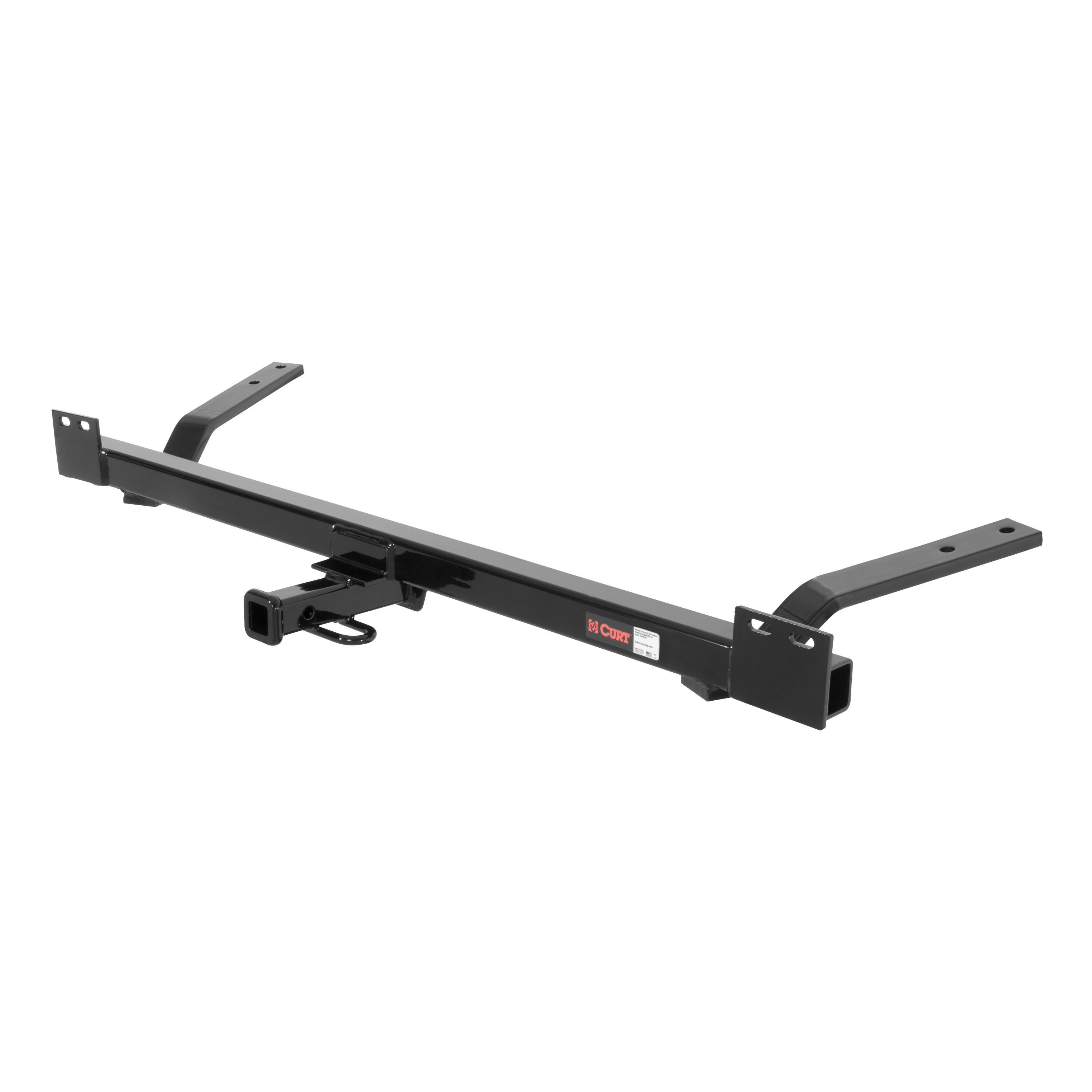

Complete CURT Class 2 1-1/4" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 1985 - 1990 Buick LeSabre Wagon. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!

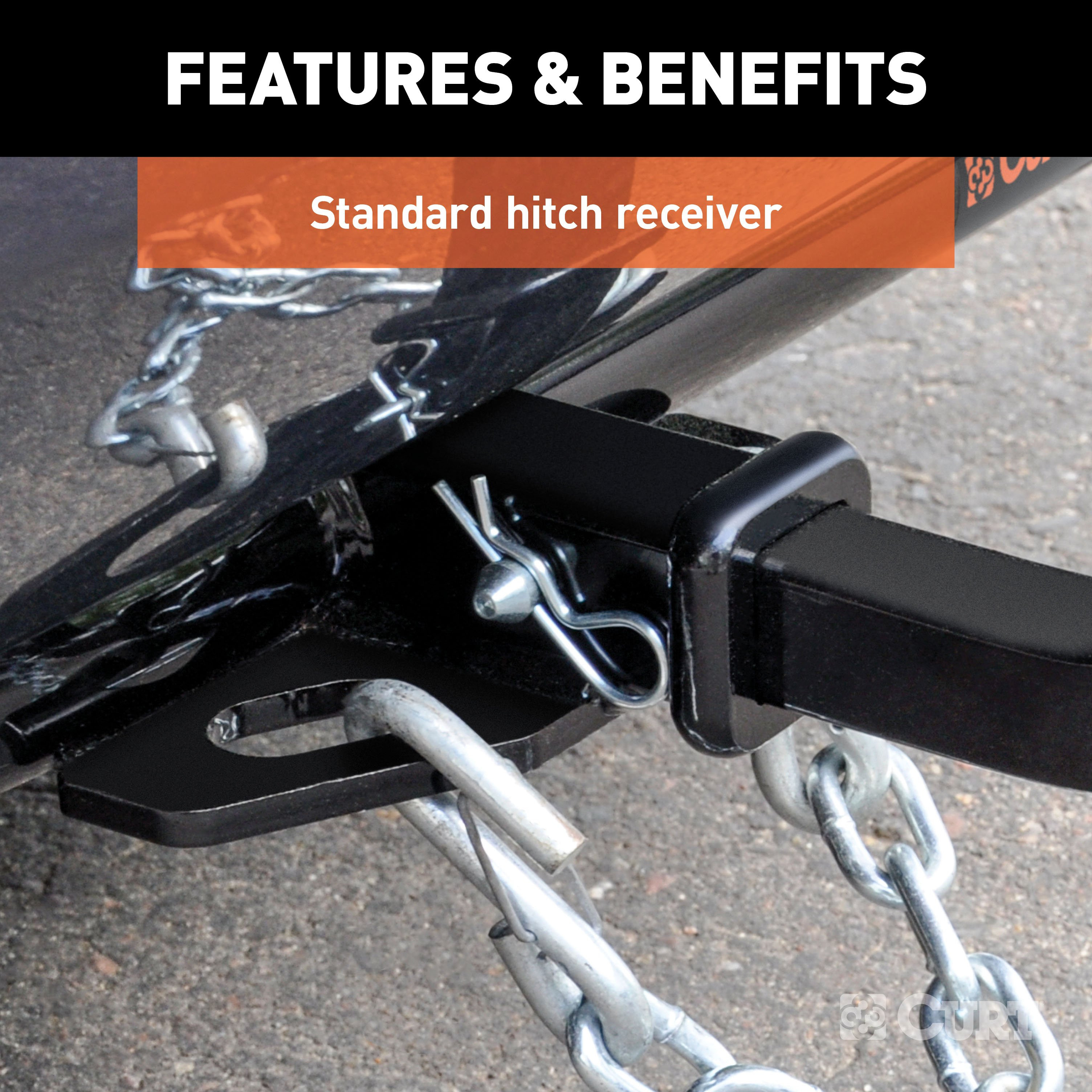

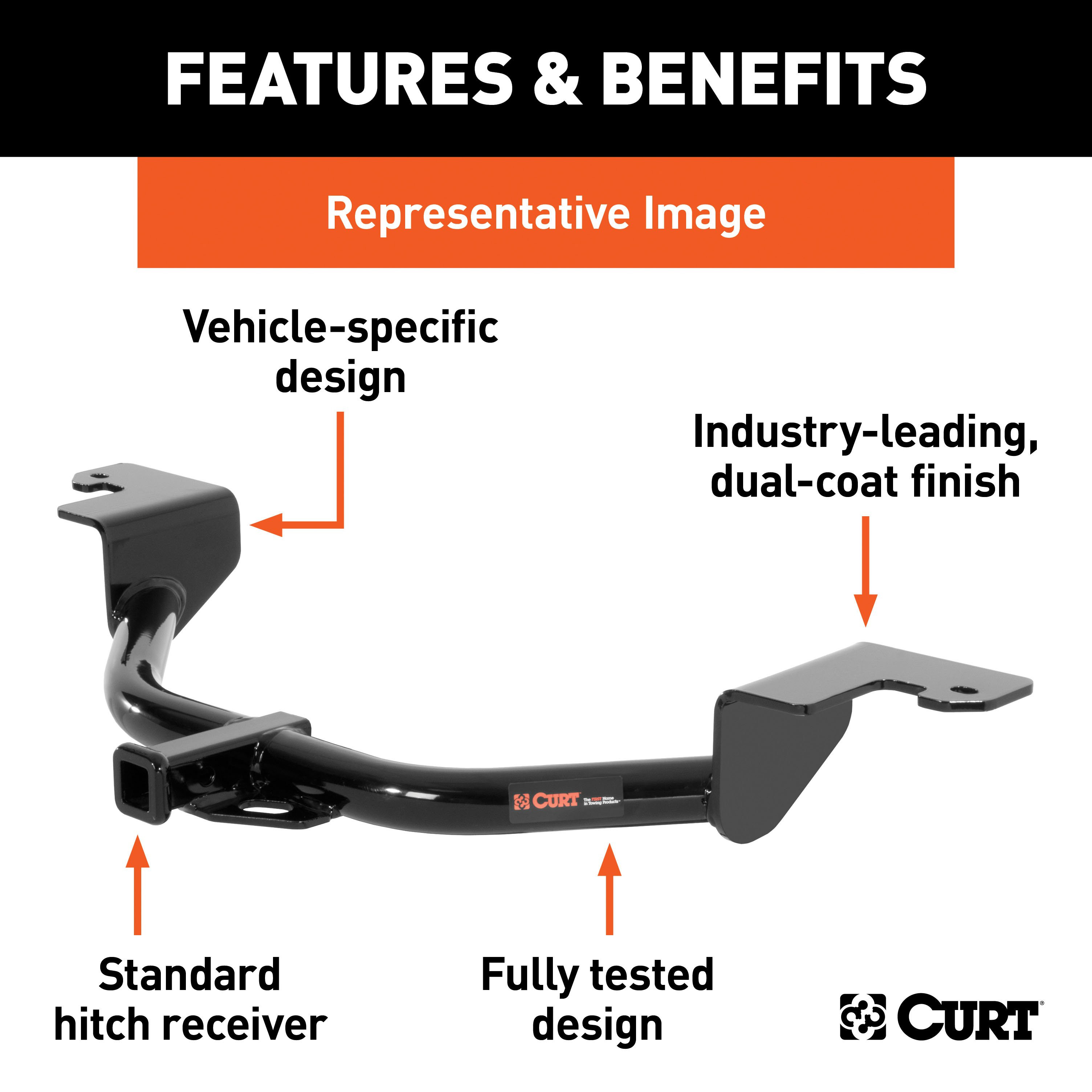

Whatever the next checkpoint is on your adventure -- whether it's getting your bike on the trail before sunrise or making it to the campground before dark -- CURT class 2 hitches let you Bring It with confidence. These receiver hitches are made to handle most light-duty towing applications and offer a custom fit for your vehicle. Typically used on full-size cars, crossovers, compact SUVs, minivans or even compact pickup trucks, a CURT class 2 trailer hitch complements the design of smaller vehicles. This particular class 2 hitch is made to be a custom hitch for certain years of the Buick Estate Wagon, LeSabre or Roadmaster, Chevy Caprice, Oldsmobile Custom Cruiser and Pontiac Parisienne (to verify vehicle compatibility, see application info). It offers a weight carrying capacity of 3,500 lbs. GTW and 350 lbs. TW. Class 2 trailer hitches can typically be used to tow a variety of lightweight trailers, such as a small utility trailer, small fishing boat trailer or popup camper (NOTE: Never exceed the lowest weight capacity of any towing component). They are also perfect for adding cargo space to your vehicle with a bike rack or cargo carrier. This class 2 hitch features a 1-1/4" receiver tube to accept a ball mount shank or other hitch-mounted accessory. For safety, it is tested in accordance with SAE J684. A custom trailer hitch design requires extra care, and as such, CURT class 2 hitches are engineered using real vehicles and hands-on research. We use high-strength steel, robotic welding and rigorous testing to produce hitches that are built to fit your lifestyle. To ensure that each hitch will be a reliable extension of your vehicle, we also finish our hitches in a co-curing of liquid A-coat and black powder coat, giving them long-lasting rust and wear resistance.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Kia EV6 (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.

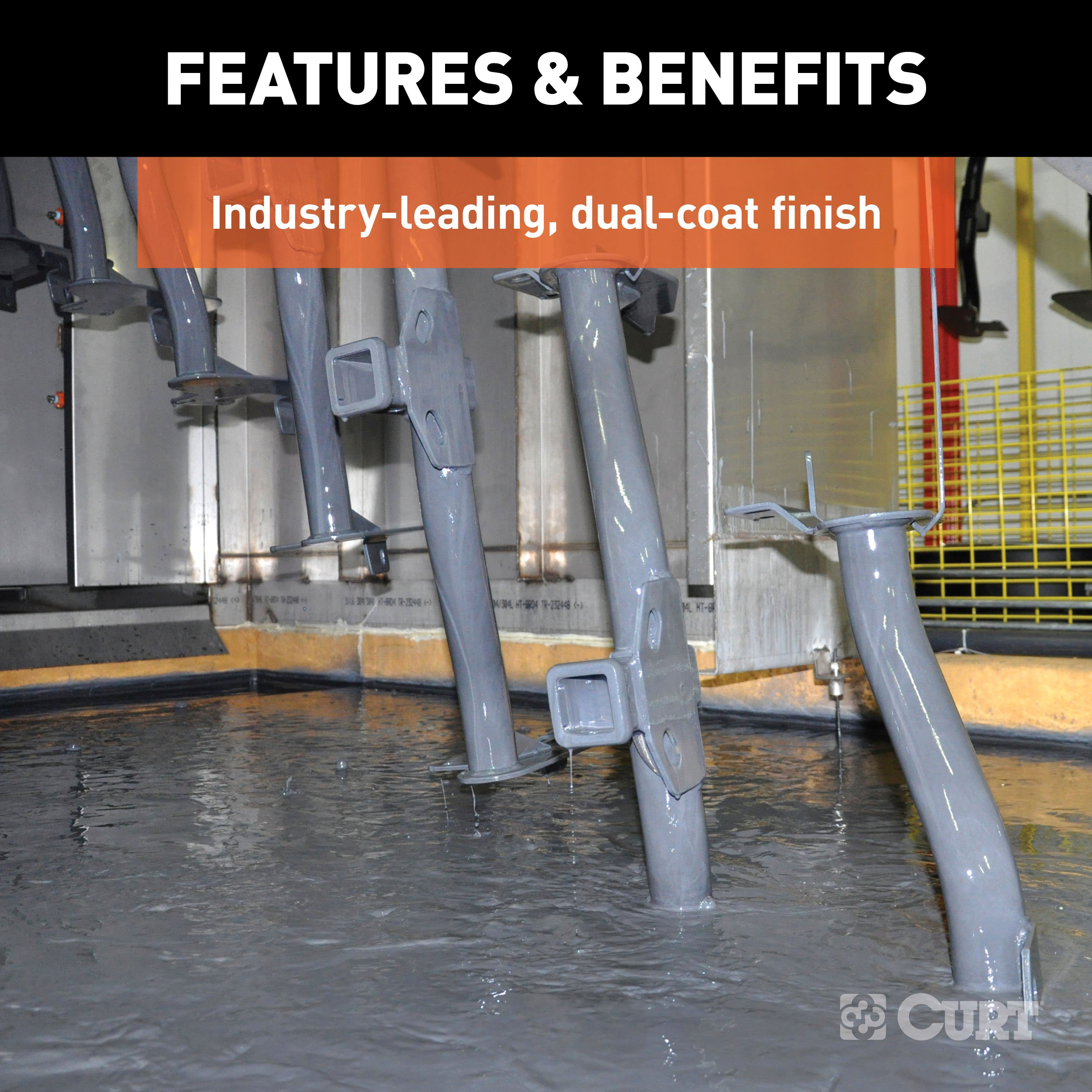

CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494One-Year Limited
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1985 - 1990 | Buick LeSabre | Wagon |
The 85 - 90 Buick LeSabre Wagon Curt 1-1/4" Class 2 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 12041 (Part #5W-CHW-209) fits the following vehicles: 1985-1990 Buick LeSabre. Always verify your specific year, make, and model before ordering.
Yes, the 85 - 90 Buick LeSabre Wagon Curt 1-1/4" Class 2 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 12041 (Part #5W-CHW-209) is designed to fit the 1985-1990 Buick LeSabre.
The 85 - 90 Buick LeSabre Wagon Curt 1-1/4" Class 2 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 12041 (Part #5W-CHW-209) fits 1985-1990 Buick LeSabre models. The 1990 model year is the last year covered by this part number. For newer models, check for an updated version.
The 85 - 90 Buick LeSabre Wagon Curt 1-1/4" Class 2 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 12041 (Part #5W-CHW-209) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part number 12041 is designed for: 1991–1996 Buick Roadmaster Estate Wagon; 1977–1990 Buick Estate and Le Sabre station wagon; 1977–1996 Chevrolet Caprice wagon and Impala station wagon; 1977–1992 Oldsmobile Custom Cruiser; and 1983–1986 Pontiac Safari and Parisienne station wagons. If your vehicle is not listed, this hitch is not compatible.
The manual specifies a gross load capacity of 3,500 lbs. trailer weight and 350 lbs. tongue weight when used as a weight-carrying hitch. However, you must not exceed your vehicle manufacturer's recommended towing capacity, which may be lower. Check your vehicle's owner manual for the maximum towing limit.
The hitch weight is 80 lbs.
The hitch is designed for use with ball mount part number D-221 or 45522. Compatibility with other ball mounts is not documented in the manual.
The kit includes: 4× 3/8-16 UNC hex cap screws, grade 8, 1-1/2" long (part 10-10234); 2× 7/16-14 UNC U-bolts, 2-1/2" long (part 10-10571); 4× 3/8-16 UNC serrated flange nuts, grade 8 (part 20-00102); 4× 7/16-14 UNC serrated flange nuts, grade 8 (part 20-00103); and 4× 3/8" split-cone washers (part 30-00148).
No. You only need to remove the lower two bolts from each bumper shock mount located at the end of each frame rail. These bolts are discarded. The bumper itself remains in place.
Yes. You must drill two 1/2" diameter holes in each vehicle frame rail, for a total of four holes. The hitch frame brackets are used as a template to mark the drilling locations. These holes are permanent modifications to the vehicle frame.
Drill two 1/2" diameter holes in each frame rail. Use the holes in the hitch frame brackets as guides to mark the correct locations.
The holes in the bumper mount must accept a 3/8" diameter bolt. If the existing holes are smaller, you must enlarge them to 3/8" to fit the hitch attachment bolts.
Torque the 3/8" bolts to 45 lb.-ft.
Hand-tighten the U-bolts to 55 lb.-ft of torque. Do not over-tighten. Do not use an impact wrench.
No. When you first attach the hitch assembly to the bumper shock mount holes in step 2, do not tighten the bolts. Leave them loose until after you have drilled the frame rail holes and installed the U-bolts. Then torque the 3/8" bolts to 45 lb.-ft in the final step.
1. Remove the lower two bolts from each bumper shock mount and discard them. Enlarge the holes to 3/8" if needed. 2. Attach the hitch assembly to the shock mount holes without tightening. 3. Position the forward arms of the hitch against the bottom of the frame rails. 4. Using the hitch frame brackets as a template, drill two 1/2" holes in each frame rail. 5. Insert a 7/16" U-bolt into each vehicle frame at the drilled holes and bolt the hitch arms to the frame. Hand-tighten U-bolts to 55 lb.-ft. 6. Torque the 3/8" bolts at the shock mounts to 45 lb.-ft.
Non-trailer loads can be carried, but they must be supported by auxiliary stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
Do not exceed your vehicle manufacturer's recommended towing capacity. Although the hitch is rated for 3,500 lbs. trailer weight and 350 lbs. tongue weight, your vehicle may have a lower limit. Always follow your vehicle manufacturer's specifications.
Periodically check the hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify a retorque interval or maintenance schedule beyond this periodic inspection.
Curt Manufacturing Inc. warrants the product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If defective, Curt may repair or replace it at their option when returned prepaid with proof of purchase. Warranty is voided by alteration, misuse, or improper installation. Curt's liability is limited to repair or replacement and excludes incidental or consequential loss or damage.
1991–1996 Buick Roadmaster Estate Wagon; 1977–1990 Buick Estate and Le Sabre station wagon; 1977–1996 Chevrolet Caprice wagon and Impala station wagon; 1977–1992 Oldsmobile Custom Cruiser; and 1983–1986 Pontiac Safari and Parisienne station wagons.
Yes. You must drill four 1/2" holes (two per frame rail) into the vehicle frame rails using the hitch brackets as a template.
A drill with a 1/2" bit, a torque wrench capable of measuring 45 and 55 lb.-ft, and standard wrenches or sockets for 3/8" and 7/16" fasteners. Do not use an impact wrench on the U-bolts.
U-bolts: 55 lb.-ft (hand-tighten, do not use impact wrench). 3/8" bolts at shock mounts: 45 lb.-ft.
3,500 lbs. trailer weight and 350 lbs. tongue weight, but do not exceed your vehicle manufacturer's recommended towing capacity.
Yes. All non-trailer loads must be supported by auxiliary stabilizing straps, or the warranty is voided.
The Curt 56499 is a powered converter system that enables trailer wiring functionality on passenger cars. It converts the vehicle's electrical signals to power a trailer's lighting and braking systems. The system includes a converter module, wiring harnesses with color-coded leads (yellow for left turn, green for right turn, red for brake, brown for taillight), a 4-flat connector for trailer attachment, and grounding hardware. It is designed for 12-volt negative ground vehicles only.
The Curt 56499 is designed for passenger cars with 12-volt negative ground electrical systems. The manual states it is for 'Passenger Cars (P)' and specifies that the converter system must be used only on 12-volt negative ground systems. The manual does not list specific vehicle makes, models, or years. Consult the product fitment database or contact Curt Manufacturing for compatibility with your specific vehicle.
No. The manual explicitly states: 'This converter system is to be used only on 12 volt negative ground systems.' Do not attempt installation on positive ground vehicles, as it will not function correctly and may cause electrical damage.
The following tools are required: panel removal tool, wire cutter, ratchet, wire stripper, 10mm socket, crimping tool, and flathead screwdriver. The manual also recommends an abrasive pad or paper to remove rust and paint from the grounding point, and notes that proper tools will improve installation quality and reduce time required.
The kit includes: two converter modules (one with yellow wire, one with black converter box), a 4-flat connector, a 4-flat dust cover, double-sided tape for mounting modules, a white ground wire with ring terminal, a black power wire, cable ties for securing wires, a ground screw, a fuse holder with 15-amp fuse, and butt connectors. The manual shows a hardware photo but does not itemize every component; refer to the product packaging or contact Curt Manufacturing for a complete parts list.
Yes. The manual requires that you disconnect the negative battery terminal before wiring the power wire. Step 1 instructs you to remove the ground wire from the battery and fasten it down and away from the battery while completing the installation. The negative battery cable must remain disconnected until all other wiring steps are complete and the fuse is installed.
You must remove: the battery access panel (under the hood), the false floor in the rear hatch, one access door (pulled straight up), two threshold fasteners (using a flathead screwdriver), the threshold trim panel (using a trim tool), and four interior floor bolts (using a 10mm socket). You will also need to loosen both side panels to route wires between the panel and vehicle body. The manual notes that battery location may vary by vehicle.
Do not lay tools across the positive battery terminal (typically marked with red covers or a red '+' symbol), as this can cause a ground short resulting in sparks and/or electrical shocks. Disconnect the negative battery cable before wiring the power wire. Fasten the disconnected ground wire down and away from the battery during installation. Do not reconnect the battery until all wiring is complete and the 15-amp fuse is installed.
The yellow-wire module is mounted on the driver side. After routing the yellow wire behind the driver-side wall panel and connecting it to the taillight housing and factory wiring, locate a flat spot in the lower compartment and adhere the module using the provided double-sided tape. The manual does not specify an exact location beyond 'a flat spot in the lower compartment.'
The black converter box is mounted on the passenger side. Locate a flat spot near where the speaker sub is located and adhere the converter box using the provided double-sided tape. The manual does not specify an exact location beyond 'near where the speaker sub is located.'
On the driver side, locate the vehicle's taillight wiring connectors (which will be similar to those on the converter product). Separate the connectors from the taillight housing, taking care not to damage the locking tabs. Connect the yellow-wire housing to both the taillight housing and factory wiring. Repeat on the passenger side with the green-wire housing. The manual does not provide detailed connector specifications; if connectors do not match, contact Curt Manufacturing.
The wire color coding is: Yellow = Left turn, Green = Right turn, Red = Brake, Brown = Taillight. These colors are used on both the internal wiring harnesses and the 4-flat connector that attaches to the trailer.
Drilling may be required for the ground wire connection. Step 8 instructs you to locate a grounding point such as an existing screw or bolt in the vehicle frame, or drill a 3/32-inch pilot hole if no existing fastener is available. The area must be free from rust, dirt, and paint (use an abrasive pad or paper to clean it). Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury.
The pilot hole size is 3/32 inch. This hole is drilled only if no existing screw or bolt is available on the vehicle frame for the ground wire ring terminal. The area must be cleaned of rust, dirt, and paint before drilling.
No permanent modifications are required. The installation involves removing and reinstalling interior trim panels, accessing existing wiring connectors, and routing wires through existing interior spaces. The only potential drilling is for the ground wire connection (3/32-inch pilot hole), which uses an existing fastener if available. All removed interior components must be reinstalled after installation.
The signal circuits (left turn, right turn, and brake) are rated at 3.0 amps per side maximum.
The tail and running light circuits are rated at 6.0 amps total maximum.
The maximum fuse rating is 15 amps. The manual states: 'The battery connection must be fuse-protected, 15-amp max. Exceeding the product rating can cause loss of warranty, overheating and potential fire.' The fuse holder with 15-amp fuse is included and must be installed after all other wiring steps are complete.
The power wire must be 12 gauge (12 GA) or larger. The manual specifies: 'Route 12 GA wire to vehicle battery location, taking care to avoid any pinch points and hot or rotating components.'
Route the black power wire from the vehicle battery as shown on the 'Powered Converter Lead Instruction Sheet' (page 6 of the manual). The wire must be 12 gauge or larger. Take care to avoid pinch points and hot or rotating components. When passing the power wire through sheet metal, use an existing grommet, add a grommet, or use silicone to protect the wire from sharp edges. Secure the power wire to the vehicle chassis using the provided cable ties.
Locate a grounding point such as an existing screw or bolt in the vehicle frame. If no existing fastener is available, drill a 3/32-inch pilot hole. Clean the area of rust, dirt, and paint using an abrasive pad or paper. Secure the white ground wire (which has a ring terminal) to the vehicle body using the provided ground screw or an existing fastener. Before drilling, check for miscellaneous items hidden behind or under any surface to avoid damage and personal injury.
The ring terminal is a crimped connector at the end of the white ground wire that allows secure attachment to a vehicle frame fastener (screw or bolt). It provides a solid electrical connection to ground the converter system. The ring terminal is attached to the vehicle body using the provided ground screw or an existing fastener.
P3 is behind the driver side taillight housing, inside of trunk. P4 is behind the passenger side taillight housing, inside of trunk. These are the locations where the converter's yellow-wire and green-wire modules connect to the vehicle's factory taillight wiring connectors.
The manual does not specify a maximum towing load. It states: 'Do not exceed product rating or tow vehicle lamp load rating, whichever is lower.' Consult the vehicle owner's manual or contact the vehicle manufacturer for the vehicle's towing capacity and lamp load rating. Contact Curt Manufacturing for the product's maximum rating.
When in use, route the 4-flat connector with the center of the vehicle and out of the hatch to the trailer, staying clear of the hatch's latching mechanism. When not in use, roll up the connector and store it in a convenient, out-of-the-way location. Install the provided 4-flat dust cover to help prevent corrosion.
After connecting the 12-volt power wire to the harness, verify that the harness is functioning by attaching the battery and testing with a test light, 4-flat tester, or a functioning trailer. The manual notes that all steps must be followed to ensure the product will function properly. Once installed, test for proper function before towing.
After installation, verify that all removed interior components are reinstalled, the negative battery terminal is reconnected, the 4-flat dust cover is installed, and all loose wires are secured with the provided cable ties. Test the system with a test light, 4-flat tester, or functioning trailer to confirm proper operation before towing.
Periodic inspection of all wires and connections should be performed to ensure there is no visible damage or loose connections. The manual does not specify an inspection interval. Secure any loose wires with cable ties and ensure the 4-flat dust cover is in place to help prevent corrosion.
The Curt 56499 is designed for passenger cars with 12-volt negative ground electrical systems. Consult the product fitment database or contact Curt Manufacturing with your vehicle's year, make, and model to confirm compatibility.
You will need: panel removal tool, wire cutter, ratchet, wire stripper, 10mm socket, crimping tool, flathead screwdriver, and an abrasive pad or paper to clean the grounding point.
Yes. Disconnect the negative battery terminal before wiring the power wire and keep it disconnected until all wiring is complete and the 15-amp fuse is installed.
The maximum fuse rating is 15 amps. Exceeding this rating can cause loss of warranty, overheating, and potential fire.
The power wire must be 12 gauge (12 GA) or larger. Route it to avoid pinch points and hot or rotating components.
Verify that the 12-volt power wire is properly connected to the positive battery terminal with a ring terminal. Confirm that the 15-amp fuse is installed in the fuse holder. Check that the white ground wire is securely attached to a clean, rust-free grounding point on the vehicle frame. Inspect all wire connections to the taillight wiring connectors to ensure they are fully seated and the locking tabs are not damaged. Test the system with a test light, 4-flat tester, or functioning trailer. If the system still does not function, consult Curt Manufacturing.
Install the provided 4-flat dust cover on the connector when it is not in use. The dust cover helps prevent corrosion. When the connector is in use, route it with the center of the vehicle and out of the hatch to the trailer, staying clear of the hatch's latching mechanism. When not in use, roll up the connector and store it in a convenient, out-of-the-way location.
