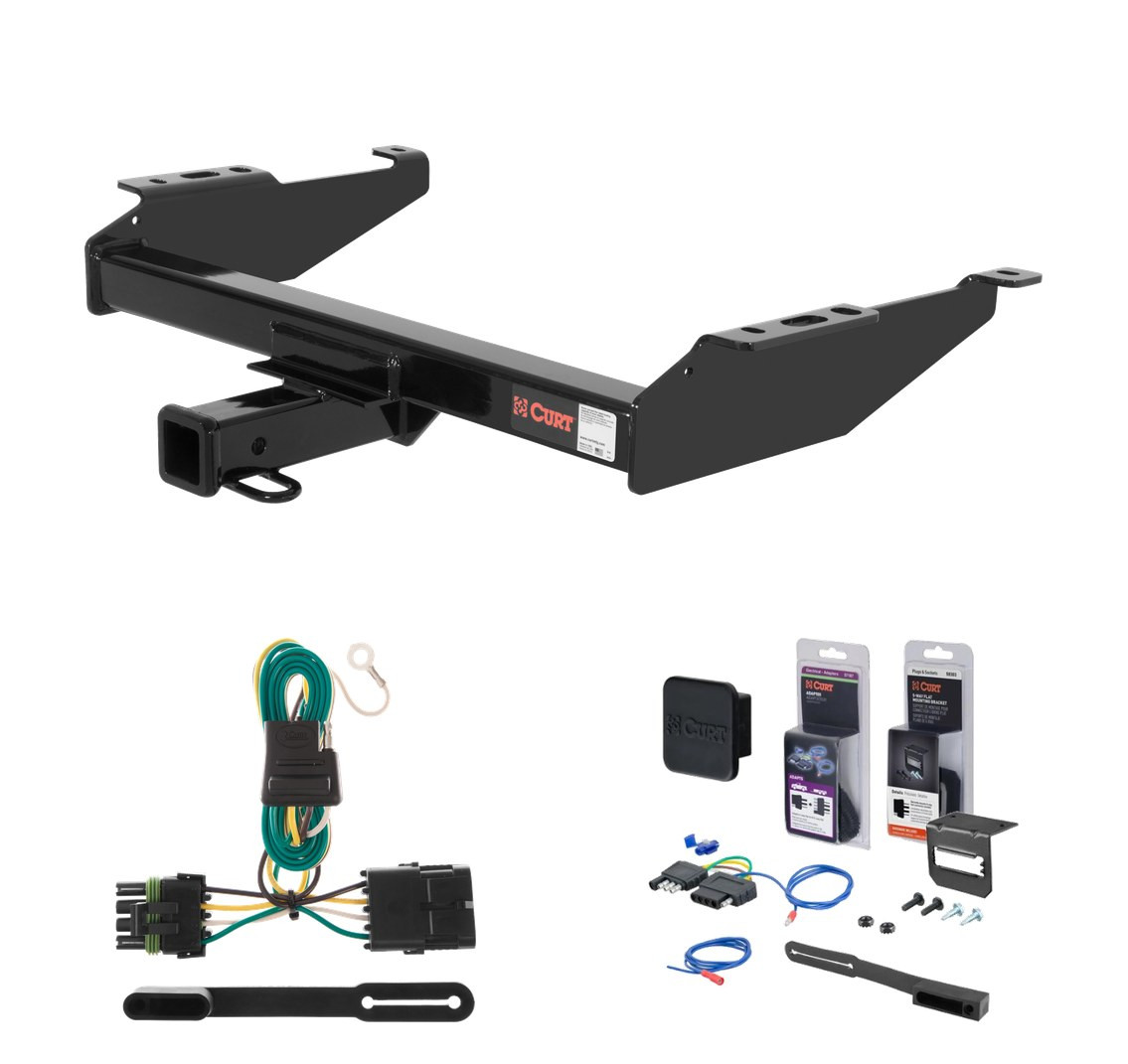

Complete CURT Class 4 2" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 1988 - 2000 GMC C2500 Excluding with dual exhaust, 10" step bumper or cab & chassis. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever the next item is on your to-do list -- whether it's arriving at the jobsite before dawn or getting your travel trailer set up in time to see the sunset -- CURT class 4 trailer hitches offer greater towing power to let you Bring It. These custom receiver hitches are built to tackle bigger jobs and bolder adventures, all while giving you a custom fit for your vehicle. Class 4 hitches are available for a variety of makes and models, from pickup trucks and SUVs to full-size and commercial vans. This particular class 4 hitch fits certain years of the Chevy or GMC C1500, C2500, C3500, K1500, K2500, K3500, Silverado / Sierra 1500 and 2500 (to verify vehicle compatibility, see application info). It provides a weight carrying capacity of 10,000 lbs. GTW and 1,000 lbs. TW. It can also accept a weight distributing hitch, offering a maximum WD capacity of 12,000 lbs. and a WDTW of 1,200 lbs. CURT class 4 tow hitches are as much suited for work as they are for play. With their high load capacities, they are typically used for towing larger trailers, including everything from a double-axle utility trailer or livestock trailer to a full-length camper or large boat trailer (NOTE: Never exceed the lowest weight capacity of any towing component). All CURT class 4 receiver hitches come with a 2" receiver tube opening and all the necessary hardware for a complete installation. From light-duty to heavy-duty, every CURT custom hitch is engineered to be vehicle-specific, using actual vehicles to create the optimal design. We then combine high-strength steel, precise welding and a co-cured finish of liquid A-coat and durable black powder coat to provide you with a hitch you can depend on. To prove it, we test all our hitches in accordance with SAE J684 for safety.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the GMC C1500, C2500, C3500, K1500, K2500 and K3500 (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1988 - 2000 | GMC C2500 | Excluding with dual exhaust, 10" step bumper or cab & chassis |
Yes, the 88 - 00 GMC C2500 Excluding with dual exhaust, 10" step bumper or cab & chassis Curt 2" Class 4 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 14081 (Part #5W-CHW-1344) is designed to fit the 1988-2000 GMC C2500.
The 88 - 00 GMC C2500 Excluding with dual exhaust, 10" step bumper or cab & chassis Curt 2" Class 4 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 14081 (Part #5W-CHW-1344) fits the following vehicles: 1988-2000 GMC C2500. Always verify your specific year, make, and model before ordering.
The 88 - 00 GMC C2500 Excluding with dual exhaust, 10" step bumper or cab & chassis Curt 2" Class 4 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 14081 (Part #5W-CHW-1344) fits 1988-2000 GMC C2500 models. The 2000 model year is the last year covered by this part number. For newer models, check for an updated version.
The 88 - 00 GMC C2500 Excluding with dual exhaust, 10" step bumper or cab & chassis Curt 2" Class 4 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 14081 (Part #5W-CHW-1344) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the Curt 14081 is designed for 1988–1998 Chevy/GMC 1500 trucks with 6' and 8' beds (old style). Confirm your truck matches the old-style designation before ordering.
No. The Curt 14081 is rated for 1988–1998 Chevy/GMC 1500 trucks only. A 1999 model falls outside the supported range and may not fit correctly.
The hitch can be installed on trucks with a factory step bumper, but the rear bolt in the bottom of the frame on each side must be removed during installation. Clean away any undercoating present before fastening the hitch.
Yes, the Curt 14081 is designed for 1988–2000 Chevy/GMC full-size trucks with dual exhaust (old style). Single exhaust trucks may not be compatible.
Yes, the Curt 14081 is compatible with 1992–1998 Chevy/GMC 4-door crew cab models (old style).
Oversize spare tires may have to be relocated to clear the receiver hitch. After installation, reposition the spare tire slightly forward. If it still does not fit, further relocation may be necessary.
The kit includes: 4× 1/2-13 UNC grade 8 bolts (part 10-10288), 2× M12×1.75 class 10.9 hex head cap screws (part 10-10458), 4× 1/2-13 UNC grade 8 serrated flange nuts (part 20-00062), 2× M12×1.75 class 10 hex nuts (part 20-00136), 2× 1/2" split-contact washers (part 30-00149), and 6× 0.250 × 1.50 × 2.00" square hole spacers (part CM-SP1).
No. The installation notes state 'NO DRILLING REQUIRED'. The hitch uses existing frame holes and welded nuts.
Lower the spare tire. Remove the rear bolt in the bottom of the frame on each side if equipped with a factory step bumper. Clean away any undercoating present from the frame area where the hitch will be fastened.
Using the hardware provided, fasten the hitch to the frame using existing frame holes and welded nuts (or M12 nuts and spacers if welded nuts are not present). Refer to the installation diagram showing driver and passenger side frame rail attachment points.
Reposition the spare tire slightly forward to clear the receiver hitch. If you have an oversize spare tire, it may require further relocation.
All 1/2" fasteners must be torqued to 110 ft-lbs.
All M12 bolts must be torqued to 79 ft-lbs.
The manual does not specify the gross load capacity or towing limits. Do not exceed your vehicle manufacturer's recommended towing capacity. Contact Curt Manufacturing technical support at 1-877-287-8634 for capacity information.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. Retighten fasteners as needed to maintain safe operation.
No. Curt Manufacturing warrants the product to be free of defects in material and workmanship at retail purchase. However, alteration, misuse, or improper installation of this product voids the warranty. Warranty covers repair or replacement of defective products only.
The Curt 14081 fits 1988–2000 Chevy/GMC full-size trucks with dual exhaust, 1988–1998 1500 models with 6' or 8' beds, 1988–2000 3/4 and 1 ton classics with 6' or 8' beds, and 1992–1998 crew cabs (all old style). Confirm your model year and configuration match before purchasing.
No drilling is required. The hitch uses existing frame holes and welded nuts (or M12 nuts and spacers if welded nuts are not present).
The manual does not specify required tools. Contact Curt Manufacturing technical support at 1-877-287-8634 for a complete tool list.
Torque all 1/2" fasteners to 110 ft-lbs. and all M12 bolts to 79 ft-lbs.
Yes, lower the spare tire before installation. After installation, reposition it slightly forward to clear the receiver hitch. Oversize spare tires may require further relocation.
Periodically check all fasteners to ensure they are tight and all structural components are sound. Do not exceed your vehicle manufacturer's recommended towing capacity.

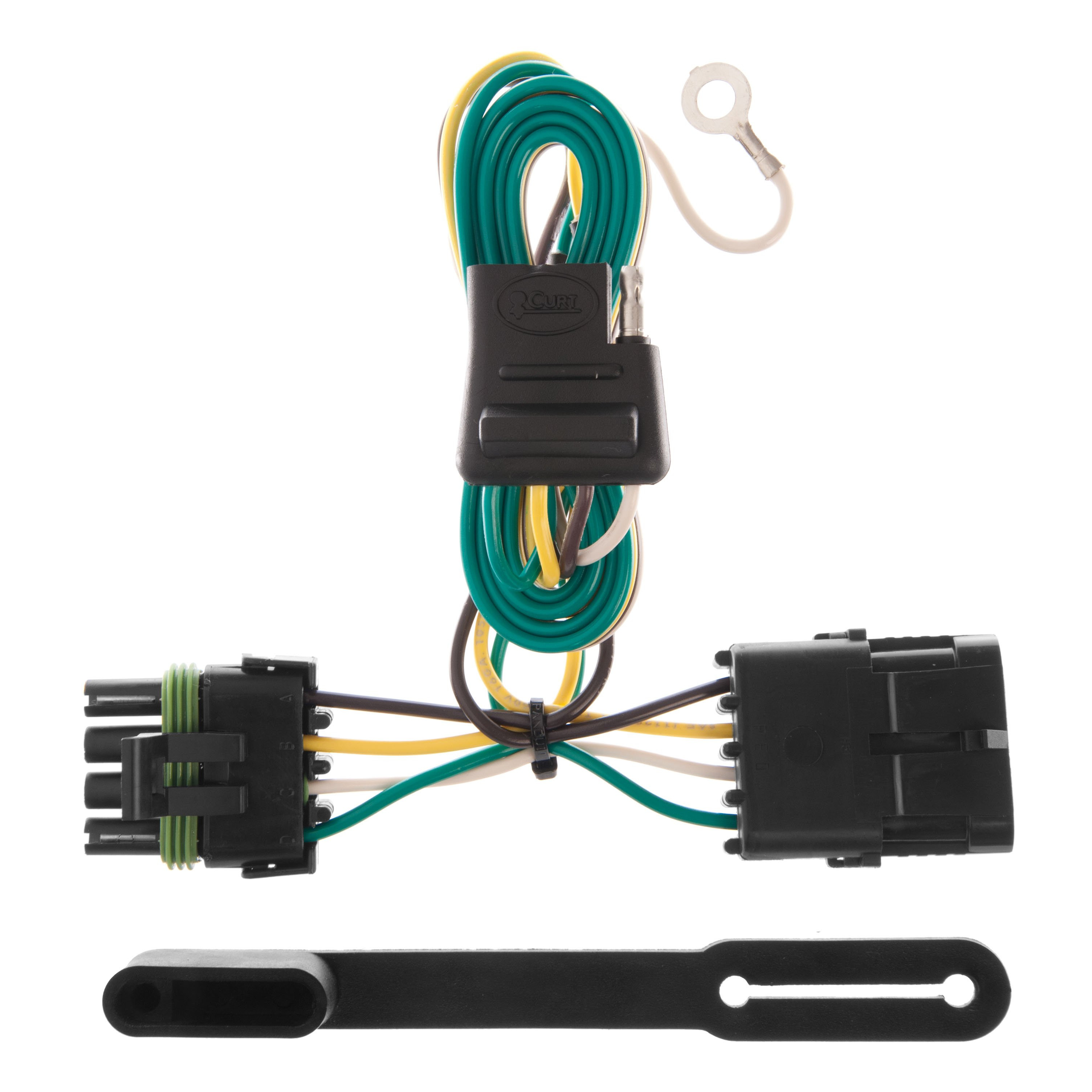

Yes, the Curt 55315 custom wiring harness is designed for Chevrolet C/K 1500 pickup trucks. It is also compatible with Chevrolet C/K 2500/3500, GMC C/K 1500, and GMC C/K 2500/3500 pickup trucks. The harness connects to your vehicle's existing taillight wiring harness connector.
Yes, the Curt 55315 custom wiring harness is compatible with GMC C/K 2500/3500 pickup trucks, as well as GMC C/K 1500 models. The installation process is the same across all listed applications.
The Curt 55315 kit includes a custom wiring harness with a yellow wire connector end, a white ground wire with ring terminal, a provided screw for grounding, cable ties for securing loose wires, and a 4-flat dust cover to help prevent corrosion.
The manual lists no specific tools as required. However, you will need a drill to create a 3/32" pilot hole for the ground wire screw if a suitable existing screw with nut is not available on the vehicle frame. A test light or properly wired trailer is needed to test for proper function after installation.
The manual does not specify whether the battery must be disconnected. Check your vehicle owner's manual or contact the vehicle manufacturer for guidance on electrical work preparation.
Locate your vehicle's taillight wiring harness connector. Separate the connector from the taillight housing carefully, taking care not to damage the locking tabs. Insert the custom wiring harness end with the yellow wire between the separated connectors. Push both connectors fully together until the locking tabs are in place and secure.
Locate a suitable grounding point near the taillight connector, such as an existing screw with nut in the vehicle frame. The area must be free of rust, dirt and paint. If no suitable point exists, drill a 3/32" pilot hole and use the provided screw. Secure the white ground wire using the ring terminal and the provided screw.
Drilling is required only if a suitable existing screw with nut is not available on the vehicle frame near the taillight connector for grounding. If drilling is necessary, you will drill a 3/32" pilot hole. Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury.
When in use, route the 4-flat connector to the center of the vehicle and out of the trunk. When not in use, roll up the connector and store it in a convenient, out-of-the-way location inside the trunk. Secure any loose wires with the provided cable ties.
Test for proper function by using a test light or connecting a properly wired trailer to the 4-flat connector. All steps must be followed to ensure the wiring harness will function properly. If testing reveals issues, review the installation steps to confirm all connections are secure and the ground wire is properly attached.
Do not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating and potential fire. Refer to your vehicle owner's manual or contact the vehicle manufacturer for your specific lamp load rating.
Install the provided 4-flat dust cover to help prevent corrosion. This should be done as part of the final installation step after all other components are in place.
No, you do not need to remove the taillight housing. You only need to separate the taillight wiring harness connector from the housing by carefully disconnecting it, taking care not to damage the locking tabs. The custom harness is then inserted between the separated connectors.
Yes, if you have a Chevrolet or GMC C/K 1500, 2500, or 3500 pickup truck. The harness connects to your vehicle's existing taillight connector.
A drill may be needed to create a 3/32" pilot hole for the ground wire screw if no suitable existing screw is available on the vehicle frame. A test light or properly wired trailer is required to test the installation.
Drilling is only required if no suitable existing screw with nut is available on the vehicle frame near the taillight connector. If drilling is necessary, drill a 3/32" pilot hole. Always check for hidden items before drilling.
Do not exceed the product rating or your vehicle's lamp load rating, whichever is lower. Exceeding the rating can cause loss of warranty, overheating and potential fire.
Test for proper function using a test light or by connecting a properly wired trailer to the 4-flat connector.
