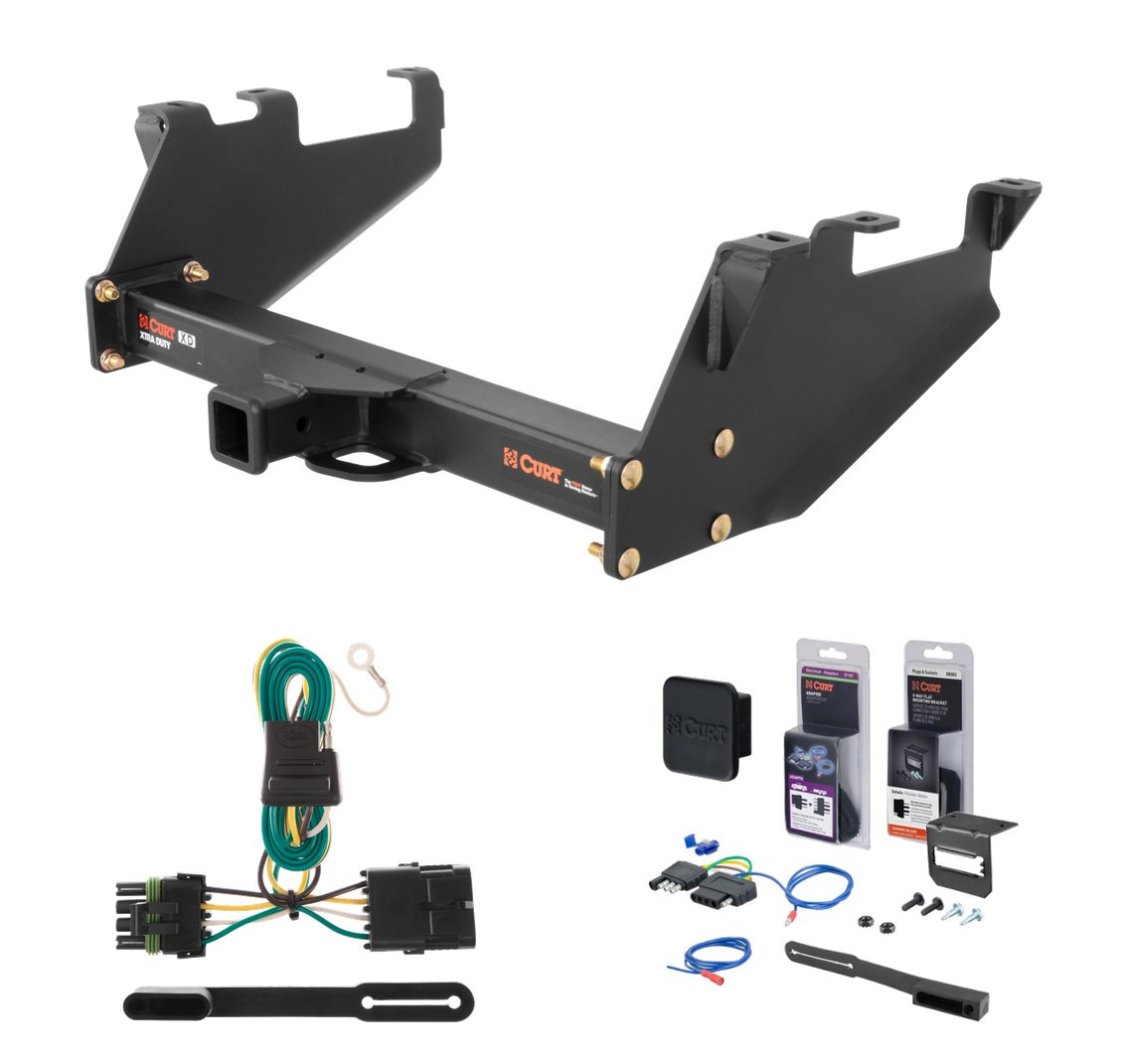

Complete CURT Class 5 2" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 1988 - 2000 GMC K2500 With 10" step bumper. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!

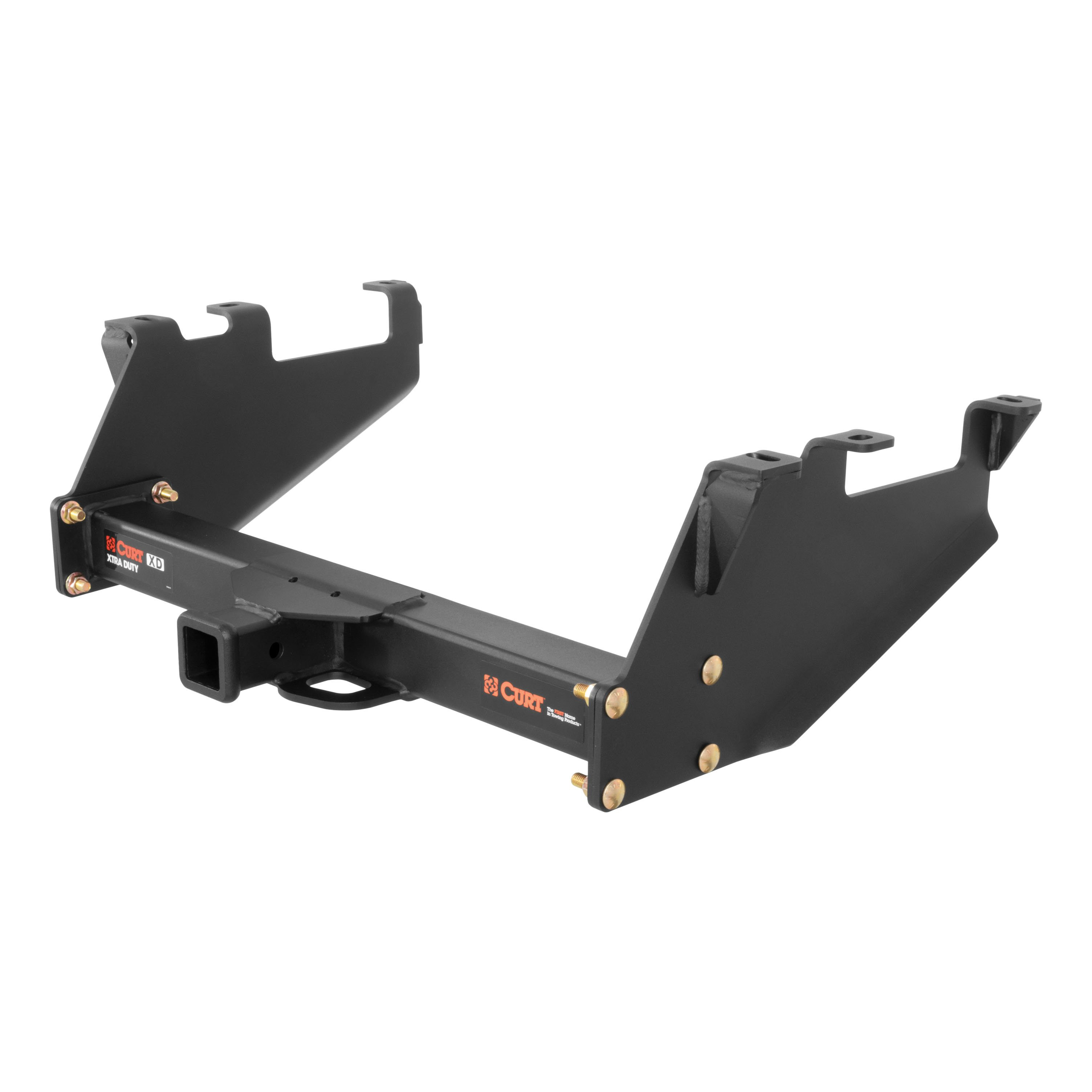

When we came to the limits of towing capacity, we wanted to know what else was out there. What could we discover off the beaten path? So, we kept going. CURT class 5 Xtra Duty hitches begin a class of their own, beyond class 4 and beyond anything the standards dictate. They are designed for the hard road where only full-size pickup trucks, vans and SUVs dare to tread. They are capable of pulling almost any heavy-duty trailer, including toy haulers, dump trailers, logging trailers, small yacht trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component). This particular Xtra Duty class 5 trailer hitch offers a gross trailer weight capacity of 16,000 lbs. and an extra-high tongue weight capacity of 2,400 lbs. It features a 2" x 2" receiver tube opening to accept a ball mount or hitch-mounted accessory, such as a cargo carrier or winch mount. It is designed to be a custom-fit trailer hitch for certain years of the Chevy C1500, C2500, C3500, C3500HD, K1500, K2500 or K3500 and GMC C1500, C2500, C3500, K1500, K2500 or K3500 (to verify compatibility with your vehicle, see application info). For a little extra towing power and stability, this class 5 hitch can also be used in combination with a weight distributing hitch. It is rated for 17,000 lbs. WD and 2,400 lbs. WDTW. In our drive to create a more powerful hitch, CURT has not neglected the finer details. Our class 5 trailer hitches are welded with precision and go through multiple stages of cleaning to create a smooth surface that is ready to accept our co-cured finish. To protect them from corrosion, chipping and UV damage, these hitches are immersed in a liquid A-coat and then finished in a high-quality black carbide powder coat. They come with grade-8 mounting hardware for solid installation.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the GMC C1500, C2500, C3500, K1500, K2500 and K3500 (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1988 - 2000 | GMC K2500 | With 10" step bumper |
The 88 - 00 GMC K2500 With 10" step bumper Curt 2" Class 5 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 15317 (Part #5W-CHW-1441) fits 1988-2000 GMC K2500 models. The 2000 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 88 - 00 GMC K2500 With 10" step bumper Curt 2" Class 5 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 15317 (Part #5W-CHW-1441) is designed to fit the 1988-2000 GMC K2500.
The 88 - 00 GMC K2500 With 10" step bumper Curt 2" Class 5 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 15317 (Part #5W-CHW-1441) fits the following vehicles: 1988-2000 GMC K2500. Always verify your specific year, make, and model before ordering.
The 88 - 00 GMC K2500 With 10" step bumper Curt 2" Class 5 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 15317 (Part #5W-CHW-1441) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 15317 is designed for 1988–2000 Chevrolet and GMC full-size pickups equipped with a 10" step bumper. If your truck has a different bumper style or is outside this year range, this hitch is not compatible.
The hitch weight is 60 lbs.
No, drilling is not required. The hitch uses existing factory bolt holes from the bumper bracket.
You will need a ratchet, 3/4" socket, 19mm socket, torque wrench, and safety glasses. A torque wrench is essential because fasteners must be torqued to specific values (110 ft-lbs for 1/2" fasteners and 87 ft-lbs for 12mm fasteners).
Yes. The manual specifies to lower the spare tire for ease of installation. After installation is complete, the spare tire is reinstalled.
The hitch includes: 8 × 1/2"-13 UNC 1-1/2" carriage bolts (for center-to-side plate assembly), 4 × 1/2"-13 UNC 1-3/4" carriage bolts (for middle frame holes with SP1 spacers), 2 × M12×1.75 hex bolts (for rearmost frame holes), 2 × 1/2" S-con washers, 2 × 0.250" × 1.50" × 2.00" square-hole spacers (SP1), 2 × 0.250" × 1.50" × 3.00" square-hole spacers (SP4), and 12 × 1/2"-13 UNC serrated-flange nuts. The rearmost holes use M12 hex bolts with conical-toothed washers; middle holes use 1/2" × 1-3/4" carriage bolts with SP1 spacers; forwardmost holes use 1/2" × 1-3/4" carriage bolts with SP4 spacers.
No. The factory bumper bracket bolts are removed and returned to the vehicle owner. The hitch is secured using the supplied fasteners (M12 hex bolts for the rearmost holes, and 1/2" carriage bolts with spacers for the middle and forwardmost holes).
All 1/2" fasteners must be torqued to 110 ft-lbs.
All 12mm fasteners must be torqued to 87 ft-lbs.
1. Loosely secure the center section to the driver and passenger side plates using 1/2" × 1-1/2" carriage bolts and hex flange nuts. 2. Lower the spare tire. 3. Remove existing bumper bracket bolts from both frame rails. 4. Align the rearmost holes in the side plates with the bolt holes from the factory brackets. 5. Secure the hitch with supplied M12 hex bolts and conical-toothed washers into the rearmost hole; install 1/2" × 1-3/4" carriage bolts with SP1 spacers into the middle holes and secure with 1/2" flange nuts; install 1/2" × 1-3/4" carriage bolts with SP4 spacers into the forwardmost holes and secure with 1/2" flange nuts. 6. Torque all 1/2" fasteners to 110 ft-lbs and all 12mm fasteners to 87 ft-lbs. 7. Reinstall the spare tire.
The manual does not provide the gross load capacity values for this hitch. The manual states: "Do not exceed vehicle manufacturer's recommended towing capacity." Contact Curt Manufacturing technical support at 1-877-287-8634 or consult your vehicle's owner manual for the maximum towing capacity.
Periodically check the hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify an exact interval, so inspect before each towing trip and at regular maintenance intervals.
Professional installation takes approximately 60 minutes. DIY installation by a novice takes approximately 69 minutes.
The Curt 15317 is designed for 1988–2000 Chevrolet and GMC full-size pickups with a 10" step bumper. If your truck matches these specifications, it will fit.
No drilling is required. The hitch uses existing factory bolt holes.
Torque all 1/2" fasteners to 110 ft-lbs and all 12mm fasteners to 87 ft-lbs.
The hitch weight is 60 lbs.
Yes, the Curt 55315 custom wiring harness is designed for Chevrolet C/K 1500 pickup trucks. It is also compatible with Chevrolet C/K 2500/3500, GMC C/K 1500, and GMC C/K 2500/3500 pickup trucks. The harness connects to your vehicle's existing taillight wiring harness connector.
Yes, the Curt 55315 custom wiring harness is compatible with GMC C/K 2500/3500 pickup trucks, as well as GMC C/K 1500 models. The installation process is the same across all listed applications.
The Curt 55315 kit includes a custom wiring harness with a yellow wire connector end, a white ground wire with ring terminal, a provided screw for grounding, cable ties for securing loose wires, and a 4-flat dust cover to help prevent corrosion.
The manual lists no specific tools as required. However, you will need a drill to create a 3/32" pilot hole for the ground wire screw if a suitable existing screw with nut is not available on the vehicle frame. A test light or properly wired trailer is needed to test for proper function after installation.
The manual does not specify whether the battery must be disconnected. Check your vehicle owner's manual or contact the vehicle manufacturer for guidance on electrical work preparation.
Locate your vehicle's taillight wiring harness connector. Separate the connector from the taillight housing carefully, taking care not to damage the locking tabs. Insert the custom wiring harness end with the yellow wire between the separated connectors. Push both connectors fully together until the locking tabs are in place and secure.
Locate a suitable grounding point near the taillight connector, such as an existing screw with nut in the vehicle frame. The area must be free of rust, dirt and paint. If no suitable point exists, drill a 3/32" pilot hole and use the provided screw. Secure the white ground wire using the ring terminal and the provided screw.
Drilling is required only if a suitable existing screw with nut is not available on the vehicle frame near the taillight connector for grounding. If drilling is necessary, you will drill a 3/32" pilot hole. Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury.
When in use, route the 4-flat connector to the center of the vehicle and out of the trunk. When not in use, roll up the connector and store it in a convenient, out-of-the-way location inside the trunk. Secure any loose wires with the provided cable ties.
Test for proper function by using a test light or connecting a properly wired trailer to the 4-flat connector. All steps must be followed to ensure the wiring harness will function properly. If testing reveals issues, review the installation steps to confirm all connections are secure and the ground wire is properly attached.
Do not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating and potential fire. Refer to your vehicle owner's manual or contact the vehicle manufacturer for your specific lamp load rating.
Install the provided 4-flat dust cover to help prevent corrosion. This should be done as part of the final installation step after all other components are in place.
No, you do not need to remove the taillight housing. You only need to separate the taillight wiring harness connector from the housing by carefully disconnecting it, taking care not to damage the locking tabs. The custom harness is then inserted between the separated connectors.
Yes, if you have a Chevrolet or GMC C/K 1500, 2500, or 3500 pickup truck. The harness connects to your vehicle's existing taillight connector.
A drill may be needed to create a 3/32" pilot hole for the ground wire screw if no suitable existing screw is available on the vehicle frame. A test light or properly wired trailer is required to test the installation.
Drilling is only required if no suitable existing screw with nut is available on the vehicle frame near the taillight connector. If drilling is necessary, drill a 3/32" pilot hole. Always check for hidden items before drilling.
Do not exceed the product rating or your vehicle's lamp load rating, whichever is lower. Exceeding the rating can cause loss of warranty, overheating and potential fire.
Test for proper function using a test light or by connecting a properly wired trailer to the 4-flat connector.
