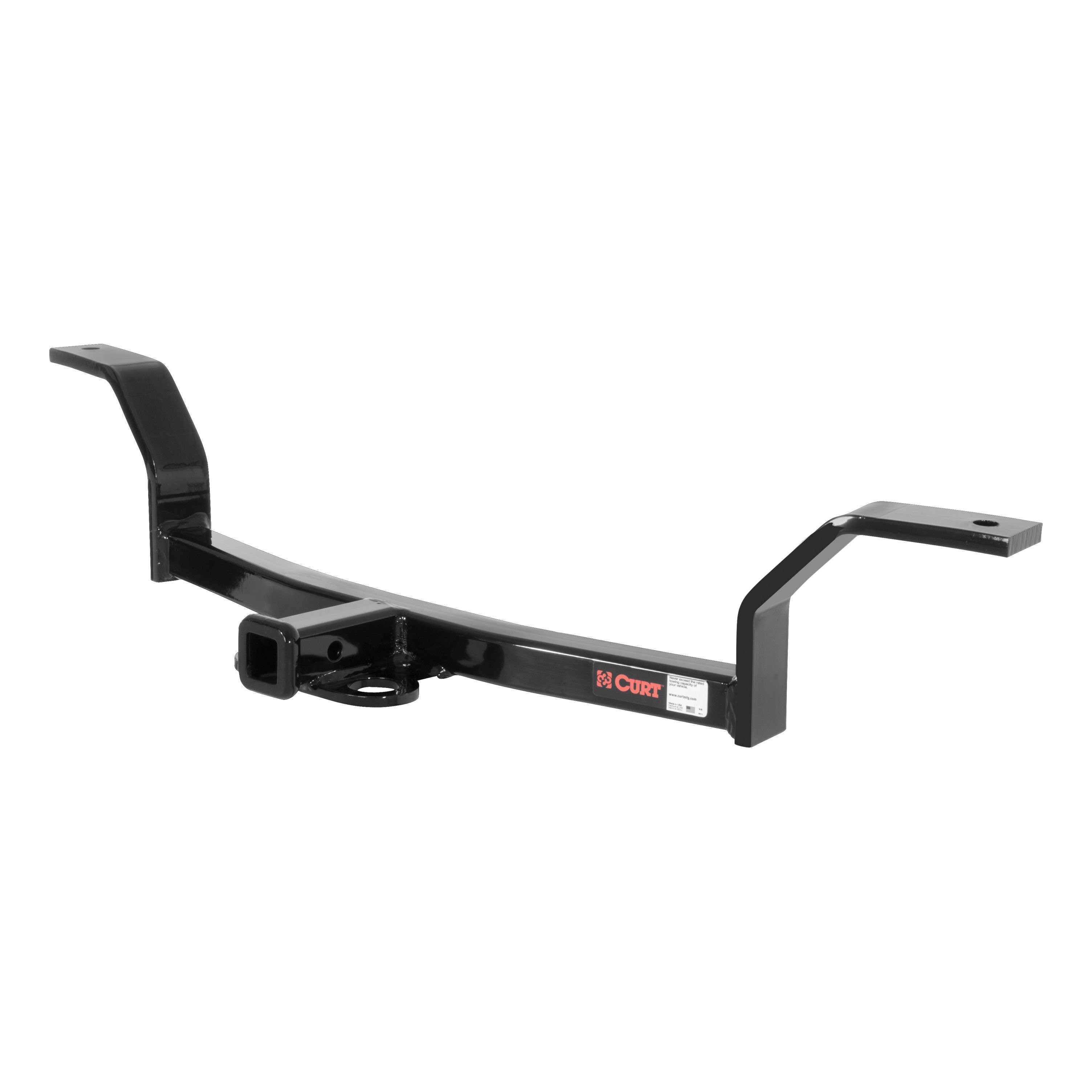

| Side Application Type Description | Blank |
| Tongue Weight (TW) | 200 LB |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Weight Carrying Capacity (WC) | 2,000 LB |
| Finish | GLOSS BLACK POWDER COAT |
| Main Body Shape | Square |
| Material | Carbon Steel |
| Mount Type Description | Blank |
| Receiver Tube Size | 1-1/4 IN |
| Battery-Powered | Yes |
| Converter Type | Circuit Protected |
| Electrical System Type | 3W |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
| Side Application Type Description | Blank |
| T-Connector Location | P1,P2 |
| Tail Light Circuits | 6.0 Amps |
| Turn and Brake Circuits | 3.0 Amps |
| Warranty | One-Year Limited Warranty |
| Side Application Type Description | Blank |
| Tongue Weight (TW) | 350 LB |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Drop | 3-1/4 IN |
| Finish | GLOSS BLACK POWDER COAT |
| Gross Trailer Weight (GTW) | 3,500 LB |
| Material | Blank |
| Mount Type Description | Blank |
Notes:
Notes:
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1997 - 2000 | Acura EL | — |

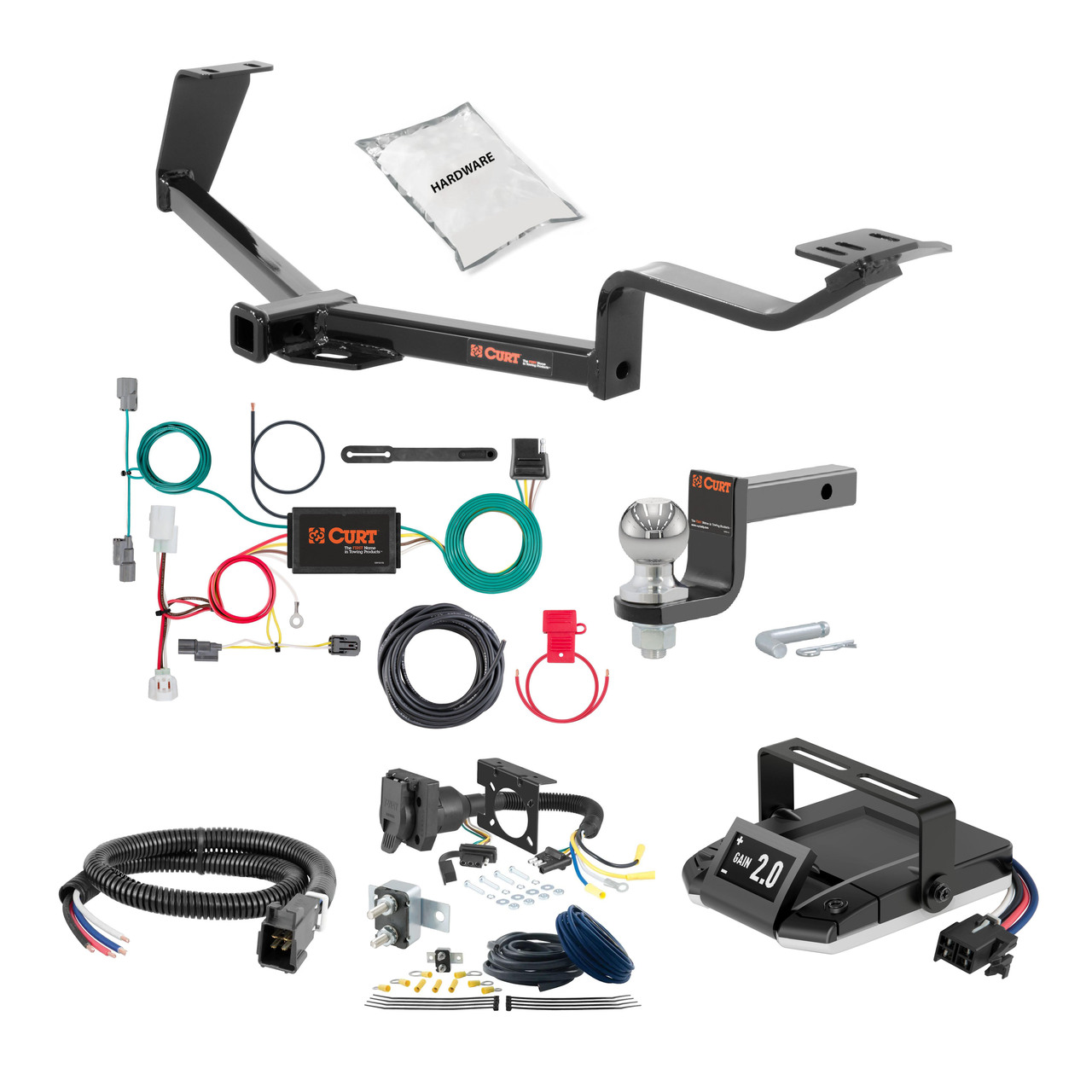

The 97 - 00 Acura EL -- 1.25 CURT Trailer Hitch + Assure Proportional Brake Controller Kit HBCW4 (Part #HBCW4) fits 1997-2000 Acura EL models. The 2000 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 97 - 00 Acura EL -- 1.25 CURT Trailer Hitch + Assure Proportional Brake Controller Kit HBCW4 (Part #HBCW4) is designed to fit the 1997-2000 Acura EL.
The 97 - 00 Acura EL -- 1.25 CURT Trailer Hitch + Assure Proportional Brake Controller Kit HBCW4 (Part #HBCW4) fits the following vehicles: 1997-2000 Acura EL. Always verify your specific year, make, and model before ordering.
The 97 - 00 Acura EL -- 1.25 CURT Trailer Hitch + Assure Proportional Brake Controller Kit HBCW4 (Part #HBCW4) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part 11391 is designed for Honda Civic (including Si and Hybrid models), Acura CSX (Canadian models only), and Acura ILX. It fits 2006-present model years in sedan and coupe body styles.
No. Part 11391 is designed for Acura CSX in Canada only. If you live outside Canada, this hitch is not compatible with your vehicle.
The 11391 is rated for a maximum of 2,000 lbs trailer weight and 200 lbs tongue weight when used as a weight-carrying hitch. However, you must not exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
The 11391 is designed for use with Curt ballmount part 45501. Euro mount options are also available: part 45571 (1-7/8" ball) and part 45572 (2" ball).
You will need: torque wrench, ratchet, sockets (10mm, 9/16", 11/16", 3/4"), flat screwdriver, prybar, tin snips or aviation shears, power drill, and 17/32" drill bit.
Yes. The muffler must be temporarily lowered during installation. In step 7, you will raise the hitch and muffler simultaneously into position. The exhaust hanger must also be lowered from its frame attachment in step 1.
Yes. The heat shield and underbody panel (if present) must be removed in step 2. They will be trimmed and then reinstalled using the original fasteners. Save all four fasteners that attach the heat shield.
Drilling is required on some models. Some models may require the forwardmost mounting holes to be enlarged using a 17/32" drill bit. The manual notes this as a conditional requirement, not a universal one.
Yes. The heat shield and underbody panel must be trimmed as shown in the installation diagram. After trimming, they are reinstalled using the original fasteners removed in step 2.
Fishwire is a technique for inserting fasteners through tight spaces. In step 4, you fishwire the 7/16" carriage bolts and spacers into existing holes in the frame. The manual includes a fishwire technique diagram on page 5. Two 7/16" fishwire pieces are included in the parts list.
1. Lower the rear rubber exhaust hanger. 2. Remove and trim the heat shield and underbody panel. 3. Insert the 3/8" U-bolt through the tow loop. 4. Fishwire the 7/16" carriage bolts and spacers into frame holes. 5. Insert 1/2" handle nuts through access holes on both sides. 6. Reattach the trimmed heat shield and panel. 7. Raise the hitch and muffler simultaneously and loosely secure both sides. 8. Attach the hitch to the tow loop. 9. Torque all fasteners to specification.
Leave fasteners loose during installation. In step 7, you loosely secure the driver and passenger sides. Only after the hitch is fully positioned and attached to the tow loop (step 8) do you torque all fasteners to their final specifications in step 9.
Torque all 3/8" hardware to 45 ft-lbs. Torque all 7/16" hardware to 70 lb-ft. Torque all 1/2" hardware to 75 lb-ft. These specifications apply to the final tightening in step 9, after the hitch is positioned and attached.
The U-bolt is 3/8" - 16 x 1.00 x 1.88. It is inserted through the tow loop in step 3 of the installation.
Safety glasses must be worn at all times while installing this product. Read all instructions thoroughly before beginning. Two people may be required to ease installation. Using proper tools will improve installation quality and reduce time required.
Non-trailer (wheel-less) loads can be applied to the hitch, but they must be supported by auxiliary stabilizing straps. Curt recommends part 18050 stabilizing straps for all non-trailer loads. Failure to properly support non-trailer loads will void the product warranty.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This check should be performed regularly to maintain safe operation.
The kit includes: 2 serrated flange nuts (7/16-14 UNC), 2 hex head cap screws (1/2-13 UNC, 1-1/4"), 2 washers (1/2"), 2 handle nuts (1/2-13 UNC), 2 square hole spacers (.250 x .88 x 2.25"), 2 carriage bolts (7/16-14 UNC, 1-1/2"), 1 U-bolt (3/8-16 x 1.00 x 1.88), 2 serrated flange nuts (3/8-16 UNC), and 2 pieces of 7/16" fishwire.
Yes, the 11391 fits Honda Civic (including Si and Hybrid) and Acura ILX from 2006-present in sedan and coupe styles. Acura CSX is compatible only in Canada.
Maximum 2,000 lbs trailer weight and 200 lbs tongue weight. Do not exceed your vehicle manufacturer's recommended towing capacity.
Torque wrench, ratchet, sockets (10mm, 9/16", 11/16", 3/4"), screwdriver, prybar, tin snips, power drill, and 17/32" drill bit.
Yes. The muffler must be temporarily lowered, and the heat shield and underbody panel must be removed, trimmed, and reinstalled.
3/8" hardware: 45 ft-lbs. 7/16" hardware: 70 lb-ft. 1/2" hardware: 75 lb-ft.
Yes, but non-trailer loads must be supported by auxiliary stabilizing straps (Curt part 18050 recommended). Failure to properly support non-trailer loads voids the warranty.
Periodically check that all fasteners are tight and all structural components are sound.
The kit includes: one 30 amp auto-resetting circuit breaker, two #10 ring terminals, two 3/8" ring terminals, two 1/2" ring terminals, three 12-10 gauge butt connectors, 10 feet of 10 ga black/white duplex wire, 20 feet of 10 ga blue cross-linked wire, and eight 8.5" cable ties.
Yes, but with a critical difference: these vehicles require the stop signal wire to be spliced to the light green wire on the turn signal harness connector under the dash, not to the brake pedal switch. Do NOT connect to the red wire with green stripe, as serious damage may occur. All other vehicles connect to the brake pedal switch instead.
You will need: a test light, wire stripper/cutter, crimp tool, and 3/8" box end wrench. The test light is used to identify the cold (switched) side of the brake pedal switch.
Yes. The manual cautions to disconnect the tow vehicle's negative battery cable before installation. Reconnect it only in the final step after all wiring is complete.
Mount the 30 amp circuit breaker near the tow vehicle's positive battery terminal. This keeps the power wire run as short as possible and protects the circuit.
Use 10 gauge (10 ga) black wire from the duplex wire included in the kit. Strip 3/8" of insulation from each end. Crimp a #10 ring terminal to the end that attaches to the circuit breaker stud labeled 'BAT', and a 3/8" or 1/2" ring terminal (sized to fit your battery terminal) to the end that attaches to the positive battery terminal.
Feed the 10 ga duplex wire from the brake controller in the cockpit through the firewall into the engine compartment toward the battery. Cut to length as needed. At the battery end, crimp a 3/8" or 1/2" ring terminal to the white wire and a #10 ring terminal to the black wire. Attach the black wire to the circuit breaker stud labeled 'AUX' and tighten the nut with a 3/8" box end wrench.
When passing the duplex wire through the firewall into the engine compartment, use an existing grommet, add a new grommet, or fill the hole with silicone rubber to insulate and protect the wire. The same protection applies when passing the blue cross-linked wire through any sheet metal at the rear of the vehicle.
In the cockpit, attach the black duplex wire to the brake controller's battery wire (typically black) and the white duplex wire to the brake controller's ground wire (typically white). Use either one of the supplied yellow butt connectors or solder the leads together and insulate with heat shrink tubing.
Locate the brake pedal switch on the back side of the vehicle's brake pedal. Use a test light or volt meter to identify the 'cold' or switched side—this terminal will only show power when the brake pedal is depressed. Attach the stop signal wire (typically red) from the brake controller to the cold side of the switch using a wire tap.
Locate the semi-circle turn signal harness connector on the steering column under the dash. It has two rows of wires: a row of four and a row of seven. Attach the stop signal wire (typically red) from the brake controller to the light green wire using a wire tap. Do NOT connect to the red wire with green stripe, as serious damage may occur.
Feed the 10 ga blue cross-linked wire from the brake controller to the trailer connector at the rear of the vehicle, taking up any slack in the wire. When passing through any sheet metal, use an existing grommet, add a new grommet, or fill the hole with silicone rubber to protect the wire.
Attach the blue cross-linked wire to the brake controller's electric brake wire (typically blue) using one of the supplied yellow butt connectors or by soldering and insulating with heat shrink tubing. At the rear of the vehicle, trim any loose blue wire and attach it to the trailer connector's electric brake terminal. Refer to the trailer connector's wiring diagram for the correct terminal location.
Secure any loose wires with the cable ties provided. Connect the black power wire from the circuit breaker to the positive side of the battery. Connect the white ground wire from the brake controller to the negative side of the battery. Finally, reconnect the tow vehicle's negative battery cable to the battery.
The circuit breaker is 30 amps and auto-resetting. It must be mounted near the positive battery terminal and connected directly to the positive battery terminal via the included black 10 gauge wire.
Use a 3/8" box end wrench to tighten the nuts on the circuit breaker studs labeled 'BAT' and 'AUX'.
The kit includes 10 feet of 10 gauge black/white duplex wire for the battery and brake controller connections, and 20 feet of 10 gauge blue cross-linked wire for the electric brake signal to the trailer connector.
Black wire connects to the positive battery and circuit breaker. White wire connects to the brake controller ground and negative battery. Red wire is the stop signal wire from the brake controller. Blue wire is the electric brake signal wire. The manual notes these are 'typically' these colours but recommends confirming with your brake controller documentation.
Yes. You can solder the leads together and insulate with heat shrink tubing as an alternative to using the supplied yellow butt connectors. This applies to connections between the duplex wire and the brake controller wires, and between the blue cross-linked wire and the brake controller.
The black power wire must connect directly to the positive battery terminal via the 30 amp circuit breaker. Connecting to the fuse panel or any other accessory wiring may damage vehicle wiring and cause trailer brake failure. The circuit breaker protects the circuit and must be the only protection between the battery and the brake control system.
Do NOT connect the stop signal wire to the red wire with green stripe on the turn signal harness. Serious damage may occur. Connect only to the light green wire. Also, do not connect to the brake pedal switch on these vehicles; use the turn signal harness instead.
The kit is universal but requires an existing trailer connector and brake controller. 1989-1991 Ford E & F-Series with ABS use a different stop signal connection (turn signal harness instead of brake pedal switch). Consult your brake controller documentation for compatibility.
No drilling is required. The kit connects to existing components: the battery, brake controller, brake pedal switch (or turn signal harness on 1989-1991 Ford E & F-Series with ABS), and trailer connector.
Do NOT connect the stop signal wire to the red wire with green stripe on the turn signal harness—serious damage may occur. Connect to the light green wire instead, and do not use the brake pedal switch.
Connecting to the fuse panel or accessory wiring may damage vehicle wiring and cause trailer brake failure. The 30 amp circuit breaker must be the only protection between the battery and the brake control system.
Yes, the Curt 56269 Custom Wiring Connector is designed for the Acura ILX (passenger car). The manual specifies this as the application and includes vehicle-specific wiring location diagrams for the ILX.
The Curt 56269 is a Custom Wiring Connector that integrates with your vehicle's taillight wiring to provide trailer lighting control. It includes a converter box and a 4-flat connector for trailer hookup, with wiring routed through both the driver and passenger side taillights.
You will need: Phillips screwdriver, panel trim removal tool, wire stripper, wire crimper, cutting tool, and sealant (not provided). The manual also recommends a test light or properly wired trailer to verify function after installation.
The kit includes: a custom wiring harness with yellow, red, green, white and black wires; a black converter box; a ring terminal and provided screw for grounding; double-sided tape for mounting the converter box; cable ties for securing loose wires; and a 4-flat dust cover. Sealant is not provided and must be purchased separately.
Yes. Step 1 requires you to locate the vehicle battery on the driver side under the hood and disconnect the negative battery terminal before beginning any installation work.
You must open the vehicle trunk and have access to both the driver and passenger side taillight areas. The installation involves removing trunk floor coverings, the scuff panel, side felt liners, and taillight assemblies to access the wiring harness connectors.
Drilling may be required. Step 10 instructs you to locate a suitable grounding point near the connector. If an existing screw with nut is not available in the vehicle frame, you must drill a 3/32" pilot hole for the provided ground screw. The manual warns to check for hidden items before drilling to avoid damage and personal injury.
Yes. Step 7 requires you to remove the grommet behind the taillight where the vehicle taillight wiring passes through and cut a slit large enough to route the custom wiring harness through. After routing the harness, Step 9 requires you to reseat the grommet and seal the cut with sealant (not provided).
Signal Circuits are rated at 3.0 amps per side. Tail/Running Circuits are rated at 6.0 amps total. The battery connection must be fuse-protected with a 10-amp max fuse. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower, as exceeding the rating can cause loss of warranty, overheating and potential fire.
The custom wiring harness includes: yellow wire (routed to driver side taillight 2-pin connector), red wire (routed to driver side taillight 3-pin connector), green wire (routed to passenger side taillight), white wire (ground wire secured with ring terminal and provided screw), and black wire (power wire routed from vehicle battery). Refer to the included CME-PCL-INS sheet for complete battery power wire routing details.
The white ground wire is secured using a ring terminal and the provided screw. Step 10 instructs you to locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame, or drill a 3/32" pilot hole if needed. The area must be free of rust, dirt and paint before securing the ground wire.
Step 11 instructs you to locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape. The converter box should be positioned in a convenient location that does not interfere with vehicle operation.
Step 14 instructs that when not in use, the 4-flat connector should be rolled up and stored in a convenient, out-of-the-way location. When in use, route the 4-flat to the center of the vehicle. A 4-flat dust cover is provided to help prevent corrosion.
After installation is complete, test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring connector functions properly. The manual emphasizes that testing is required before considering the installation complete.
The battery connection must be fuse-protected with a 10-amp max fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury. This is especially important when drilling the 3/32" pilot hole for the ground screw in Step 10.
Step 8 specifies: route the custom wiring harness end with the yellow wire out through the grommet opening and insert it between the separated 2-pin connectors. Then repeat using the red wire between the 3-pin connectors. Make sure the connectors are fully inserted with locking tabs in place. Repeat this process on the passenger side using the green wire (Step 12).
Step 9 instructs you to reseat the grommet and use sealant (not provided) to seal the cut in the grommet and around all the wires. This prevents water and debris from entering the vehicle through the modified grommet opening.
Step 5 instructs: on the outside of the vehicle, locate and remove the cover on the taillight assembly to gain access to the taillight fasteners. Remove the two screws securing the taillight and gently remove the taillight by pulling it straight back. Step 6 then requires you to locate the vehicle taillight wiring harness connectors behind the taillight and separate them from the housing, taking care not to damage the locking tabs.
Step 4 instructs: starting on the driver side, remove the fasteners securing the side felt liner in place. Pull back on the felt liner to locate the vehicle taillight wiring harness connectors. This provides access from inside the trunk to the wiring that will be connected to the custom harness.
Step 2 requires you to open the vehicle trunk and remove all trunk floor coverings and storage trays. Step 3 requires you to remove the scuff panel by pulling out on the bottom and then up, taking care not to damage the alignment tabs located on the back.
Step 14 instructs you to secure any loose wires with the provided cable ties. This keeps the wiring organized and prevents interference with vehicle operation.
Step 15 requires you to: reinstall all items removed during installation, reconnect the negative battery terminal, and install the provided 4-flat dust cover to help prevent corrosion. After reconnecting the battery, test the installation using a test light or properly wired trailer.
Yes, the Curt 56269 Custom Wiring Connector is designed specifically for the Acura ILX passenger car.
Signal Circuits: 3.0 amps per side. Tail/Running Circuits: 6.0 amps total. Battery connection must use a 10-amp max fuse. Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower.
The battery connection must be fuse-protected with a 10-amp max fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire.
The 4-way flat electrical adapter converts a vehicle's 4-way flat trailer connector to other trailer connector types (6-way round, 7-way RV blade, or dual 4-way flat). This allows you to tow trailers with different connector styles. Single-output models (57184, 57183, 57185, 57626, 57676) convert to one connector type; dual-output models (57604, 57624, 57672, 57674, 57102) provide two different connector outputs simultaneously.
Yes. Your vehicle must be equipped with a 4-way flat trailer connector. If your vehicle does not have one, you will need to install a custom wiring harness or other 4-way flat trailer connector before installing this adapter.
Both convert a 4-way flat connector to a 7-way RV blade. The difference is that 57185 includes a mounting bracket, while 57184 does not.
Both convert a 4-way flat connector to a 6-way round. The difference is that 57626 includes a mounting bracket, while 57183 does not.
Curt offers three dual-output models that provide both a 4-way flat and a 7-way RV blade output: part numbers 57672, 57674, and 57102. All three include a mounting bracket.
Curt offers two dual-output models that provide both a 4-way flat and a 6-way round output: part numbers 57604 and 57624. Both include a mounting bracket.
You will need: a 1/8" drill bit, drill, Phillips screwdriver, wire stripper, cutting tool, terminal crimpers, and a test light. The manual also lists three self-tapping screws (#10 - 1/2") as required, though these are not included with the product.
No. The three self-tapping screws (#10 - 1/2") used to attach the mounting bracket are not included and must be purchased separately.
Mount the combination harness in a location on the tow vehicle that is within reach of the trailer's wiring harness and near the center of the vehicle. The mounting bracket (if included) should be attached to the vehicle's bumper or other suitable surface.
Yes. You must drill two 1/8" holes: one for the grounding point and one (or more) for the mounting bracket. Before drilling, you must check for brake lines, fuel lines, wiring and other components that may be hidden behind or under the surface to avoid damage.
No. You must never attach the mounting bracket directly to the hitch by cutting, welding or drilling into the hitch. Mount it to the vehicle's bumper or other suitable surface instead.
The adapter uses four wires: Yellow (auxiliary or back-up lights), Blue (electric brakes), Black (positive power with appropriate inline fuse), and White (ground). All wires except black and white must be connected using 12 gauge (minimum) wire and butt connectors to the appropriate vehicle functions.
The white wire is the ground connection. It must be attached with a ring terminal to a 1/8" hole drilled in a suitable grounding point on the vehicle using a #10 - 1/2" self-tapping screw. This ground connection is required for the harness to work properly. The white wire on the vehicle's 4-way flat connector does not support the ground (-) functions of the combination harness.
Yes. The black wire (positive power) must be connected with an appropriate inline fuse. The manual does not specify the fuse amperage rating.
Use 12 gauge (minimum) wire for all connections. The manual specifies this minimum gauge for the remaining wires (yellow, blue, and black) when connecting to appropriate vehicle functions.
Failing to properly ground the product can cause loss of warranty, overheating and potential fire. The white wire must be securely attached to a clean grounding point using a #10 - 1/2" self-tapping screw in a 1/8" hole. The area must be clean of dirt, debris or undercoating.
Before drilling, you must check for brake lines, fuel lines, wiring and any other components that may be hidden behind or under the surface. Drilling into these components can cause damage and personal injury.
Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding either rating can cause damage or unsafe operation.
Confirm proper function with a test light or by using a properly functioning trailer. This verifies that all connections are working correctly before towing.
Secure any loose wires using cable ties or equivalent product to prevent them from moving, catching on components, or becoming damaged.
Your vehicle must have a 4-way flat trailer connector. If it does not, you will need to install a custom wiring harness or other 4-way flat connector first. Check the part number table to confirm the adapter converts to the connector type you need.
You must purchase three #10 - 1/2" self-tapping screws for the mounting bracket. You will also need an appropriate inline fuse for the black (positive power) wire; the manual does not specify the amperage.
Yes, you must drill two 1/8" holes: one for grounding and one for the mounting bracket. Before drilling, check for brake lines, fuel lines and wiring behind the surface. Never drill into the hitch.
Yellow = auxiliary/back-up lights; Blue = electric brakes; Black = positive power (needs inline fuse); White = ground (must be properly grounded or warranty is void and fire risk exists). Use 12 gauge minimum wire and butt connectors.
Proper grounding of the white wire is critical. Failing to ground it properly can cause loss of warranty, overheating and fire. The grounding point must be clean of dirt, debris and undercoating.
Test with a test light or by using a properly functioning trailer to confirm all connections work. Secure loose wires with cable ties.
