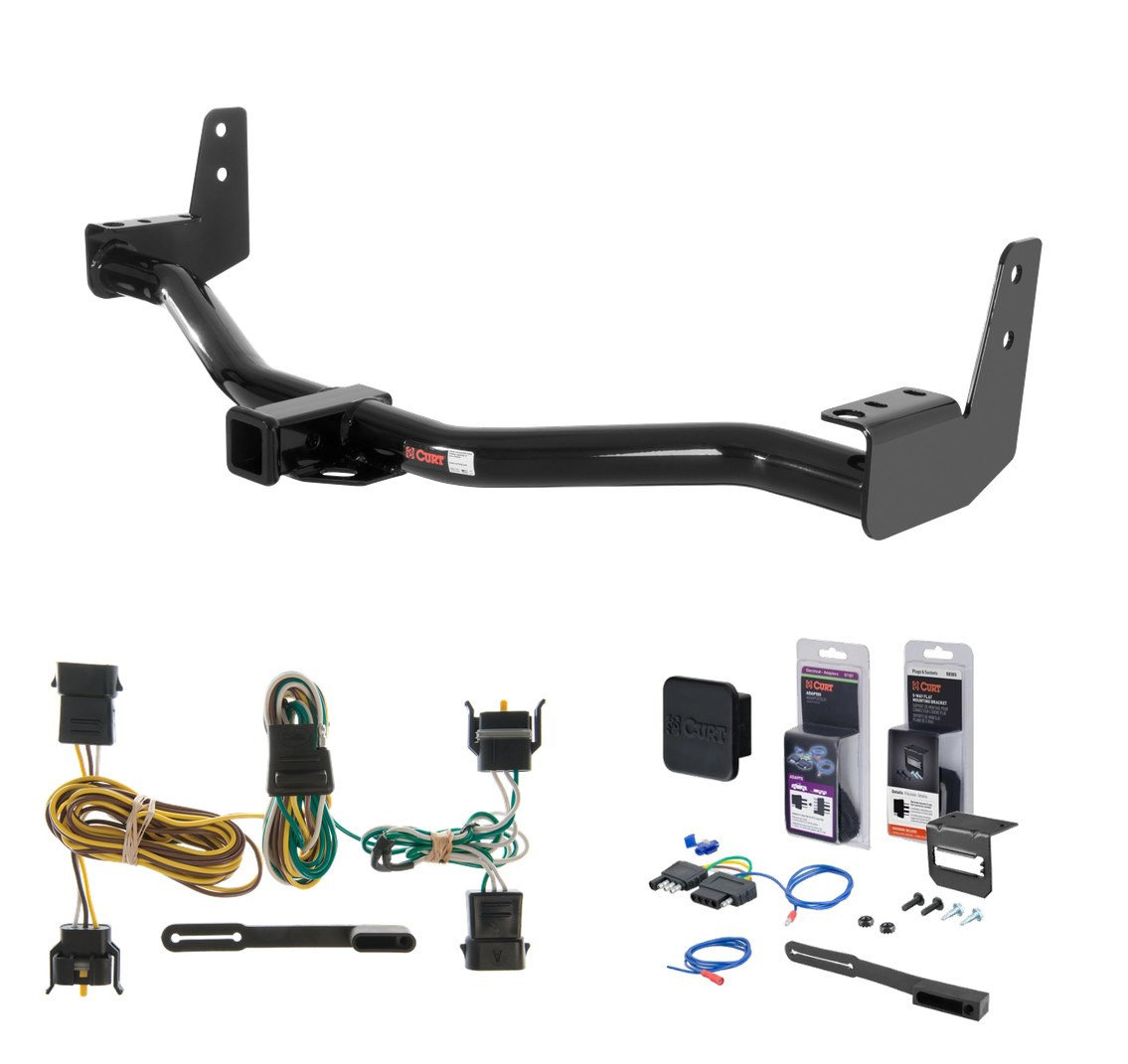

Complete CURT Class 3 2" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 1998 - 2002 Lincoln Navigator. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Ford Expedition and Lincoln Navigator (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 5,000 lbs. GTW and 500 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 7,500 lbs. WD and 750 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.

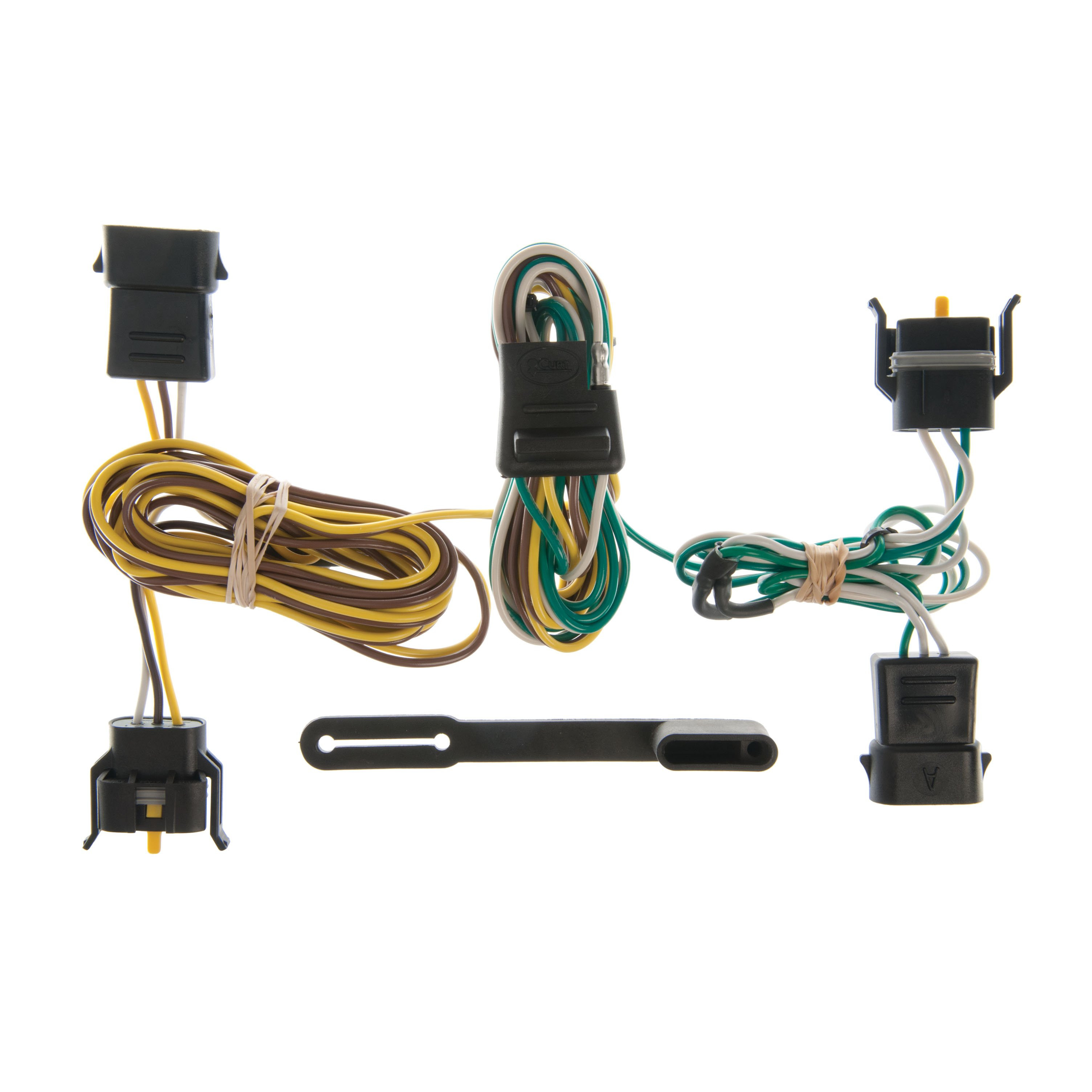

If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Ford E150, E250, E350, E450, E550 and Econoline Super Duty, Ford Escort, Expedition, Excursion, Explorer, Sport Trac, Focus, Ranger and F150, Lincoln Aviator and Navigator and Mercury Mountaineer and Tracer (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Yes, the 98 - 02 Lincoln Navigator Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13125 (Part #5W-CHW-2211) is designed to fit the 1998-2002 Lincoln Navigator.
The 98 - 02 Lincoln Navigator Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13125 (Part #5W-CHW-2211) fits 1998-2002 Lincoln Navigator models. The 2002 model year is the last year covered by this part number. For newer models, check for an updated version.
The 98 - 02 Lincoln Navigator Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13125 (Part #5W-CHW-2211) fits the following vehicles: 1998-2002 Lincoln Navigator. Always verify your specific year, make, and model before ordering.
The 98 - 02 Lincoln Navigator Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13125 (Part #5W-CHW-2211) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, Curt part number 13125 is designed for 1997–2002 Ford Expedition models. It is also compatible with 1998–2002 Lincoln Navigator.
Yes, Curt part number 13125 is designed for 1998–2002 Lincoln Navigator models. It is also compatible with 1997–2002 Ford Expedition.
The Curt 13125 has two capacity ratings depending on hitch type. As a weight-carrying hitch: 5,000 lbs trailer weight and 500 lbs tongue weight. As a weight-distribution hitch: 7,500 lbs trailer weight and 750 lbs tongue weight. Do not exceed your vehicle manufacturer's recommended towing capacity.
The Curt 13125 hitch weighs 38 lbs.
The Curt 13125 includes: 4 square hole spacers (CM-SP20, 0.250 × 1.50 × 4.00 inches), 8 carriage bolts 1/2-13 UNC Grade 8 (part 10-10288), and 8 serrated flange nuts 1/2-13 UNC Grade 8 (part 20-00062).
No, drilling is not required. The Curt 13125 uses existing frame rail attachment holes on the 1997–2002 Ford Expedition and 1998–2002 Lincoln Navigator.
1. Raise the hitch into position with attachments in the vertical portion of the bracket on the outside of the frame. 2. Install the 1/2" carriage bolt and spacer block into the rearmost attachment holes in each frame rail and attach with flange nuts, but do not tighten. 3. Insert the 1/2" carriage bolt and spacer block into the forward attachment holes in each frame rail and attach with flange nuts, then tighten. 4. Torque all fasteners to 110 lb-ft.
All fasteners on the Curt 13125 must be torqued to 110 lb-ft.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. Do not exceed your vehicle manufacturer's recommended towing capacity.
Curt Manufacturing warrants the 13125 to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If defective, Curt will repair or replace the product at their option when returned prepaid with proof of purchase. Alteration, misuse, or improper installation voids the warranty. Curt's liability is limited to repair or replacement and excludes incidental or consequential loss or damage.
1997–2002 Ford Expedition and 1998–2002 Lincoln Navigator.
No, drilling is not required. The hitch uses existing frame rail attachment holes.
Weight-carrying: 5,000 lbs trailer / 500 lbs tongue. Weight-distribution: 7,500 lbs trailer / 750 lbs tongue. Do not exceed vehicle manufacturer's recommended capacity.
All fasteners must be torqued to 110 lb-ft.
4 square hole spacers, 8 carriage bolts (1/2-13 UNC Grade 8), and 8 serrated flange nuts (1/2-13 UNC Grade 8).
Periodically check that all fasteners are tight and structural components are sound. Do not exceed vehicle manufacturer's towing capacity.
The Curt 55344 fits Ford F-150 Flareside, F-150 Crew Cab, and F-150 Heritage Flareside (old body) models. Fitment depends on your specific F-150 variant. Check your vehicle's model designation against the applications list to confirm compatibility.
The Curt 55344 is compatible with Ford Explorer Sport, Ford Explorer (4-door), and Ford Explorer Sport Trac models. It is not listed for other Explorer variants, so verify your specific model before purchasing.
Yes, the Curt 55344 is compatible with the Lincoln Navigator. It is also compatible with the Lincoln Aviator.
Yes, the Curt 55344 is compatible with the Ford Ranger.
The Curt 55344 is compatible with Ford Escort sedan and Ford Escort ZX2 models. It is also compatible with Ford Focus wagon (before 11/02). Verify your specific Escort variant matches the applications list.
You will need a Phillips screwdriver, flat blade screwdriver, and panel trim removal tool. These are the only tools specified in the installation instructions.
Yes. Step 1 requires you to remove both the driver and passenger side taillight assemblies to locate the vehicle taillight wiring harness connectors. This is necessary to access the connectors where the custom wiring harness will be plugged in.
For Vans, Expedition, and Navigator models, you must partially remove the rear interior plastic trim panels on the driver side and open the vehicle jack storage compartment to expose the openings to the taillight assemblies. You also need to remove the threshold cover plate between the rear doors.
For Escort and Tracker models, partially remove the trunk lining to expose the grommets accessing the taillights. Remove and slit the grommet to allow wires to pass into the taillight openings.
For F-150 Flareside models, locate the access hole into the taillight openings from underneath the vehicle. There will be an access hole on each side of the vehicle through which you can route the wiring harness.
Route the custom wiring harness end containing the green wire out from inside the vehicle through the taillight opening on the passenger side (Step 3). Then route the yellow wire across the vehicle under the threshold cover and out through the taillight opening (Step 5). Tuck the yellow wire under the threshold panel and secure it (Step 6).
Disconnect the vehicle's center black wiring harness connector from the taillight assembly, being careful not to damage the locking tabs. Plug the custom wiring harness connector (containing the green wire for the first connection, then the yellow wire for the second) between the separated halves of the vehicle connector. Repeat this process for both the green and yellow wire connectors.
The manual specifies that provided sealant should be used to seal the cut in the grommet and around all the wires after routing the harness through the taillight openings. However, the manual does not specify the sealant type or quantity.
The provided 4-flat dust cover should be installed to help prevent corrosion. It is installed as part of the final reassembly step after all other components have been reinstalled.
The manual warns that you must not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. However, the specific product rating is not stated in the installation instructions. Check the product specification sheet or contact Curt Manufacturing for the exact rating.
Exceeding the product rating can cause loss of warranty, overheating, and potential fire. Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower.
Test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring harness will function properly before testing.
Yes. Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury. This is a critical safety step in the installation process.
The Curt 55344 fits Ford Econoline, Escort, Excursion, Expedition, Explorer, F-150, Focus wagon (before 11/02), Ranger, and Mercury/Lincoln models listed in the applications. Check your specific model variant against the applications list on page 1.
You need a Phillips screwdriver, flat blade screwdriver, and panel trim removal tool. No power tools or special equipment are required.
Yes, you must remove both driver and passenger side taillight assemblies to access the vehicle taillight wiring harness connectors where the custom harness plugs in.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. Exceeding the rating can cause overheating and potential fire, and will void the warranty.
Test for proper function using a test light or by connecting a properly wired trailer. Testing confirms all steps were followed correctly.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1998 - 2002 | Lincoln Navigator | — |
