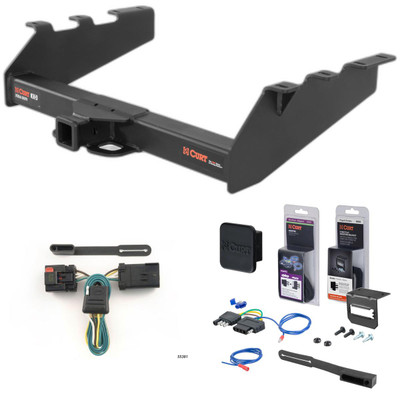

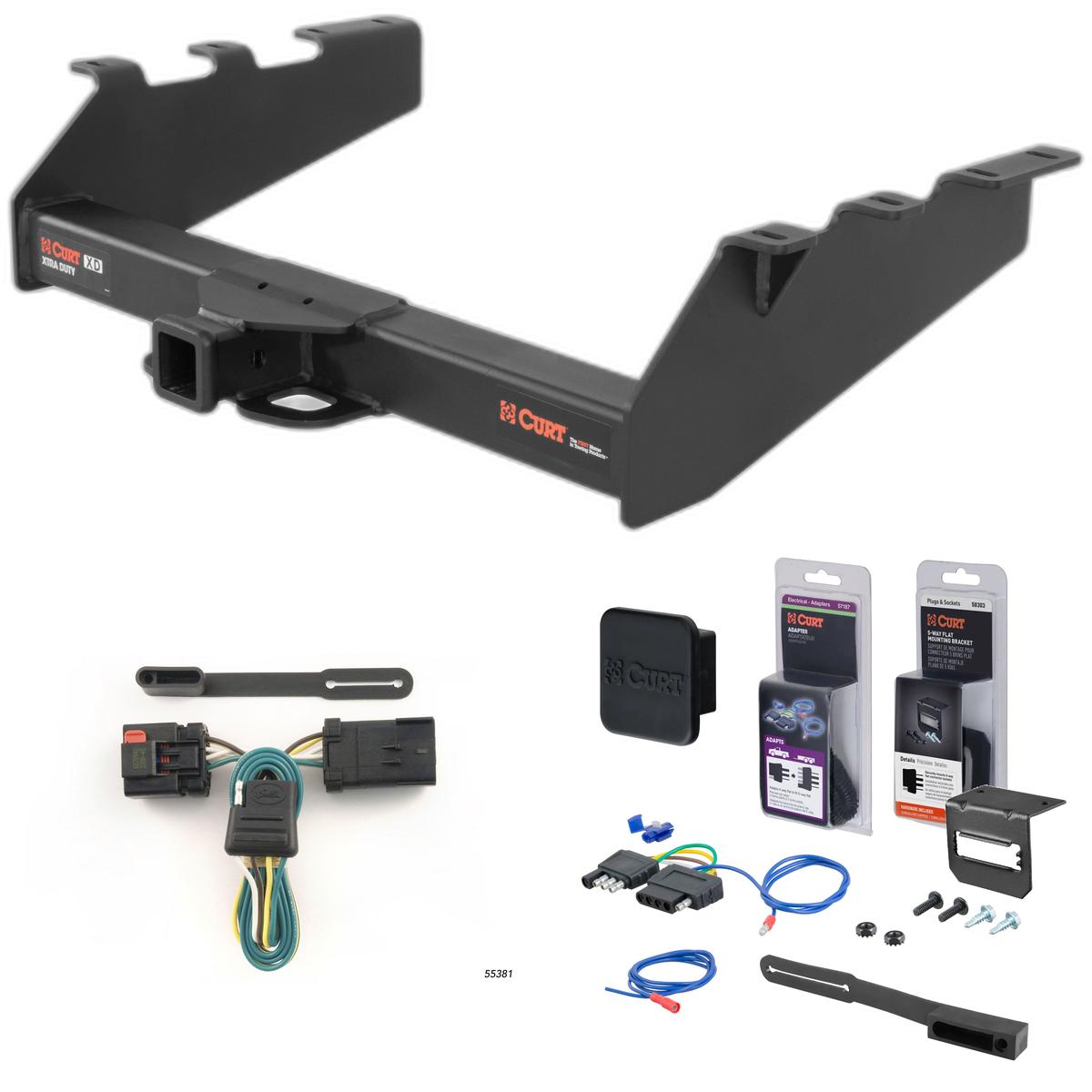

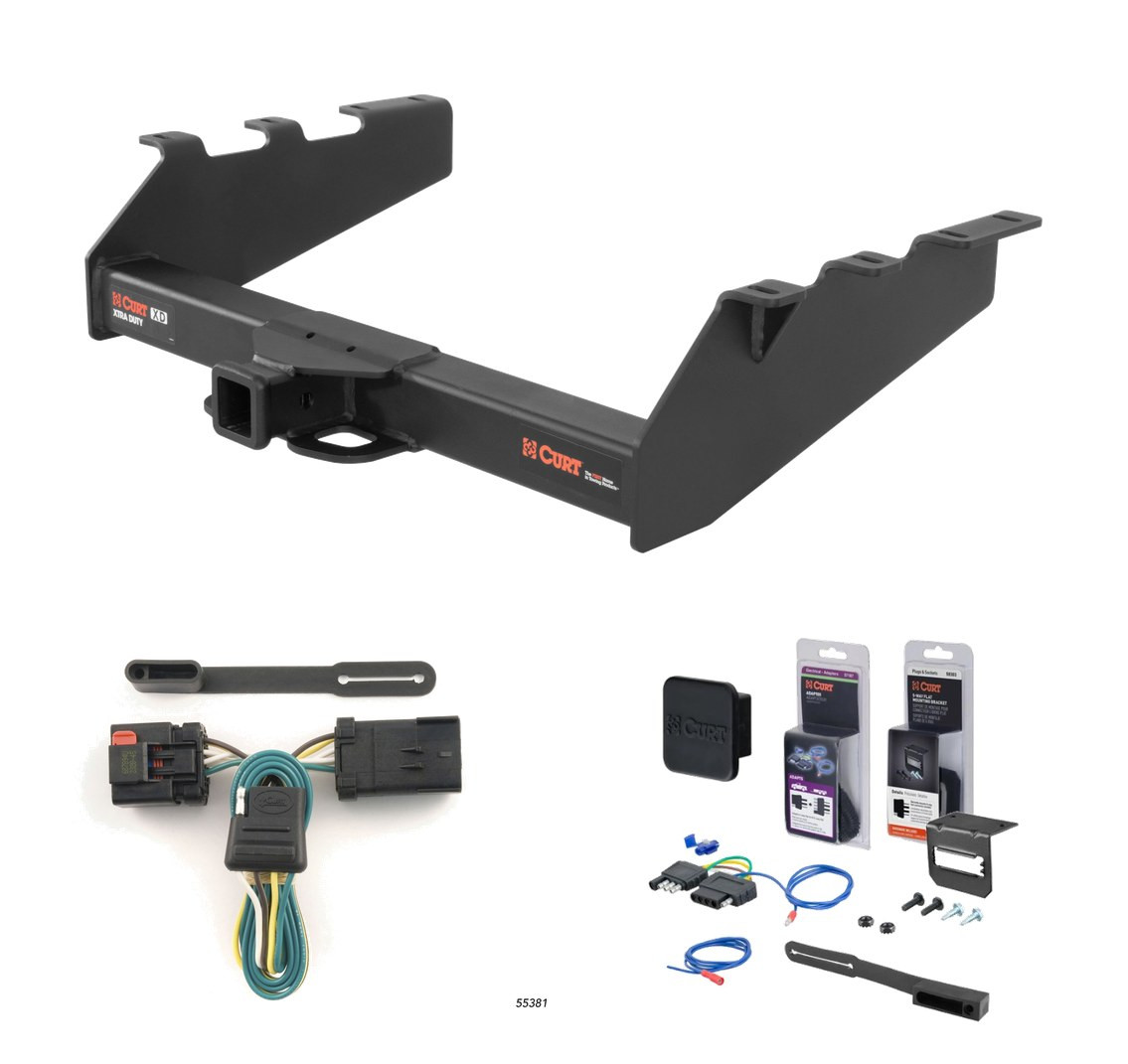

Complete CURT Class 5 2" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 1999 - 2002 Dodge Ram 2500 6.5' bed, factory bumper. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
When we came to the limits of towing capacity, we wanted to know what else was out there. What could we discover off the beaten path? So, we kept going. CURT class 5 Xtra Duty hitches begin a class of their own, beyond class 4 and beyond anything the standards dictate. They are designed for the hard road where only full-size pickup trucks, vans and SUVs dare to tread. They are capable of pulling almost any heavy-duty trailer, including toy haulers, dump trailers, logging trailers, small yacht trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component). This particular Xtra Duty class 5 trailer hitch offers a gross trailer weight capacity of 16,000 lbs. and an extra-high tongue weight capacity of 2,400 lbs. It features a 2" x 2" receiver tube opening to accept a ball mount or hitch-mounted accessory, such as a cargo carrier or winch mount. It is designed to be a custom-fit trailer hitch for certain years of the Dodge Ram 2500 and 3500 (to verify compatibility with your vehicle, see application info). For a little extra towing power and stability, this class 5 hitch can also be used in combination with a weight distributing hitch. It is rated for 17,000 lbs. WD and 2,400 lbs. WDTW. In our drive to create a more powerful hitch, CURT has not neglected the finer details. Our class 5 trailer hitches are welded with precision and go through multiple stages of cleaning to create a smooth surface that is ready to accept our co-cured finish. To protect them from corrosion, chipping and UV damage, these hitches are immersed in a liquid A-coat and then finished in a high-quality black carbide powder coat. They come with grade-8 mounting hardware for solid installation.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Chrysler Aspen and Pacifica, Dodge Dakota, Durango, Dodge Ram 2500, 1500 Van, 2500 Van, Dodge Sprinter 2500 and 3500, Jeep Commander, Grand Cherokee and Liberty and Mitsubishi Raider (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Yes, the 99 - 02 Dodge Ram 2500 6.5' bed, factory bumper Curt 2" Class 5 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 15318 (Part #5W-CHW-862) is designed to fit the 1999-2002 Dodge Ram 2500.
The 99 - 02 Dodge Ram 2500 6.5' bed, factory bumper Curt 2" Class 5 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 15318 (Part #5W-CHW-862) fits 1999-2002 Dodge Ram 2500 models. The 2002 model year is the last year covered by this part number. For newer models, check for an updated version.
The 99 - 02 Dodge Ram 2500 6.5' bed, factory bumper Curt 2" Class 5 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 15318 (Part #5W-CHW-862) fits the following vehicles: 1999-2002 Dodge Ram 2500. Always verify your specific year, make, and model before ordering.
The 99 - 02 Dodge Ram 2500 6.5' bed, factory bumper Curt 2" Class 5 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 15318 (Part #5W-CHW-862) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 15318 fits 1994–1998 Dodge Ram long and short bed pickups with factory bumper. However, it will not fit Sport models with dual exhaust. Confirm your truck has a factory bumper and is not a Sport variant before purchasing.
Part number 15318 fits 1999–2002 Dodge Ram short bed pickups with factory bumper only. It does not fit long bed models from this generation or Sport models with dual exhaust.
No. The manual explicitly states this hitch will not fit Sport models with dual exhaust. Contact Curt Technical Support at 877-287-8634 to confirm compatibility with your specific vehicle.

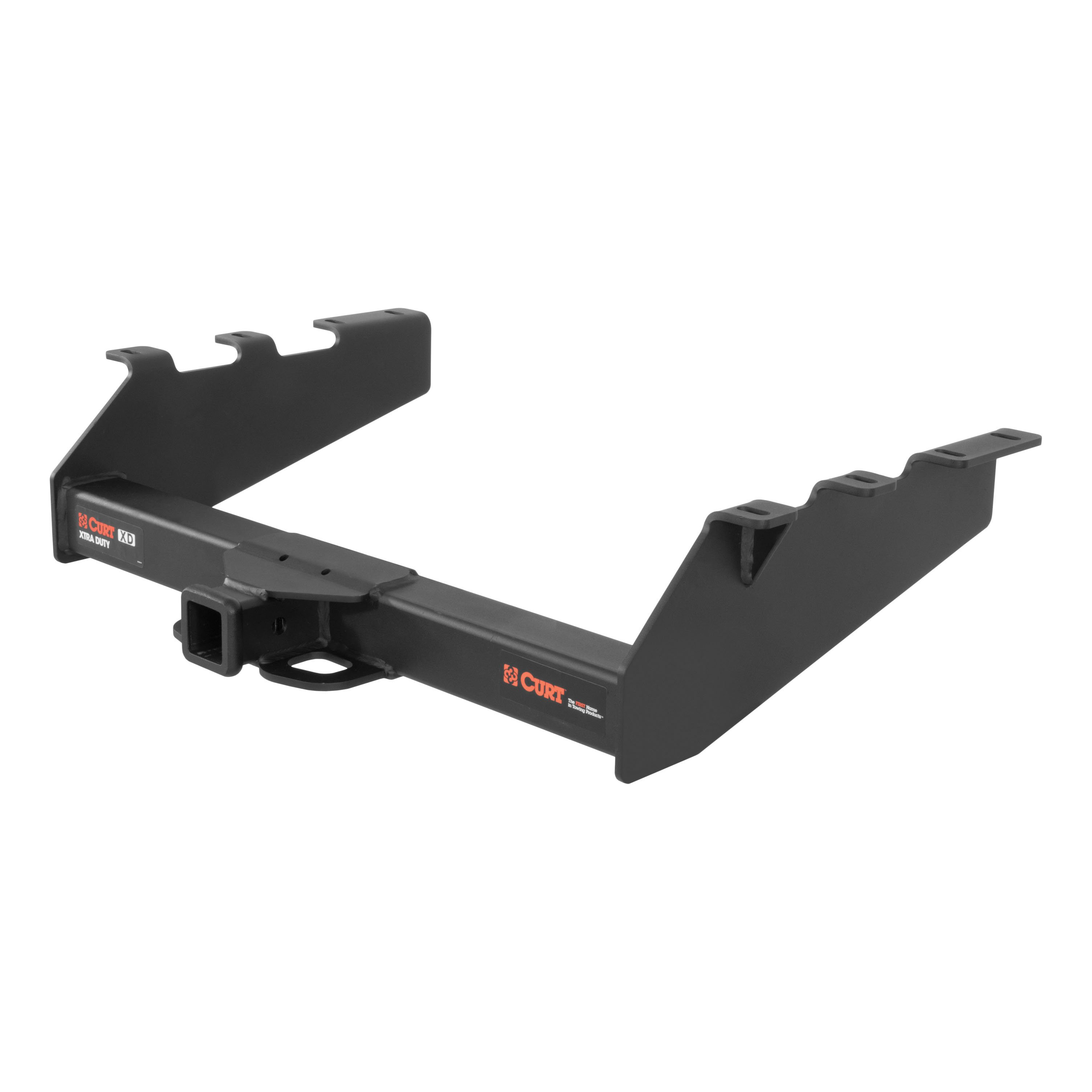

The hitch weight is 40 lbs.
When used as a weight-carrying hitch, the gross load capacity is 16,000 lbs trailer weight and 2,400 lbs tongue weight. When used as a weight-distribution hitch, the gross load capacity is 17,000 lbs trailer weight and 2,400 lbs tongue weight. However, do not exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
You will need a ratchet, torque wrench, 3/4" socket, and 7/8" socket. A torque wrench is essential because fasteners must be torqued to specific values: 110 ft-lbs for 1/2" hardware and 130 ft-lbs for 9/16" hardware.
The kit includes: two 9/16-12 UNC grade 8 bolts (part 10-10328), two 9/16" serrated-flange nuts (part 20-00104), four 1/2-13 UNC grade 8 bolts (part 10-10272), four 1/2" serrated-flange nuts (part 20-00062), two .313 × 1.50 × 3.00" spacers with 9/16" square holes (part CM-SP74), two .250 × 1.50 × 2.00" spacers with square holes (part CM-SP1), and two .250 × 1.00 × 3.00" spacers with square holes (part CM-SP6).
The installation notes state that drilling or hole enlargement may be needed. The hitch aligns with 1 1/8" round holes in the rear of the frame. If your frame holes do not align or are smaller than required, drilling or enlargement will be necessary. Contact Curt Technical Support at 877-287-8634 if you are unsure whether your vehicle requires drilling.
Raise the hitch into position and align the rear holes in the side plates with the 1 1/8" round holes in the rear of the frame. On long bed models, the forward-most holes will line up with holes 16" forward of the rear holes in the frame. Ensure alignment is correct before installing hardware.
Install hardware as follows: 9/16" hardware with CM-SP74 spacers (.313 × 1.50 × 3.00") in the vehicle's rearmost mounting locations; CM-SP1 spacers (.250 × 1.50 × 2.00") in the middle holes; and CM-SP6 spacers (.250 × 1.00 × 3.00") in the forward-most holes.
All 1/2" hardware must be torqued to 110 ft-lbs.
All 9/16" hardware must be torqued to 130 ft-lbs.
After installation, periodically check that all fasteners are tight and that all structural components are sound. This ongoing maintenance is important for safe towing. Retighten fasteners if they become loose.
Do not exceed your vehicle manufacturer's recommended towing capacity. While the hitch has a gross load capacity of 16,000 lbs (weight-carrying) or 17,000 lbs (weight-distribution) for trailer weight, your vehicle's capacity may be lower. Always follow the vehicle manufacturer's specifications.
The Curt 15318 fits 1994–1998 Dodge Ram long and short bed pickups with factory bumper, and 1999–2002 Dodge Ram short bed pickups with factory bumper. It does not fit Sport models with dual exhaust. Confirm your truck's year, bed length, and bumper type.
You need a ratchet, torque wrench, 3/4" socket, and 7/8" socket. A torque wrench is required because bolts must be torqued to 110 ft-lbs (1/2") and 130 ft-lbs (9/16").
Drilling or hole enlargement may be needed. The hitch aligns with 1 1/8" round holes in the frame. If your frame holes do not align or are undersized, drilling will be required.
Torque all 1/2" hardware to 110 ft-lbs and all 9/16" hardware to 130 ft-lbs.
As a weight-carrying hitch: 16,000 lbs trailer weight, 2,400 lbs tongue weight. As a weight-distribution hitch: 17,000 lbs trailer weight, 2,400 lbs tongue weight. Do not exceed your vehicle manufacturer's recommended capacity.
Periodically check that all fasteners are tight and all structural components are sound. Retighten fasteners if they become loose during use.
Part 55381 fits Dodge Ram 1500, 2500, and 3500 models equipped with a factory 7-way connector. If your vehicle has the factory 7-way connector, this harness is compatible. Vehicles without the factory 7-way connector are not supported by this product.
Yes, part 55381 is compatible with Jeep Grand Cherokee models that have a factory 7-way connector. The harness is designed to work with the factory 7-way connector on this vehicle.
Yes, part 55381 fits Dodge Sprinter 2500 and 3500 models, as well as Freightliner Sprinter 2500 and 3500 models, provided they have a factory 7-way connector.
Yes. The 55381 custom wiring harness is designed to work only with vehicles equipped with a factory 7-way connector. The harness is inserted between the factory 7-way connector and the vehicle wiring harness. Vehicles without a factory 7-way connector cannot use this product.

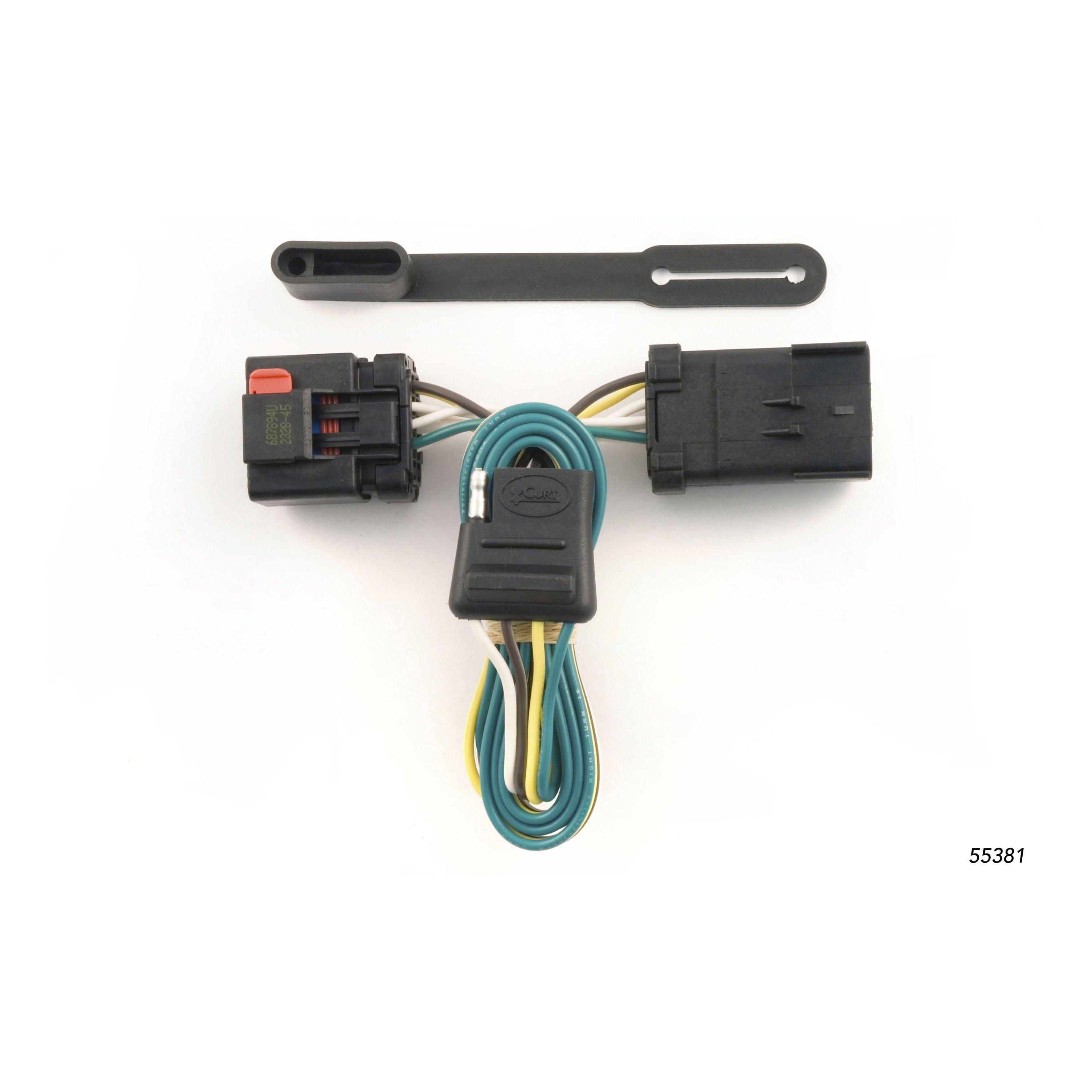

The 55381 is a custom wiring harness that connects between your vehicle's factory 7-way connector and the vehicle wiring harness. It allows you to use aftermarket trailers and towing equipment with your vehicle's existing electrical system.
The manual does not specify any special tools required. The installation involves locating the factory 7-way connector under the driver side bumper, removing mounting screws or bolts, separating connectors by pressing a red locking tab, and reinstalling components. Standard hand tools for removing fasteners should be sufficient.
The factory 7-way connector is located under the bumper on the driver side of the vehicle, near the taillight wiring harness. The exact location varies by vehicle type: on SUVs, vans and pickup trucks, look behind the driver side taillight housing (location S1 for SUVs/vans, T1 for pickup trucks).
Carefully press the red locking tab on the connector sideways and pull the connectors apart. Take care not to damage the locking tabs during this process. Once separated, ensure the mating surfaces of both connectors are free of dirt and clean if necessary before proceeding.
Insert the custom wiring harness between the separated factory 7-way connector and vehicle wiring harness. Make sure both connectors are fully inserted with locking tabs in place. Push the red locking tabs back to their original position to secure the connection.
Reinstall all items you removed during installation. Install the provided 4-flat dust cover to help prevent corrosion of the connectors.
Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating, and potential fire. Check your vehicle owner's manual or contact the vehicle manufacturer for your specific tow vehicle lamp load rating.
Before drilling to avoid damage and personal injury, check for miscellaneous items that may be hidden behind or under any surface. However, the standard installation of the 55381 does not require drilling—it is a connector-based installation.
Once installed, test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring harness will function properly.
The 55381 fits Chrysler Aspen and Pacifica, Dodge Dakota, Durango, Ram 1500/2500/3500, Ram vans, and Sprinter vans, Freightliner Sprinter vans, Jeep Commander, Grand Cherokee, and Liberty, and Mitsubishi Raider—all with factory 7-way connectors. Check your vehicle's documentation to confirm it has a factory 7-way connector.
No. The 55381 is a connector-based installation that requires no drilling, cutting, or permanent modifications. It connects between your factory 7-way connector and vehicle wiring harness.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. Exceeding the rating can cause overheating and fire. Check your vehicle owner's manual for the tow vehicle lamp load rating.
Test for proper function using a test light or by connecting a properly wired trailer. Ensure all installation steps have been completed.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1999 - 2002 | Dodge Ram 2500 | 6.5' bed, factory bumper |
