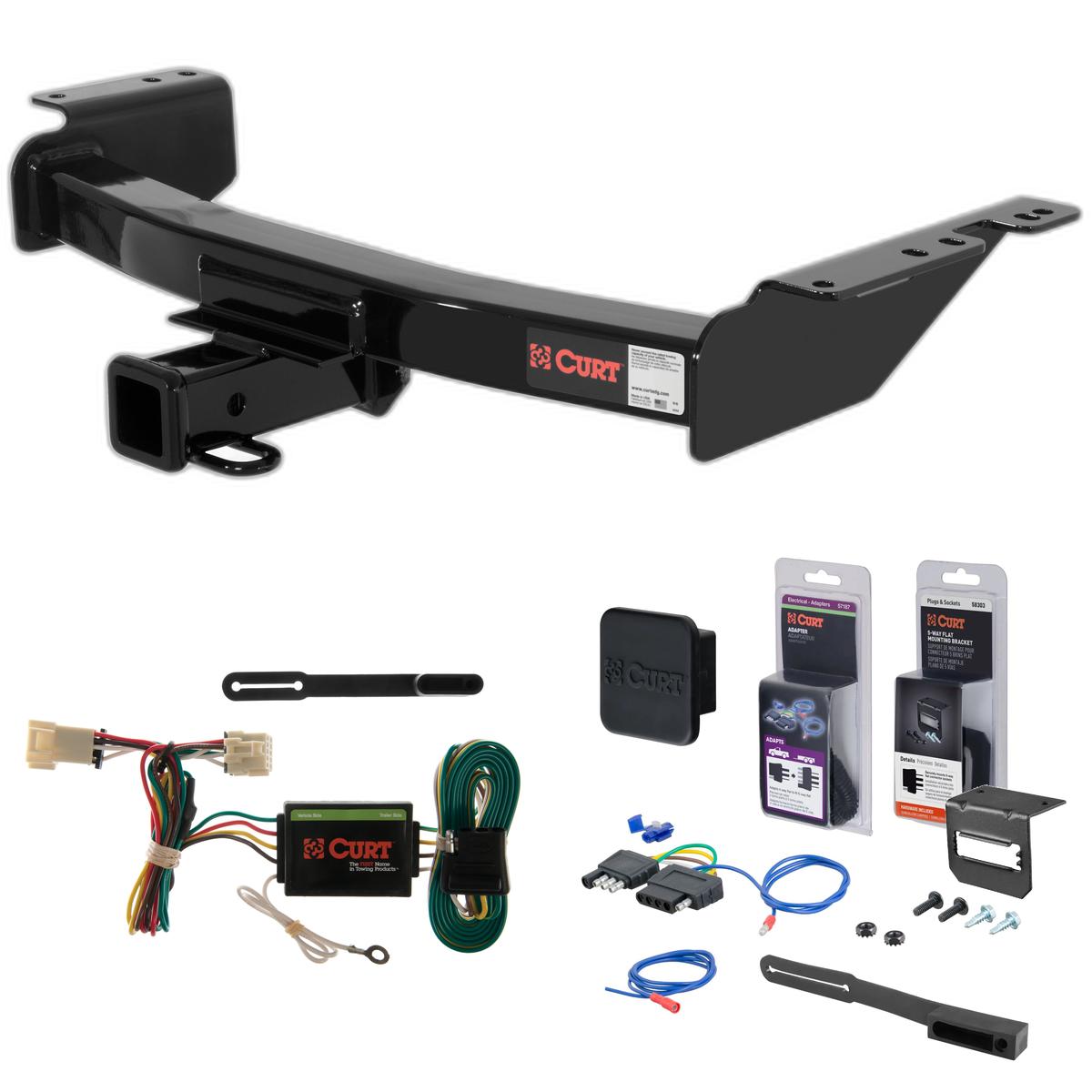

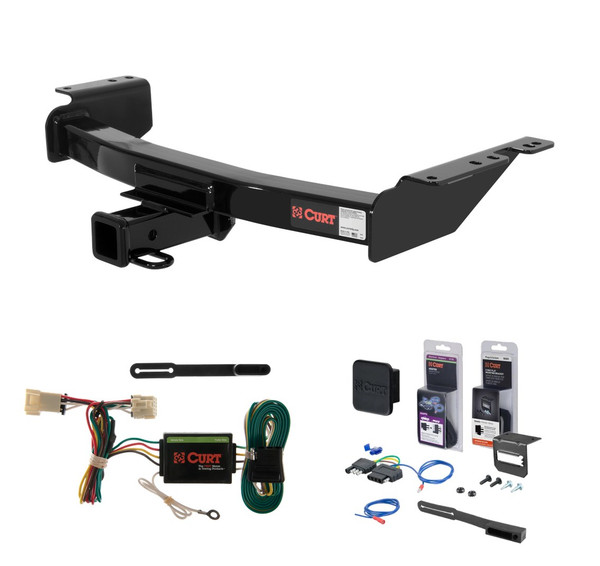

Complete CURT Class 3 2" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 1999 - 2005 Pontiac Montana Excluding SV6. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Buick Terraza, Chevy Uplander, Chevy Venture, Oldsmobile Silhouette, Pontiac Montana and Pontiac Trans Sport (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 4,000 lbs. GTW and 400 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 6,000 lbs. WD and 600 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Chevy Venture, Pontiac Trans Sport, Pontiac Montana and Oldsmobile Silhouette (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1999 - 2009 | Pontiac Montana | Excluding SV6 |
Yes, the 99 - 09 Pontiac Montana Excluding SV6 Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13344 (Part #5W-CHW-2614) is designed to fit the 1999-2009 Pontiac Montana.
The 99 - 09 Pontiac Montana Excluding SV6 Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13344 (Part #5W-CHW-2614) fits the following vehicles: 1999-2009 Pontiac Montana. Always verify your specific year, make, and model before ordering.
The 99 - 09 Pontiac Montana Excluding SV6 Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13344 (Part #5W-CHW-2614) fits 1999-2009 Pontiac Montana models. The 2009 model year is the last year covered by this part number. For newer models, check for an updated version.
The 99 - 09 Pontiac Montana Excluding SV6 Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13344 (Part #5W-CHW-2614) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

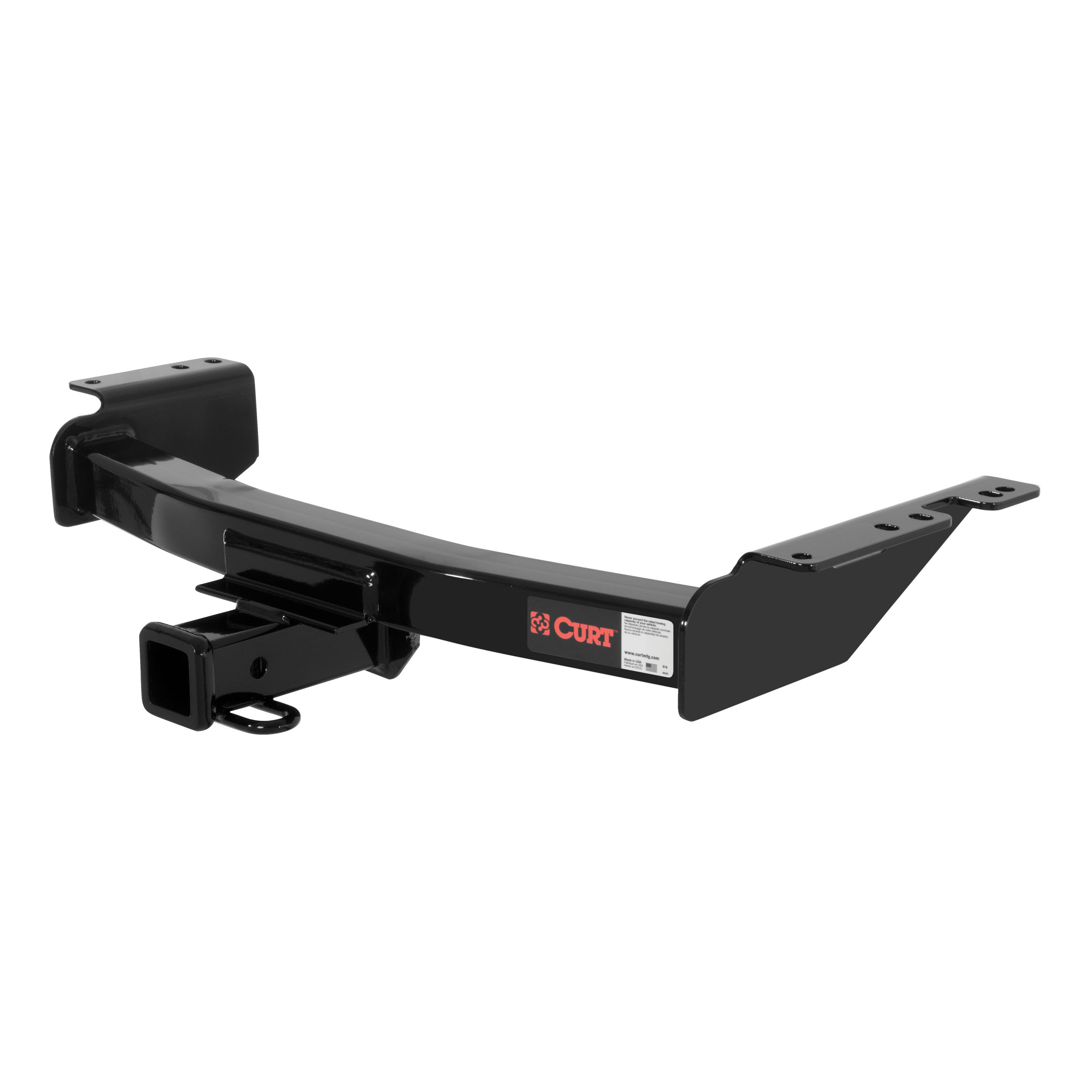

The Curt 13344 Class II receiver hitch fits 97-07 Chevrolet Venture, 97-05 Oldsmobile Silhouette, 97-05 Pontiac Trans Sport, 05-07 Montana SV6, 08-current Montana SV6 (Canada only), 05-08 Chevrolet Uplander, 05-07 Saturn Relay, and 05-07 Buick Terazza. Fitment varies by wheelbase: short wheelbase models (2004 and older) use different spacer block placement than long wheelbase models. Verify your vehicle's year, model, and wheelbase before purchasing.
The Curt 13344 has a gross load capacity of 6000 lbs trailer weight and 600 lbs tongue weight when used as a weight-carrying hitch. When used as a weight distribution hitch, the capacity is 4000 lbs trailer weight and 400 lbs tongue weight. However, you must not exceed your vehicle manufacturer's recommended towing capacity, which may be lower than these ratings.
Required tools are: ratchet, 6" extension, 3/4" socket, 11/16" socket, 15mm socket, 10mm socket, pliers, drill with 17/32" bit, and torque wrench. A drill is essential because installation requires drilling 1/2" holes in the vehicle frame rails.
Yes. Step 1 of the installation requires lowering the vehicle exhaust by lowering the exhaust hanger on the passenger side. This is necessary to provide clearance for the hitch installation. The exhaust hanger is reattached in Step 7 after the hitch is secured.
If your vehicle has a load leveling compressor, it must be lowered during installation. Step 2 requires lowering the load leveling compressor on the driver's side using one M10 bolt and two M6 nuts. If necessary, the vertical tab on the compressor bracket may need to be trimmed to clear the adjacent M10 bolt. The compressor is reattached in Step 7.
Yes, drilling is required. Step 4 requires drilling 1/2" holes in the vehicle frame rails using the rearmost holes in the hitch side plate as a template. On long wheelbase models, an additional 1/2" hole must be drilled through the forwardmost hole on the passenger side plate. On short wheelbase models, the forwardmost hole aligns with an existing slot in the frame rail and does not require drilling.
Possibly. Step 2 notes that if necessary, the vertical tab on the compressor bracket should be trimmed to clear the adjacent M10 bolt. This is not always required; trim only if the compressor bracket interferes with the M10 bolt during lowering.
Torque all 1/2" hardware to 110 lb-ft. Torque all M10 fasteners to 45 lb-ft. Torque all M6 fasteners to 9 lb-ft. These specifications apply to Step 8 of the installation.
The kit includes: 2 handle nuts (1/2-13 UNC), 2 hex head cap screws (1/2-13 UNC, 1-1/2"), 2 standard washers (1/2"), 1 serrated flange nut (1/2-13 UNC), 4 hex head cap screws (M10x1.5, 45mm), 4 standard washers (3/8"), 1 carriage bolt (1/2-13 UNC, 2"), 1 square hole spacer (.250 x 1.50 x 2.00"), 1 U-shape spacer (.250 x 1.75 x 2.00"), 4 round hole spacers (.250 x 2.00 x 2.00"), 2 round hole spacers (.188 x 1.50 x 2.00"), and 1 fishwire (1/2").
Follow these steps in order: (1) Lower the exhaust hanger on the passenger side. (2) If present, lower the load leveling compressor on the driver's side. (3) Raise the hitch into position and install M10 bolts into existing weldnuts on both sides. (4) Using the rearmost holes as a template, drill 1/2" holes in the frame rails (long wheelbase models require an additional hole on the passenger side). (5) Install the fishwire carriage bolt and spacer blocks on the passenger side through the existing slot. (6) Install the handle nut and hex bolt through the frame rail holes. (7) Reattach the exhaust hanger and load leveling compressor. (8) Torque all fasteners to specification.
On short wheelbase models (2004 and older), place 2 spacer blocks between the frame rail and hitch. On long wheelbase models, place 2 spacer blocks between the hitch and the flange nut. There may be unused spacers after installation is complete. The specific spacer types (square hole, U-shape, or round hole) are determined by the mounting configuration for each wheelbase.
On the passenger side, pass the fishwire carriage bolt and blocks through the existing slot in the frame rail down into the forwardmost hole. Secure using spacer blocks, lock washer, and nuts. The exact configuration depends on wheelbase: short wheelbase models place 2 spacer blocks between the frame rail and hitch, while long wheelbase models place 2 spacer blocks between the hitch and flange nut.
On all-wheel drive models, when reattaching the exhaust hanger in Step 7, it is necessary to pass the exhaust hanger through a 3" long slot in the side plate and use 2 1/4" spacer blocks to reattach the exhaust hanger bracket.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This ongoing inspection helps maintain safe operation and prevents loosening of fasteners due to vibration and use.
The manual does not provide the hitch weight specification. Contact Curt Manufacturing or consult the product specification sheet for this information.
Yes, the Curt 13344 fits 97-07 Chevrolet Venture, 97-05 Pontiac Trans Sport, and related minivans (Oldsmobile Silhouette, Montana SV6, Chevrolet Uplander, Saturn Relay, Buick Terazza). Fitment depends on wheelbase: verify your model year and wheelbase before installation.
Yes. Installation requires drilling 1/2" holes in the vehicle frame rails. Long wheelbase models require two holes on the passenger side; short wheelbase models require one hole (the other aligns with an existing slot).
Yes. The exhaust hanger on the passenger side must be lowered. If your vehicle has a load leveling compressor, it must be lowered on the driver's side. Both are reattached after the hitch is secured.
Torque 1/2" hardware to 110 lb-ft, M10 fasteners to 45 lb-ft, and M6 fasteners to 9 lb-ft. Use a torque wrench and verify all fasteners after installation.
Required tools: ratchet, 6" extension, 3/4" socket, 11/16" socket, 15mm socket, 10mm socket, pliers, drill with 17/32" bit, and torque wrench.
Weight-carrying mode: 6000 lbs trailer, 600 lbs tongue weight. Weight distribution mode: 4000 lbs trailer, 400 lbs tongue weight. Do not exceed your vehicle manufacturer's recommended towing capacity.
Yes, the Curt 55355 custom wiring harness is designed for Chevrolet Venture vans. It is also compatible with Oldsmobile Silhouette, Pontiac Montana (2007–2009 Canada only), and Pontiac Trans Sport van models. Confirm your specific model year matches one of these applications before purchasing.
No. The Curt 55355 is compatible with Pontiac Montana only for 2007–2009 models sold in Canada. US-market Montana models are not listed as compatible applications.
The Curt 55355 has two amperage ratings: Signal Circuits are rated at 3.0 amps per side, and Tail/Running Circuits are rated at 5.0 amps total. Do not exceed these ratings or your vehicle's tow lamp load rating, whichever is lower, as exceeding the rating can cause loss of warranty, overheating, and potential fire.
You will need a Phillips screwdriver, a flat blade screwdriver, and a panel trim removal tool. A 3/32" drill bit is also required if you need to drill a pilot hole for the ground wire screw, depending on whether a suitable existing screw with nut is available in the vehicle frame.
The manual does not specify whether the battery must be disconnected. Contact the vehicle manufacturer or Curt Manufacturing for guidance on this step.
Open the vehicle tailgate and remove the driver side storage compartment door. Remove the four plastic trim fasteners securing the storage compartment panel. Pull back on the side trim panel to locate the vehicle taillight wiring harness connectors. The connectors will be similar in appearance to those on the custom wiring harness.
If the connectors are already connected to the taillight housing, carefully separate them. Take care not to damage the locking tabs during separation. Once separated, insert the custom wiring harness end between the connectors and ensure both connectors are fully inserted with locking tabs in place.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape. The manual does not specify alternative mounting locations if this spot is unavailable; contact Curt Manufacturing if you cannot access this area.
Only if necessary. First, locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no existing screw is available, drill a 3/32" pilot hole. Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury. The area should be free of rust, dirt, and paint.
Secure the white ground wire using the ring terminal and provided screw. Attach it to a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame, or to a 3/32" pilot hole you have drilled. Ensure the grounding area is free of rust, dirt, and paint.
Route the 4-flat connector to the center of the vehicle and out of the trunk when in use. When not in use, roll it up and store it in a convenient, out-of-the-way location inside the trunk. Secure any loose wires with the provided cable ties.
Reinstall all items removed during installation. Install the provided 4-flat dust cover to help prevent corrosion. Test for proper function by using a test light or connecting a properly wired trailer.
Test for proper function by using a test light or connecting a properly wired trailer. The manual does not provide detailed testing procedures; refer to the test light manufacturer's instructions or trailer wiring documentation for specific steps.
Exceeding the product rating (Signal Circuits 3.0 amps per side, Tail/Running Circuits 5.0 amps total) or your vehicle's tow lamp load rating, whichever is lower, can cause loss of warranty, overheating, and potential fire. Do not exceed these limits under any circumstances.
The manual does not specify the weatherproofing rating of the 4-flat connector. It recommends installing the provided dust cover to help prevent corrosion. Contact Curt Manufacturing for detailed environmental protection specifications.
The Curt 55355 fits Chevrolet Venture, Oldsmobile Silhouette, Pontiac Trans Sport van, and Pontiac Montana 2007–2009 Canada only. Check your vehicle model against this list.
Phillips screwdriver, flat blade screwdriver, panel trim removal tool, and a 3/32" drill bit (if drilling is required for the ground wire).
Drilling is required only if no existing screw with nut is available in the vehicle frame for the ground wire. If drilling is needed, drill a 3/32" pilot hole in an area free of rust, dirt, and paint. Always check for hidden items before drilling.
Signal Circuits: 3.0 amps per side. Tail/Running Circuits: 5.0 amps total. Do not exceed these ratings or your vehicle's tow lamp load rating, whichever is lower.
Exceeding the rating can cause loss of warranty, overheating, and potential fire. Do not exceed the product rating or your vehicle's tow lamp load rating, whichever is lower.
Test for proper function using a test light or by connecting a properly wired trailer. All installation steps must be followed to ensure the harness functions properly.
