Offering up to 5,000 pounds of load-leveling capacity, the LoadLifter 5000 Ultimate kit will make towing and hauling a breeze. With the internal jounce bumper, you can tow and haul with safety and comfort.
Offering up to 5,000 pounds of load-leveling capacity, the LoadLifter 5000 Ultimate kit from Air Lift will make towing and hauling a comfortable and stress-free experience. For the ultimate ride comfort and protection, our fully-adjustable, industry leading air springs are the perfect partner for your vehicle. The LoadLifter 5000 Ultimate kit helps to eliminate problems frequently faced when towing and hauling, such as squat, poor headlight aim, trailer sway, body roll, and bottoming out. With the air springs, you can haul safely, knowing that you have optimal braking and steering control. With the ability to adjust the air pressure from 5-100 PSI, your vehicle can be ready for any weight and any situation. What sets the LoadLifter 5000 Ultimate apart from other air spring kits is the built-in internal jounce bumper. An Air Lift exclusive, the jounce bumper inside the air spring prevents bottoming out, eliminating squat and trailer sway. This replaces the factory jounce bumper and is completely maintenance free, running safely with zero air pressure. To ensure the highest quality, longevity, and customer satisfaction, the key suspension components, including the air springs and all hardware, have all been torture-tested to 1 million cycles on our hydraulic test rig. With a lifetime warranty and 60-Day Ride Satisfaction Guarantee, not to mention the Air Lift reputation for great customer service and technical support, should you run into any snags in the installation process, you can purchase this kit with peace of mind. Installing the kit is a simple process, requiring only common hand tools and no frame drilling required. The LoadLifter 5000 Ultimate kit comes with clear, easy to follow instructions, and an under frame design, made to work with most in bed hitches.
Air Lift Company has developed dependable air spring suspension products since our inception in 1949. Our original product, a rubber air spring inserted into a car’s factory coil spring, was created and patented in 1950. We’ve come a long way since 1949 and are proud to be a dedicated suspension specialist company.
Today, Air Lift load support products are sold worldwide and are engineered to fit over 540 vehicles. Our extensive product line offers air helper springs for trucks, RVs, SUVs, CUVs, and vans, as well as the most technologically advanced on-board air compressor systems for on-the-go air spring control.
Air Lift leads the industry in no-drill applications – kits that bolt onto your vehicle’s frame, speeding the installation process. Our teams work constantly to bring innovative products to you and upgrade existing products with the latest technology.
All of our efforts are spent ensuring your safety and comfort by designing, engineering, and manufacturing the highest quality suspension products. We are a family-owned business based in Lansing, Michigan, and make your family and cargo’s safety our top priority.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime
4 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2009 - 2010 | Dodge Ram 1500 | Does not fit if vehicle is equipped with factory air suspension |
| 2011 - 2022 | Ram 1500 | Does not fit if vehicle is equipped with factory air suspension |
| 2019 - 2022 | Ram 1500 Classic | Does not fit if vehicle is equipped with factory air suspension |
| 2023 - 2024 | Ram 1500 Classic | Does not fit if vehicle is equipped with factory air suspension. |
Yes, the Air Lift LoadLifter 5000 ULTIMATE Air Spring Kit 88365 (Part #BBCG88365) is designed to fit the 2009-2010 Dodge Ram 1500.
The Air Lift LoadLifter 5000 ULTIMATE Air Spring Kit 88365 (Part #BBCG88365) fits the following vehicles: 2009-2010 Dodge Ram 1500; 2011-2022 Ram 1500; 2019-2024 Ram 1500 Classic. Always verify your specific year, make, and model before ordering.
The Air Lift LoadLifter 5000 ULTIMATE Air Spring Kit 88365 (Part #BBCG88365) fits 2009-2010 Dodge Ram 1500 models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
The Air Lift LoadLifter 5000 ULTIMATE Air Spring Kit 88365 (Part #BBCG88365) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. Kits 57365, 88365, and 89365 are designed for Dodge/RAM 1500 vehicles with leaf springs. The kit is recommended for most 3/4- and 1-ton pickups and SUVs with leaf springs.
Standard LoadLifter 5000 (zinc-plated steel roll plates, black nylon air lines), LoadLifter 5000 Ultimate (black powder-coated roll plates, black nylon air lines, internal jounce bumper), and LoadLifter 5000 Ultimate Plus (stainless steel roll plates, braided stainless steel air lines, stainless steel air spring mounting hardware, internal jounce bumper).
Up to 5,000 pounds of load-leveling support with air adjustability from 5–100 PSI (0.34–6.9 BAR).
Standard and metric open-end or box wrenches, adjustable wrench, ratchet, standard and metric sockets (regular and deep-well), 1/4" and 5/16" drill bits (very sharp), heavy-duty drill, torque wrench, 4" grinder or metal cutting tool, standard and metric hex-key wrenches, hose cutter or sharp knife, hoist or floor jacks, two safety stands, safety glasses, black paint or undercoating, air compressor or compressed air source, and spray bottle with dish soap/water solution.
Professional mechanical skills are necessary to complete the installation. The manual states this requirement prominently and recommends that if professionally installed, the installer should review operating instructions with the owner.
Yes. Drilling is required. You must drill 1/4" holes in the frame for the self-tapping screws that secure the frame brackets, and drill 5/16" (8 mm) holes for the Schrader valve locations. The manual specifies using very sharp 1/4" and 5/16" drill bits.
Yes. You must grind off the welds from the factory jounce bumper cups and grind the remaining welds flush to the frame. After grinding, spray the bare frame surface with paint or undercoating to prevent corrosion.
Torque the 5/16"-18 x 3/4" self-tapping screws (part K) to 15 lb.-ft. (20 Nm). Make sure the washer head portion of the screw is flat to the bracket.
Torque the 3/8" carriage bolts (part L) that attach the lower brackets to the jounce bumper strike plate and frame bracket to 31 lb.-ft. (42 Nm). Torque both sides evenly.
Torque the 3/8" hex-head bolts (part H) that attach the upper air spring bracket to no more than 20 lb.-ft. (27 Nm).
Torque the 3/8"-24 x 3/4" flat-head screws (part G) that attach the lower brackets to no more than 20 lb.-ft. (27 Nm).
Torque the lower shock bolts to 100 lb.-ft. (135 Nm).
Minimum recommended pressure is 5 PSI (0.34 BAR). Maximum air pressure is 100 PSI (6.9 BAR). The system can safely be run at zero air pressure when unladen (no load).
No. The installation of this kit does not alter the gross vehicle weight rating (GVWR) or payload of the vehicle. You must not exceed the maximum load listed in the vehicle's owner's manual.
Perform a clearance test at 75–90 PSI, leak test at 75–90 PSI, heat test (minimum 6" clearance from heat sources), fastener test (recheck all bolts for proper torque), and a 10-mile road test. Check for clearance, loose fasteners, and air leaks after the road test.
Check air pressure weekly. After 24 hours of initial operation, recheck pressure; a 2–4 PSI (0.14–0.28 BAR) loss is normal. If loss exceeds 5 PSI (0.34 BAR), retest for leaks.

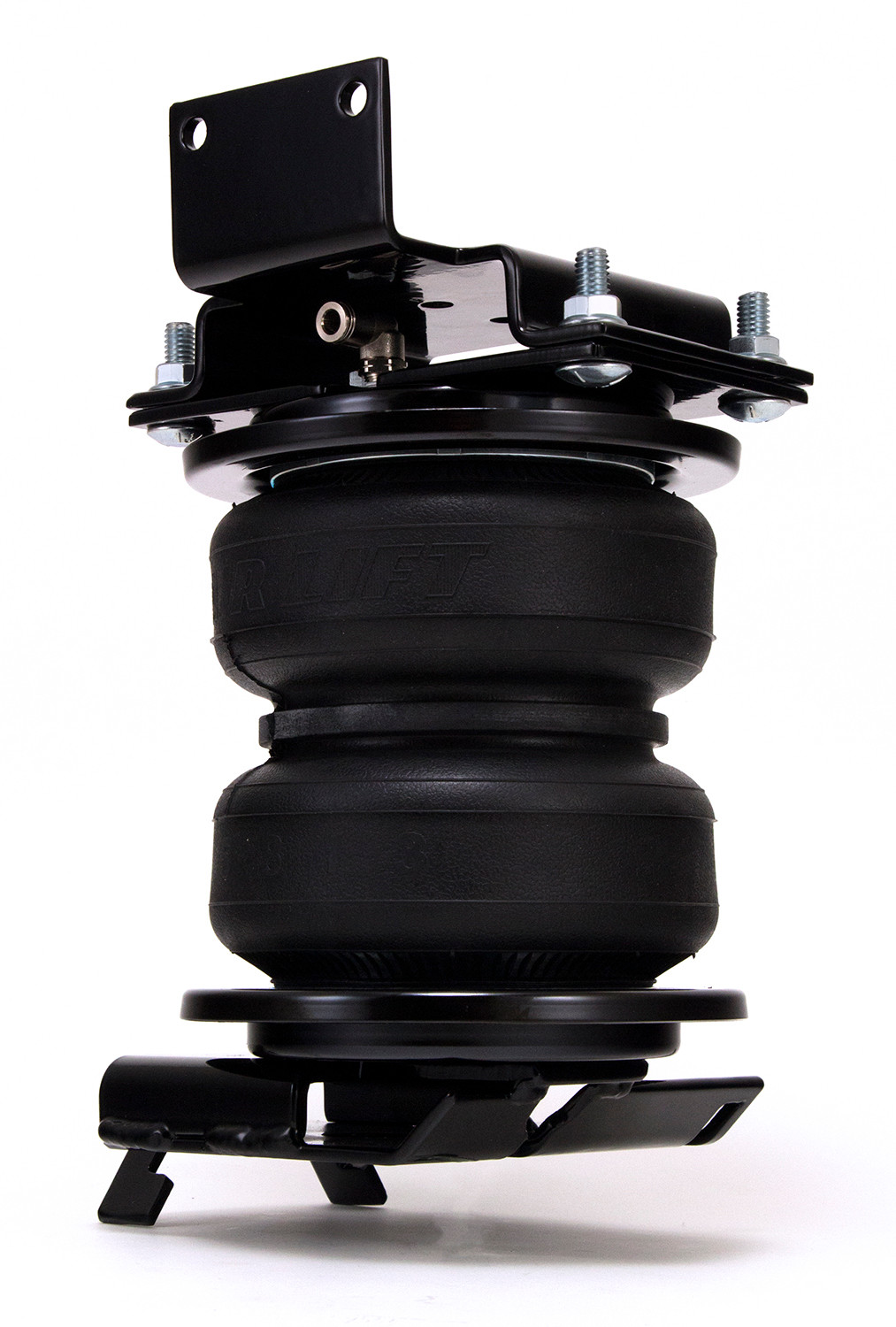

All three kits (57365, 88365, 89365) include two air springs with jounce bumpers (Ultimate and Ultimate Plus) or without (Standard), four roll plates, two push-to-connect fittings (Standard and Ultimate) or two AN-type fittings (Ultimate Plus), frame brackets, lower brackets, carriage bolts, self-tapping screws, hex-head bolts, lock washers, flat washers, air lines, zip ties, valve caps, and fasteners. The Ultimate Plus kit includes braided stainless steel air lines, stainless steel hardware, and fill valves with caps.
The manual states the kit is for vehicles with leaf springs. The installation procedure requires removal of coil springs on the Dodge/RAM 1500, but the kit is recommended for 3/4- and 1-ton pickups and SUVs with leaf springs. Compatibility with other suspension types is not addressed in the manual.
Yes. To install the upper frame brackets, you must lift the vehicle, support it with jack stands, remove the rear wheels, mark the coil springs and lower spring seat mounts with chalk or paint marker, remove both lower shock bolts, and carefully lower the axle to remove the coil springs. After installing the frame brackets, the coil springs are reinstalled.
Yes. You must remove both jounce bumpers from both sides of the vehicle. Then grind off the welds that attach the jounce bumper cups to the jounce bumper frame bracket and grind the remaining welds flush to the frame. After grinding, spray the bare frame surface with paint or undercoating.
1. Set a roll plate onto the air spring with the rounded edge toward the spring. 2. Install the swivel fitting into the top of the air spring finger tight plus 1½ turns. 3. Insert four carriage bolts into the upper air spring bracket and set the bracket onto the air spring assembly. 4. Attach the upper bracket using two 3/8" hex-head bolts, two lock washers, and two flat washers, torqued to no more than 20 lb.-ft. (27 Nm). 5. Flip the assembly upside down and set another roll plate over the air spring. 6. Position the assembly so fittings face outboard. 7. Attach the left or right lower bracket with two 3/8" flat-head screws, torqued to no more than 20 lb.-ft. (27 Nm).
1. Index a 3/8" carriage bolt into the opening on the front of the driver's side assembly. 2. Drop the axle to gain clearance. 3. Set the left assembly into position with the carriage bolt in the slot, making sure the back of the bracket hooks below the jounce bumper strike plate. Push forward to line up the carriage bolt with the existing hole in the front of the lower jounce bumper strike plate. Cap with a 3/8" serrated lock nut but leave loose. 4. Insert another 3/8" carriage bolt through the remaining hole in the front of the bracket. 5. Use a socket with extension to reach the inside threads. 6. Install the right assembly the same way, using the slot in the lower bracket for the carriage bolt. 7. Torque both sides to 31 lb.-ft. (42 Nm). 8. Raise the axle and align the air spring mounting plate carriage bolts with the frame bracket holes. 9. Cap all carriage bolts with 3/8" serrated lock nuts and torque to 31 lb.-ft. (42 Nm).
The M8 socket-head bolt (part M) is used as a line-up tool to ensure the upper frame bracket is aligned properly. It is inserted into the frame bracket slot closest to the flange and indexes into the existing hole in the frame that was under the stock jounce bumper. The bolt head points in the same direction as the flange on the bracket. The bolt remains in place but requires no additional tightening after alignment.
You must drill 1/4" holes in the frame for the self-tapping screws that secure the frame brackets. The manual recommends using a 21/64" (or closest) centering punch to fit into the existing hole and center-punch the frame for an exact center before drilling.
Drill a 5/16" (8 mm) hole for the Schrader valve location. The manual recommends choosing locations inside the fuel tank filler door, inside rear wheel wells, or in the license plate or rear bumper area (rear bumper area is recommended for Ultimate Plus kits).
Drill a 5/16" (8 mm) hole in the chosen location. Install the Schrader valve through the hole using a hex nut, flat washer, star washer, and rubber washer. The rubber washer sits between the vehicle body or bumper and the fitting. Recommended locations are inside the fuel tank filler door, inside rear wheel wells, or in the license plate or rear bumper area.
1. Cut the air line in half using a razor blade or hose cutter, making clean, square cuts (do not use scissors or wire cutters). 2. Use zip ties to secure the air line to fixed points along the chassis without pinching or kinking it. The minimum bend radius is 1" (25 mm). 3. Leave at least 2" (51 mm) of slack to allow for movement. 4. Keep at least 6" (152 mm) of clearance from the exhaust system. 5. Install the Schrader valve in the chosen location.
1. Use zip ties to secure the air line to fixed points along the chassis every 6" to 8" (152–203 mm). 2. Leave at least 2" (51 mm) of slack for movement. 3. Tighten the air line hex nut finger tight, then use two wrenches to turn one additional flat (1/6 of one full turn). Do not overtighten. 4. The easiest way to tighten the fitting is off the vehicle. 5. Install the Schrader valve in the chosen location. 6. Coil and secure any excess air line in an area where it will not be susceptible to damage. The braided stainless steel air line cannot be trimmed.
The minimum bend radius for nylon air lines is 1" (25 mm). Avoid sharp bends and edges. The braided stainless steel air line cannot be trimmed and should be coiled and secured in an area where it will not be susceptible to damage.
Keep at least 6" (152 mm) of clearance between all air lines and the exhaust system. If a heat shield is included in the kit, install it. Slide the air line thermal sleeve over the air line and place it where the air line is closest to the exhaust, maintaining at least 1/2" (13 mm) of dead air space.
No. The braided stainless steel air line cannot be trimmed. Any excess air line should be coiled and secured in an area where it will not be susceptible to damage.
Cut the air line in half using a razor blade or hose cutter, making clean, square cuts. Do not use scissors or wire cutters, as these will produce bad cuts that can compromise the fitting seal.
1. Inflate the air spring to 30 PSI (2 BAR). 2. Spray all connections and inflation valves with a solution of 1/5 liquid dish soap and 4/5 water. 3. Look for bubbles in the soapy water to spot leaks. 4. After the test, deflate the springs to the minimum pressure required to restore normal ride height (no lower than 5 PSI [0.34 BAR]). 5. Check air pressure again after 24 hours. A 2–4 PSI (0.14–0.28 BAR) loss is normal. If loss exceeds 5 PSI (0.34 BAR), retest for leaks.
Inflate the air springs to 75–90 PSI (5.2–6.2 BAR) and ensure at least 1/2" clearance from anything that might rub against each sleeve. Check the tire, brakes, frame, shock absorbers, and brake cables. If any part shows signs of rubbing or abrasion after 30 days or 500 miles (800 km), identify and move the source if possible, or remount the air spring.
Loaded vehicles require at least 25 PSI (1.7 BAR). A "loaded vehicle" refers to a vehicle with a heavy bed load, a trailer, or both. The springs support approximately 40 pounds of load (combined on both springs) for each 1 PSI (0.07 BAR) of pressure. Never exceed the vehicle's GVWR regardless of air spring pressure.
When increasing load, always adjust air pressure to maintain normal ride height. Increase or decrease pressure as necessary to attain normal ride height for optimal ride and handling. Remember that loads carried behind the axle (including tongue loads) require more leveling force (pressure) than those carried directly over the axle. It may be necessary to maintain different pressures on each side of the vehicle; a 50 PSI (3.5 BAR) difference is not uncommon.
Always add air to springs in small quantities, checking the pressure frequently. Start with the vehicle level or slightly above. When in doubt, always add air. Use any type of compressor that can produce sufficient pressure to service the springs; even a bicycle tire pump can be used, though it requires significant effort.
The vehicle can be lifted on a hoist for short-term service work such as tire rotation or oil changes. However, if the vehicle will be on the hoist for a prolonged period, support the axle with jack stands to take the tension off the air springs. When raising the vehicle by the frame for service, make sure the system is at minimum pressure (5 PSI [0.34 BAR]) to reduce tension on suspension and brake components.
On occasion, give the air springs a hard spray with a garden hose to remove mud, sand, gravel, or other debris.
Gross vehicle weight rating (GVWR) is the maximum allowable weight of the fully loaded vehicle, including passengers and cargo. This number is shown on the vehicle's Safety Compliance Certification Label along with tire, rim size, and inflation pressure data. Payload is the combined maximum allowable weight of cargo and passengers that the truck is designed to carry, calculated as GVWR minus the base curb weight.
No. The installation of the kit does not alter the GVWR or payload of the vehicle. You must not exceed the maximum load listed in the vehicle's owner's manual. Exceeding the GVWR is dangerous and voids the Air Lift warranty.
Never inflate beyond 100 PSI (6.9 BAR). Although the air springs are rated at a maximum inflation pressure of 100 PSI (6.9 BAR), the air pressure actually needed is dependent on load and GVWR. Always maintain normal ride height and do not exceed the vehicle's GVWR.
Check for an improperly installed air line, holes, or cracks. Leak test the air line connections, the threaded connection into the air spring, and all fittings in the control system. Check to make sure air lines are seated in connectors. Inspect fittings with soapy water. Trim the hose or re-seal the fitting. Ensure lines are cut straight.
Look for a kink or fold in the air line. Replace any air line that has been kinked.
1. Check the air line connection by deflating the spring and removing the line by pulling the collar against the fitting and pulling firmly on the air line. 2. Trim 1" (25 mm) off the end of the air line, making sure the cut is clean and square. 3. Reinsert the air line into the push-to-connect fitting. 4. If it still leaks, deflate the air spring, remove the fitting, and re-coat the threads with thread sealant. 5. Reinstall by hand tightening as much as possible and then use a wrench for an additional two turns.
1. Check the valve core by tightening it with a valve core tool. 2. Check the air line by removing the air line from the barbed type fitting. 3. Cut the air line off a few inches in front of the fitting and use pliers or vice grips to pull/twist the air line off the fitting. Do not cut off the air line completely, as this will usually nick the barb and render the fitting useless.
If the air springs are properly installed and maintained, they can last indefinitely.
No. Air pressure can be adjusted with any type of compressor as long as it can produce sufficient pressure to service the springs. Even a bicycle tire pump can be used, but it requires significant effort.
For LoadLifter 5000 standard, Ultimate, and Ultimate Plus, the recommended minimum air pressure is 5 PSI (0.34 BAR), but the system can safely be run at zero air pressure when unladen (no load).
If it is suspected that the air bags have bottomed out, increase the pressure. Bottoming out indicates insufficient air pressure for the current load.
If the vehicle's headlights are shining into the trees or the vehicle is leaning to one side, it is not level. Raise the air pressure to correct either of these problems and level the vehicle.
If the vehicle has a rough or harsh ride, it may be due to either too much pressure or not enough. Try different pressures to determine the best ride comfort.
Stability translates into safety and should be the priority, meaning the driver may need to sacrifice a perfectly level and comfortable ride. Stability issues include roll control, bounce, dive during braking, and sponginess. Tuning out these problems usually requires an increase in pressure. If the front of the vehicle dives while braking, increase the pressure in the front air bags if equipped. If the vehicle rocks and rolls, adjust the air pressure to reduce movement.
Standard LoadLifter 5000: zinc-plated steel roll plates, black nylon air lines, push-to-connect fittings, standard fasteners. LoadLifter 5000 Ultimate: black powder-coated roll plates, black nylon air lines, push-to-connect fittings, internal jounce bumper, standard fasteners. LoadLifter 5000 Ultimate Plus: stainless steel roll plates, braided stainless steel air lines, AN-type fittings, stainless steel air spring mounting hardware, internal jounce bumper, stainless steel fasteners, fill valves with caps.
Yes. Air Lift offers two Ultimate Plus upgrade kits: 52300 (braided stainless steel air line and fittings) and 52301 (stainless steel roll plates, air spring mounting hardware, braided stainless steel air lines, and fittings).
Mark the bottom of the right-hand and left-hand coil springs and lower spring seat mounts with chalk or a paint marker to ensure the spring is put back the same way it is removed. This ensures proper alignment and suspension geometry.
You must lower the axle carefully and avoid putting stress on the flexible brake lines. Excessive stress on brake lines can damage them and compromise braking safety.
Install the swivel fitting into the top of the air spring finger tight plus 1½ turns. Do not overtighten, as this can damage the fitting or air spring.
The finished assemblies are left and right-hand specific. The fittings that are on the top of the air springs should be facing the outside (tire side) of the vehicle once in position. Position the air spring assemblies so that the fittings are outboard and away from each other.
The slot in the lower bracket is used to index a 3/8" carriage bolt for initial positioning of the assembly on the axle. The carriage bolt is inserted into the slot and then aligned with the existing hole in the front of the lower jounce bumper strike plate.
A socket with extension is necessary to reach the inside threads on the carriage bolt that was previously set into position. It may be helpful to pull the carriage bolt out slightly so that it can be angled enough to get started on the thread.
Keep the air line away from the fuel line, brake lines, and electrical wires. Use zip ties to secure the air line to fixed points along the chassis every 6" to 8" (152–203 mm). Leave at least 2" (51 mm) of slack to allow for movement. Tighten the air line hex nut finger tight, then use two wrenches to turn one additional flat (1/6 of one full turn). Do not overtighten. Coil and secure any excess air line in an area where it will not be susceptible to damage.
After the 10-mile road test, recheck for clearance, loose fasteners, and air leaks. The vehicle should be road tested after clearance, leak, heat, and fastener tests have been completed.
Recheck the air spring system after 30 days or 500 miles (800 km), whichever comes first. If any part shows signs of rubbing or abrasion, identify and move the source if possible. If it is not possible to relocate the cause of the abrasion, the air spring may need to be remounted. Check all fasteners for tightness.
Recheck air pressure after the vehicle has been used for 24 hours. If the pressure has dropped more than 5 PSI (0.34 BAR), there is a leak that must be fixed. Either fix the leak yourself or return to the installer for service.
Improperly installed air line, holes or cracks in the air line, or compromised fitting seals. Solution: Leak test the air line connections, the threaded connection into the air spring, and all fittings. Check that air lines are seated in connectors. Inspect fittings with soapy water. Trim the hose or re-seal the fitting. Ensure lines are cut straight.
A kink or fold in the air line. Solution: Replace any air line that has been kinked.
