ARIES TrailCrusher Jeep Wrangler JK Steel Front Bumper, 12.5K BumperARIESOriginal price was $422.95. Current price is $210.00.Out of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
ARIES
Verify Fitment
Select your vehicle to confirm this part fits.
This bumper is winch-ready, but the winch is sold separately. Pick one rated for your vehicle — check the bumper’s winch capacity and mounting bolt pattern in the specs.
2020 - 2026 Jeep Gladiator
Confirmed to Fit
2018 - 2026 Jeep Wrangler
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Includes bumper and mounting hardware
Models with factory steel front bumper will require the purchase of aftermarket fog lights (not included)
Warranty: Limited Lifetime Warranty (Three-Year Finish, One-Year Parts)
Finish: CARBIDE BLACK POWDER COAT
Material: Carbon Steel
Bumper Location: Front Center

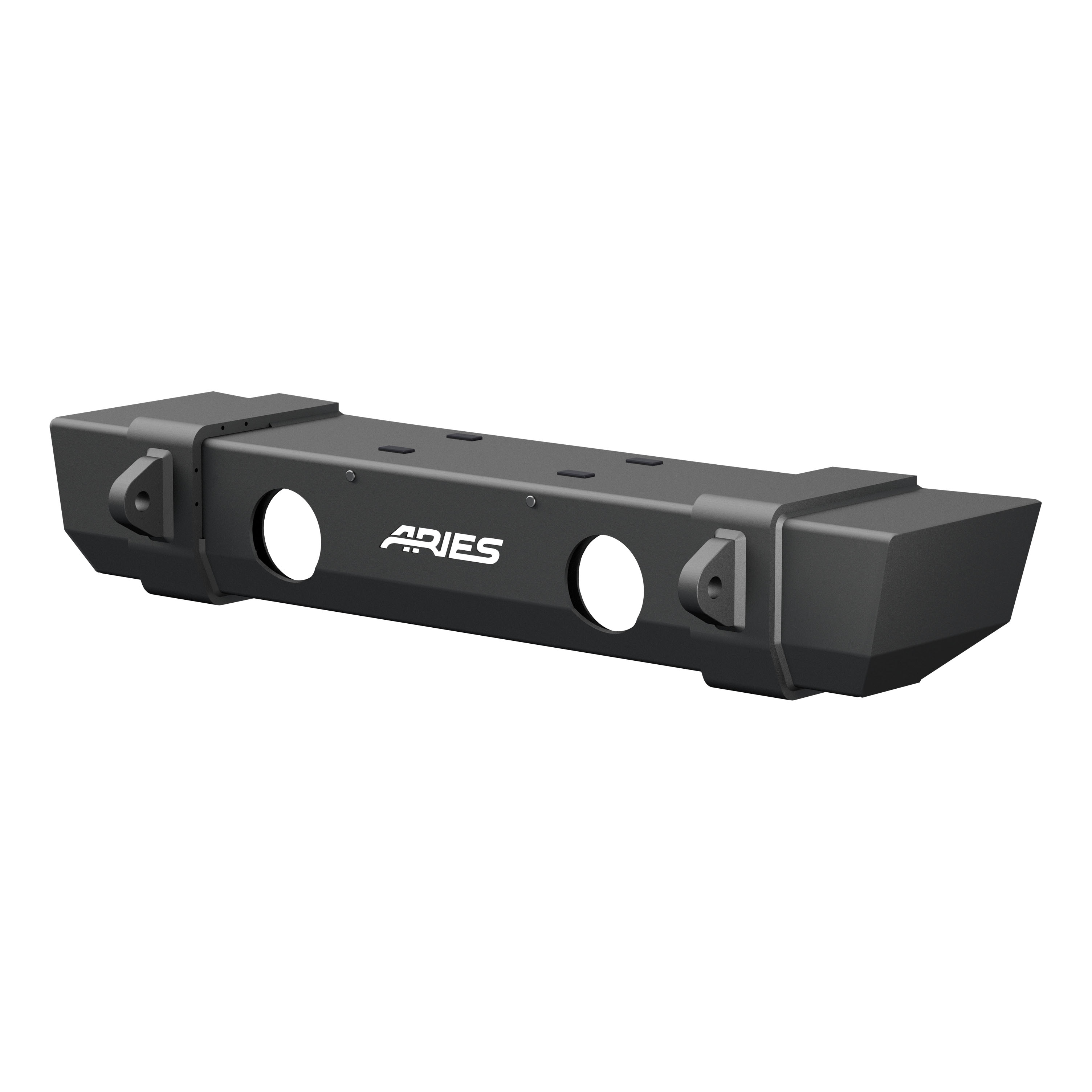

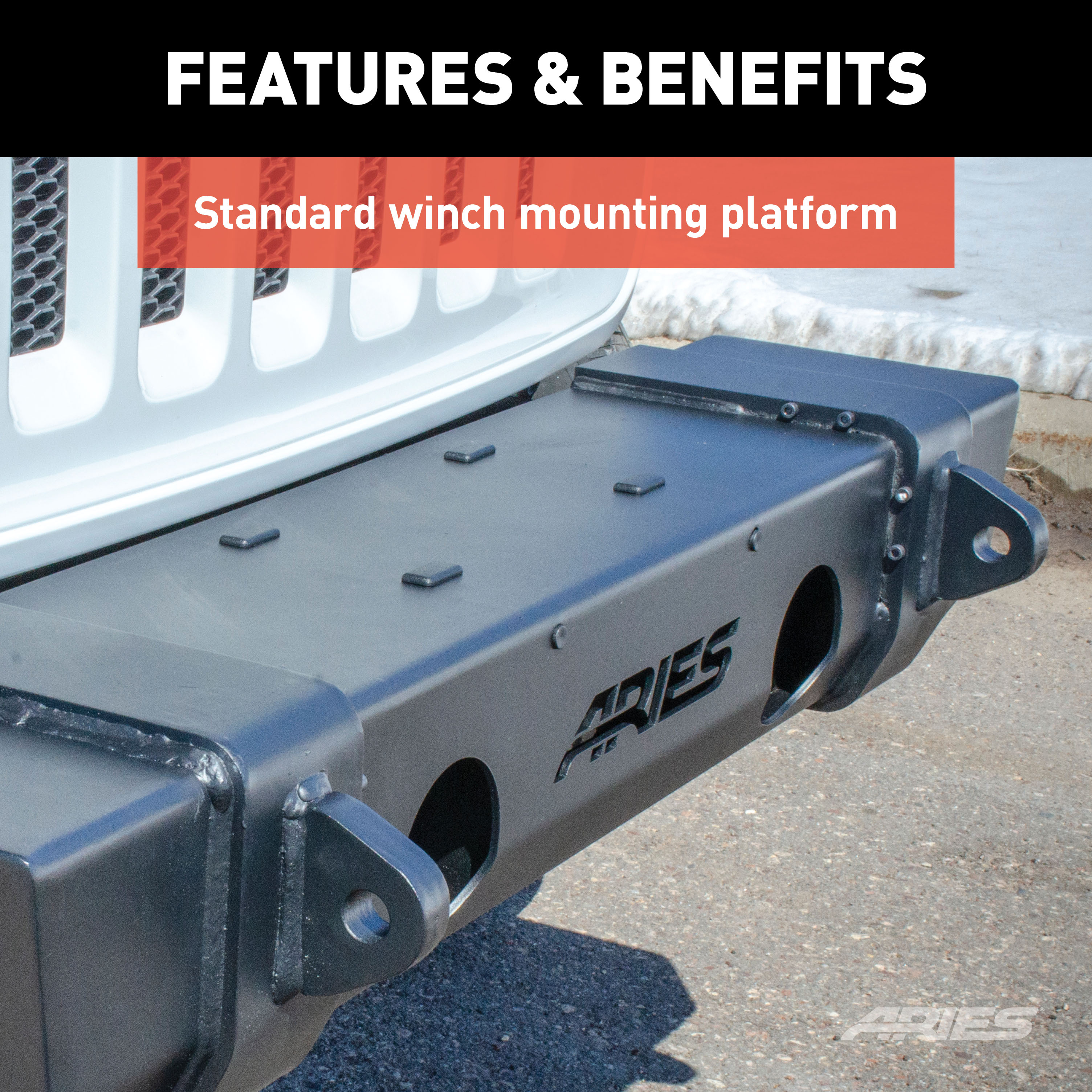

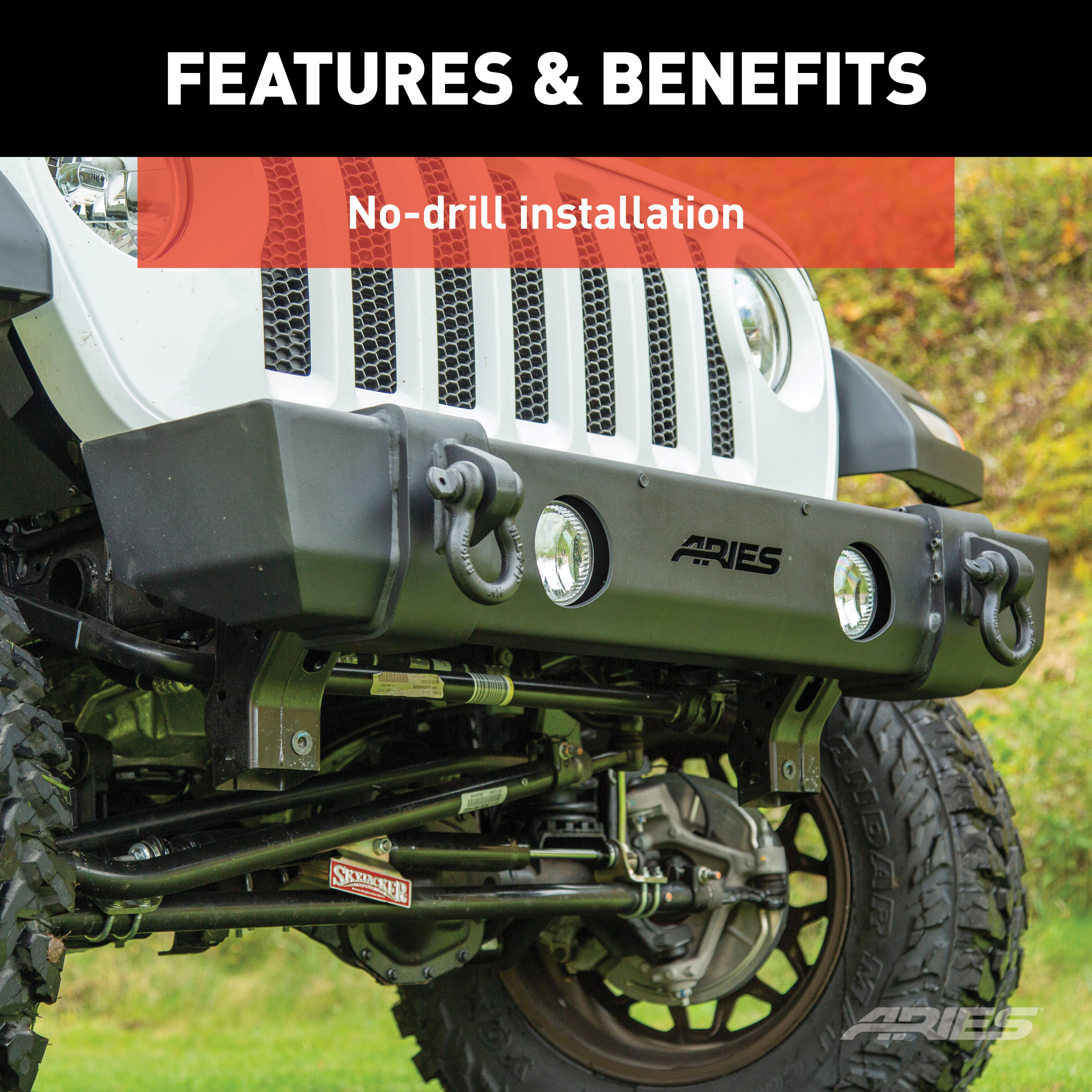

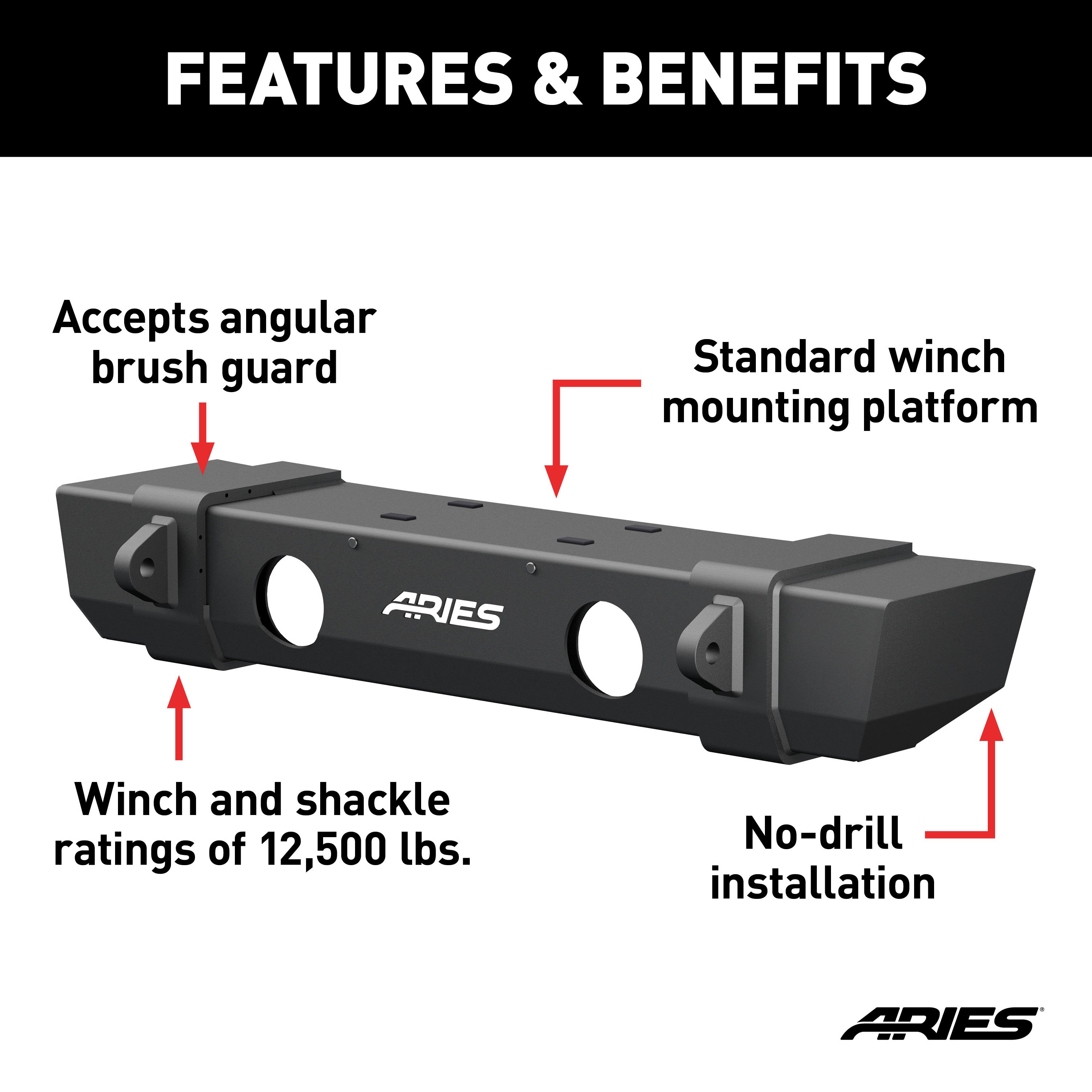

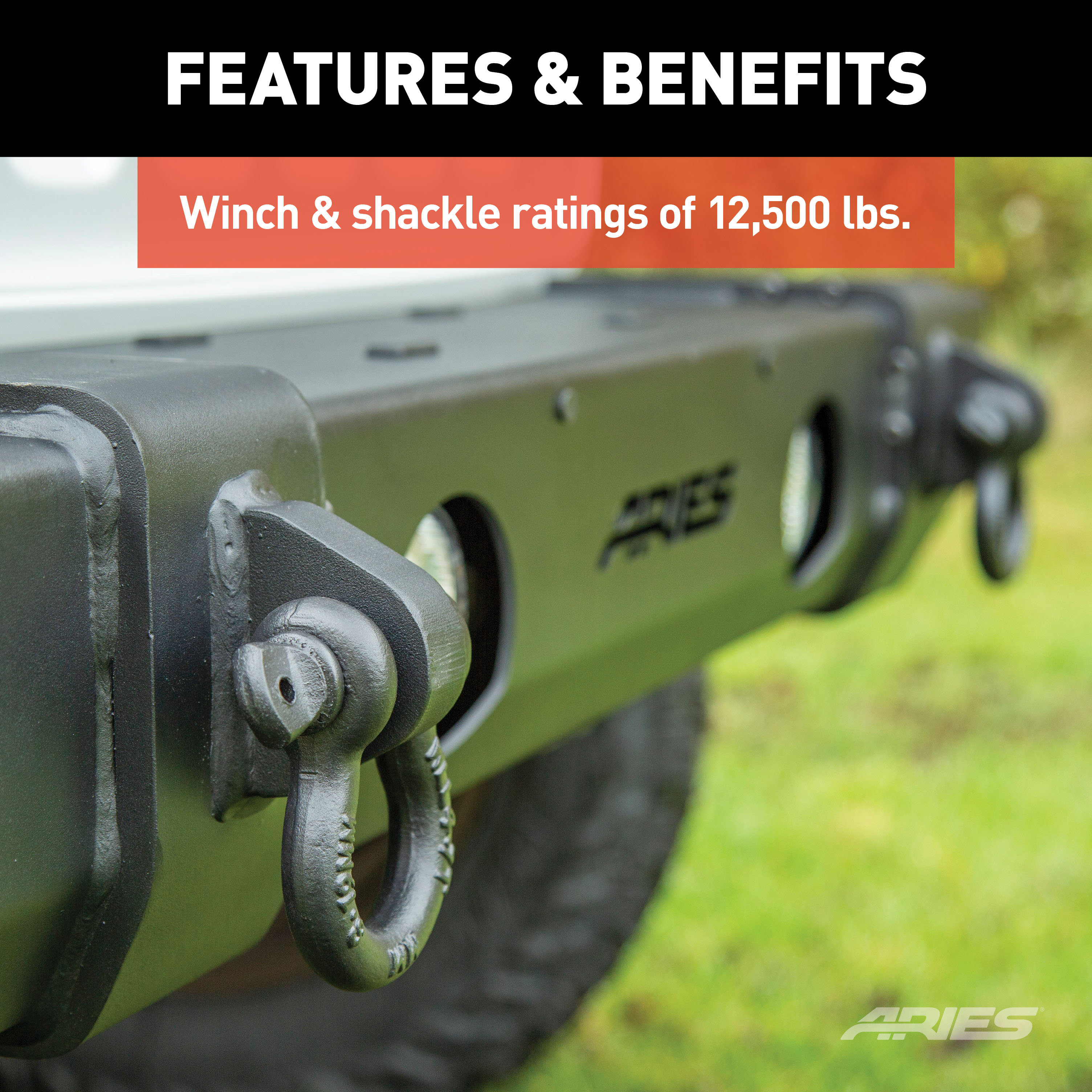

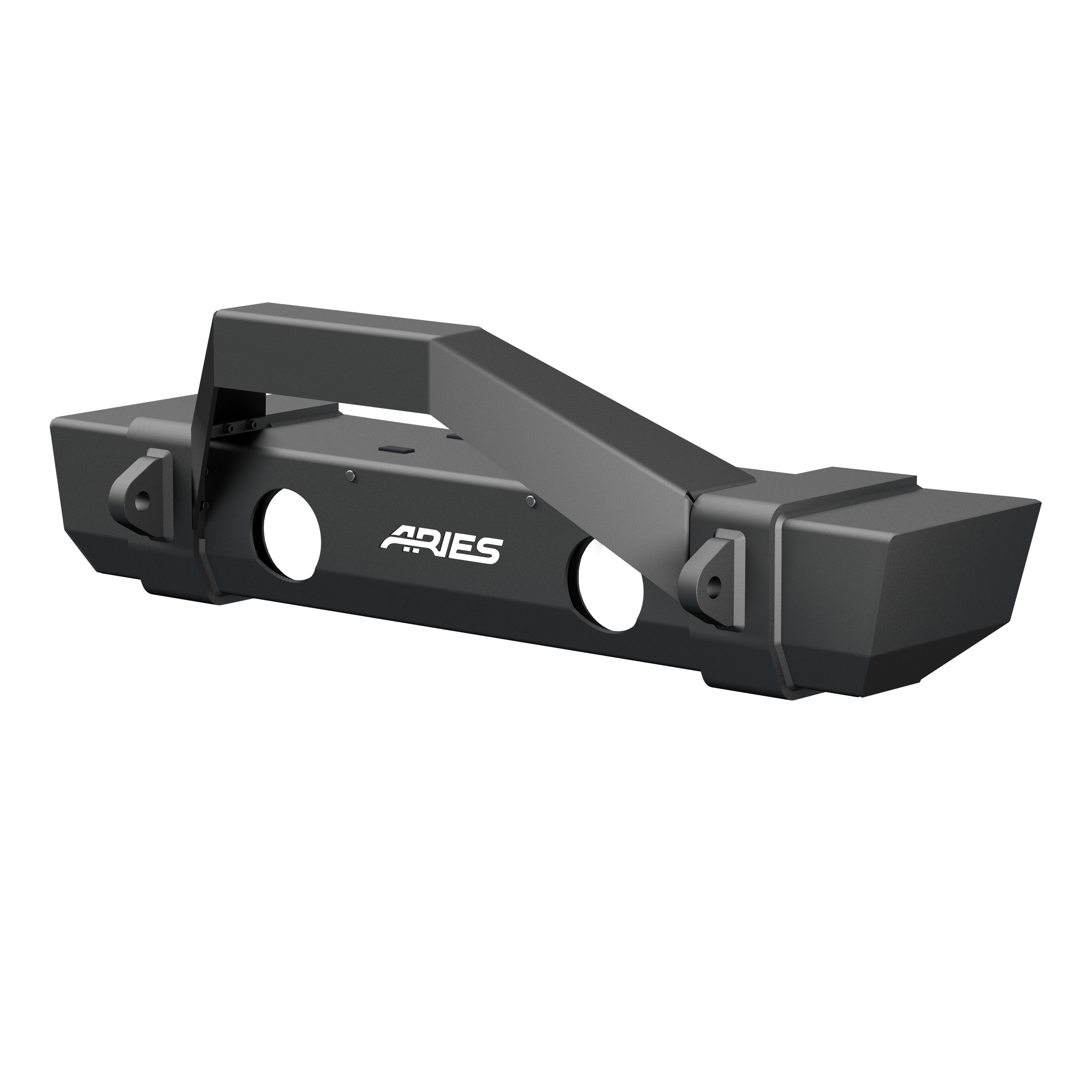

The ARIES TrailCrusher Jeep bumper is constructed to outmatch every other bumper in its class. With heavy-duty, welded steel construction, it is a highly functional companion on the trail, featuring a winch and shackle rating of 12,500 lbs. The TrailCrusher bumper is available for the front and rear, and it installs with no drilling required. Everything about the TrailCrusher Jeep bumper is designed to maximize its strength and utility. It is built with 3/16" thick all-steel plates, welded together in a stout, high-strength configuration. It also features 1/4" thick welded shoulder sleeves that add even more strength, particularly to the shackle mounts. Not only does the TrailCrusher bumper provide a 12,500-lb. winch and shackle rating, but it also offers excellent versatility. The winch platform of the bumper features industry-standard mounting holes to accept most types of winches, and the shackle mounts accept any pin up to 7/8" in diameter. ARIES forged steel shackles #2166071 offer a perfect fit and a work load limit to match the 12.5K rating. A number of winch accessories are also available, including a hawse fairlead #2156070 and roller fairlead #2156071. For added winch protection and an aggressive look on the Jeep Wrangler JL or Jeep Gladiator, this bumper is also compatible with the stinger-style angular brush guard #2156050 (not included). The TrailCrusher bumper is fast and easy to install, integrating with the Jeep JL or Gladiator like a stock bumper. It uses pre-existing holes in the vehicle frame to eliminate drilling from the install process, and it mounts with 3/8" steel brackets for added strength. To be ready for whatever the trail has in store, both the front and rear TrailCrusher bumpers come an E-coat and carbide black powder-coated finish, maximizing rust and scratch resistance. Each comes with all necessary mounting hardware for a complete installation (see application info to verify fitment with your Jeep).
Explore ARIES products at TowUniverse for top-tier grille guards, side bars, nerf bars, headache racks, and more. Upgrade your vehicle with ARIES today!
ARIES is a fast-paced marketer and innovator of truck, Jeep, SUV and CUV accessories. From automotive enthusiasts to professional builders, our products are built for the champions of individualism, innovation and attitude.
We offer the perfect combination of unique style and durable construction, specializing in custom-fit grille guards, bull bars, side bars and running boards, as well as Jeep Wrangler and Jeep Gladiator accessories.
ARIES products are made vehicle-specific for a custom fit, and they are available for a wide variety of makes and models sold in North America.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty (Three-Year Finish, One-Year Parts)
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2020 - 2026 | Jeep Gladiator | — |
| 2018 - 2026 | Jeep Wrangler | — |
Yes, the ARIES TrailCrusher front bumper (Part #2156002) is designed to fit 2020-2026 Jeep Gladiator models, so your 2023 will work perfectly. This heavy-duty steel bumper features a 12,500 lb winch rating and installs using factory mounting points with no drilling required.
Absolutely! The ARIES TrailCrusher front bumper (Part #2156002) fits 2020-2026 Jeep Gladiator models, so your 2026 is covered. It comes with all mounting hardware and 3/8" thick steel brackets for a solid installation using existing factory holes.
The ARIES TrailCrusher front bumper (Part #2156002) fits 2018-2026 Jeep Wrangler JL and 2020-2026 Jeep Gladiator models. It's specifically engineered for these platforms and uses their factory mounting points for a secure, integrated installation.
Installation is straightforward since this bumper uses a no-drill design that integrates with factory mounting points. It comes with all necessary mounting hardware and 3/8" steel brackets included. The design eliminates the need for pump relocation, making it much easier than many aftermarket bumpers.
The kit includes one TrailCrusher™ bumper with pre-installed M12 bolts, eight flat washers (M12), eight lock washers (M12), eight hex nuts (M12), and eight backup washers. The bumper is designed to accept factory fog lights transferred from the original bumper.
Yes. The TrailCrusher™ bumper is designed to accept factory fog lights. You will remove the fog lights and plastic housing from the factory bumper, disconnect the wiring harness, and reinstall the fog lights into the new bumper by fully engaging the plastic push fasteners into the mounting holes.
Required tools are: ratchet, socket set, Philips screwdriver, flathead screwdriver, Allen wrench, and level. Proper tools will improve installation quality and reduce installation time.
Yes. The manual states 'with help, lift the bumper into place over the factory mounting locations' in Step 8. At least one additional person is required to safely position the bumper.
The removal sequence is: (1) Remove eight plastic push fasteners from the upper edge of the lower front fascia, (2) Remove two 5mm screws from the lower edge of the fascia, (3) Disconnect the fog light wiring harness from the passenger side, (4) Remove four nuts on the driver side securing the bumper, (5) Repeat nut removal on the passenger side, (6) Carefully lift the factory bumper from the frame and set it on a flat work surface.
Remove the plastic cover over each factory fog light, remove the fog light and plastic housing from the factory bumper, and disconnect the wiring harness from the fog light. Remove the factory fog light from the plastic housing. Then install the factory fog lights into the new bumper by fully engaging the plastic push fasteners on the factory fog light into the mounting holes of the bumper. Finally, connect the fog light harness to the fog lights in the bumper and reconnect the wiring harness from the passenger side.
Remove the retainer clips from the eight bumper mounting studs. Remove the four bolts securing the beam to the bumper. Lift the beam from the bumper to expose the fog light harness. Remove the plastic push fasteners securing the wiring harness to the bumper. The harness will be reused with the new bumper.
With help, lift the bumper into place over the factory mounting locations. The bumper has pre-installed M12 bolts. Secure the bumper using one M12 flat washer, lock washer, and hex nut on each of the eight mounting locations. Snug the hardware but do not fully tighten at this stage. Then level and adjust the bumper to the desired position before final tightening.
M12 bolts must be tightened to 70 ft-lbs. This torque specification applies to all eight mounting locations unless otherwise noted in the installation instructions.
Do not fully tighten the hardware when you first secure the bumper with the M12 flat washers, lock washers, and hex nuts. Snug the hardware initially. After leveling and adjusting the bumper to the desired position, tighten all hardware to the recommended torque specification of 70 ft-lbs. for M12 bolts.
Yes. If a winch is being installed on the bumper, use the provided backup washers in conjunction with the mounting hardware supplied with the winch.
Periodic inspections should be performed to ensure all mounting hardware remains tight. To protect the product, wax after installing. Regular waxing is recommended to add a protective layer over the finish. Clean the bumper with mild automotive detergent only. Do not use dish detergent, abrasive cleaners, abrasive pads, wire brushes or similar products that may damage the finish.
Clean the bumper with mild automotive detergent only. Do not use dish detergent, abrasive cleaners, abrasive pads, wire brushes or similar products. For polished, gloss and other smooth finishes, polish may be used to clear small scratches and scuffs. Do not use any type of polish or wax that may contain abrasives that could damage the finish. Regular waxing is recommended to add a protective layer over the finish.
Yes. A level is required to properly align the bumper. After securing the bumper with snugged hardware, you must level and adjust the bumper to the desired position before tightening all hardware to the final torque specification.
The manual confirms the bumper is designed for Jeep vehicles and accepts factory fog lights. However, the specific model year and Jeep model are not stated in the manual. Contact ARIES Automotive at 877.287.8634 or check ariesautomotive.com to confirm fitment for your specific vehicle.
The kit includes eight M12 flat washers, eight M12 lock washers, eight M12 hex nuts, and eight backup washers. The bumper has pre-installed M12 bolts. No additional fasteners are required for standard installation.
The manual does not specify whether battery disconnection is required. Since the installation involves disconnecting and reconnecting fog light wiring, contact ARIES Automotive at 877.287.8634 to confirm whether battery disconnection is necessary for your vehicle.
Tighten all M12 bolts to 70 ft-lbs. Snug the hardware initially, then level and adjust the bumper before final tightening to this specification.
The manual does not mention drilling or any frame modifications. The bumper uses factory mounting locations with pre-installed M12 bolts and eight mounting studs on the vehicle frame.
No. The factory bumper must be completely removed before the TrailCrusher™ bumper can be installed. The factory fog lights and wiring harness must also be transferred to the new bumper.
Level and adjust the bumper to the desired position, then tighten all hardware to 70 ft-lbs. Wax the bumper after installation. Perform periodic inspections to ensure all mounting hardware remains tight.
