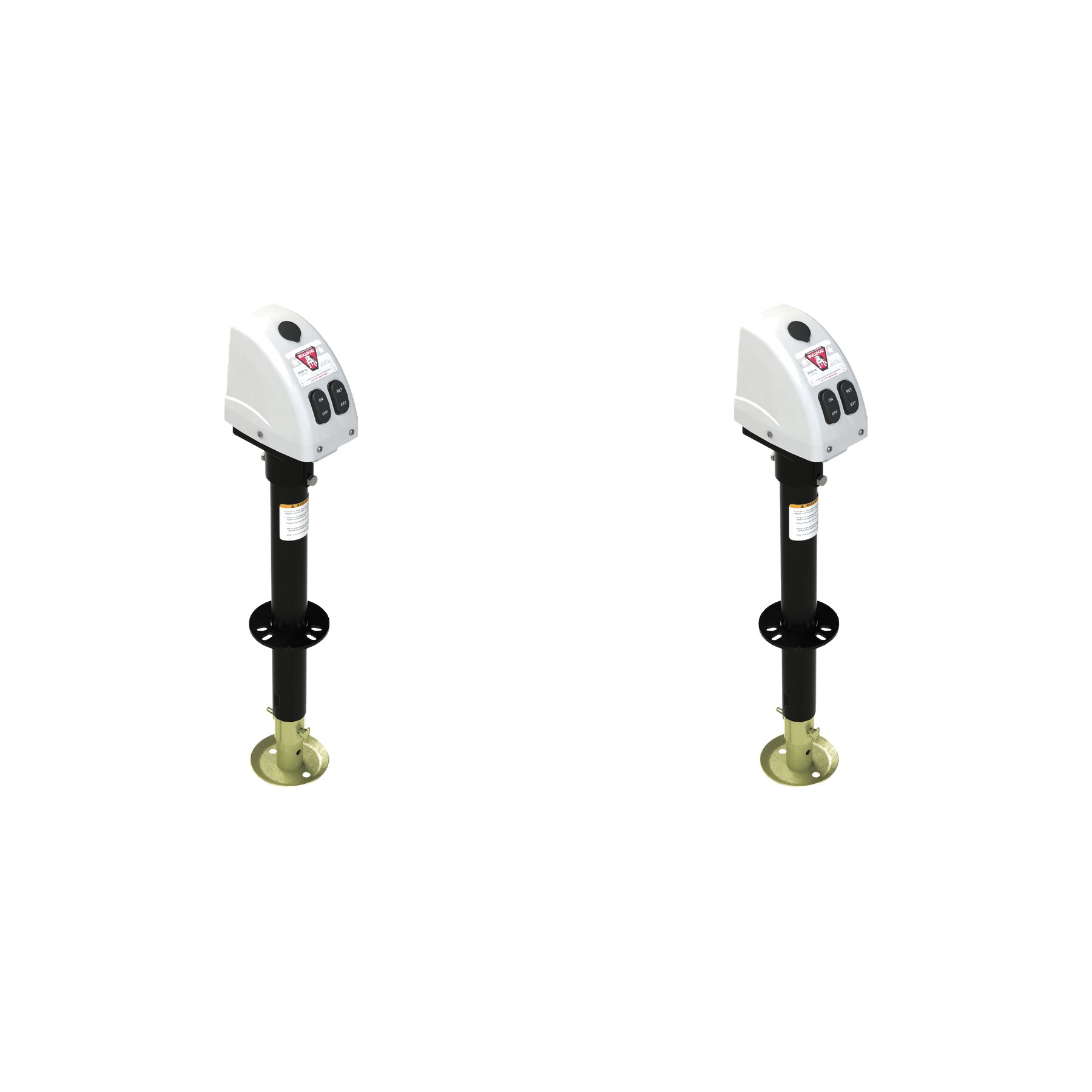

Complete kit bundle containing all necessary components for your project. Professional-grade components designed for reliable performance and long-lasting durability.

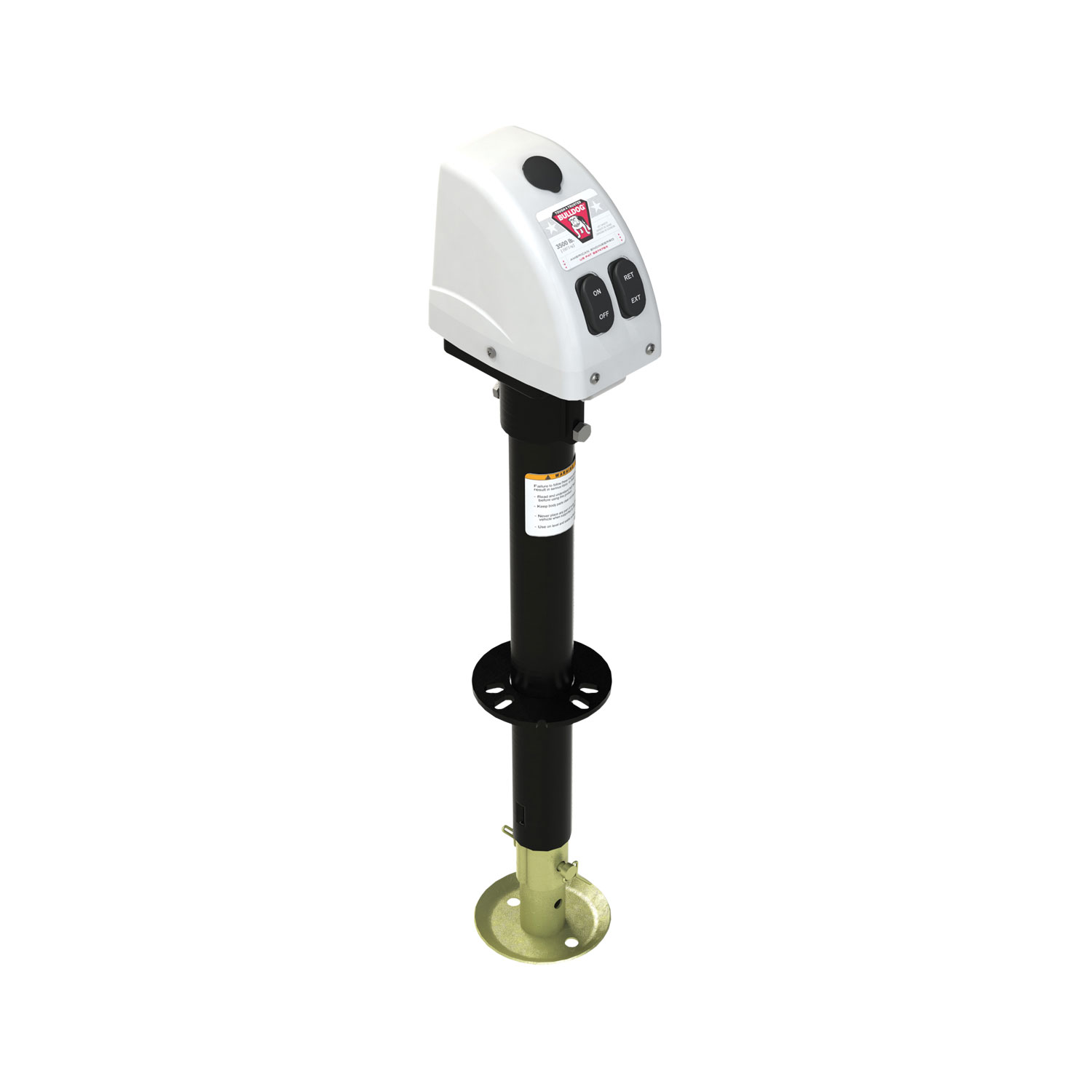

Tough & Trusted BULLDOG presents a Powered Jack with all the capacity and features you want.
| BRAND: | BULLDOG |
| PART NUMBER: | 500188 |
| WARRANTY: | LIMITED 5 YEAR WARRANTY |
| WEIGHT: | 22.05 LBS |
| CAPACITY: | 3,500 LBS. |
| TRAVEL: | 22 IN. |
| HARDWARE INCLUDED: | NO |
| RETRACTED: | 9.75 IN. |
| SPEEDY LIFT: | NO |
| EXTENDED: | 31.5 IN. |
| COLOR: | WHITE |
| CLEARANCE: | 20.5 IN. |
| ATTACHED WHEELS: | NO |
| MATERIAL: | STEEL |
| FOOT WIDTH: | 5.278 IN. ROUND |
| FOOT LENGTH: | 5.278 IN. ROUND |
| CYLINDER DIAMETER: | 2.25 IN. |
Keywords: BD500188-2PK bundle kit, complete kit, professional components, industrial kit, BD500188, Bulldog
Founded in 1920, Bulldog has become the standard for heavy-duty trailer connection hardware in agricultural, military and utility service. The line covers gooseneck hitches and couplers, A-frame and channel-mount trailer couplers with the Wedge-Latch mechanism, and heavy-duty jacks, built for unmatched strength, reliability and safety under demanding loads.
Bulldog was founded in 1920 and has spent more than a century supplying the connection hardware that heavy trailers depend on. Its market has always been the demanding end: agricultural, military and utility applications where a coupler failure is not an inconvenience but a serious incident. The brand summarises its position as Tough and Tested, and it sits within the Horizon Global towing group alongside Reese, Draw-Tite, Fulton, Tekonsha, Bargman and Wesbar.
Gooseneck equipment is the brand's signature. Gooseneck hitches mount in the truck bed over the rear axle, which places the load where the chassis can carry it properly and allows far tighter turning than a receiver hitch permits. Matching gooseneck couplers attach at the trailer end, in round tube and square configurations across the capacity range used by livestock, equipment and flatbed trailers.
The conventional trailer coupler range is built around the Wedge-Latch mechanism, which uses a wedge to take up wear between coupler and ball rather than relying on a fixed clamp that loosens over time. That matters on a trailer accumulating hard miles, where slack in the coupling shows up as noise and shock loading. Couplers are offered in A-frame form for standard tongues and in channel-mount form for straight tongue and fabricated frames, with adjustable channel versions that let a coupler be positioned to suit the tongue height.
Heavy-duty jacks complete the line, sized for the tongue weights that gooseneck and equipment trailers generate. Across the range the emphasis is consistent: forged and heavy-section components, load ratings backed by testing, and hardware specified for agricultural, military and heavy-duty commercial use rather than occasional recreational towing.
Experts available to answer your questions
Call 888-634-94945 Years
The Powered A-Frame Jack (F3803-00) is designed to attach to the top surface of an A-frame coupler. The dual mounting pattern allows positioning of the jack either facing the tow vehicle or for side operation.
Three (3) 3/8" diameter, 1" long, grade 5 bolts and nuts are provided, along with lock washers and star washers. The star washers ensure metal-to-metal contact between jack and coupler for proper grounding.
Torque the three mounting bolts to 15–20 ft-lbs. Place lock washers between the bolt head and the top of the jack mounting bracket, and use star washers to ensure metal-to-metal contact between jack and coupler for proper grounding.
Yes. Disconnect the trailer battery ground cable before installation to avoid accidental shock and/or damage to the electrical system. Reconnect the battery ground cable after the wiring is complete (step 10).
Route the black wire lead from the plastic cover along the trailer to the battery using cable ties or equivalent. Connect the wire lead directly to the positive (+) terminal of the battery. The unit has a built-in circuit breaker that automatically trips and resets. Reconnect the battery ground cable after connection.
Yes. Make sure the battery is fully charged prior to use. The jack will not operate properly if the battery is not fully charged.
No drilling is required. The jack attaches to the existing A-frame coupler hole using three provided bolts and nuts.
The Powered A-Frame Jack (F3803-00) is an electric jack designed to attach to the top surface of a trailer A-frame coupler. It is used to raise and lower the trailer on and off the tow vehicle ball coupler. The jack features a motor-driven extend/retract function, an LED light, and a manual override crank for emergency operation if power is lost.
No. The battery and charger are not included with the jack. You must provide your own trailer battery and charger. It is important to maintain the electrical system including the battery and charger, and ensure the battery is fully charged prior to use.
1. Attach the trailer to the tow vehicle. 2. Engage the tow vehicle's parking brake. 3. Chock the wheels of the trailer to prevent rolling. 4. Disconnect the trailer battery ground cable to avoid accidental shock or electrical damage.
1. Detach the drop leg by removing the lynch pin. 2. Position the drop leg beneath the coupler mounting hole with the foot on the ground. 3. Place the jack outer tube through the A-frame coupler hole and over the drop leg. 4. Attach using three 3/8" diameter, 1" long, grade 5 bolts and nuts (provided). 5. Place lock washers between the bolt head and the top of the jack mounting bracket. 6. Use star washers to ensure metal-to-metal contact between jack and coupler for proper grounding. 7. Torque bolts to 15–20 ft-lbs.
Yes. The dual mounting pattern allows positioning of the jack either facing the tow vehicle or for side operation. Position the drop leg and outer tube accordingly based on your preferred orientation.
Route the black wire lead from the plastic cover along the trailer to the battery. Attach the wire lead to the trailer using cable ties or equivalent to secure it in place. Connect the wire lead directly to the positive (+) terminal of the battery. After connection, reconnect the battery ground cable.
Yes. The unit has a built-in circuit breaker which automatically trips and resets. This protects the electrical system from overload or short circuit.
1. Press the motor switch marked "EXT" to verify the jack extends. 2. Press the motor switch marked "RET" to verify the jack retracts. 3. Check that the light switch turns on the LED light located under the top cover of the jack. 4. After confirming proper operation, reattach the drop leg to the inner tube using the lynch pin or plunger pin assembly. 5. Retract the jack completely.
The Plunger Pin Kit is an optional assembly that can be included with the jack. If included, install it before attaching the jack to the coupler (before step 8 of the main mounting instructions). The plunger pin assembly aligns with grooves on the jack tube and slides over the bottom of the tube. It must pass through both sides of the tube and be torqued to 15–20 ft-lbs. After installation, ensure the plunger pin and drop leg operate freely.
1. Attach the trailer to the tow vehicle and chock the wheels. 2. Remove the lynch pin and drop leg from the jack assembly (you may need to remove the jack mounting hardware if already installed). 3. Align the grooves of the jack tube and plunger pin assembly together and slide over the bottom of the jack tube. 4. Retract the plunger pin and slide the plunger pin assembly onto the jack. Verify the pin passes through both sides of the tube. 5. Install the drop leg. 6. With the plunger pin through both holes of the jack tube, tighten the clamp to the jack and torque to 15–20 ft-lbs. Ensure the plunger pin and drop leg operate freely. 7. Reattach the jack to the trailer according to the main installation instructions. 8. If your trailer has a weight distribution kit, check for any interference to avoid damage during operation.
The drop leg is a support foot that attaches to the jack. During installation, position the drop leg beneath the coupler mounting hole with the foot on the ground to support the jack outer tube. The drop leg can also be used during operation to quickly extend the jack. After adjusting the drop leg to the desired level, reattach the lynch pin or plunger pin assembly through both sides of the jack tube to secure it in place.
Never position any part of your body under or on the path of the product or the load being supported or moved. Do not allow children to play on or around the product or the load. Never exceed the maximum rated capacity (refer to stamped markings or decals on the product). Secure the load, vehicle, and trailer from rolling by blocking the wheels when operating the jack or coupling the trailer. The jack is designed for vertical loading only; excessive side forces may cause failure and must be avoided. Never attempt to adjust the drop foot or drop leg when there is any load on the jack. Ensure the supplied pin is fully inserted through both sides of the inner tube and drop tube before using the jack.
The maximum rated capacity is stamped or marked on the product itself or on decals attached to the jack. Refer to these markings to obtain the rated capacity. If you are uncertain about the capacity, contact Cequent Performance Products at 800-604-9466 or visit www.cequentperformanceproducts.com.
The motor is sealed and maintenance-free. However, you must maintain the electrical system including the battery and charger (not included). Ensure all connections are tight and free of corrosion. Verify the jack is properly grounded with the coupler (metal-to-metal contact). Ensure the battery is fully charged prior to use. Periodically check mounting hardware for proper torque and tighten if necessary. If necessary, wash the jack with mild soap and water and rinse thoroughly. Do not direct a high-pressure spray at the jack. Periodically oil the pins of the plunger pin assembly.
Ensure all electrical connections are tight and free of corrosion. Verify the jack is properly grounded with the coupler through metal-to-metal contact. Ensure the battery is fully charged prior to use. Maintain the battery and charger (not included) according to their manufacturer's instructions. Periodically inspect the black wire lead and cable ties for damage or looseness.
Periodically oil the pins of the plunger pin assembly to ensure smooth operation. After adjusting the drop leg, always reattach the lynch pin or plunger pin assembly through both sides of the jack tube to secure it in place.
The bubble level is optional and only needs to be adjusted during initial setup. 1. Chock the wheels of the trailer and ensure it will not roll. 2. Remove the three bubble level retaining ring screws. 3. Place the bubble level on a known flat surface. 4. Lower the trailer's leveling jacks (if equipped) and the Powered A-Frame Jack to properly support and level the trailer using the bubble level as a guide. 5. Once level, return the bubble level to the Powered A-Frame Jack and adjust the three retaining screws so that the bubble is centered. 6. After this initial setup, you can level your trailer in minutes by watching the bubble on the jack. No further adjustments are necessary.
1. Ensure the battery is fully charged. 2. Chock the wheels of the trailer. 3. Open the coupler. 4. Press the "EXT" button on the motor switch to extend the jack and raise the trailer off the ball. Alternatively, you can use the drop leg to quickly extend the jack. 5. After adjusting the drop leg to the desired level, reattach the lynch pin or plunger pin assembly through both sides of the jack tube.
1. Press the "RET" button on the motor switch to retract the jack and lower the trailer onto the ball. 2. After the coupler has fully engaged the ball, continue retracting the jack fully. 3. Be sure to close the coupler. 4. After full retraction, you may need to raise the drop leg. 5. Reattach the lynch pin or plunger pin assembly through both sides of the jack tube after adjusting the drop leg to the desired level.
Use the light switch labeled "ON" and "OFF" to control the LED light located under the top cover of the jack. The light can be used for visibility when operating the jack in low-light conditions.
If electric power is lost, the jack can still be operated manually. Remove the cap on top of the plastic cover. Insert the manual override crank to raise or lower the jack as needed.
No. The product must be installed and used in strict accordance with these instructions. The purchaser/owner must not alter or modify the product in any way. Failure to follow this requirement may result in product failure, property damage, serious bodily injury, and/or death.
Always replace bent, broken, or worn parts before using the product. Use only Cequent Trailer Products' parts or parts of equal quality for repair. Replacement parts are available through Cequent Trailer Products' Customer Service Department at 1-715-693-1700 or 1-800-604-9466. Please specify the product model number (F3803-00). Visit www.cequentperformanceproducts.com for additional details.
Cequent Performance Products warrants the product to the original consumer purchaser only. The warranty period is five years for Bulldog® and Reese Professional® products, and one year for Pro-Series® products. The warranty covers material defects in both material and workmanship, excluding ordinary wear and tear, provided installation and use are in accordance with product instructions. If the product does not comply with the warranty, your sole remedy is replacement without charge or refund of the purchase price. The warranty does not cover normal wear and tear, damage from abuse, neglect, misuse, accidents, misapplication, overloading, improper installation, improper maintenance, or product alterations by anyone other than the manufacturer. To make a warranty claim, contact Cequent Performance Products at 47912 Halyard Dr. Suite 100, Plymouth, MI 48170, 1-800-632-3290. You must provide the product model number and purchase receipt.
If your trailer has a weight distribution kit attached, check for any interference to avoid damage during operation. This check should be performed after the plunger pin assembly is installed (if applicable) and the jack is reattached to the trailer.
First, ensure the battery is fully charged. A low or dead battery is the most common cause of jack failure to operate. If the battery is fully charged and the jack still does not operate, check that all electrical connections are tight and free of corrosion. Verify that the black wire lead is securely connected to the positive (+) terminal of the battery and that the battery ground cable is properly reconnected. If connections are secure and the battery is charged, the built-in circuit breaker may have tripped due to an overload. Allow the system to cool and try again. If the jack still does not operate, contact Cequent Performance Products at 1-800-604-9466 for technical support.
Verify that the light switch is set to "ON". Check that the battery is fully charged, as a low battery may not provide sufficient power for the light. Ensure all electrical connections are tight and free of corrosion. If the light switch is on, the battery is charged, and connections are secure, the LED light may be defective. Contact Cequent Performance Products at 1-800-604-9466 for replacement parts or technical support.
Proper grounding requires metal-to-metal contact between the jack and the coupler. Verify that the star washers are in place between the bolt head and the top of the jack mounting bracket. Check that the mounting bolts are torqued to 15–20 ft-lbs and are not loose. If bolts are loose, tighten them to the correct torque specification. Inspect the contact surfaces between the jack and coupler for corrosion or paint that may prevent metal-to-metal contact. If corrosion is present, clean the surfaces with a wire brush or sandpaper to restore bare metal contact. Retorque the bolts after cleaning.
After tightening the clamp on the plunger pin assembly to 15–20 ft-lbs, ensure the plunger pin and drop leg operate freely. If they do not move smoothly, the clamp may be over-tightened. Loosen the clamp slightly and verify that the plunger pin passes through both sides of the jack tube. Ensure the grooves of the jack tube and plunger pin assembly are properly aligned. If the pin still does not operate freely, periodically oil the pins of the plunger pin assembly to reduce friction.
If electric power is lost during operation, the jack can still be operated manually using the manual override crank. Remove the cap on top of the plastic cover and insert the manual override crank to raise or lower the jack as needed. Once power is restored, you can resume normal electric operation. If power loss occurs frequently, check that the battery is fully charged and that all electrical connections are tight and free of corrosion. If the problem persists, contact Cequent Performance Products at 1-800-604-9466 for technical support.
