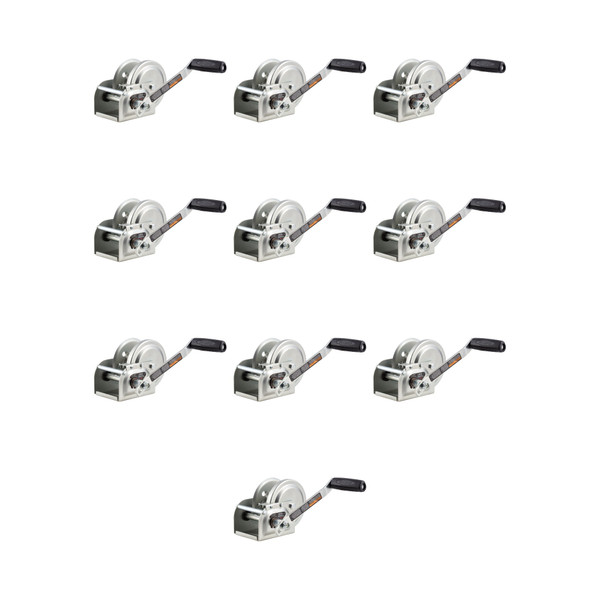

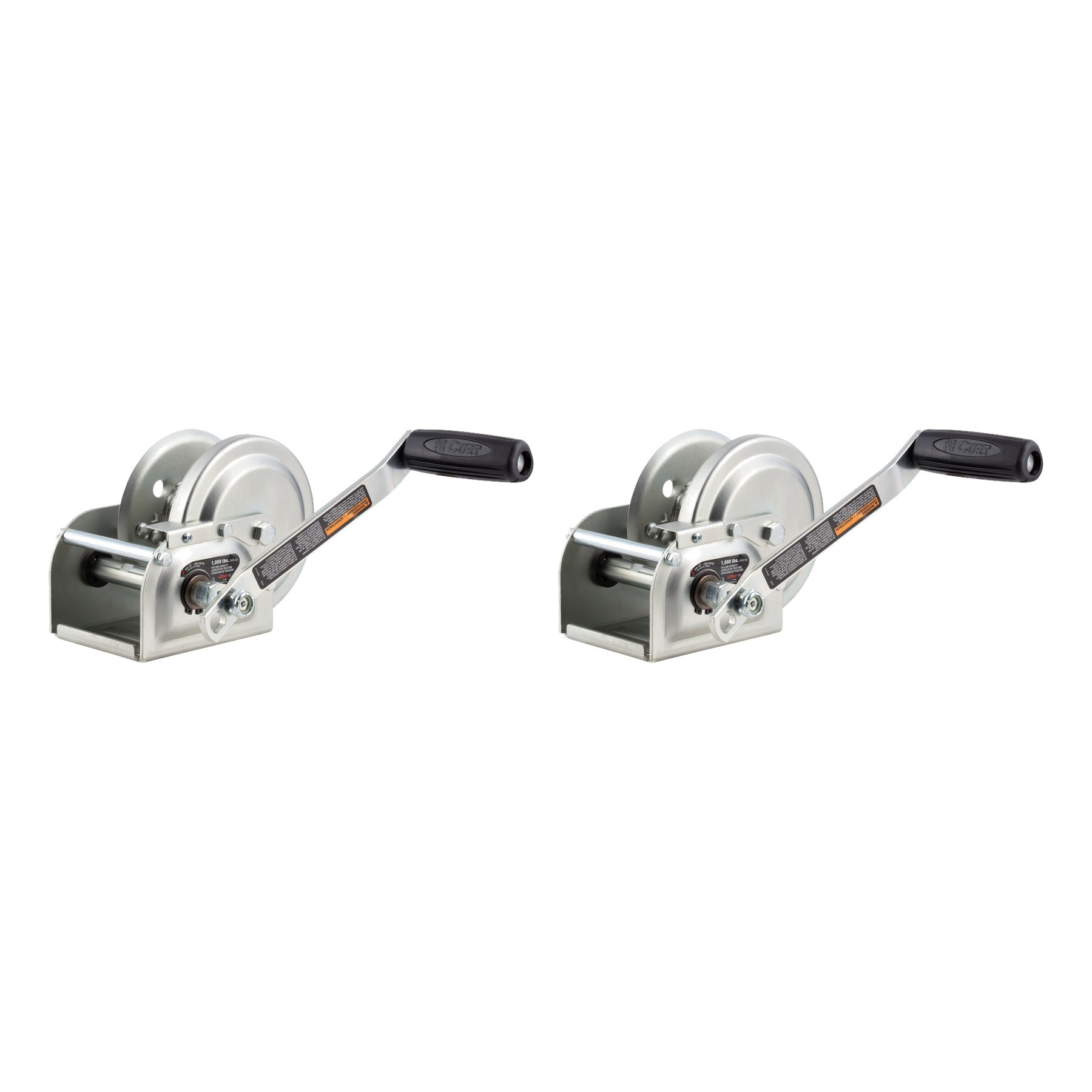

CURT Hand-Crank Brake Winch, 1,000 lbs, 4.2:1 Gear Ratio, 7" HandleCURTOriginal price was $155.95. Current price is $123.28.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
On Sale Today
Original price was $1,559.50. Current price is $1,232.80.You save $326.70 (21%)
Free Shipping
Ships free on all orders
Authorized Dealer
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Quick Ship
In stock and ready to ship — order now!
FREE ShippingFREE SHIPPING
Estimated delivery Sat, Sep 26 - Tue, Sep 29
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
Complete kit bundle containing all necessary components for your project. Professional-grade components designed for reliable performance and long-lasting durability.
Elevate your lifting and hoisting capabilities with the CURT brake winch, a versatile solution designed for various applications. Featuring universal mounting and compatibility with most DL and Fulton winches, it seamlessly integrates into any setup, whether mounted on a light tower or lifting heavy loads in agricultural, commercial or industrial environments. Crafted from high-quality, cold-forged steel with solid gears, this winch ensures durability and reliable performance. Its 600-hour salt-spray-tested zinc plating and oil-impregnated, powder-coated metal bushings promote maximum corrosion resistance and smooth operation, making it a long-lasting investment for your equipment. Engineered for enduring strength, the winch's solid construction can handle even the toughest lifting tasks, with a broached pinion shaft ensuring a secure grip for confident operation. Safety is paramount with features like a locking lever and comfort grip handle for ergonomic cranking. Whether you're in agriculture, commercial or industrial settings, this winch enhances productivity while prioritizing safety. Compatible with a range of straps and cables (not included), customization options abound to suit your specific needs. Trust in the reliability and performance of a CURT brake winch for seamless operation and peace of mind, setting a new standard in durability and longevity.
Keywords: BKDK29610-10PK bundle kit, complete kit, professional components, industrial kit, BKDK29610, CURT
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Five-years Limited
CURT offers three brake winch models with the following load capacities: model 29610 has a 1,000 lbs (453.6 kg) capacity, model 29615 has a 1,500 lbs (680.4 kg) capacity, and model 29625 has a 2,500 lbs (1,134 kg) capacity.
Yes, CURT stands behind its products with industry-leading warranties. To get copies of the product warranty, register your purchase, or provide feedback, visit warranty.curtgroup.com/surveys.
The manual describes mounting the winch to a winch stand and notes that the winch base must be properly bolted to a structure or vehicle that can hold both the winch and the winch load. The winch stand must be strong enough to support at least 5 times the rated capacity of the winch, and the mounting surface must be equal to or larger than the footprint of the winch frame. Specific vehicle compatibility is not detailed in the manual.
To secure the winch to the mounting location, you will need three grade 5, 3/8" diameter bolts, three lock washers, six flat washers, and three nuts. This hardware is not included with the winch and must be supplied separately.
The following tools are required: ratchet, 9/16" socket, 9/16" wrench, 3/4" socket, and 10mm socket.
Prior to operating the winch, secure the handle to the input shaft. The manual does not provide detailed steps for this installation; refer to the product support line at 877.287.8634 or visit curtmfg.com for a full-color copy of the instruction manual and helpful videos.
To install the cable: (1) Insert the end of the steel cable through the drum flange hole from the inside of the drum to the outside. (2) Wrap the cable around the drum shaft once, feeding the cable under itself. (3) Secure the cable to the drum by feeding the end of the cable through the cable anchor. The end of the cable should be sticking through the anchor a minimum of 1 inch. (4) Torque the cable anchor nylon nuts to 2 ft-lbs.
To secure the winch: (1) Place the lock washer, then a flat washer on the bolt. (2) Place the bolt through the mounting hole on the winch. (3) Add one more flat washer and secure with a nut. Use three grade 5, 3/8" diameter bolts with three lock washers, six flat washers total, and three nuts.
The cable anchor nylon nuts should be torqued to 2 ft-lbs.
Always leave at least five wraps of cable on the drum. Failure to do so may break the cable connection to the drum and could result in serious injury.
Be sure to have a minimum of 50 lbs (22 kg) of load when operating the brake winch.
To wind the cable in, rotate the handle clockwise. To wind the cable out, rotate the handle counter-clockwise. The brake winch is designed to hold the load in place when the handle is released.
Use eye and hand protection. Wear impact safety glasses and heavy duty work gloves when using the winch. Do not wear loose clothing or jewelry that can be caught in moving parts. Wear protective hair covering to prevent long hair from becoming caught. If wearing a long sleeve shirt, roll the sleeves up to the elbows.
No. Never use a hand winch for lifting equipment or humans.
After moving an object with the winch, secure the object. Do not rely on the winch to hold an object for an extended period of time.
Stand back and stay out of the direct line that the winch cable is pulling. In the event the winch cable slips or breaks, it will 'whip-lash' along this line. Do not use any attachments to extend the length of the winch cable. Check the cable before each use for signs of wear. If the cable shows signs of wear, replace it immediately.
Always maintain a firm grip on the winch handle and do not release the handle until the ratchet pawl is properly engaged. Release the handle slowly to be sure that the ratchet lever is fully supporting the load.
Check the cable for wear and replace damaged cable immediately. Apply oil to the input shaft, bushings, and drum hub, and grease all gears regularly. Do not grease or oil the friction pad.
Check for damaged parts and any other conditions that may affect operation of the winch. Carefully check that it will operate properly and perform its intended function. Replace or repair damaged or worn parts immediately. Always verify the cable hook is properly engaged to the load prior to operating the winch.
Verify that the winch is properly secured to the winch mount and the winch handle is properly secured to the winch input shaft.
The winch stand must be strong enough to support at least 5 times the rated capacity of the winch. The mounting surface must be equal to or larger than the footprint of the winch frame. The winch base must be properly bolted to a structure or vehicle that can hold both the winch and the winch load. Failure to properly bolt down the winch can result in personal injury and/or property damage.
Three models: 29610 (1,000 lbs), 29615 (1,500 lbs), and 29625 (2,500 lbs).
Three grade 5, 3/8" diameter bolts, three lock washers, six flat washers, and three nuts (not included with the winch).
Torque the cable anchor nylon nuts to 2 ft-lbs.
Check cable for wear before each use and replace if damaged. Apply oil to the input shaft, bushings, and drum hub, and grease all gears regularly. Do not grease or oil the friction pad.
No reviews have been added for this product.
