Warranty: One-Year Limited Warranty
Finish: Blank
Installation Time Exact (Minutes): 0
In our goal of being your best source for all things towing, the CURT line of trailer jacks is designed with care and manufactured with pride. CURT jacks are made with quality to promote the life and function of your trailer, and they come in several different styles to accommodate your needs, whether you are a frequenter of the boat landing, the campground, the racetrack or the farm. This replacement lifting nut is intended fit the CURT direct-weld square jack #28512. It is threaded lifting nut with a grease retaining structure for fluid movement.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
The vertical load capacity is 12,000 lbs.
You will need a ratchet, socket set, hammer, and punch.

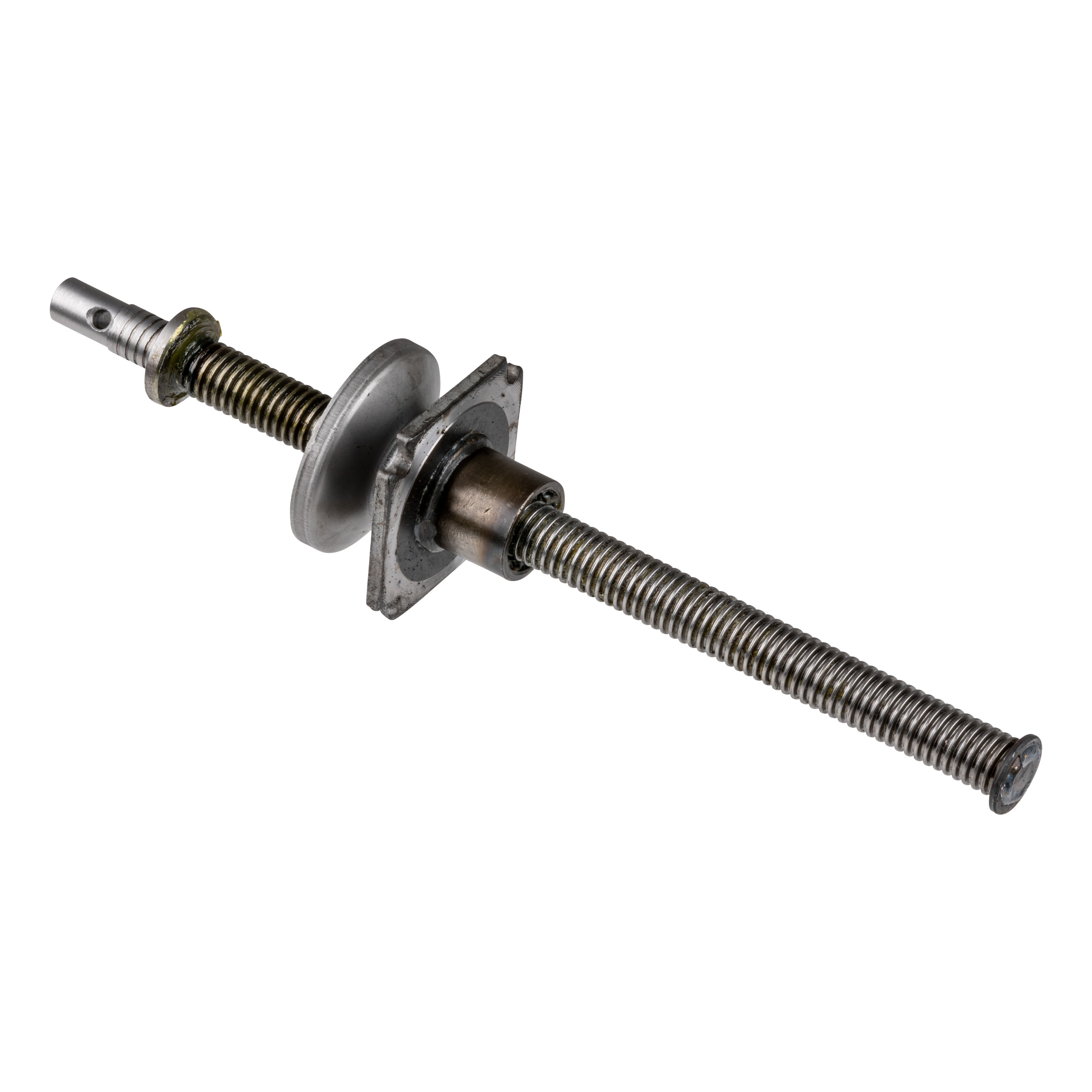

The kit includes one acme threaded rod and one rod coupling nut. These components are assembled into the lower jack assembly during installation.
Never exceed the vehicle manufacturer's recommended towing capacity, as this may result in separation, damage to the 5th wheel hitch, vehicle, trailer, and/or cause serious injury or death. Additionally, never position yourself or others under the trailer's kingpin area during coupling and uncoupling, as improperly coupled trailers can separate and drop without notice. Do not expose hands, body parts or clothing anywhere between the truck and trailer.

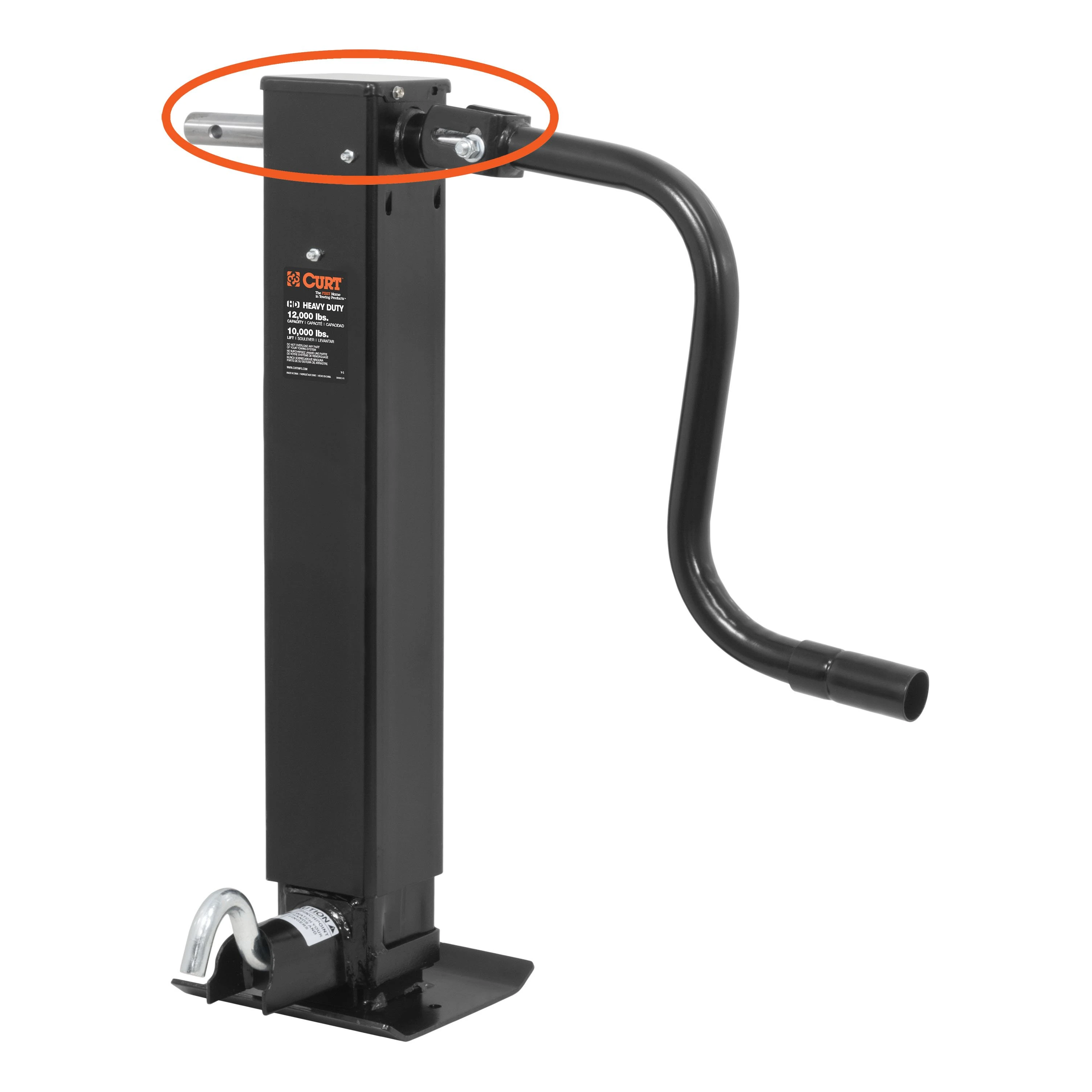

Remove the two fasteners securing the top cover to the jack assembly. Set the fasteners and cover aside for reinstallation.
After removing the top cover, use a rag to wipe away excess grease. Using a hammer and punch, remove the retaining pin securing the handle to the assembly. With the pin removed, pull the handle out and set it aside.
You must remove: the top cover and its two fasteners, the handle retaining pin and handle, the handle shaft and top gear, both handle bushings, the large gear and its retaining pin, and finally the outer housing of the jack to expose the four lock nuts securing the acme threaded rod and rod nut.
Insert the 19284 acme threaded rod (#1) and rod nut (#2) assembly into the lower jack assembly, then reassemble the jack by reversing steps 1 through 6 in reverse order. This means reinstalling the outer housing, large gear and retaining pin, handle bushings, handle and retaining pin, handle shaft and top gear, and finally the top cover with its two fasteners.
Wax the product after installing to protect it. Regular waxing is recommended to add a protective layer over the finish. Do not use any type of polish or wax that may contain abrasives. For cleaning, use only mild automotive detergent. Do not use dish detergent, abrasive cleaners, abrasive pads, wire brushes or similar products that may damage the finish.
The installation difficulty level is Moderate. Installation difficulty levels are based on time and effort involved and may vary depending on the installer's level of expertise, condition of the vehicle, and proper tools and equipment.
