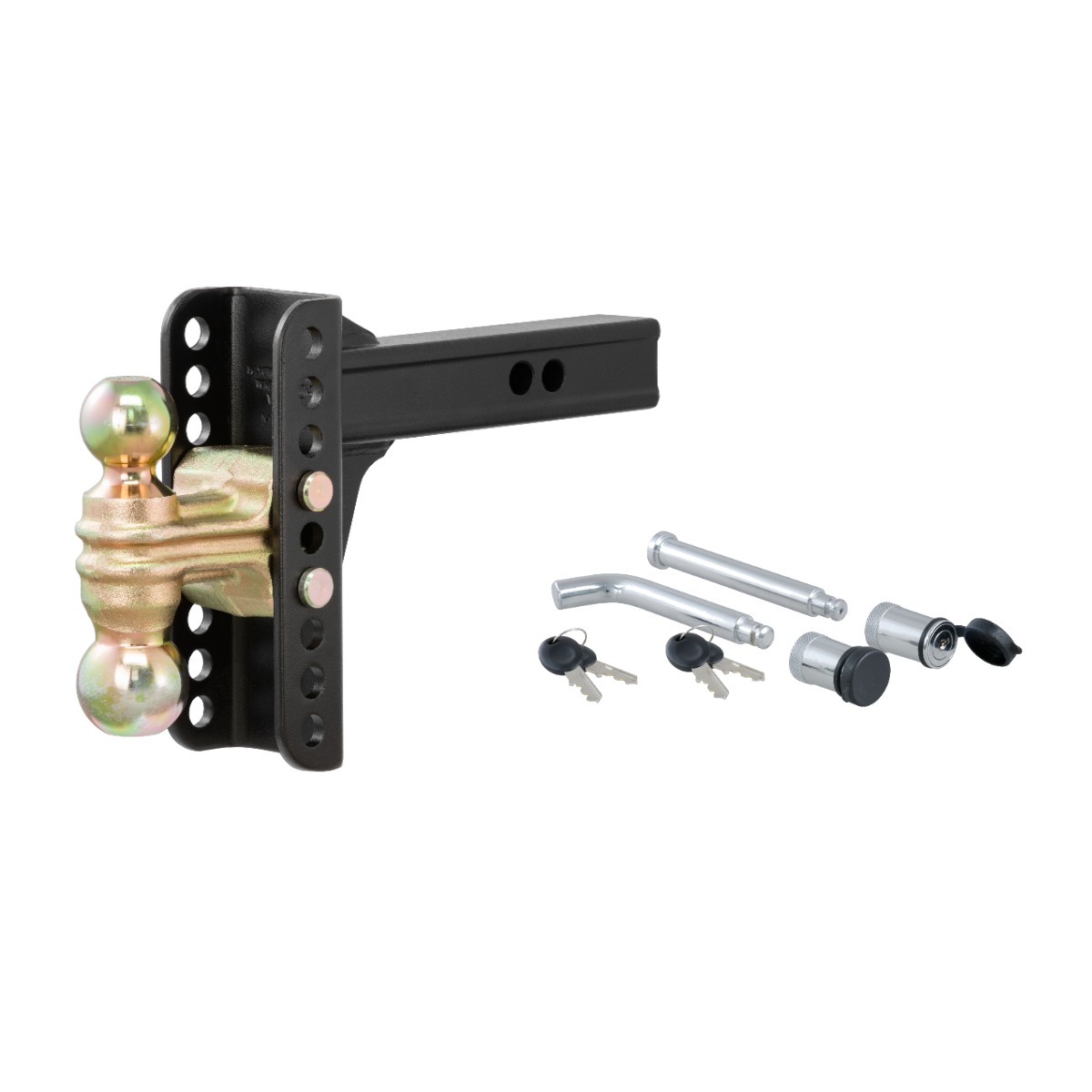

Complete 2-piece bundle kit containing all necessary components for your project. Professional-grade components designed for reliable performance and long-lasting durability.

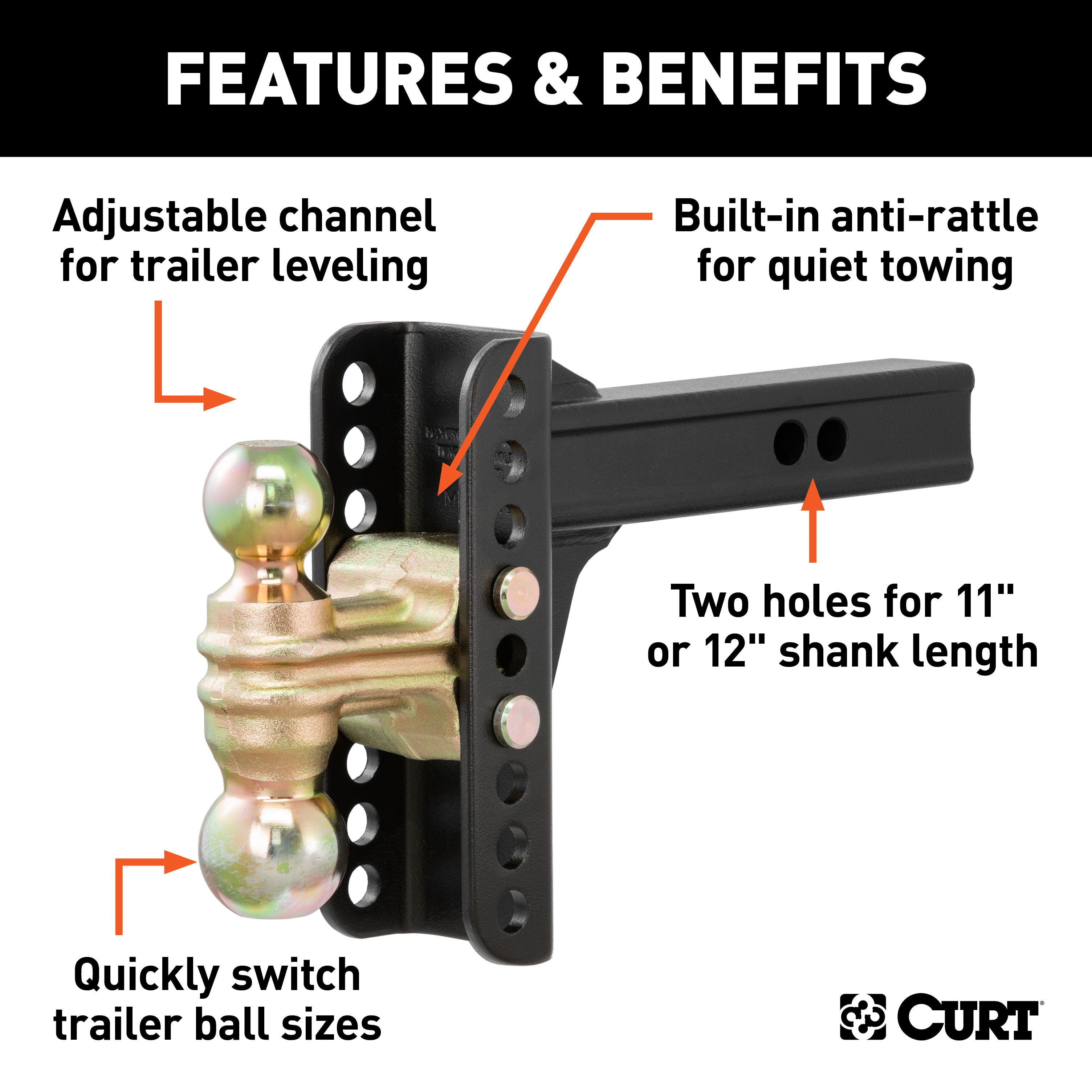

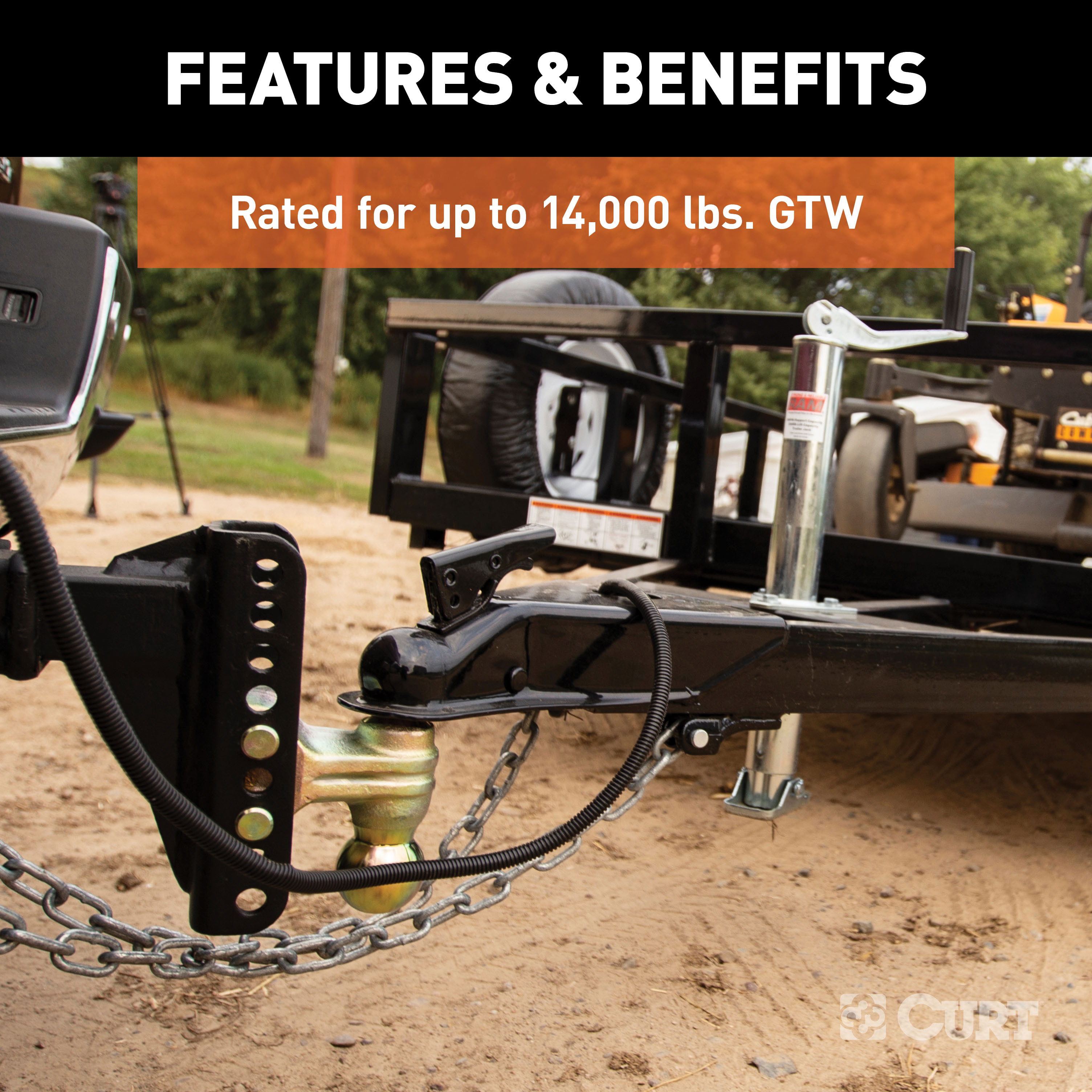

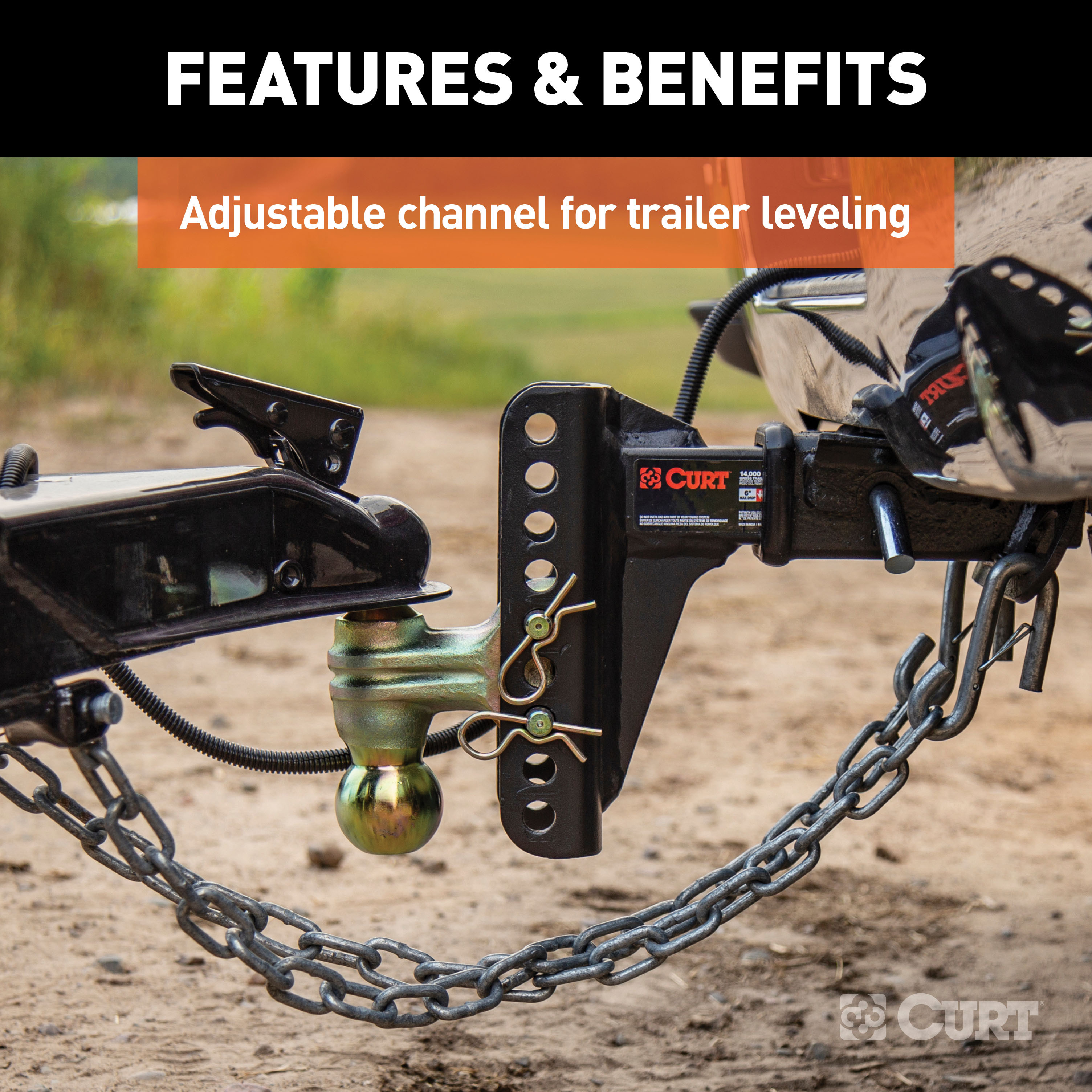

If you own multiple trailers or frequently tow a variety of loads, you know how much time and money are spent tailoring your towing system to each and every individual trailer. There is nothing more inconvenient than switching back and forth between a few different ball mounts and trying to remember which mount fits with which trailer. A CURT adjustable ball mount is your multipurpose towing solution. This CURT adjustable channel-style ball mount has a shank size of 2" x 2" and features two different trailer ball sizes to accommodate two different coupler sizes: 2" and 2-5/16". It also features an adjustable shank assembly with multiple mounting holes for varying ball heights. Each trailer ball can be raised to a maximum of 5-1/4" rise or lowered to a maximum of 6" drop, allowing you to make your trailer completely level in any towing situation. The channel-style design and dual-pin mounting system also provide a built-in anti-rattle feature to eliminate obnoxious chucking noises. This CURT adjustable ball mount offers a gross trailer weight capacity of up to 10,000 lbs. for the 2" ball and 14,000 lbs. for the 2-5/16" ball. It allows you to tow a variety of heavyweight trailers, and it features two pin holes in the shank to be mounted at an 11" or 12" length. The adjustable channel-style shank can also be used with the channel-style combination pintle mount or ball mount platform attachment to give you the option of installing your own trailer ball size. All CURT channel-style adjustable ball mounts are made with sturdy steel construction and come with our black carbide powder coat finish for long-lasting rust, scratch and UV resistance.
| Ball 1 Diameter and Capacity | 2 IN - 10,000 LB |
| Ball 2 Diameter and Capacity | 2-5/16 IN - 14,000 LB |
| Ball Diameter | 2 IN or 2-5/16 IN |
| Finish | CARBIDE BLACK POWDER COAT |
| Gross Trailer Weight (GTW) | 14,000 LB |
| Material | Blank |
| Max Drop | 6 IN |
| Max Rise | 5-1/4 IN |
| Mount Type Description | Blank |
| Receiver Tube Size | 2 IN |
| Shank Length | 11 IN or 12 IN |
| Side Application Type Description | Blank |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |

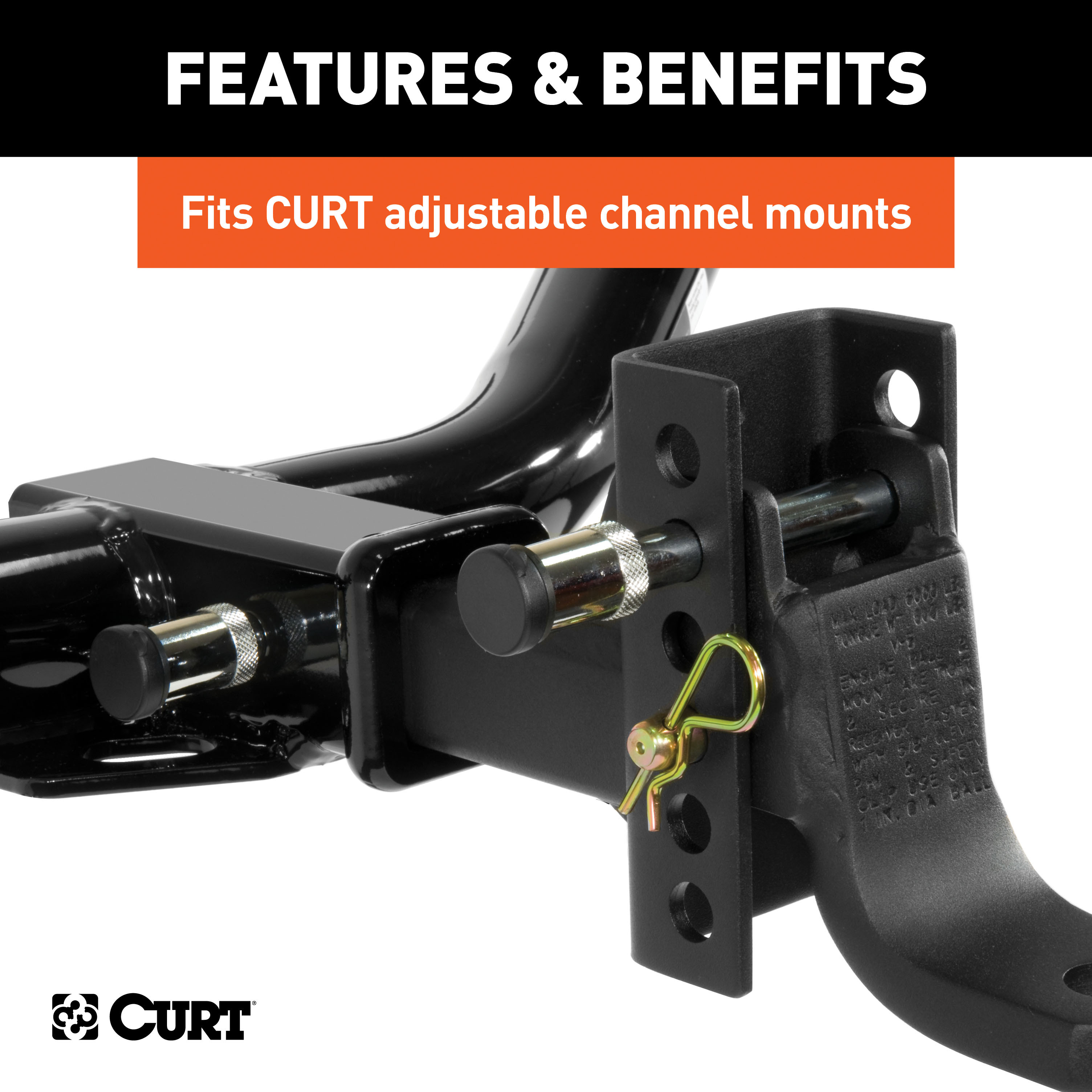

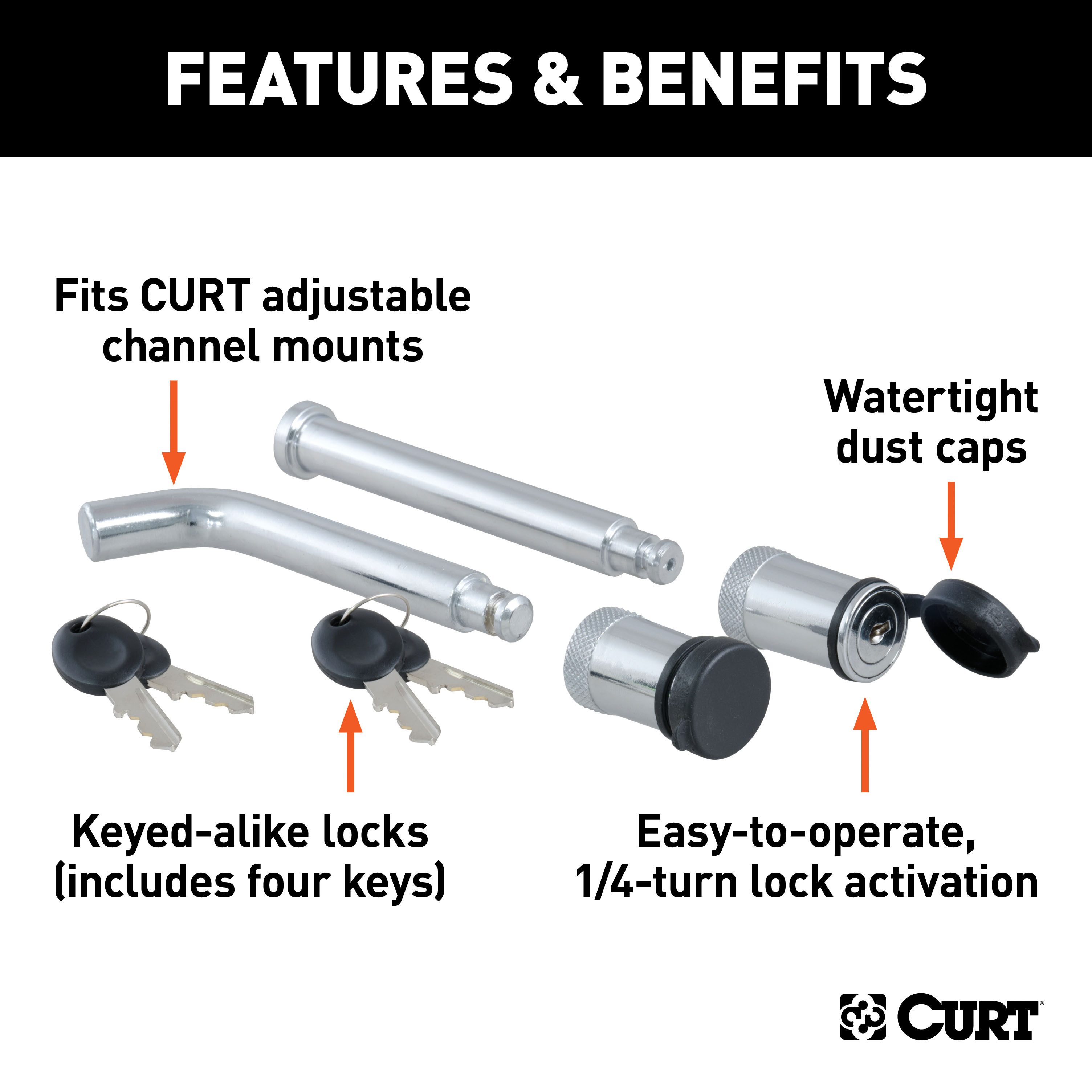

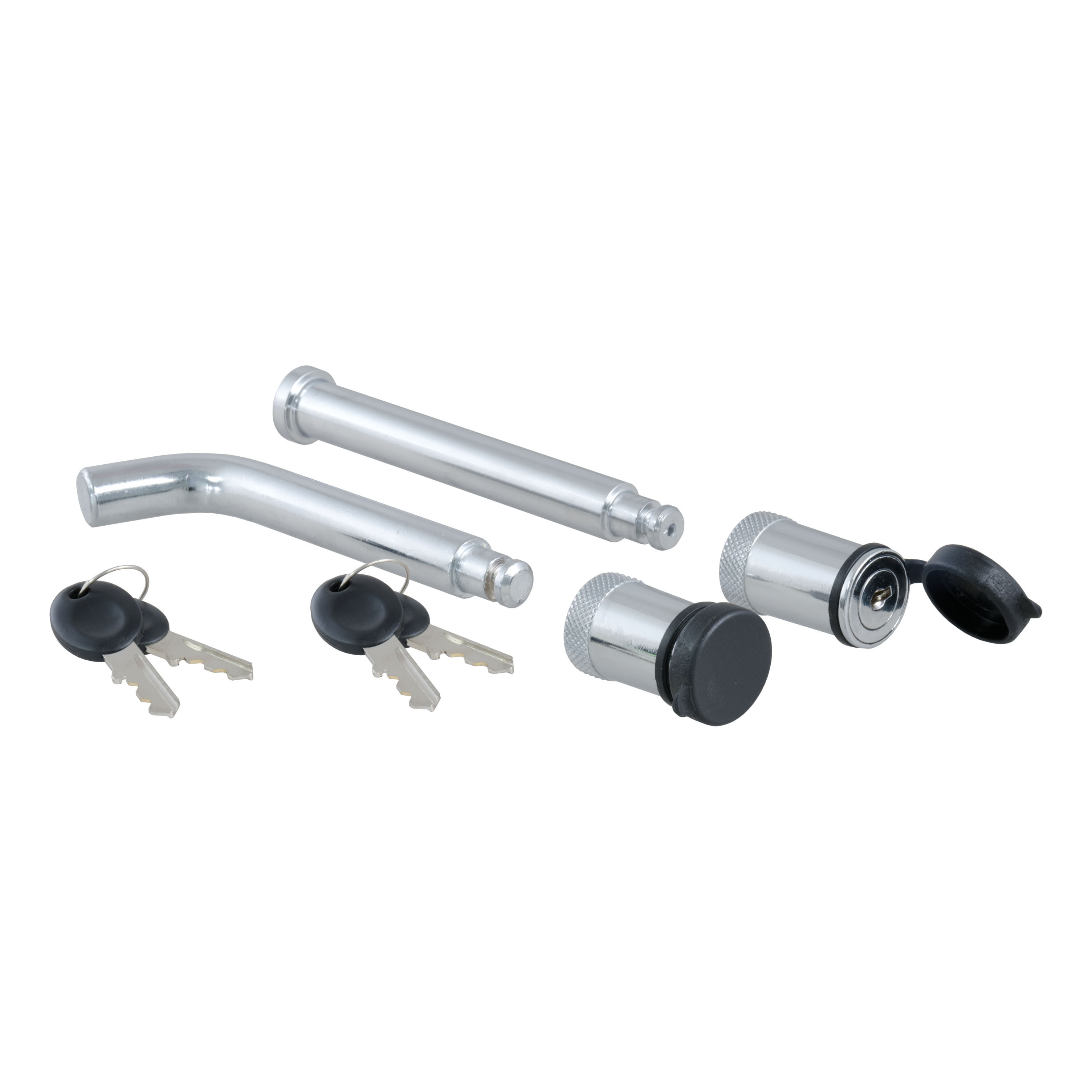

If you own multiple trailers or frequently tow a variety of loads, you know how much time and money are spent tailoring your towing system to each and every individual trailer. There is nothing more inconvenient than switching back and forth between a few different ball mounts and trying to remember which mount fits with which trailer. A CURT adjustable ball mount is your multipurpose towing solution. This CURT channel mount uses a shank with multiple mounting holes to allow for easy height adjustment. A variety of attachments -- including a two-sided trailer ball, a ball mount tongue and ball and pintle combinations -- can be mounted in the channel to accommodate a variety of towing situations. This lock set adds security and peace of mind to your towing setup, allowing you to replace one of the pins in the channel mount with a key-operated lock. The locks are similar to the style of our hitch locks and feature a zinc finish and dust caps to ensure lasting use. The locks are keyed alike and can be used on any CURT adjustable channel mounts. Four keys are included in this package.
| Finish | Chrome |
| Material | Blank |
| Mount Type Description | Blank |
| Side Application Type Description | Blank |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
All components included for your project needs
All genuine parts with manufacturer warranty
Bundle pricing saves money versus individual purchases
Matching specifications eliminate fitment issues
One-stop solution reduces ordering complexity
All components tested for compatibility
| Bundle Type | Complete 2-Piece Bundle Kit |
| Components | 2 Professional Grade Parts |
| Brand | CURT |
| Warranty | Manufacturer Warranty Included |
| Condition | Brand New |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494The CURT 45900 is a dual ball mount that installs into a vehicle's trailer hitch receiver. It allows you to tow trailers with either a 2" or 2-5/16" ball coupler. The mount has a built-in anti-rattle feature to keep your towing system quiet.
The weight capacity with a 2" ball is 10,000 lbs gross trailer weight (GTW).
The weight capacity with a 2-5/16" ball is 14,000 lbs gross trailer weight (GTW).
No tools are required. The installation uses only the included hitch pin, clips, and channel pins.
The kit includes: 1 channel mount, 1 dual ball, 2 channel pins, 2 channel clips, and 1 hitch pin with clip.
No. Never hook trailer safety chains to the mount system. Ensure the safety chains operate freely around the mount system and do not become entangled.
Never exceed the vehicle manufacturer's recommended towing capacity. The ratings of the mount system represent the product's capability but do not reflect the ratings of your complete towing system. You must never exceed the limits of the lowest-rated component in your towing system.
Yes. The channel mount has a built-in anti-rattle feature located on the back of the dual ball to keep your towing system quiet.
The manual does not specify receiver tube sizes or vehicle compatibility. Contact CURT at 877-287-8634 or consult a fitment database to confirm the 45900 is compatible with your vehicle's receiver.
Insert the channel mount (#1) into the trailer hitch receiver and secure it with the hitch pin and clip (#5). This is Step 1 of the installation.
Level the trailer and measure from the bottom of the trailer tongue to the ground. Find the hole on the channel mount (#1) closest to that measurement. The top pin of the dual ball (#2) will go in that hole. Secure all pins (#3) with the included clips (#4).
The two channel pins (#3) secure the dual ball (#2) to the channel mount (#1) at the height determined by your trailer's tongue measurement. They are secured in place with the included channel clips (#4).
The two channel clips (#4) secure the channel pins (#3) in place after you have inserted them into the channel mount at the correct ball height.
No. Use of any pin other than that of the mount system manufacturer could be a serious safety hazard and will void the warranty. If replacement pins are needed, they must be replaced with original factory mount pins (CURT# 45925).
Replacement pins must be original factory mount pins (CURT# 45925). Contact CURT at 877-287-8634 or visit curtmfg.com to order.
Yes. You must level the trailer before measuring for the correct ball height. This ensures an accurate measurement from the bottom of the trailer tongue to the ground.
The installation is rated as Easy. No tools are required, and the process involves inserting the channel mount into the receiver, measuring the correct ball height, and securing the pins with clips.
Yes. CURT Group stands behind its products with industry-leading warranties. Register your purchase at warranty.curtgroup.com/surveys to provide feedback and ensure your warranty coverage.
Read all instructions thoroughly before you begin installation.
