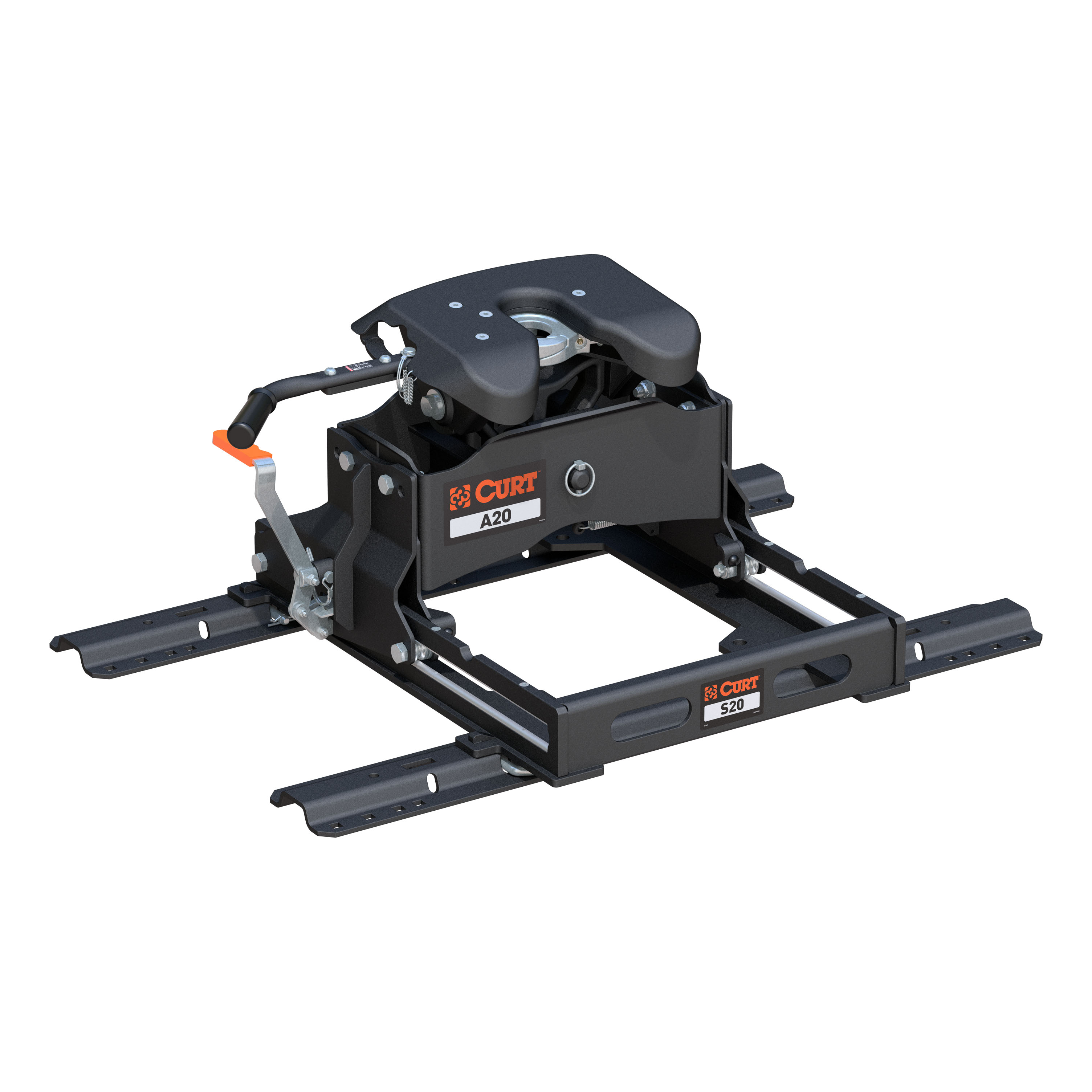

CURT 20K, A20 Sliding 5th Wheel Hitch with Rails, 20,000 lbs.

Name: CURT 20K, A20 Sliding 5th Wheel Hitch with Rails, 20,000 lbs.
Brand: CURT
SKU: BKDK16631
Price: 1416.95 USD
Availability: InStock

Custom Fit Brackets

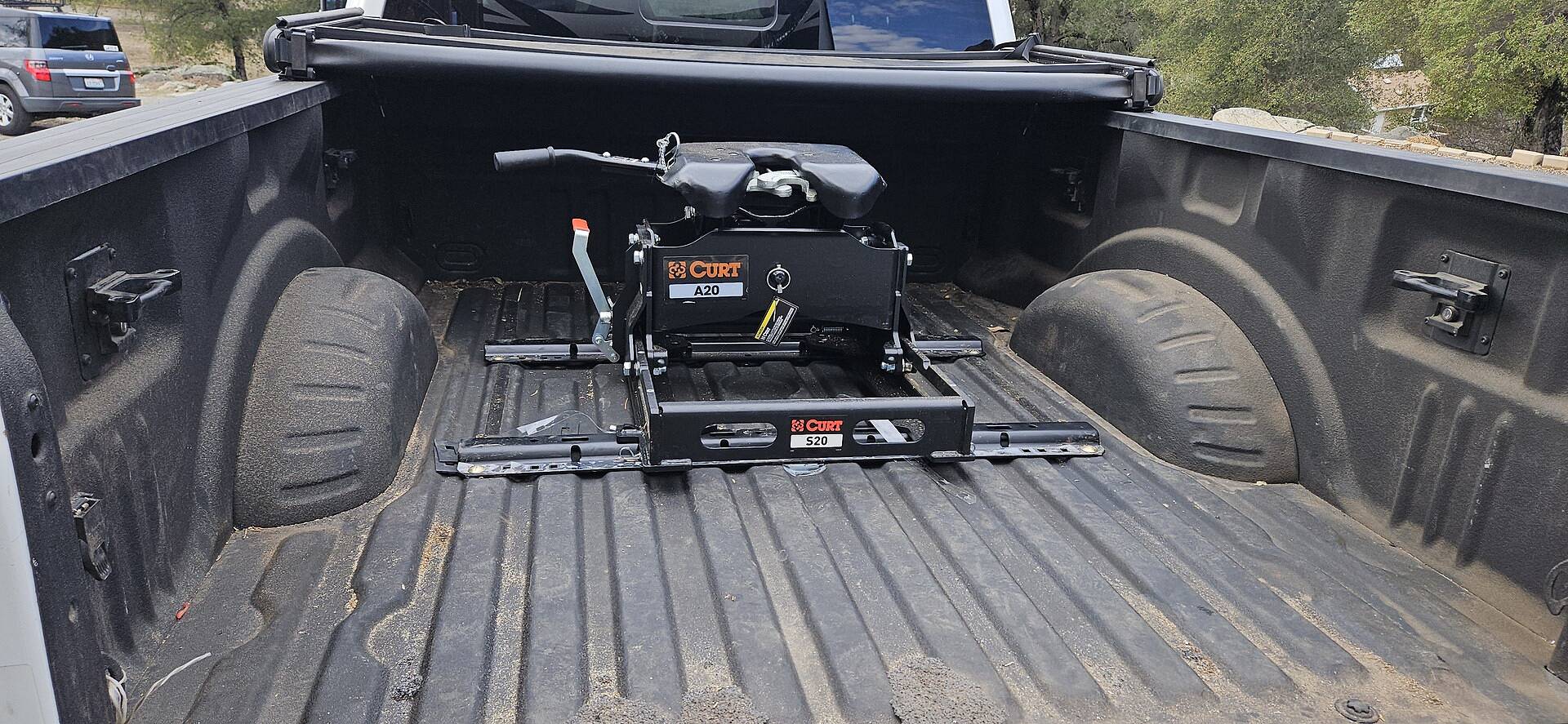

This hitch and rail kit fits any truck, but the mounting brackets that bolt the rails to your frame are vehicle-specific. Select your vehicle to find the custom-fit bracket kit for an easy, no-drill installation.

Ask a Question About This Product

Our in-house experts typically reply within one business day.

Related products

Shop all

CURT 20K, A20 Sliding 5th Wheel Hitch, 20,000 lbs.CURT In Stock

CURT 20K, A20 5th Wheel Hitch with Rails CURT In Stock

CURT 20K, A20 5th Wheel Slider Hitch with Base Rails for Short Bed Trucks, 20,000 lbs 16641CURT Out of Stock

CURT 20K, A20 5th Wheel HitchCURT In Stock

CURT 20K, A20 5th Wheel Slider Hitch for Short Bed Trucks, 20,000 lbs 16541CURT In Stock

CURT 16631 A20 5th Wheel Slider Hitch with Base Rails for Short Bed Trucks, 20,000 lbs

Installation Instructions

View Instructions

Notes

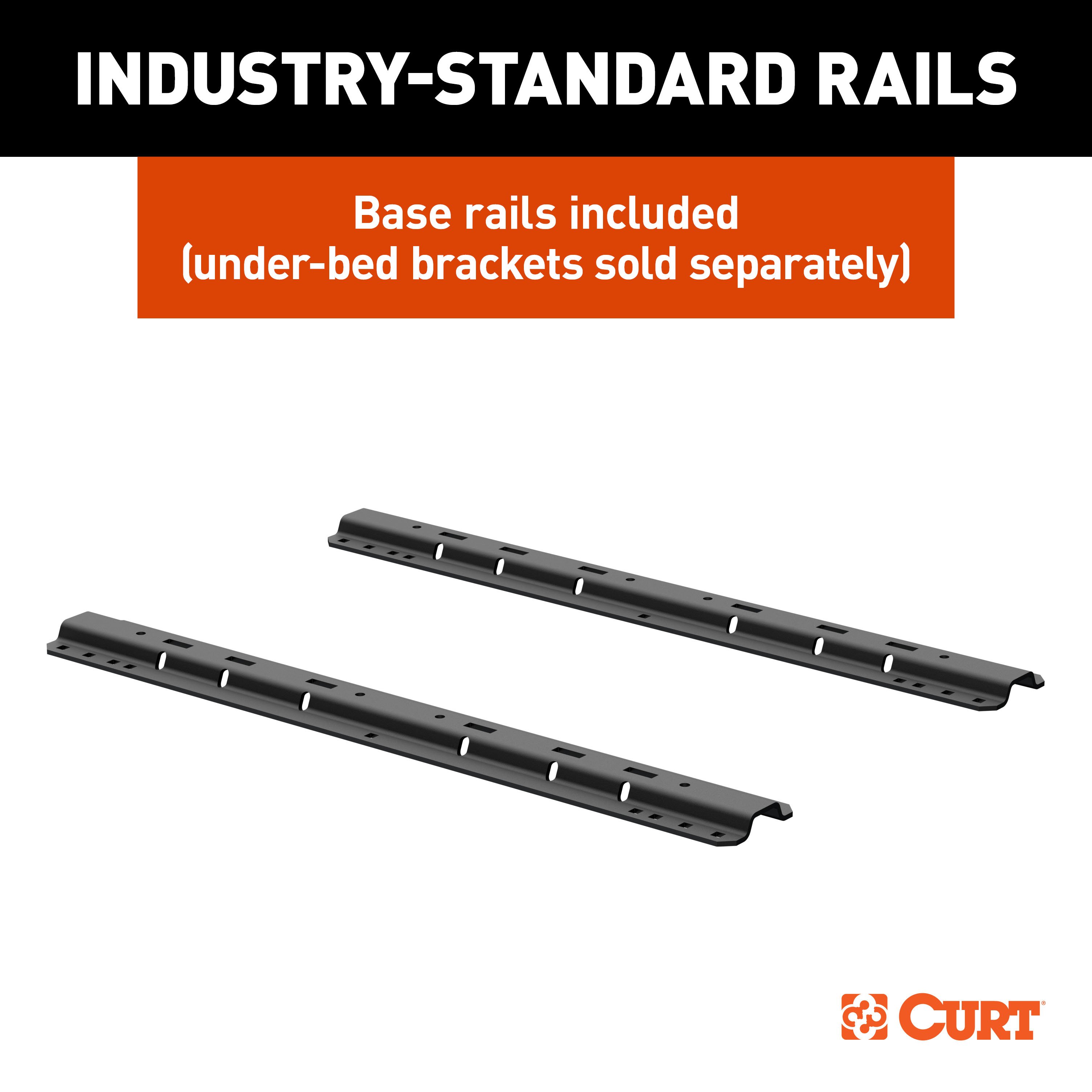

Includes A20 5th wheel hitch head #16540, S20 slider #16564, base rails #16204 and hardware
Each truck-trailer configuration is different. Be sure to review each configuration and always ensure adequate trailer-to-cab clearance when maneuvering. Capacity limited to lowest-rated towing component
Slider not compatible with X5 adapters

Includes A20 5th wheel hitch head #16540, S20 slider #16564, base rails #16204 and hardware

Features

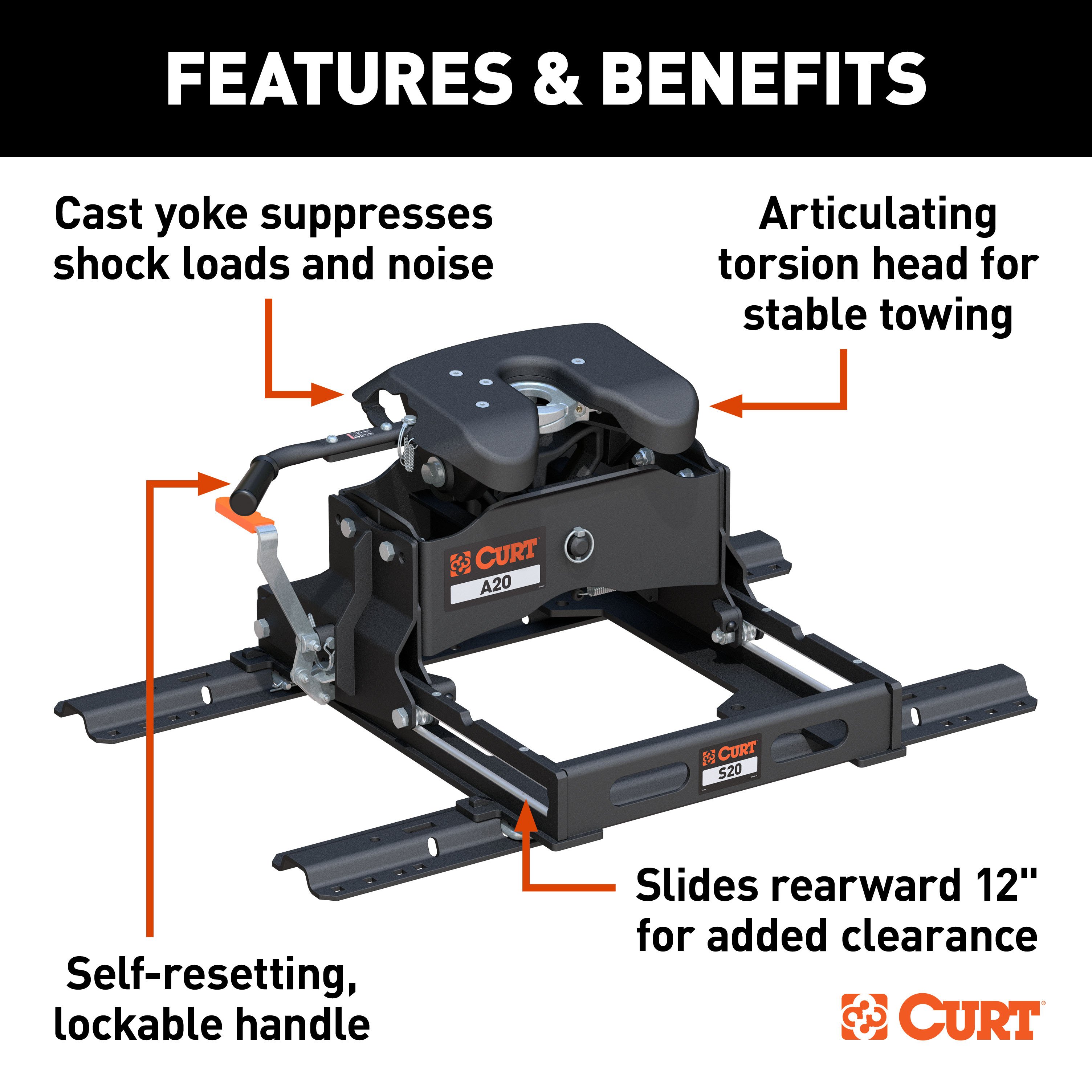

Cast yoke with poly-torsion inserts to suppress shock loads and reduce noise

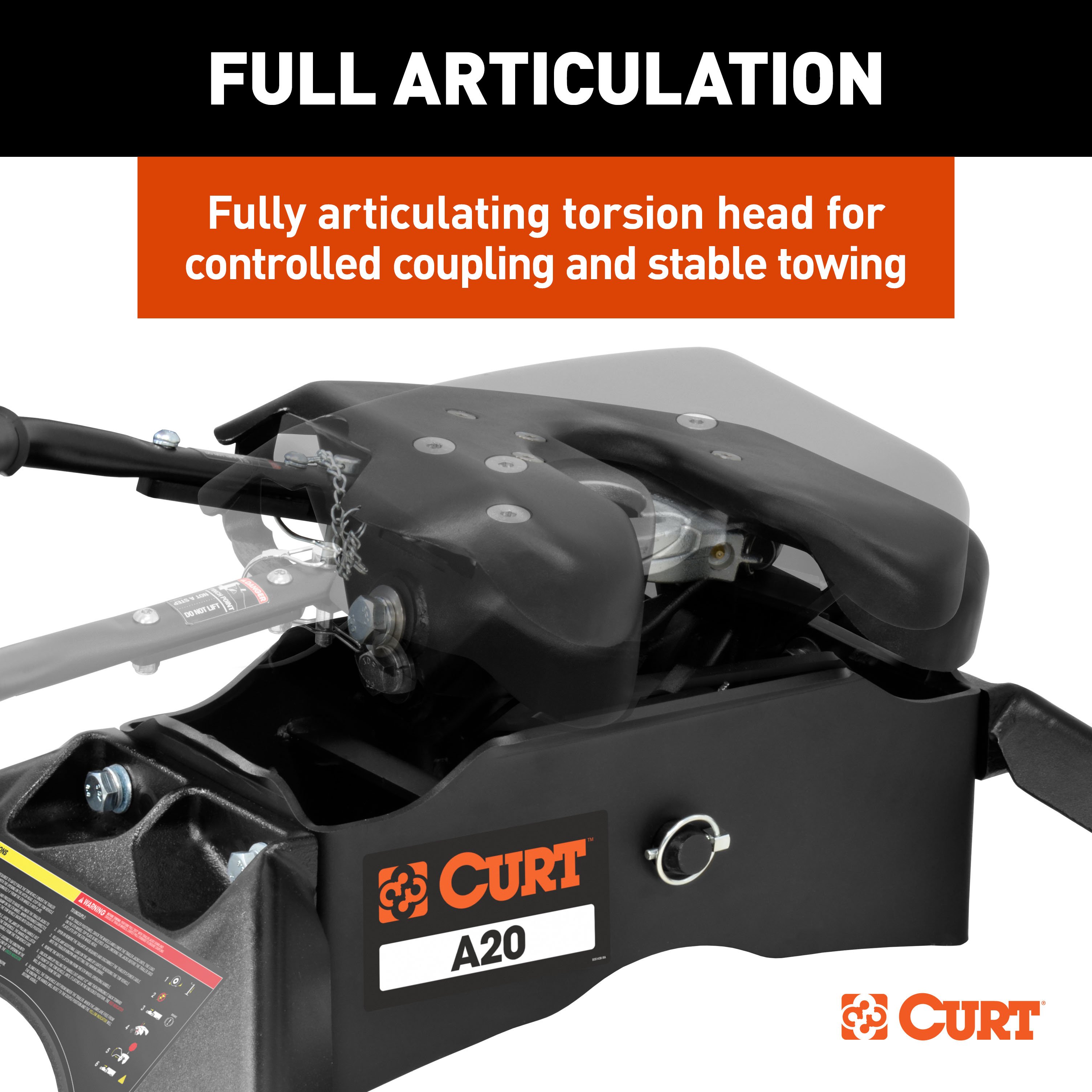

Fully articulating torsion head for controlled coupling and stable towing

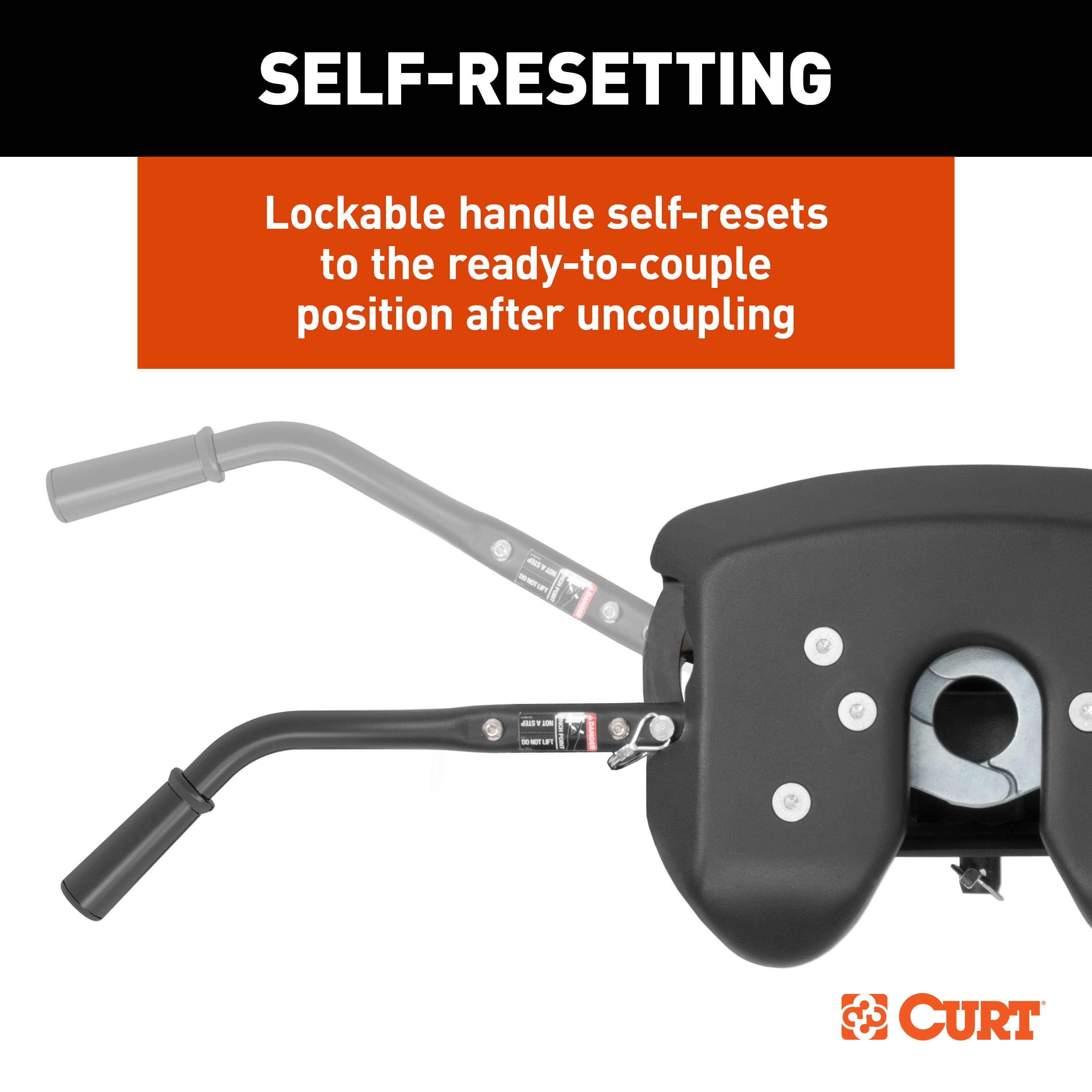

Lockable handle self-resets to the ready-to-couple position after uncoupling
High-strength, interlocking jaws fully wrap the kingpin to minimize noise
Extra wide head opening for easier coupling
Fast, one-pin head removal makes moving easy with smaller, lighter pieces

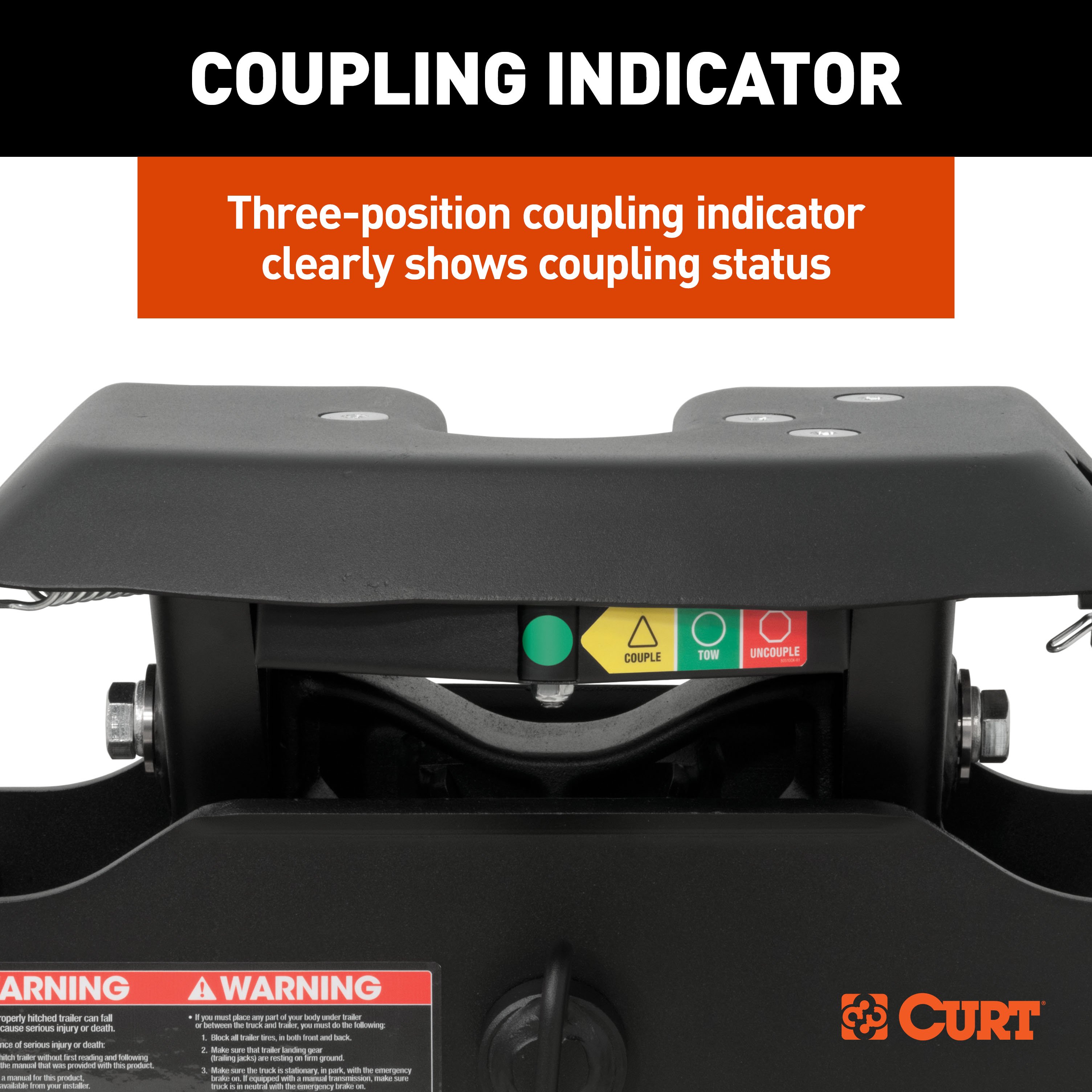

Three-position coupling indicator clearly shows coupling status
S20 5th wheel slider #16564 provides 12" of travel in the truck bed

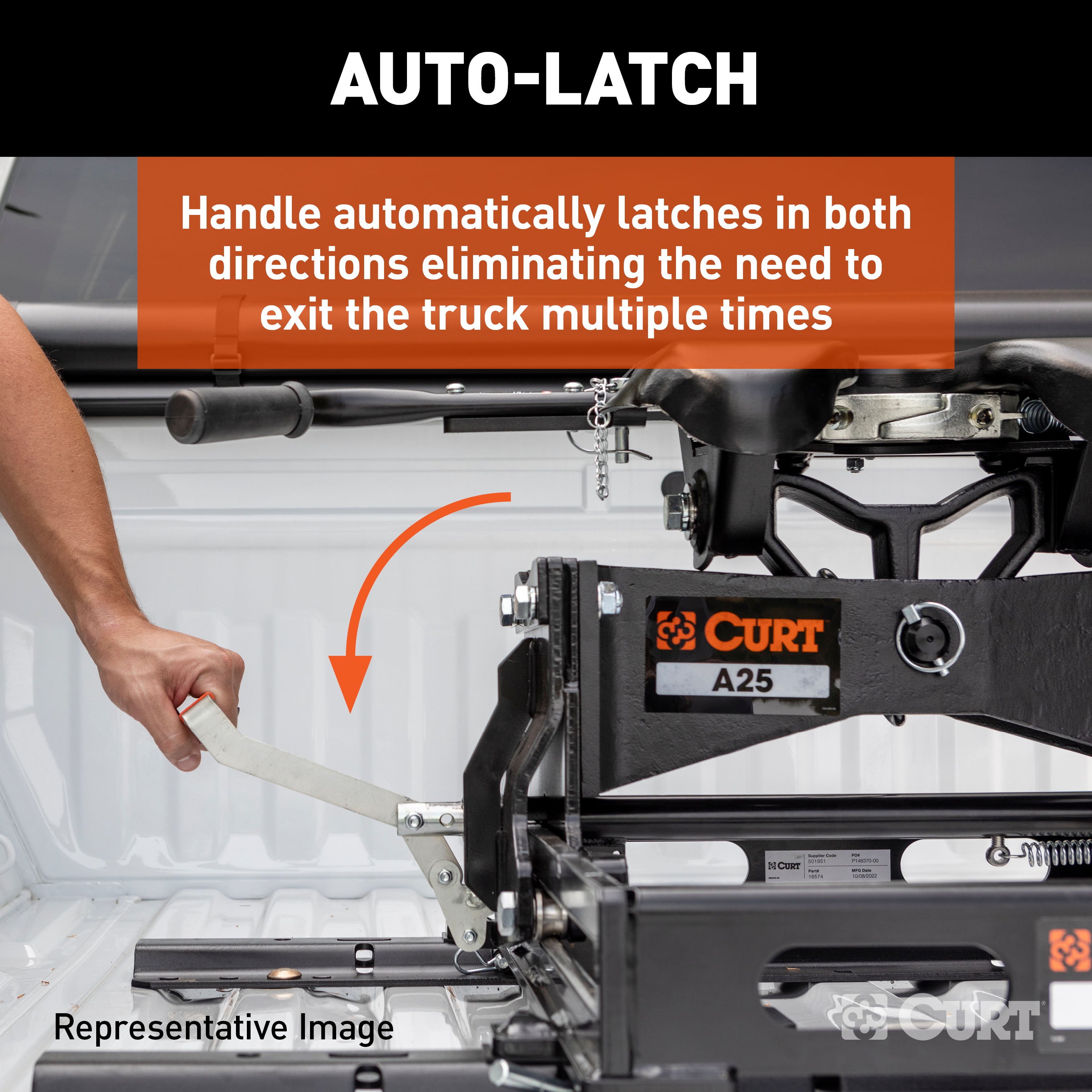

Automatically latches in both directions so you only have to exit the truck once
Compatible with kingpin extension boxes, including common pivoting pin boxes
Offers three height adjustment positions to adapt to each unique truck bed
Includes a polyethylene lube plate to eliminate messy grease deposits
Tested for safety in accordance with SAE J2638
Protected by a highly durable carbide powder coat finish
Limited lifetime warranty (one-year finish, one-year parts)
Patent# 8,827,298

Specifications

Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Finish: CARBIDE BLACK POWDER COAT
Gross Trailer Weight (Pounds): 20,000 LB
Installation Time Exact (Minutes): 0

Description

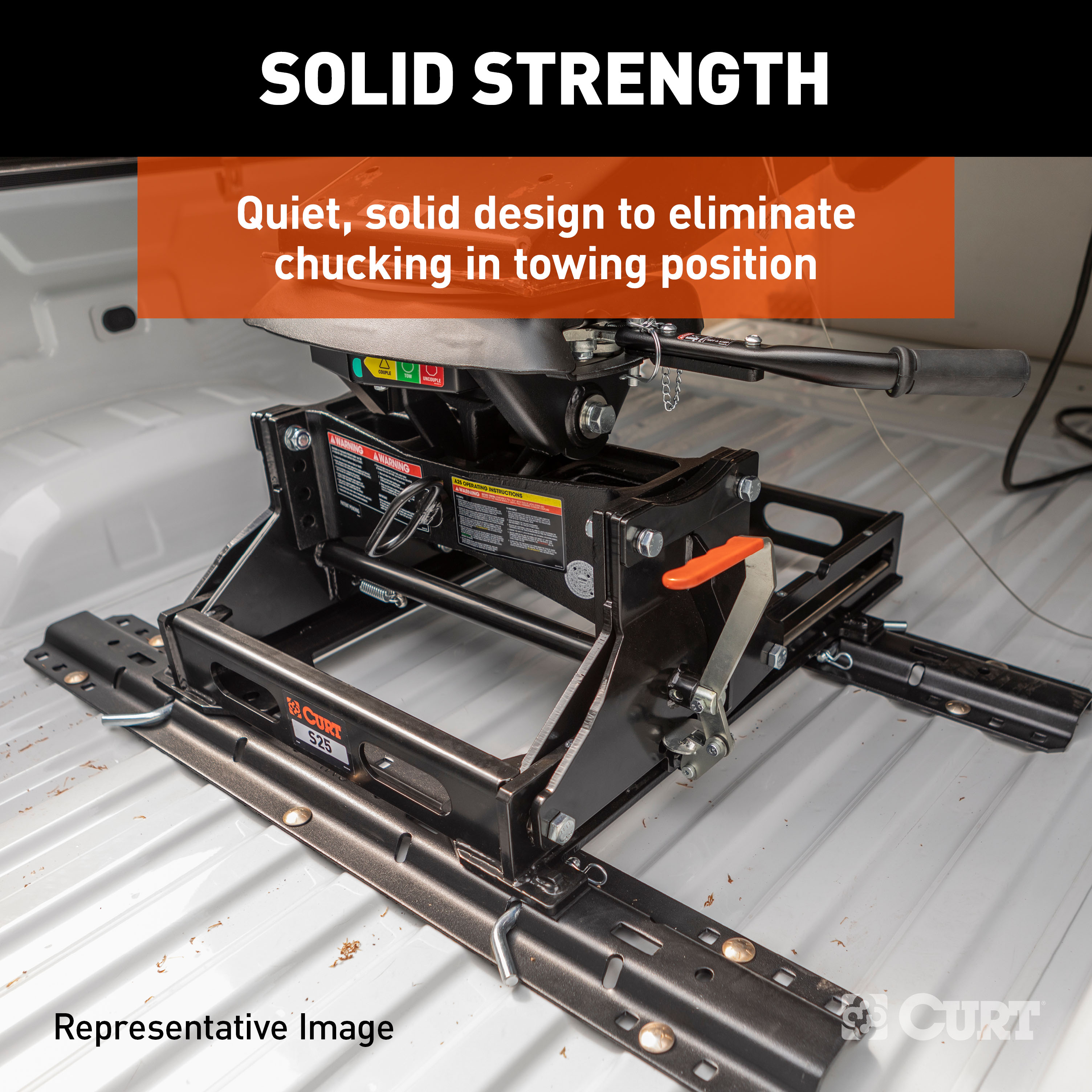

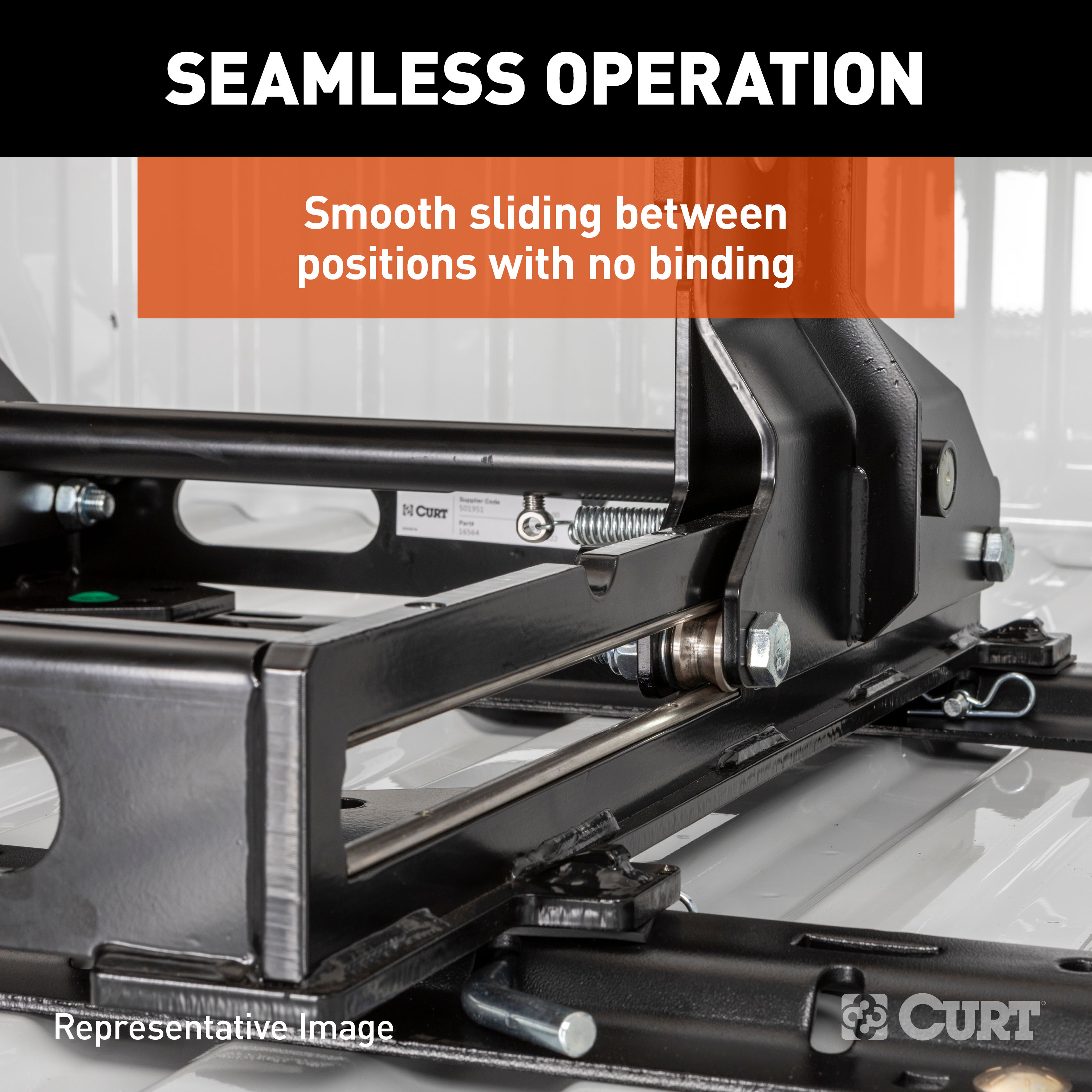

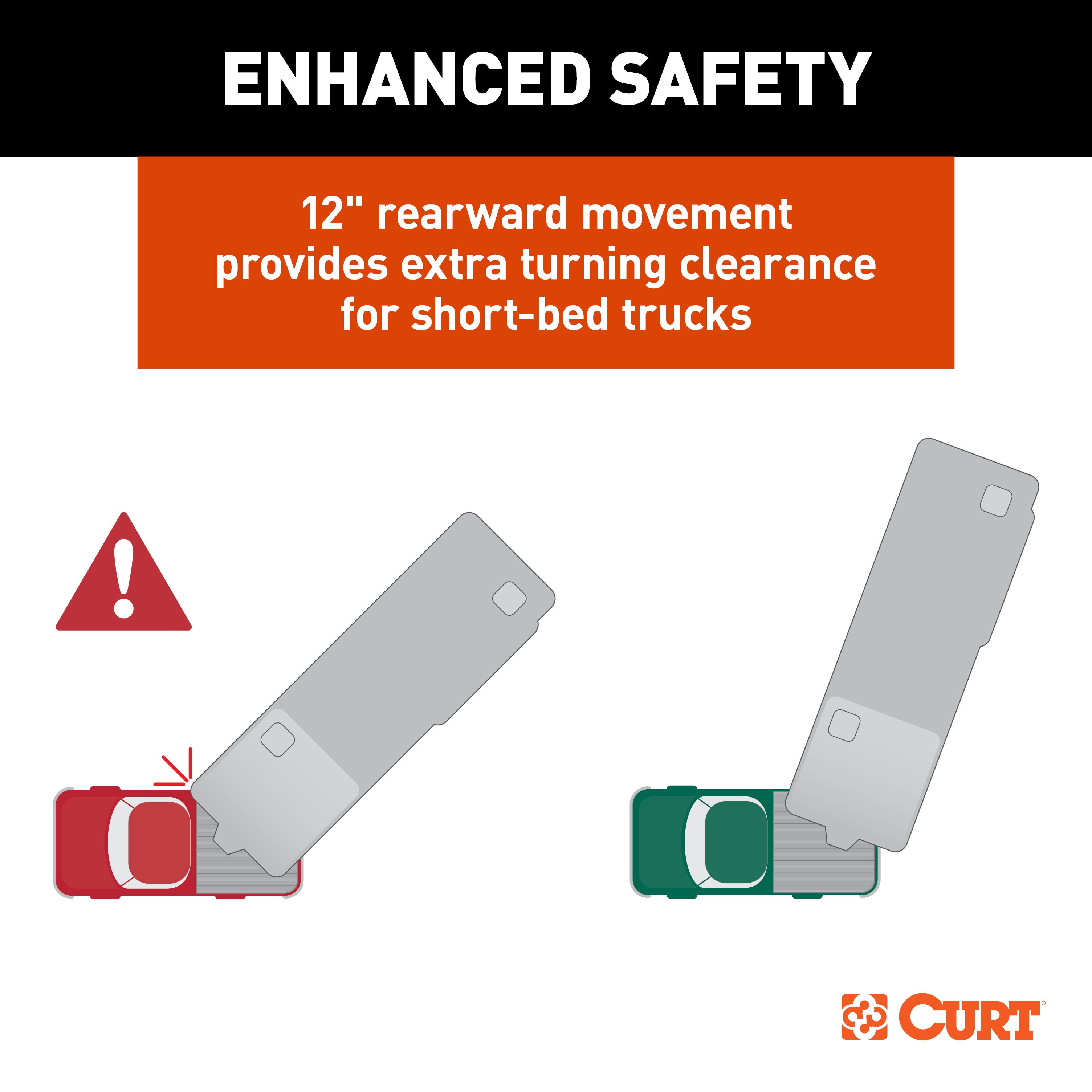

The CURT A20 5th wheel hitch offers smoother, quieter towing for your home-away-from-home, combining the patented technology of our A-series, an easier mounting system and the power of a 20K 5th wheel hitch. Like our A16 hitch, this 20K 5th wheel hitch uses a patented cast yoke to allow for unimpeded head movement, while providing exceptional stability for the trailer. The yoke has a set of poly-torsion inserts to suppress shock loads and reduce excessive noise, and the head features high-strength, interlocking jaws to give the trailer stability and the freedom to pivot and swivel as needed. This A20 5th wheel hitch head comes with the CURT S20 slider and a set of 5th wheel rails to be mounted in a short-bed truck using a 5th wheel bracket kit (brackets sold separately). CURT 5th wheel sliders are built with a solid design to eliminate chucking in the towing position and promote smooth rolling from forward to rearward positions, with no binding. With the slider installed, you can safely move the coupling point 12" toward the rear, allowing your short-bed truck to make turns without obstruction. The slider is comfortable and easy to operate, featuring a lift-style lever that is easily accessible over the side of the truck wall. The lever moves in a more user-friendly, ergonomic motion compared to traditional, pull-out-style levers. Best of all, the slider automatically latches into place in both directions, meaning you only have to get out of the truck once to complete the operation. Once installed, the A20 is fast and simple to operate. It has a lockable, single-throw handle that self-resets to the ready-to-couple position after uncoupling, and it is equipped with a coupling indicator that is visible from the truck cab. To protect the A20 5th wheel hitch against rust and wear, it comes with a black carbide powder coat finish and a limited lifetime warranty. We also test the A20 for safety in accordance with SAE J2638 to ensure reliability for the road ahead.
