CURT A25 5th Wheel Hitch, Select Silverado, Sierra 2500, 3500 HD, 8' Bed Puck System Fifth Wheel Trailer Hitch

Free Shipping
click to zoom in
color:
Black
GTW:
25,000 lbs
curtwhlocations:
D01, D25, D30, D60
Mount Type:
FOR PUCK SYSTEM
Weight Capacity:
25K
CURT A25 5th Wheel Hitch, Select Silverado, Sierra 2500, 3500 HD, 8' Bed Puck System Fifth Wheel Trailer Hitch
1,269 Write a Review
$1,202.95
In-Stock
SKU:
BKDK16066
Condition:
New
QUICK SHIP Hurry, Order now!
47 customers are viewing this product
contact image

have questions?

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Quality Products

  • Nationwide Delivery

    Free shipping on all order

CURT A25 5th Wheel Hitch, Select Silverado, Sierra 2500, 3500 HD, 8' Bed Puck System Fifth Wheel Trailer Hitch

CURT A25 5th Wheel Hitch, Select Silverado, Sierra 2500, 3500 HD, 8' Bed Puck System Fifth Wheel Trailer Hitch

$1,202.95
In-Stock

CURT 16066 A25 5th Wheel Hitch, 25,000 lbs, Select Chevrolet Silverado, GMC Sierra 2500, 3500 HD, 8-Foot Bed Puck System

Installation Instructions

View Instructions

Notes

Includes A25 5th wheel hitch head #16580 and GM puck system legs #16025 (requires GM puck system for installation) (patent# 8,827,298)
Intended for long-bed trucks only. Each truck-trailer configuration is different. Be sure to review each configuration and always ensure adequate trailer-to-cab clearance when maneuvering.
Capacity limited to lowest-rated towing component

Brand Logo

Includes A25 5th wheel hitch head #16580 and GM puck system legs #16025 (requires GM puck system for installation) (patent# 8,827,298)

Product Video

Features

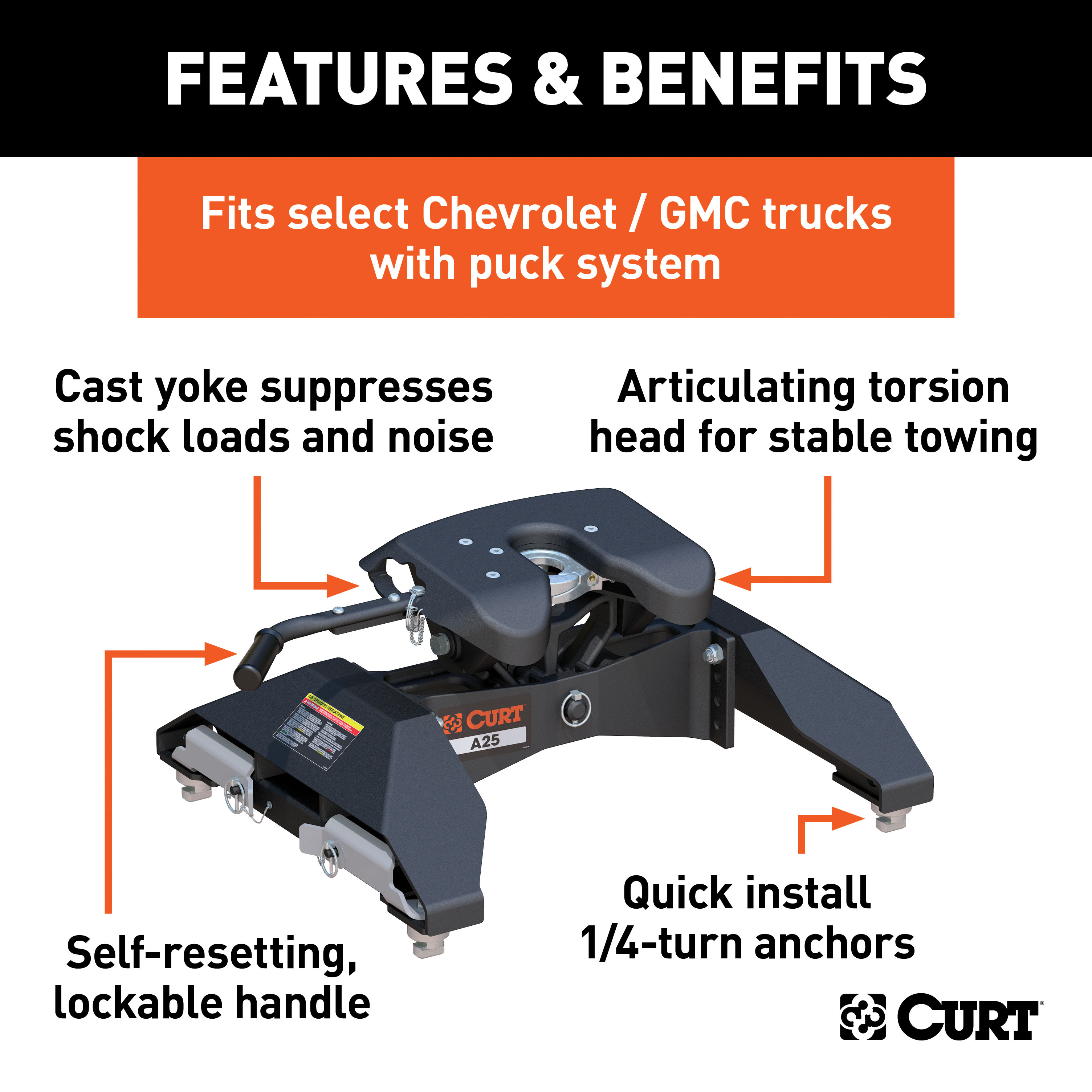

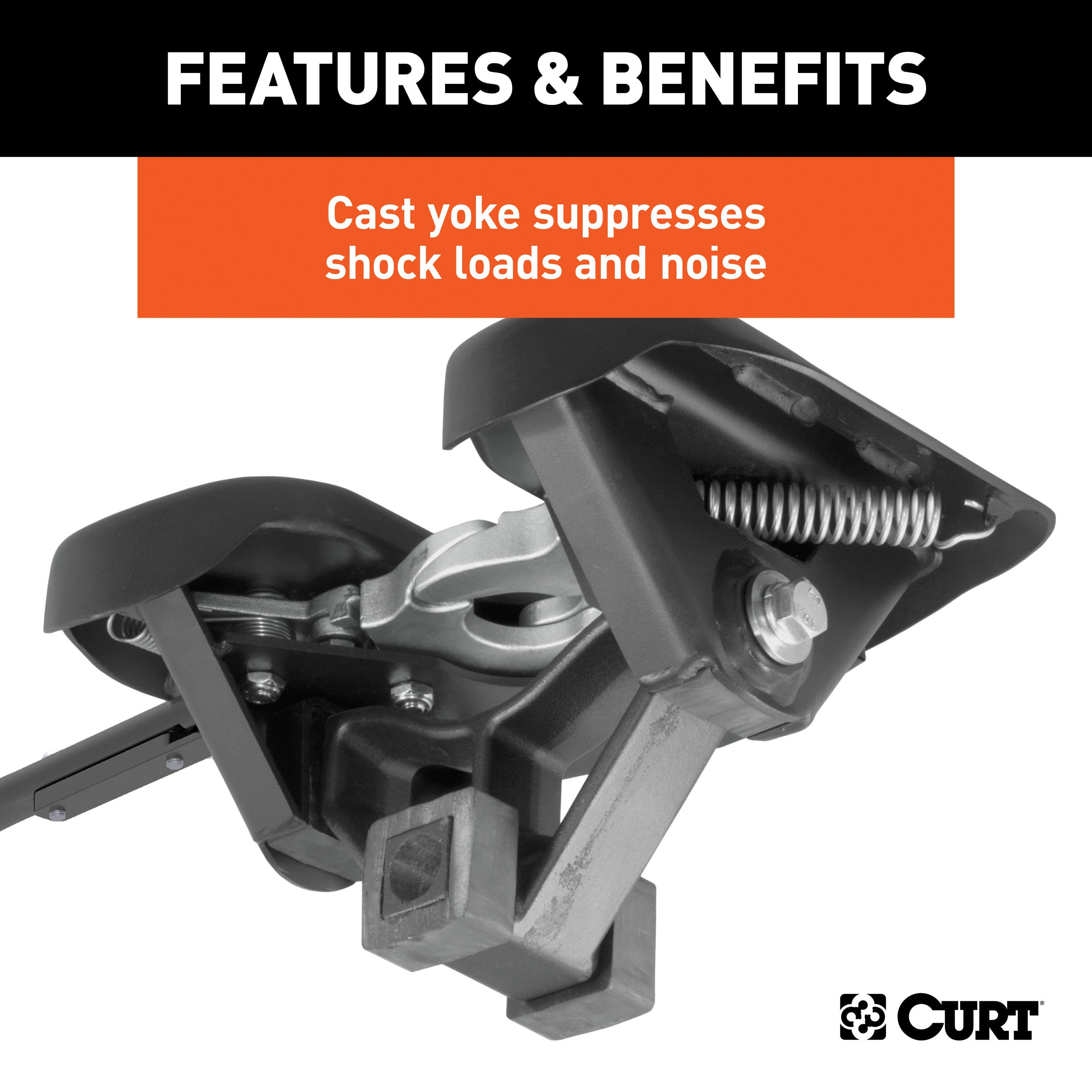

  • Cast yoke with poly-torsion inserts to suppress shock loads and reduce noise

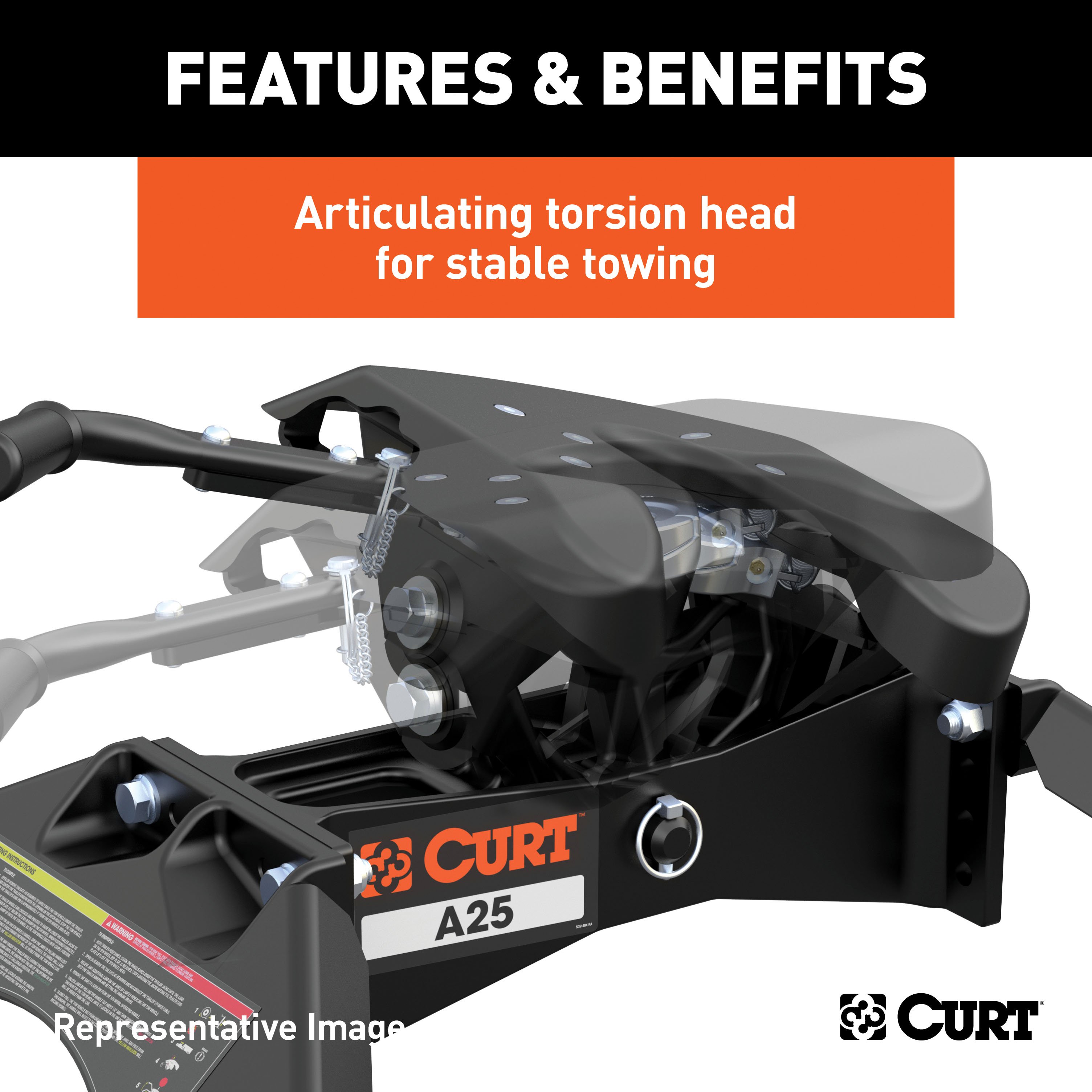

  • Fully articulating torsion head for controlled coupling and stable towing

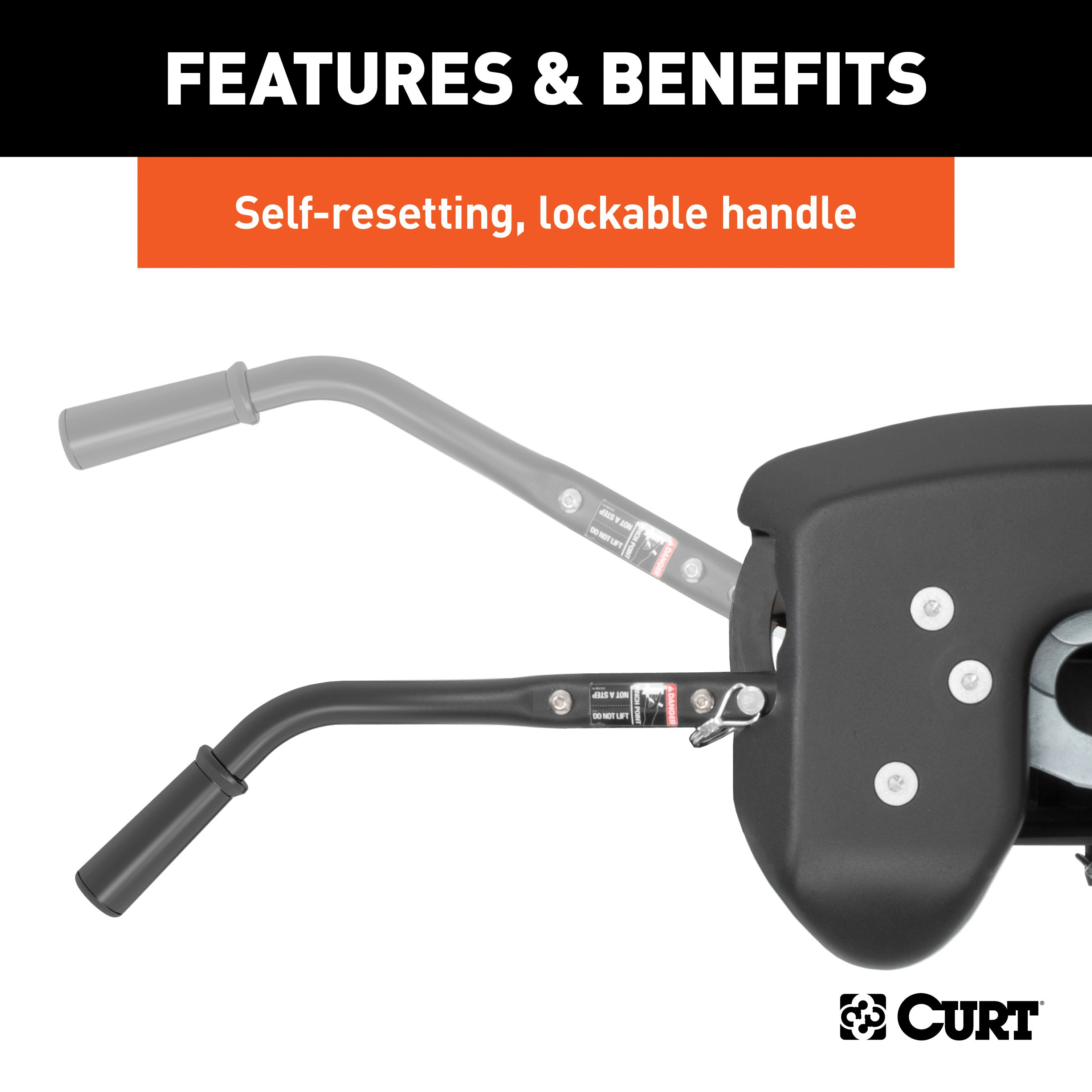

  • Lockable handle self-resets to the ready-to-couple position after uncoupling
  • Constructed with a cast steel main body for a more precise build
  • High-strength, interlocking jaws fully wrap the kingpin to minimize noise

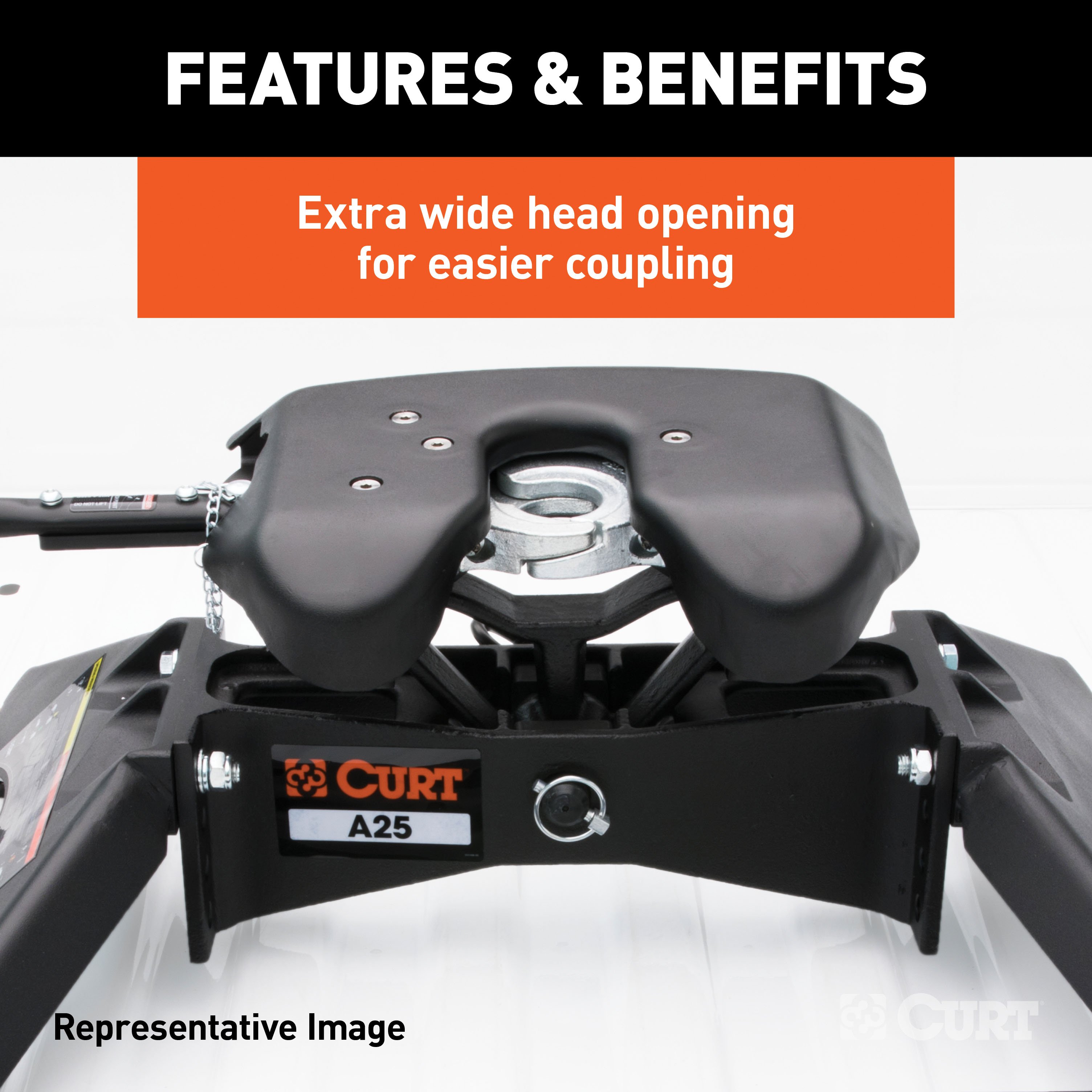

  • Extra wide head opening for easier coupling

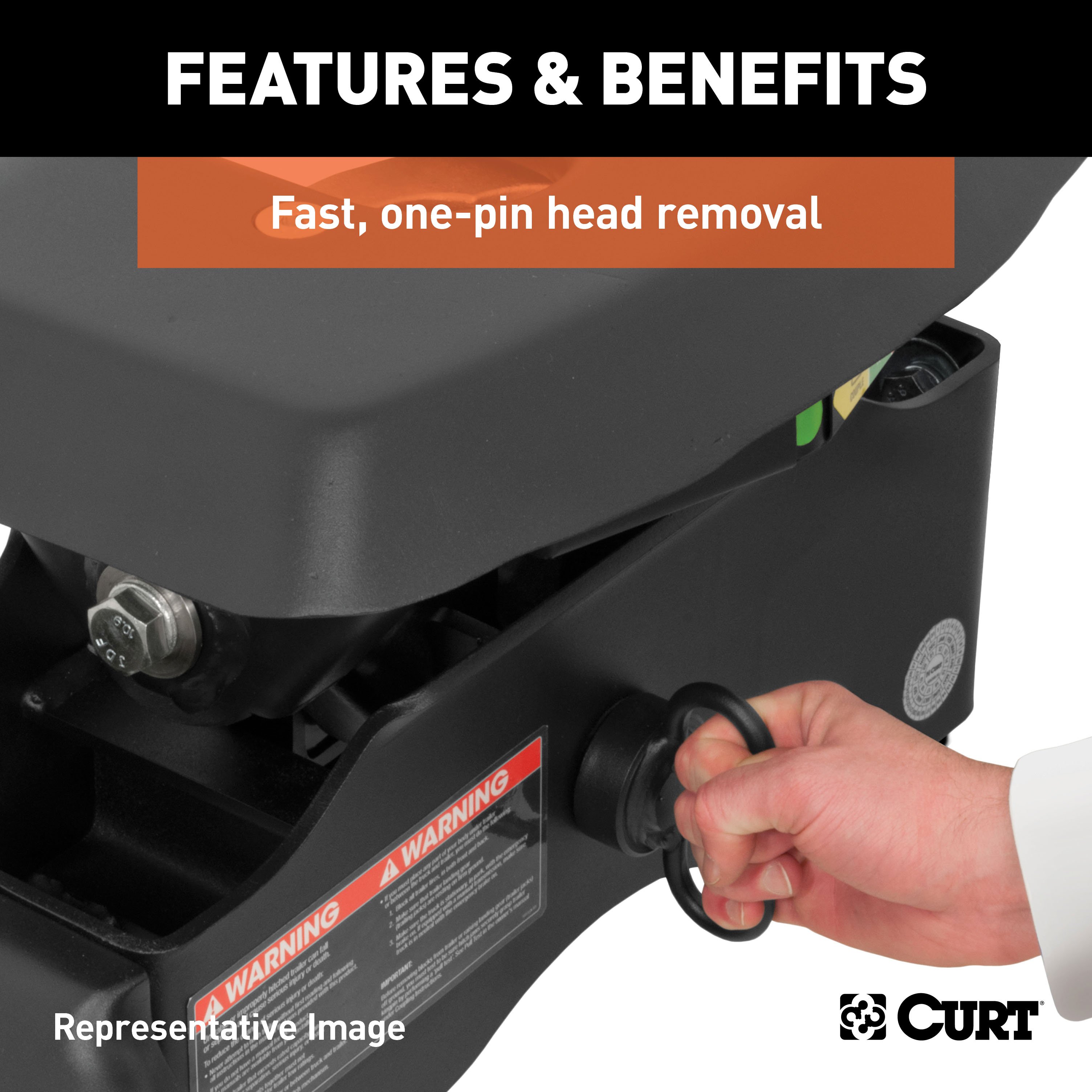

  • Fast, one-pin head removal makes moving easy with smaller, lighter pieces

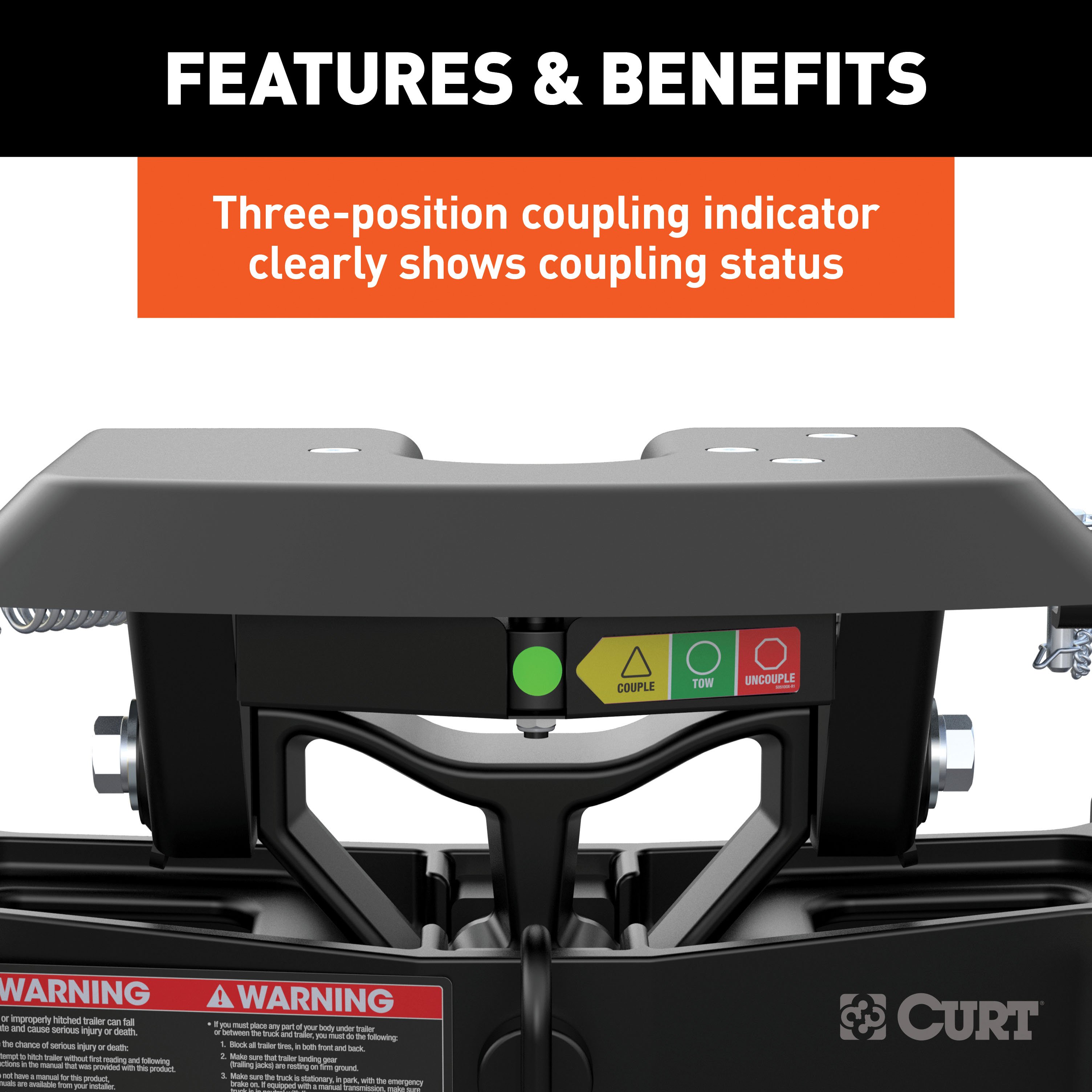

  • Three-position coupling indicator clearly shows coupling status

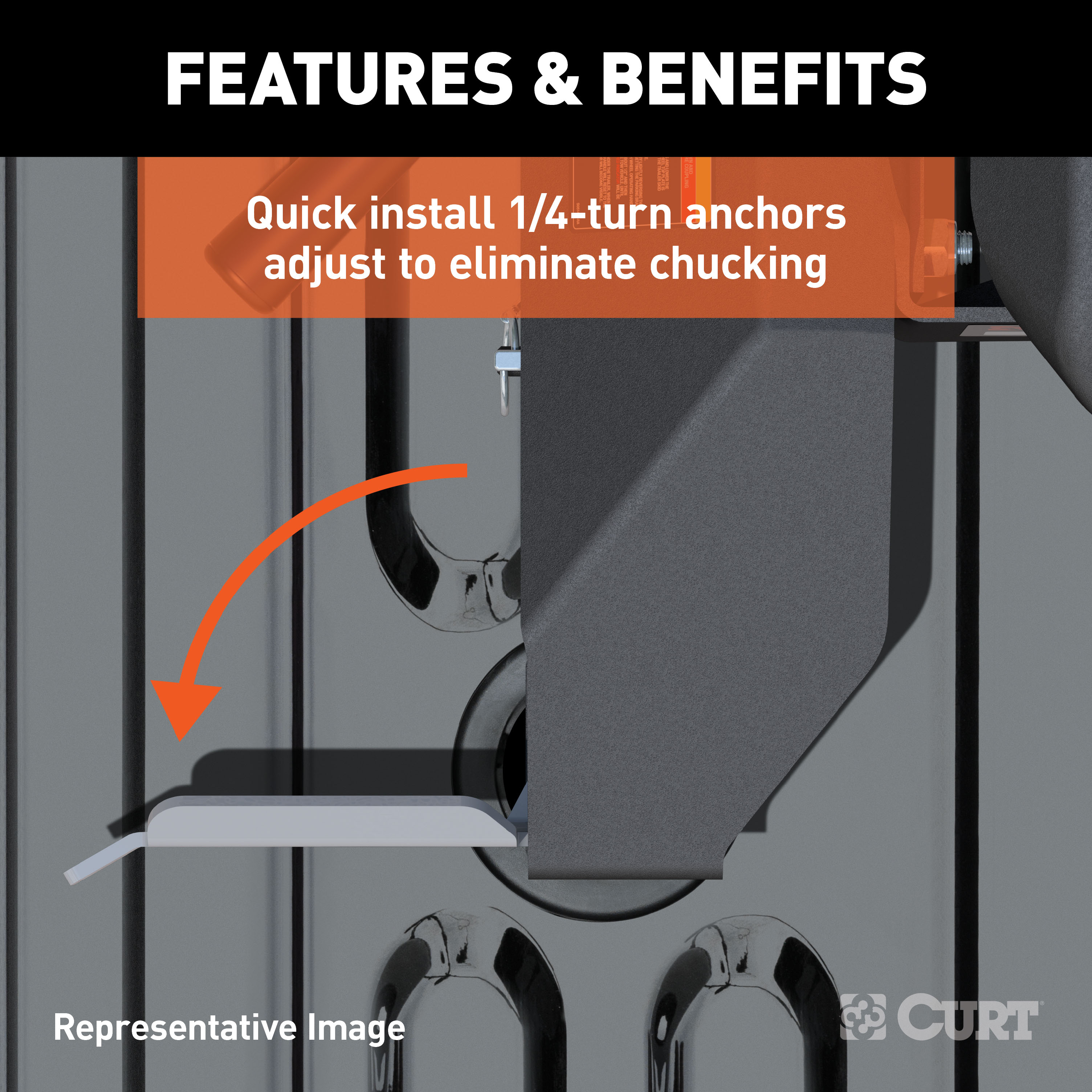

  • Quarter-turn anchoring system provides quick installation and removal
  • Compatible with kingpin extension boxes, including common pivoting pin boxes
  • Offers three height adjustment positions to adapt to each unique truck bed

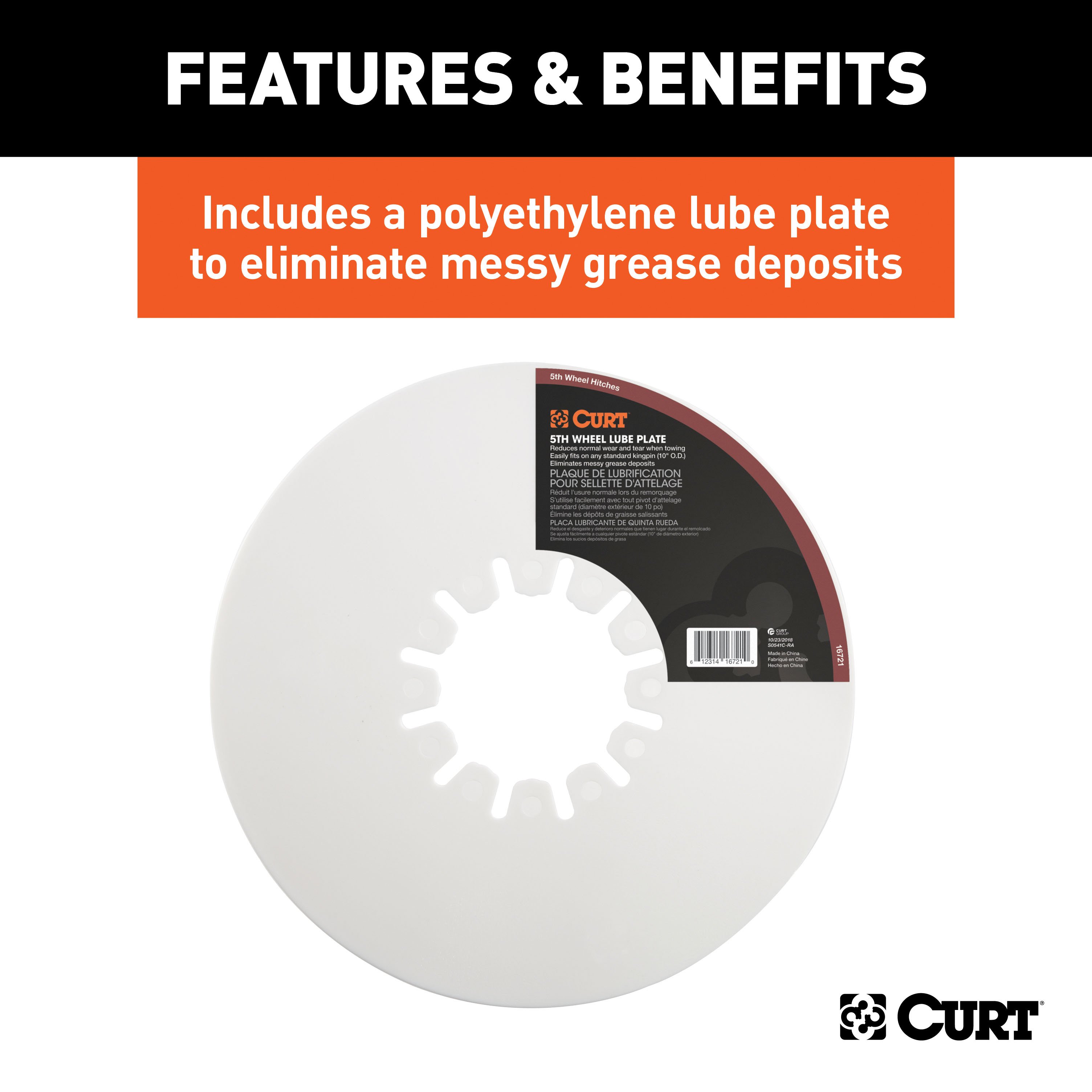

  • Includes a polyethylene lube plate to eliminate messy grease deposits
  • Tested for safety in accordance with SAE J2638
  • Protected by a highly durable carbide powder coat finish
  • Limited lifetime warranty (one-year finish, one-year parts)

Specifications

Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Color: Black
Finish: CARBIDE BLACK POWDER COAT
Gross Trailer Weight (Pounds): 25,000 LB
Installation Time Exact (Minutes): 0

Description

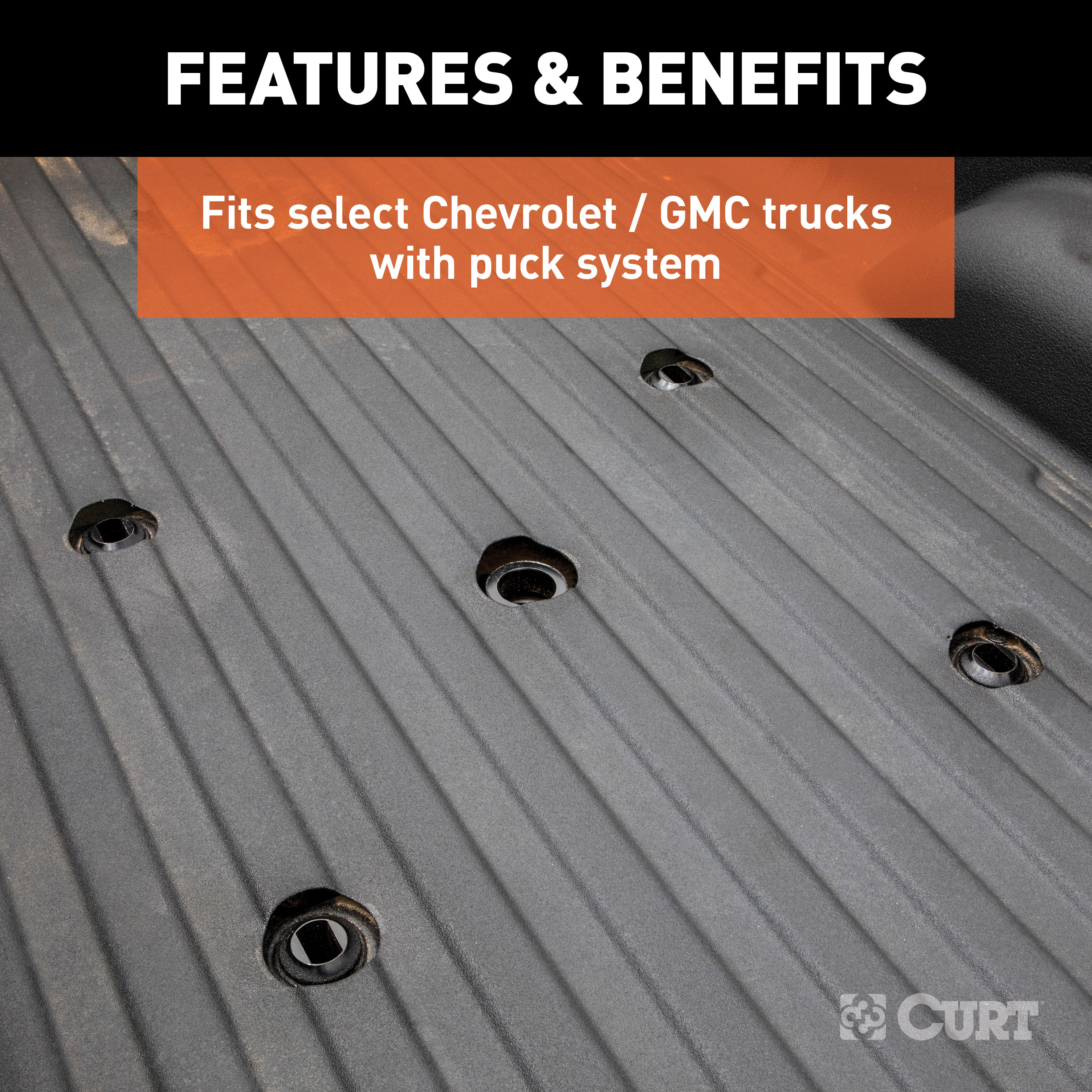

The CURT A25 5th wheel hitch offers smoother, quieter towing for your home-away-from-home, combining the patented technology of our A-series, an easier mounting system and the power of a 25K 5th wheel hitch. Like our A16 and A20 hitches, this 25K 5th wheel hitch uses a patented cast yoke to allow for unimpeded head movement, while providing exceptional stability for the trailer. The yoke has a set of poly-torsion inserts to suppress shock loads and reduce excessive noise, and the head features high-strength, interlocking jaws to give the trailer stability and the freedom to pivot and swivel as needed. This A25 5th wheel hitch also comes with a set of CURT OEM puck system 5th wheel legs designed to be mounted on select Chevrolet or GMC long-bed trucks with the truck bed puck system (year range specific). The legs mount directly into the four-point mounting system, allowing the CURT A25 hitch to be installed quickly and easily. The most unique feature of these legs is their quarter-turn anchoring system. The variable-position anchors allow the 5th wheel hitch head to easily drop into the puck system, and with a quarter-turn, the hitch can be installed or removed as needed. The anchors can also be adjusted to eliminate any chucking noises. Once installed, the A25 is fast and simple to operate. It features an extra-wide head opening to increase the coupling area for the trailer, and it has a lockable, single-throw handle that self-resets to the ready-to-couple position after uncoupling. To make coupling even easier, it is equipped with a coupling indicator that is visible from the truck cab. The indicator shows the status of the connection and eliminates the need for you to check multiple times while coupling. To protect the A25 5th wheel hitch against rust, wear and other threats, it comes with a carbide black powder coat finish and a limited lifetime warranty. We also test the A25 for safety in accordance with SAE J2638 to ensure reliability for the road ahead.


Shipping Information

We ship to ALL US states except for Alaska & PR.

We offer FREE SHIPPING on all store items!

We typically ship items within 24 hours of the order date excluding weekends.

Delivery Estimates

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page. Typical delivery times are 1-5 business days, freight items may take longer. We ship from several warehouses throughout the US to provide fast delivery.


Note 1: Includes A25 5th wheel hitch head #16580 and GM puck system legs #16025 (requires GM puck system for installation) (patent# 8,827,298)
Note 2: Intended for long-bed trucks only. Each truck-trailer configuration is different. Be sure to review each configuration and always ensure adequate trailer-to-cab clearance when maneuvering.
Note 3: Capacity limited to lowest-rated towing component
