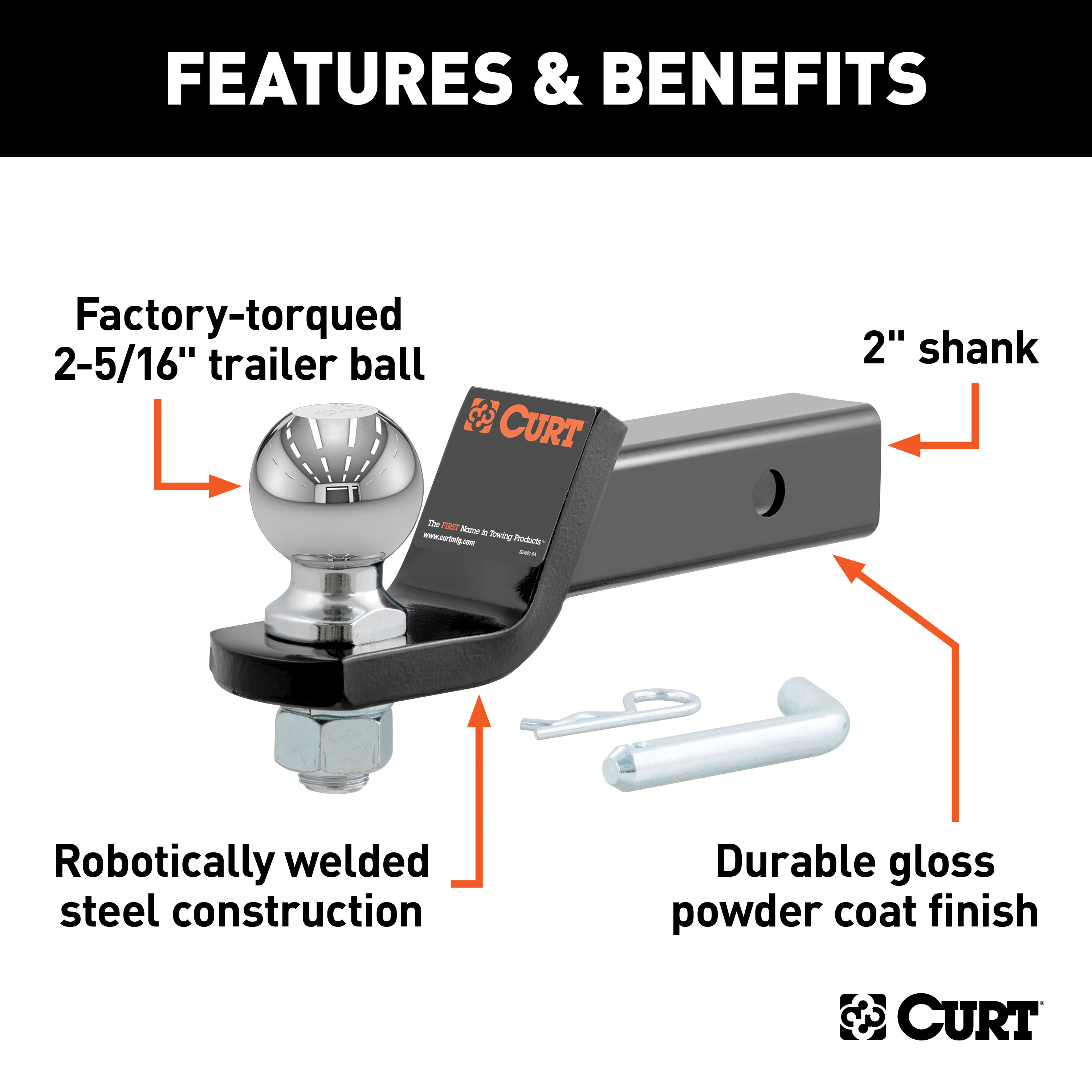

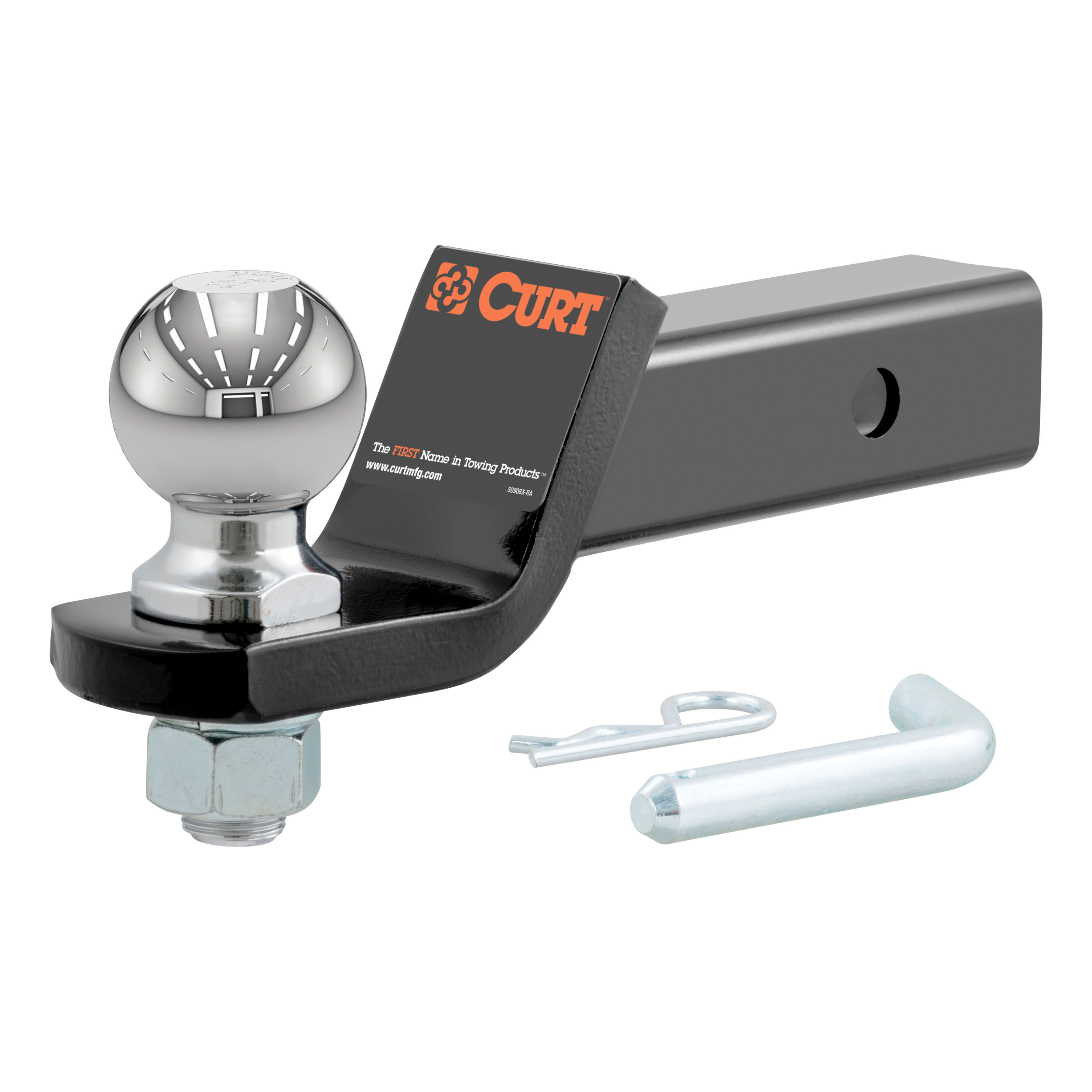

When it comes to ball mounts, a CURT loaded ball mount is the complete package. These stingers come with all necessary towing components and are pre-fitted with a factory-torqued trailer ball, eliminating the need to mount and torque your own trailer ball. This means a loaded ball mount is ready for towing right out of the package! Each one also comes with a pin and clip for mounting the ball mount into the appropriate size receiver tube. CURT offers loaded ball mounts in a variety of styles and weight ratings. This CURT loaded ball mount features a gross trailer weight capacity of 7,500 lbs. and a tongue weight capacity of 750 lbs. It comes with a 2-5/16" trailer ball, making it an excellent choice for towing most boat trailers, utility trailers, campers, livestock trailers and recreational vehicle trailers used for hauling dirt bikes, motorcycles and ATVs (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). This ball mount also has a length of 8-1/4", a drop of 2" and comes with a gloss black powder coat finish to resist rust, chipping and UV damage. All CURT loaded ball mounts feature 2" x 2" shanks and are made with the same superior quality we put into each of our products.
- Loaded Ball Mount with 2-5/16" Ball (2" Shank, 7,500 lbs., 2" Drop)
- Rated to 7,500 lbs. gross trailer weight and 750 lbs. tongue weight

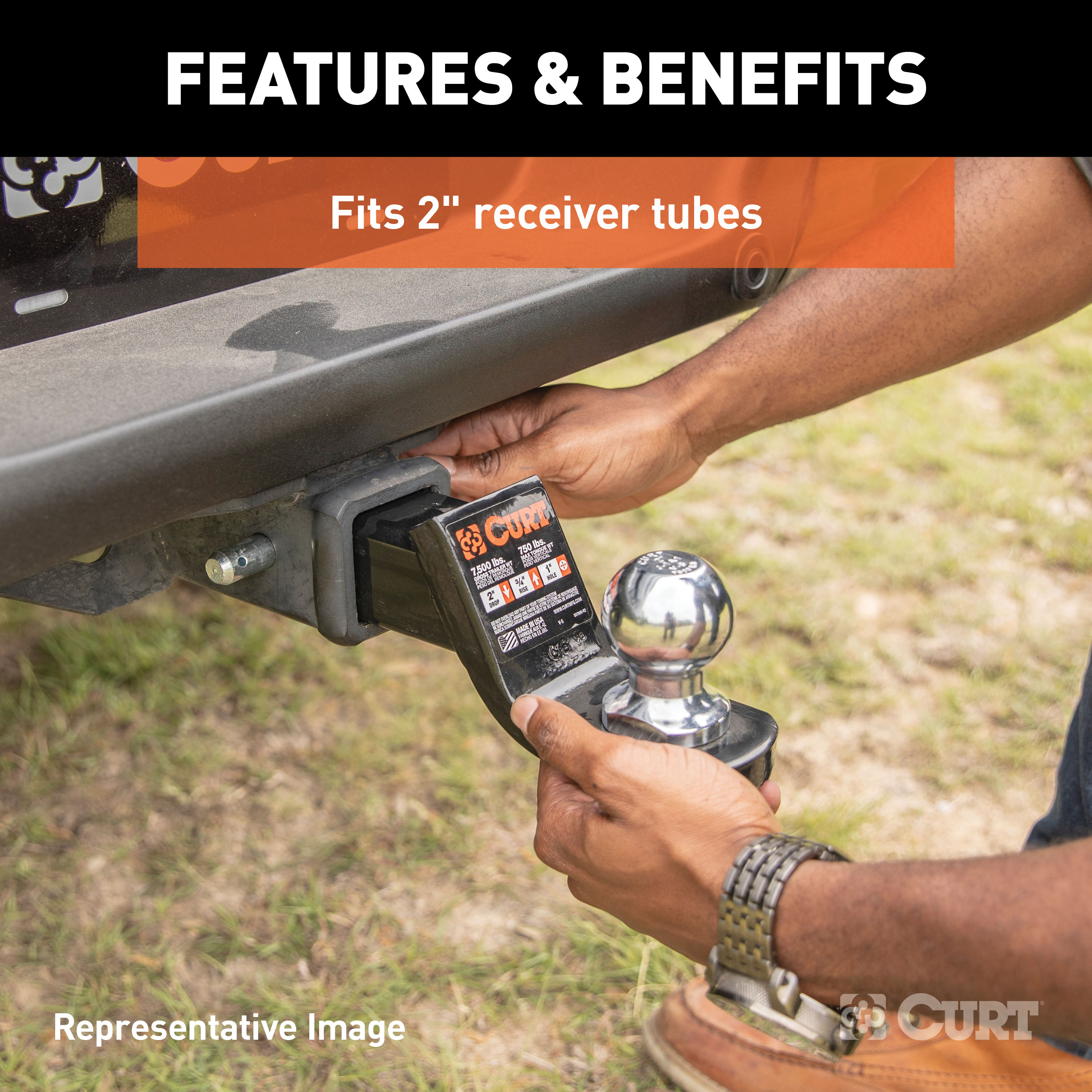

- Fits trailer hitches with a 2" x 2" receiver tube opening

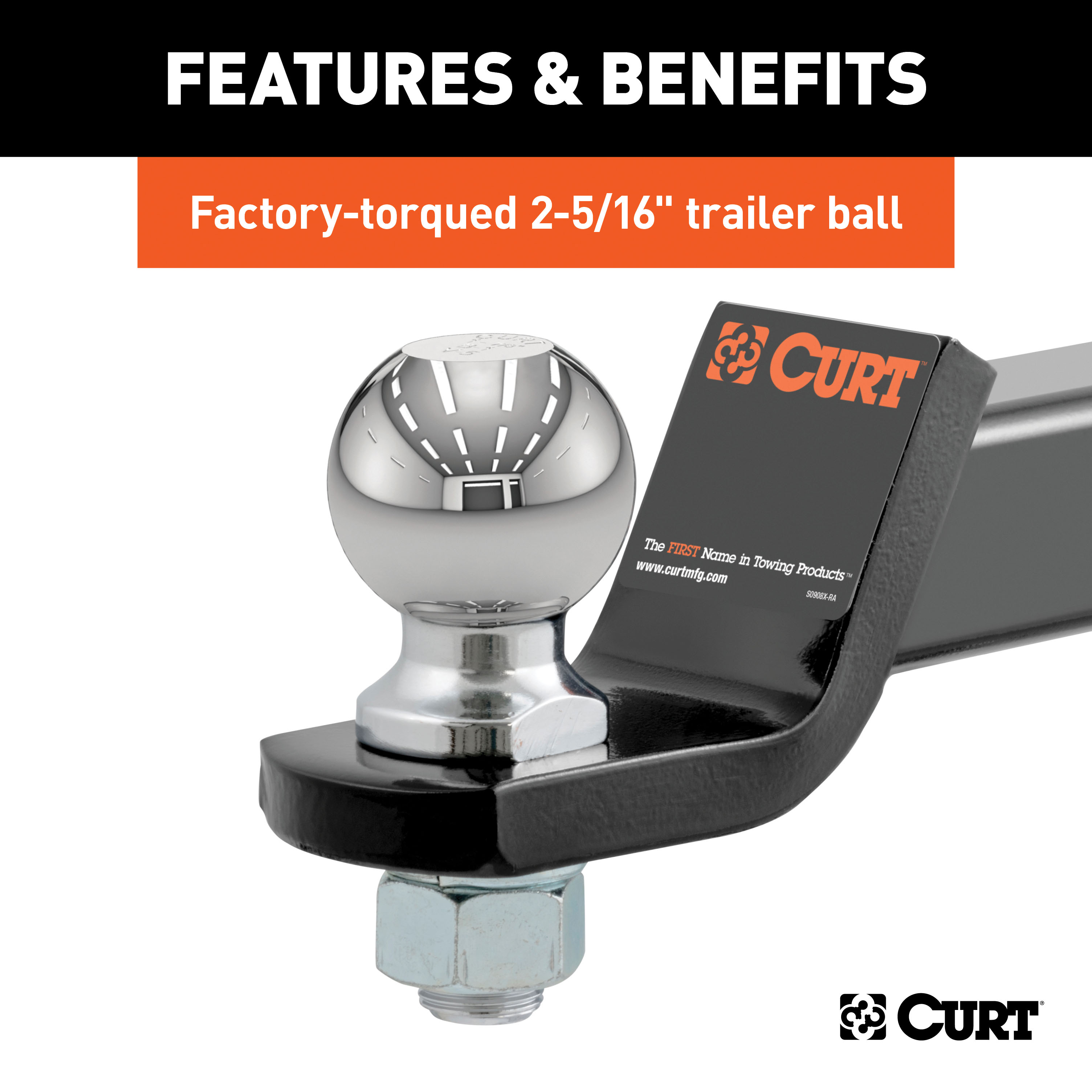

- Factory-torqued CURT trailer ball accepts a 2-5/16" coupler
- 2" drop for precise trailer leveling
- Hollow shank weighs less and can be used with an anti-rattle kit
- CNC-formed, robotically welded and mechanically descaled for a perfect fit
- Protected by a durable powder coat finish
- Trailer ball features a polished chrome-plated finish

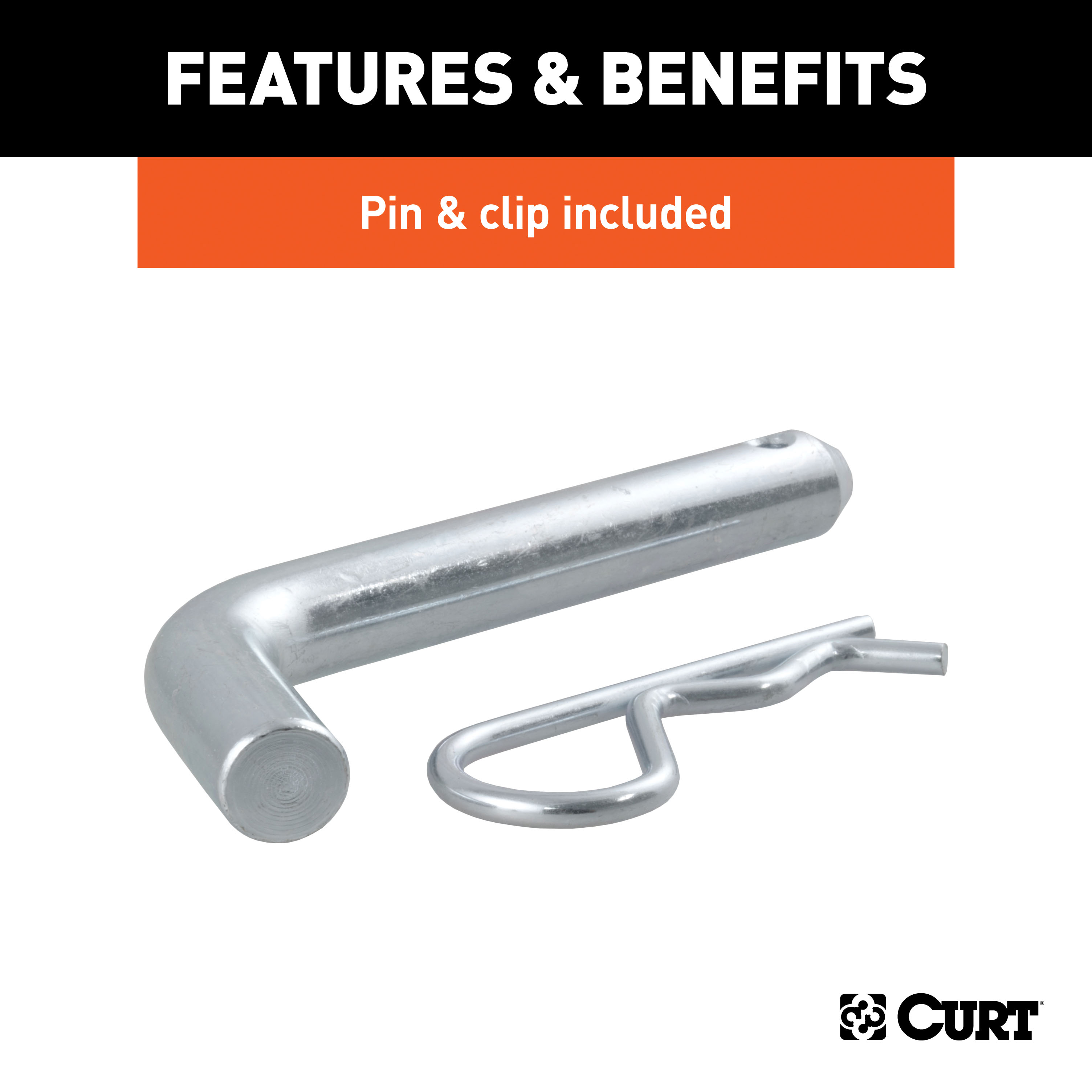

- 5/8" hitch pin & clip for secure mounting in receiver tube
- Assembled in USA
- Limited lifetime warranty (one-year finish, one-year parts)
Specifications
| Shipping Weight | 9.700 |
| Tongue Weight (TW) | 750 LB |
| Class ID | 0 |
| Ball Diameter | 2-5/16 IN |
| Gross Trailer Weight (GTW) | 7,500 LB |
| Receiver Tube Size | 2 IN |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Finish | Gloss Black Powder Coat |
| Drop | 2 IN |
