Like the other 5th wheel hitches of the CURT Q-Series, the CURT Q20 is a specialist in its class. It features a gross trailer weight capacity of 20,000 lbs. and can accept a vertical load limit of 5,000 lbs., giving it the capability to tow most large recreational vehicles, campers and many other 5th wheel trailers. Also like the Q24, the Q20 5th wheel has a superior hitch head, pivoting on a spherical axial bearing. This ensures smooth, quiet towing and allows unimpeded head movement and a wide turning radius for your trailer. The self-aligning head and dual-locking jaws make coupling easier, and with the three-position coupling mechanism, indicating when it safe to couple and when it is safe to tow, you can be out of the driveway and on your way quicker than ever. The Q20 comes with a durable carbide powder coat finish to give this hitch the best possible defense against corrosion, scratching, UV damage and whatever else you throw its way. It is tested in accordance with SAE J2638 for safety and is also backed by a limited lifetime warranty to give you peace of mind. This 20K 5th wheel hitch head comes ready to be attached to the CURT R20 5th wheel roller. Certain turret-style pin boxes, such as Sidewinder, are not compatible with CURT Q-series hitches and should not be used as they may create vehicle / trailer handling hazards. Please contact CURT Product Support for compatibility information.

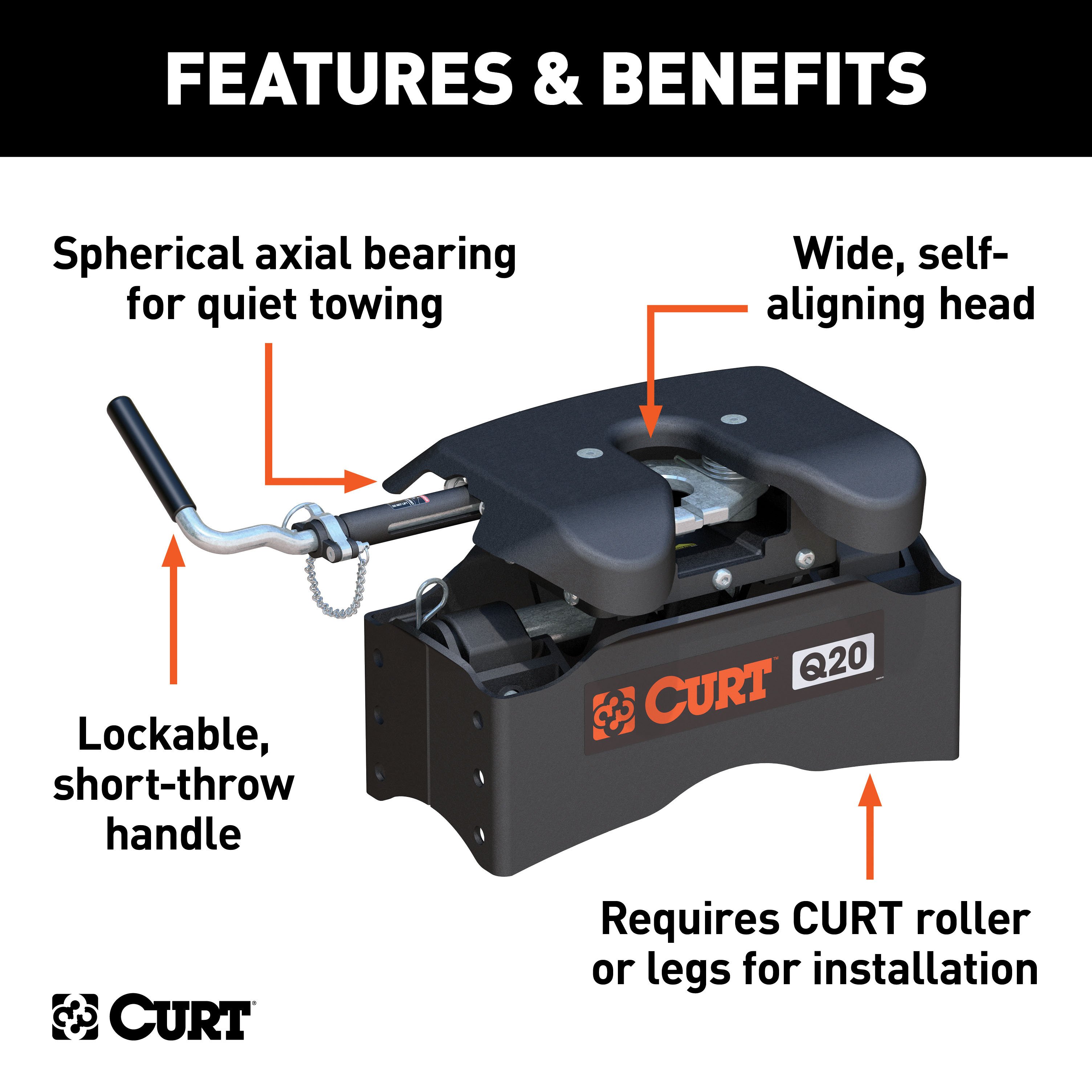

• Q20 5th Wheel Hitch Head
• Requires CURT 5th wheel roller or legs for installation

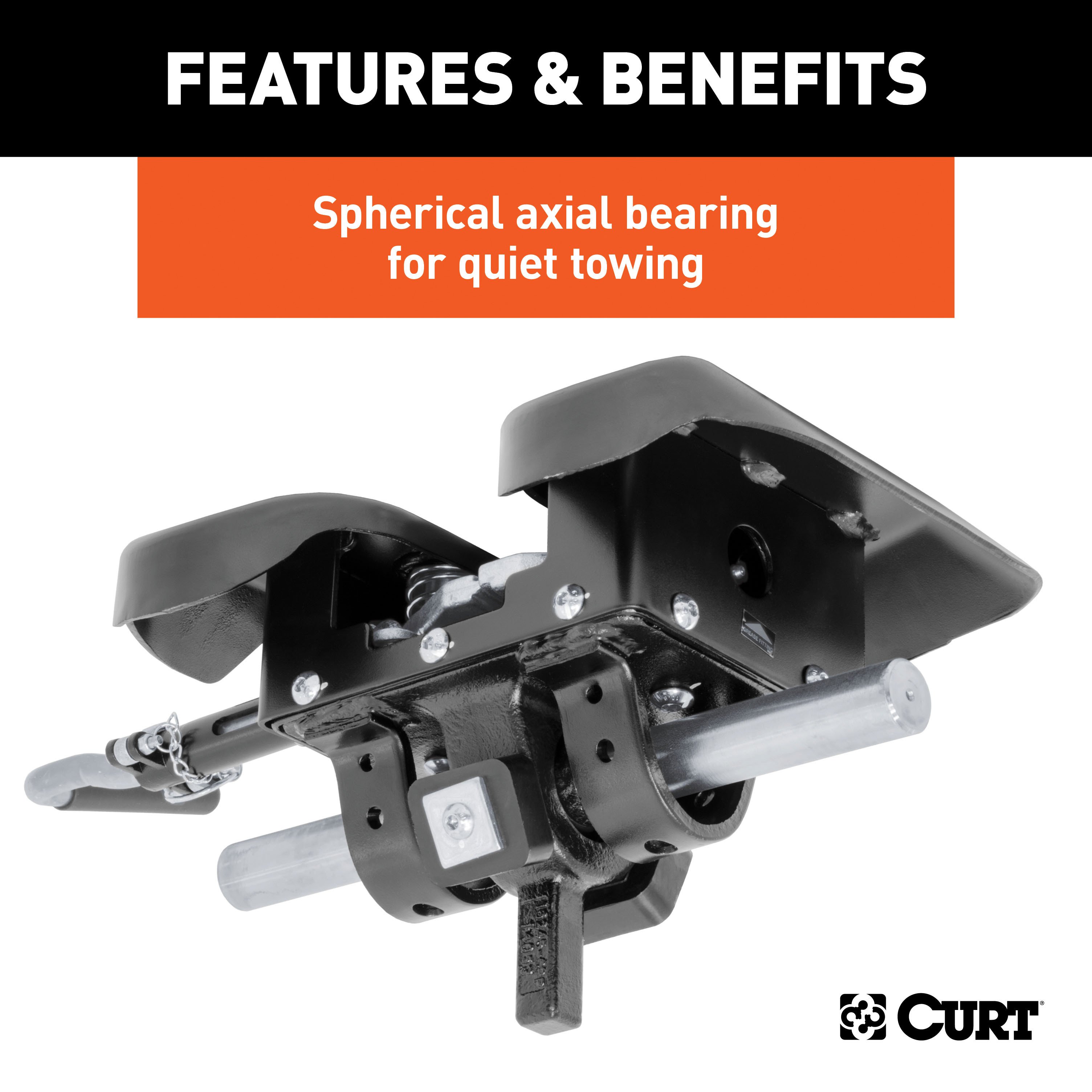

• Spherical axial bearing tilts head in any direction for a smooth, quiet ride

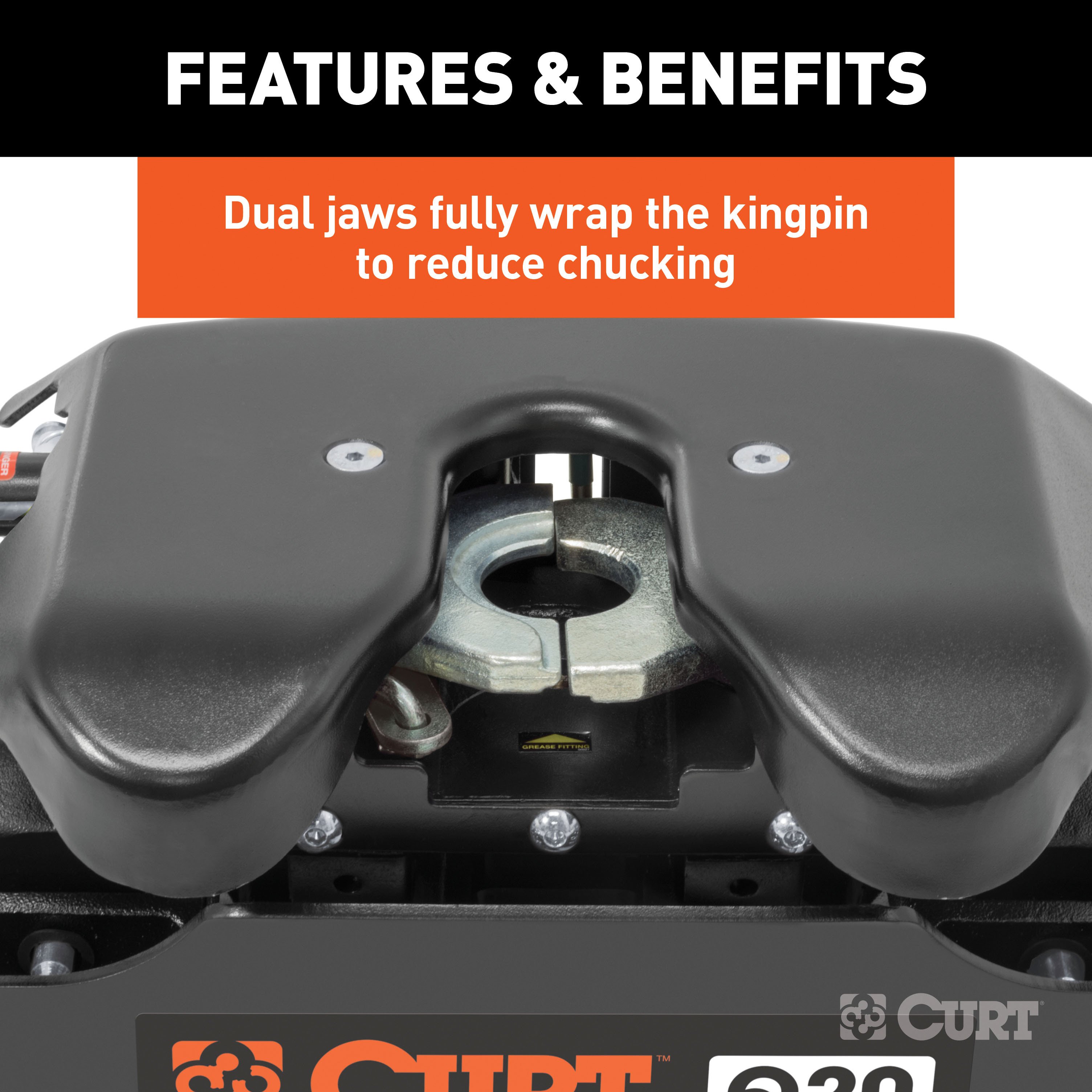

• Dual jaws fully wrap the kingpin to reduce chucking and increase security

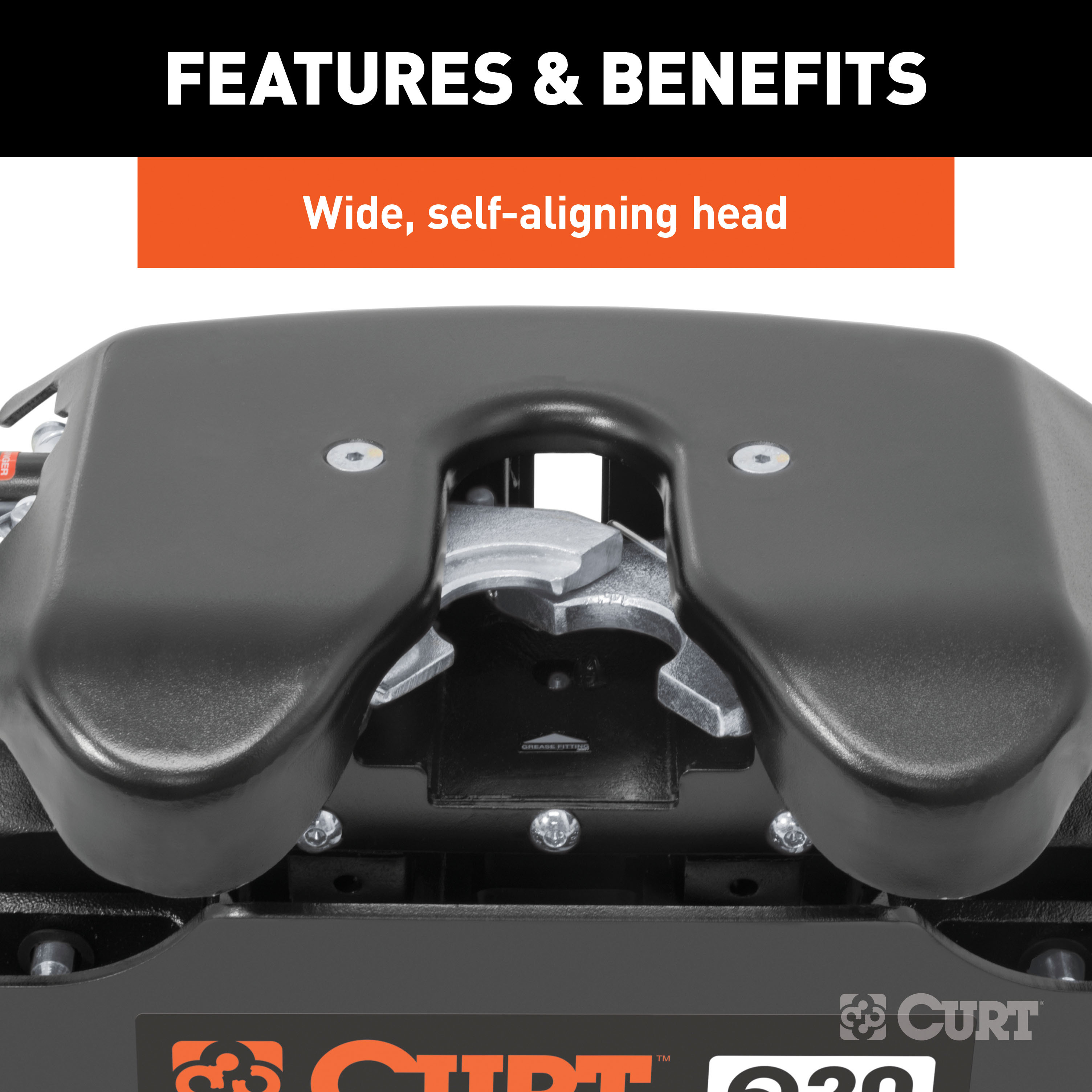

• Wide, self-aligning head helps eliminate errors when backing up to the trailer

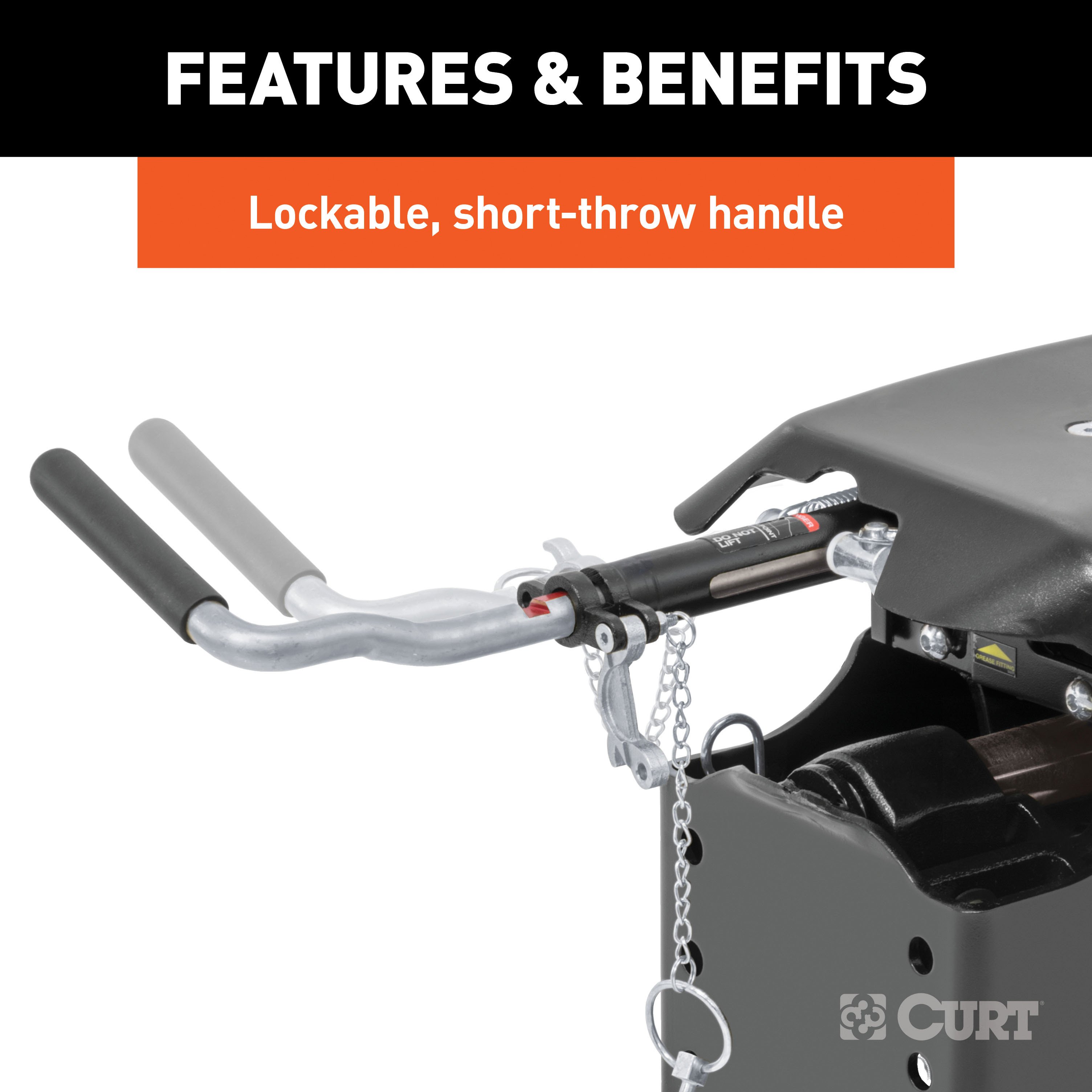

• Lockable, short-throw handle automatically engages with the kingpin

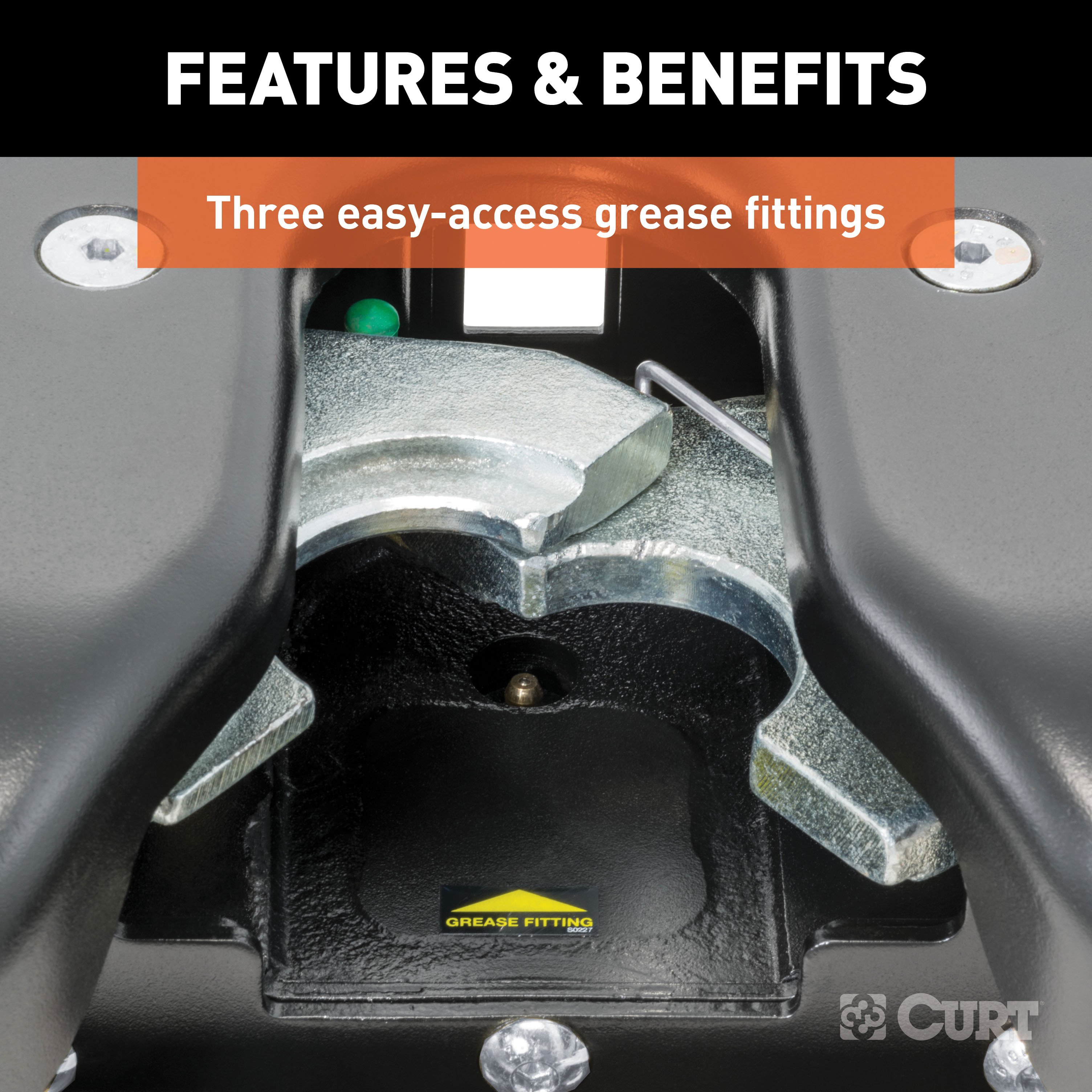

• Three easy-access grease fittings for lubrication

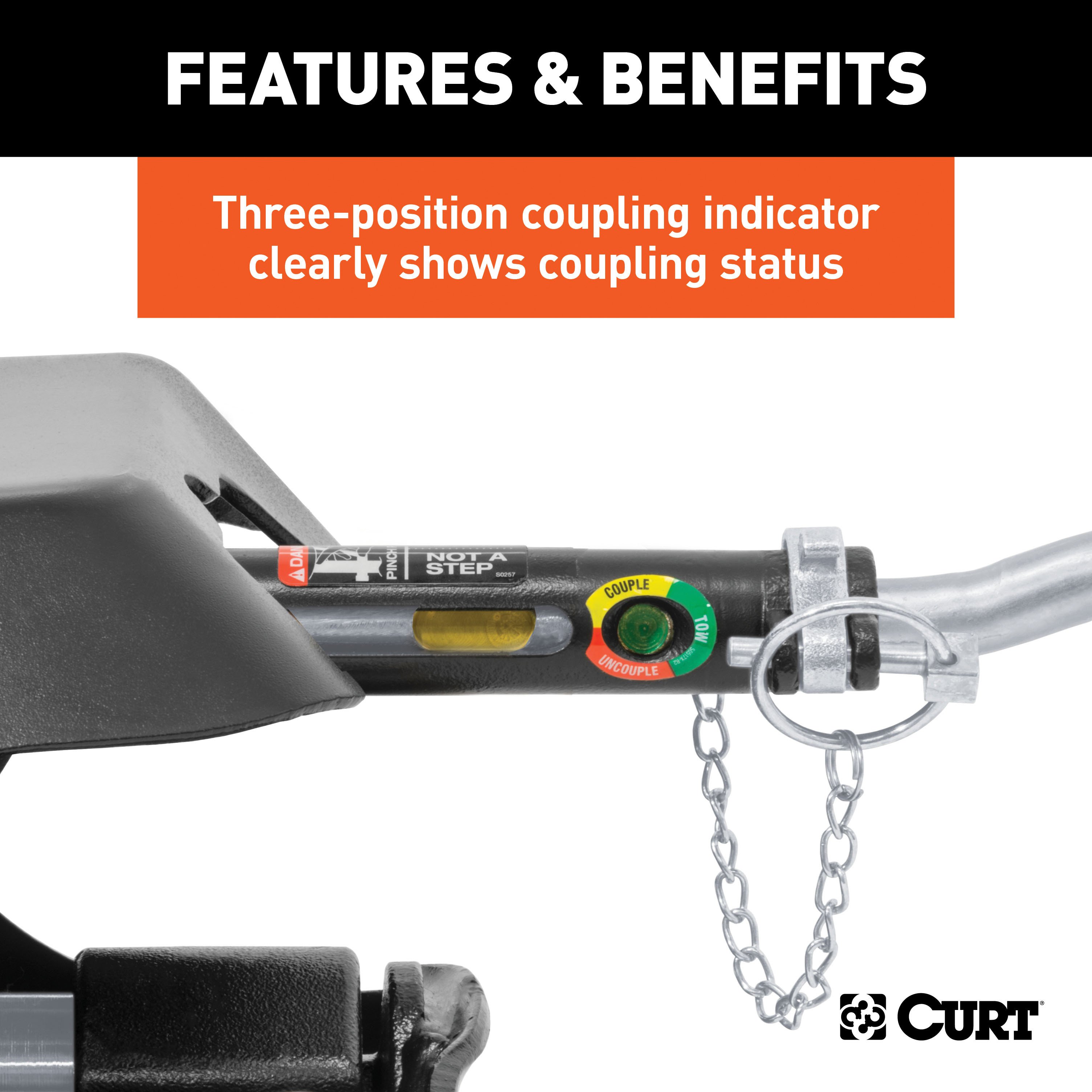

• Three-position coupling indicator clearly shows coupling status
• Offers three height adjustment positions to adapt to each unique truck bed
• Includes a polyethylene lube plate to eliminate messy grease deposits
• Tested for safety in accordance with SAE J2638
• Protected by a highly durable carbide powder coat finish
• Limited lifetime warranty (one-year finish, one-year parts)

Specifications

Vertical Load	5,000 LB
Shipping Weight	108.500
Capacity	20,000 LB
Class ID	0
Gross Trailer Weight (GTW)	20,000 LB
Warranty	Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Finish	CARBIDE BLACK POWDER COAT
