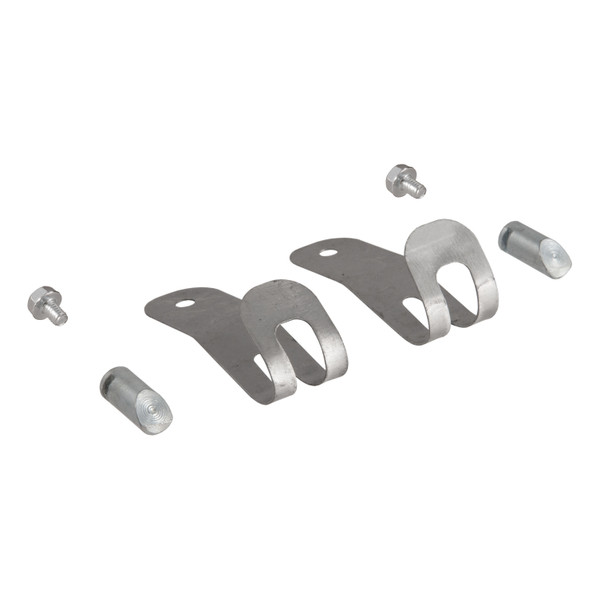

Includes two clips, two locking pins and two rivets
Includes two clips, two locking pins and two rivets
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Finish: CLEAR ZINC
Installation Time Exact (Minutes): 0

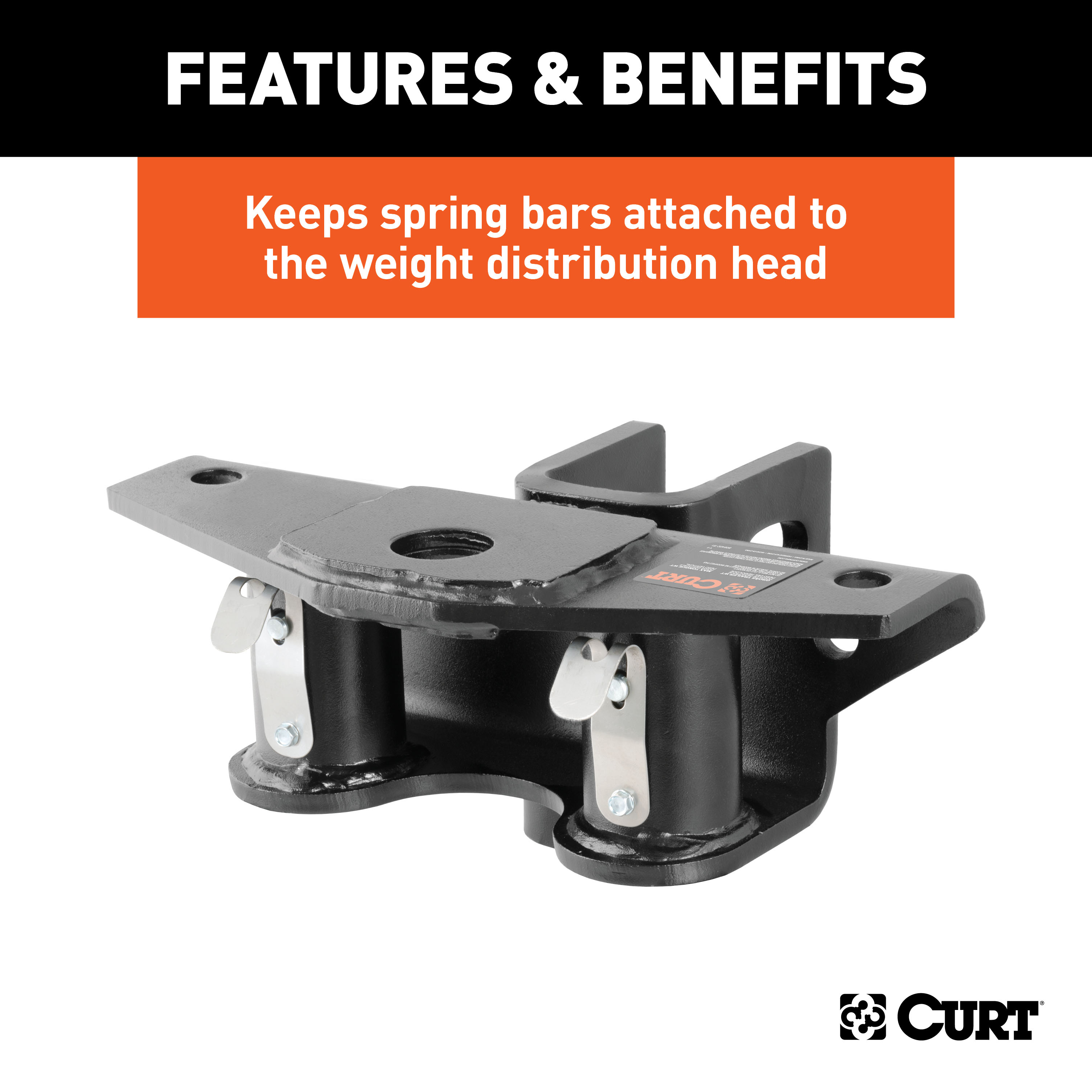

The CURT weight distribution hitch is a specialized towing system that provides improved vehicle and trailer control by leveling the trailer and more evenly distributing its tongue weight across the trailer's and vehicle's axles. Weight distribution hitches are commonly used on travel trailers and campers but can also be applied to other large loads. This replacement retainer kit is made to fit round bar weight distribution hitches. It includes two retainer clips, two locking pins and two rivets.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
The kit includes 2 hex head screws (M4 - 0.7 x 6, class 10.9), 2 spring clips, 2 set keys, and 1 hitch head. These components are used to replace old drive screws in the hitch retainer assembly.
The manual does not specify which vehicles or hitch models are compatible with this product. Contact Curt Manufacturing at 1.877.287.8634 or visit CURTMFG.COM to confirm fitment for your specific vehicle.
You will need a chisel, a pin punch, and a torque wrench capable of measuring inch-pounds. Eye protection is required during the removal of the old drive screw head.
Yes. You must remove the old drive screws from both sides of the hitch head. This involves removing the screw head with a chisel and then removing the remaining shank with a pin punch before installing the new components.
1. Remove the old drive screw head with a chisel. 2. Remove the remaining screw shank with a pin punch. 3. Place the set key (#3) with the nose facing down into the slot of the spring clip (#2). 4. Insert the hex head screw (#1) into the spring clip and then into the hitch head, ensuring the set key is seated. 5. Repeat for the other side.
The hex head screws (M4 - 0.7 x 6, class 10.9) must be torqued to 30 inch lbs.
Wear eye protection when removing the old drive screw head with a chisel, as metal fragments may be ejected. Never exceed your vehicle manufacturer's recommended towing capacity when using this hitch.
Periodically check the hitch to ensure that all fasteners are tight and that all structural components are sound. This includes verifying that the hex head screws remain torqued to 30 inch lbs.
The kit includes 2 hex head screws (M4 - 0.7 x 6), 2 spring clips, 2 set keys, and 1 hitch head for replacing old drive screws.
You need a chisel, pin punch, torque wrench (inch-pounds), and eye protection.
Torque the M4 - 0.7 x 6 hex head screws to 30 inch lbs.
Never exceed your vehicle manufacturer's recommended towing capacity. Wear eye protection when removing old drive screws.
Periodically check that all fasteners remain tight and all structural components are sound.
