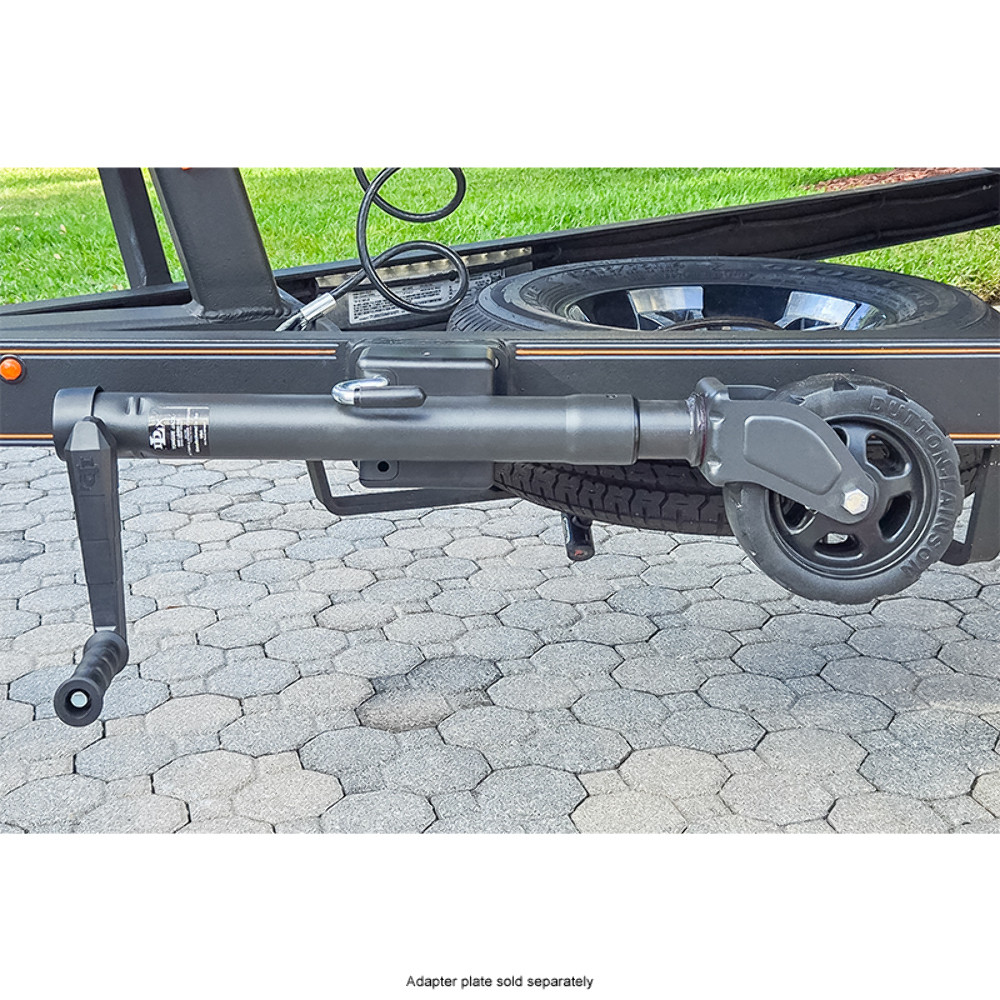

Dutton-Lainson 1,500 lb., DLx-P Marine Jack, 12 in. Travel, Swivel
$250.90
In-Stock
- Dutton-Lainson swivel marine tongue jack for boat and other trailer applications
- 1,500 lb. capacity
- 12" total travel
- 28-1/2" maximum tongue height
- Side wind handle with extra heavy screw drive and ergonomic handle grip
- Heavy duty polypropylene 8" diameter (3" wide) slotted wheel resists flat spots and cold weather cracking
- Easily swivels up for towing or down for stowing and locks in place in either position
- Independent wheel (wheel bracket rotates independent from inner post) for maximum surface area and maneuverability over rough terrain like sand or gravel
- Reinforced wheel bracket for additional strength
- U.S. patent D870598
- Includes all necessary bolt-on mounting hardware
- Made in the U.S.A.
In addition to the standard D-L marine jack features listed above, the DLx-P marine jack also offers this set of exclusive features:
- Inner tube, outer tube, wheel bracket, and mounting plate have powder coated matte black finish over zinc plating

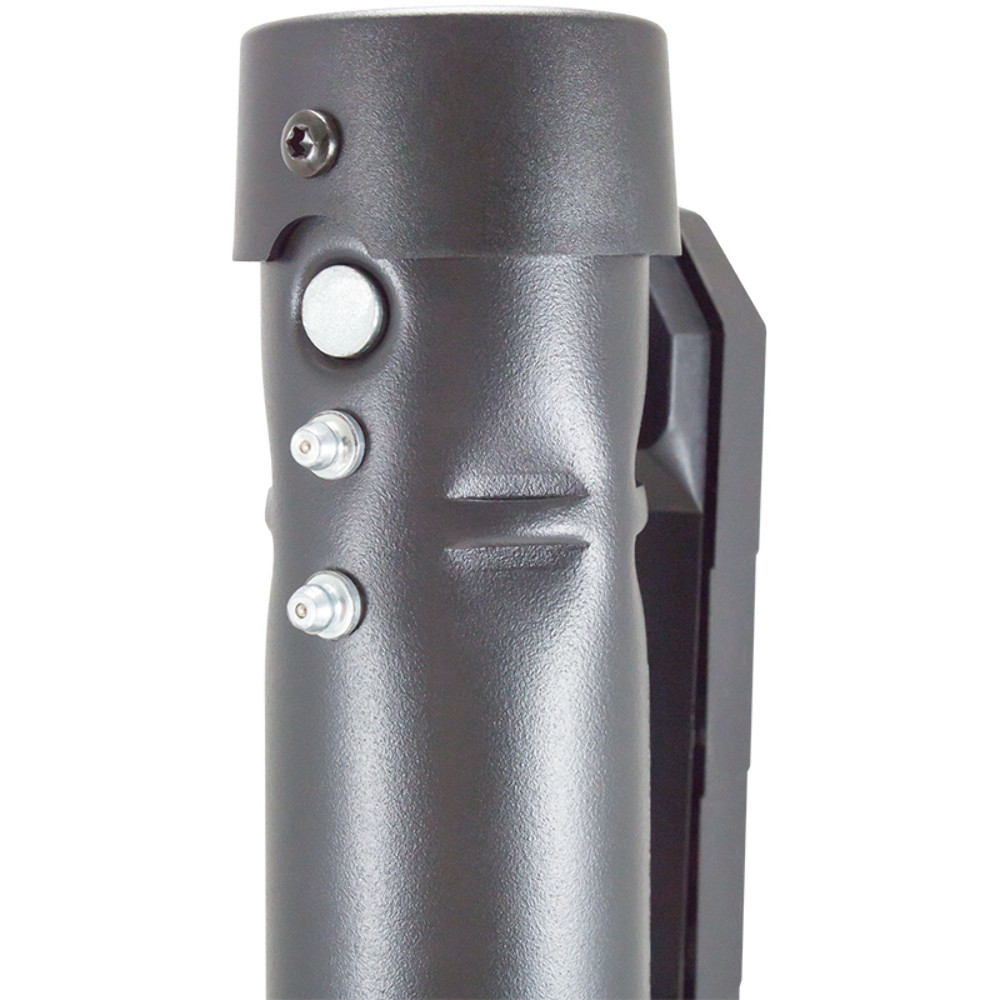

- Dual grease fittings keep interior parts fully lubricated
- Vinyl sleeve on 1/2" swivel pin makes swiveling more comfortable

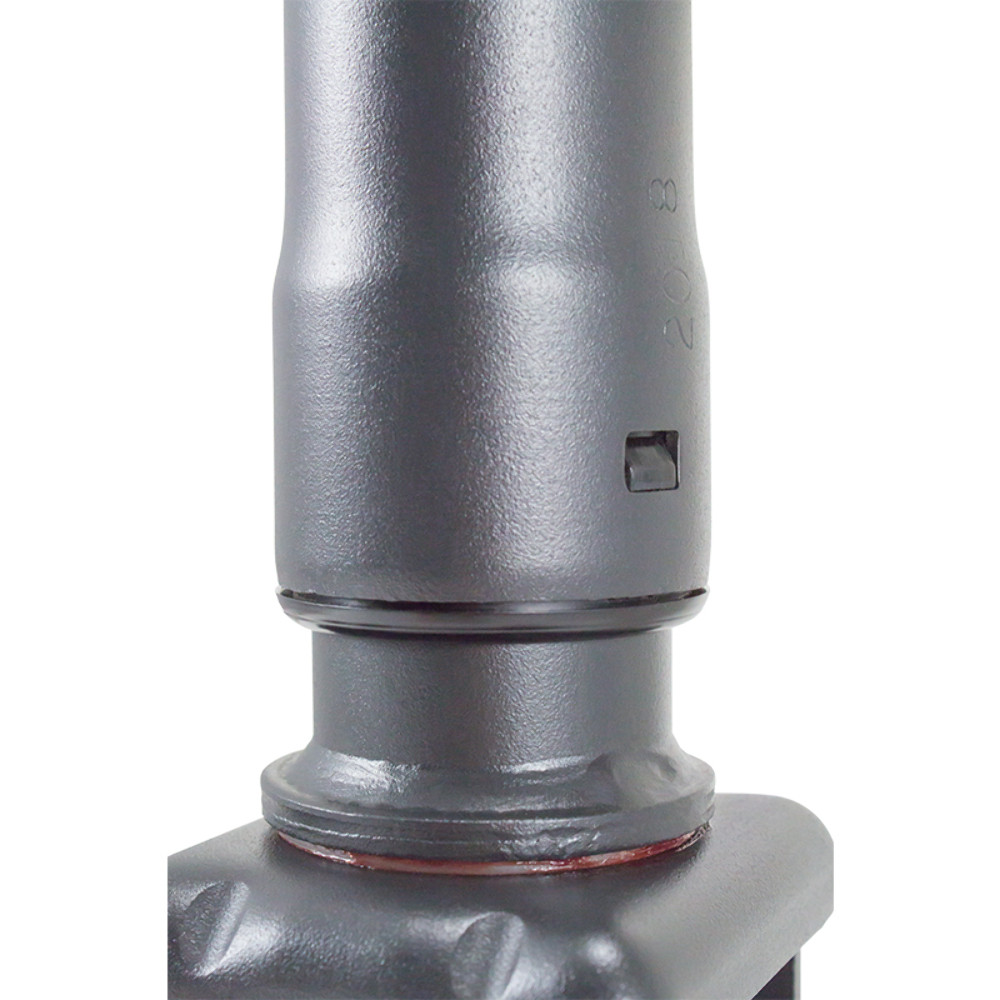

- Bushing between tubes prevents scratching and tightens fit
- Premium cushioned handle grip is softer and more comfortable

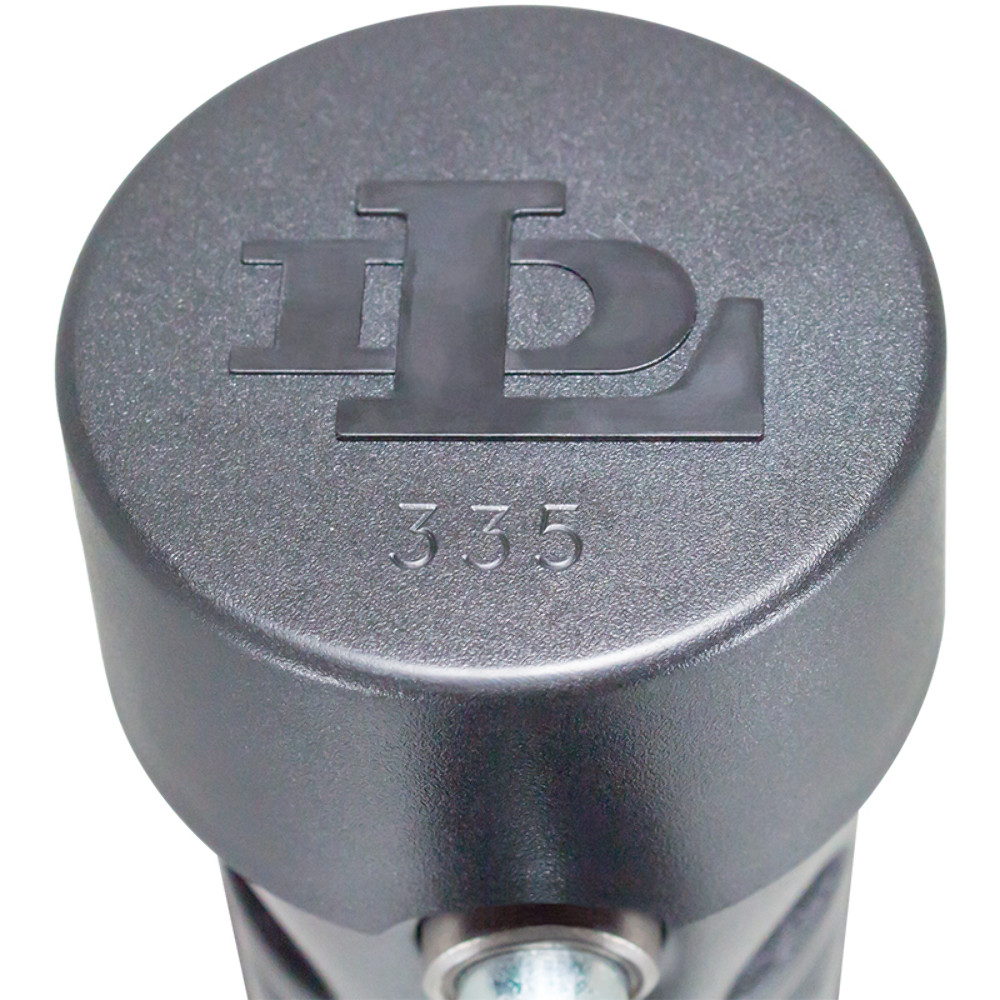

- Unique top cap mounts over outer tube and is held in place with a screw
- Premium handle cover
- Unique swivel bracket cover protects swivel parts and enhances look
Details
When hitching and unhitching loaded trailers, D-L heavy duty tongue jacks are real back savers. These easy-to-install, smooth operating jacks can be mounted in a variety of ways on various sizes of trailer tongues. They reduce the physical effort required to maneuver a loaded trailer into hitching position or removing the trailer from a vehicle. All models are made from heavy gauge steel for strength and durability. Features include:
- Totally enclosed outer tube helps protect miter gears and heavy duty Acme screw from sand and dirt
- Fits square tongues up to 3" x 5"
- 2-1/2" diameter mounting hole in swivel bracket fits most other brands of mounting hardware
- Floating miter gears allow for proper clearance and easier operation
- Tough polypropylene wheels or zinc plated foot
Swivel jacks also offer these easy-to-use features:
- Easily pivots between horizontal towing and vertical operating positions
- Reduce cranking to a minimum when disconnecting from towing vehicle
- Locking mechanism is spring loaded
