Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Chevrolet C1500, Chevrolet C2500, Chevrolet C3500, Chevrolet K1500, Chevrolet K2500, Chevrolet K3500, GMC C1500, GMC C2500, GMC C3500, GMC K1500, GMC K2500, GMC K3500 41522
Draw-tite
Free Shipping
click to zoom in
-
Lifetime Warranty
-
Install Instruction
PDF preview is not available on mobile.
Open Installation Instructions
Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Chevrolet C1500, Chevrolet C2500, Chevrolet C3500, Chevrolet K1500, Chevrolet K2500, Chevrolet K3500, GMC C1500, GMC C2500, GMC C3500, GMC K1500, GMC K2500, GMC K3500 41522
1,269
Write a Review
MSRP:
$371.25
$282.47
In-Stock
You save
$88.78
!
SKU:
DT41522
Condition:
New
hznfootnotes:
,CO,HK,HM,
Class:
Class 3
Gross Trailer Weight:
5,000 lbs.
Includes:

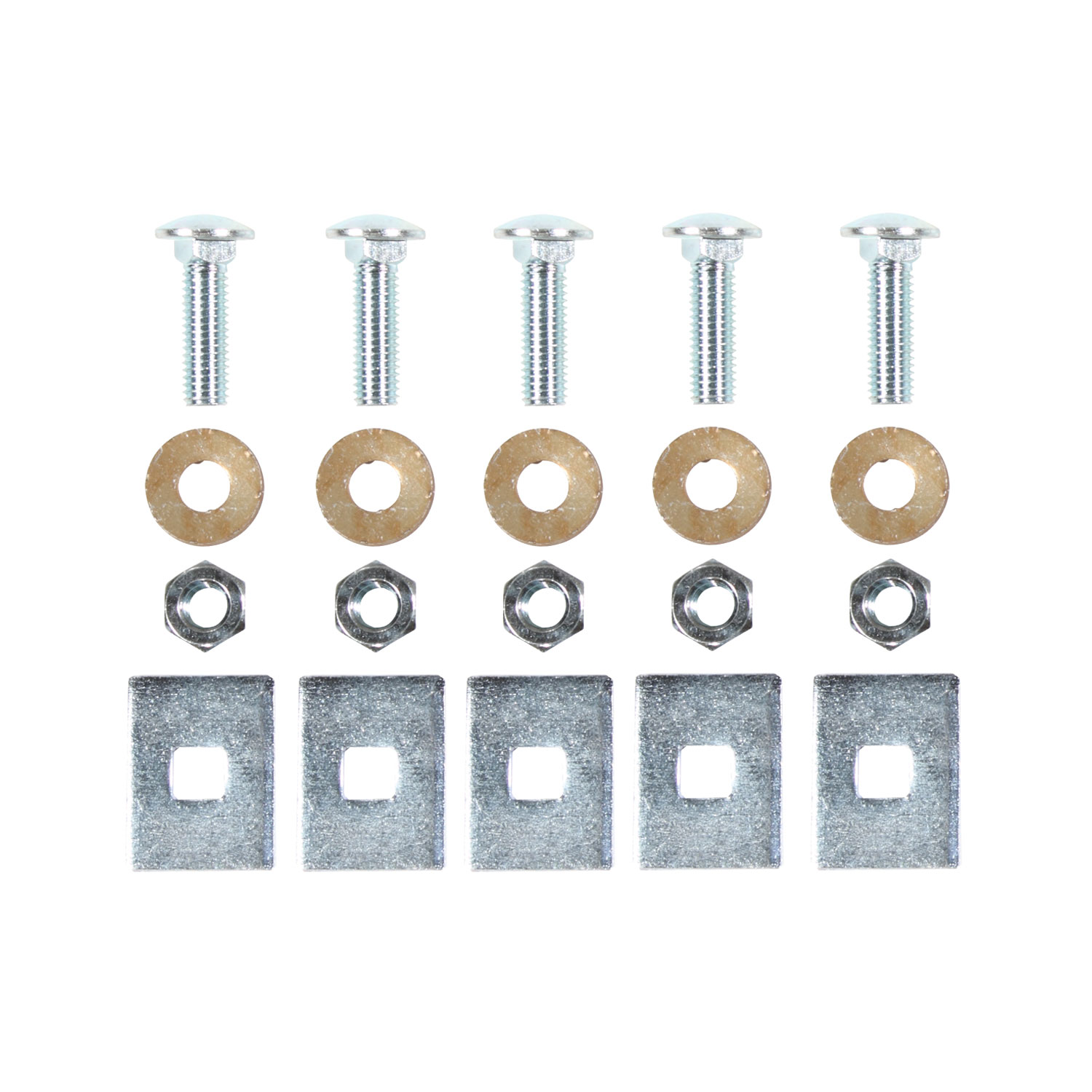

Trailer Hitch + Hardware
Attachment Location:
Rear
Drilling Required:
Yes
Tongue Weight:
500 lbs.
Receiver Size:
2"
color:
Black
Ships via Freight:
False
Install Time:
40
GTW:
5,000 lbs.
QUICK SHIP
Hurry, Order now!
47 customers are viewing this product
Experts Available Now!
888-634-9494
Ask an Expert-
-
In-House Experts
We know our products
-
Added Value
Quality Products
-
Nationwide Delivery
Free Shipping!
Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Chevrolet C1500, Chevrolet C2500, Chevrolet C3500, Chevrolet K1500, Chevrolet K2500, Chevrolet K3500, GMC C1500, GMC C2500, GMC C3500, GMC K1500, GMC K2500, GMC K3500 41522
MSRP:
$371.25
$282.47
In-Stock
You save
$88.78
!

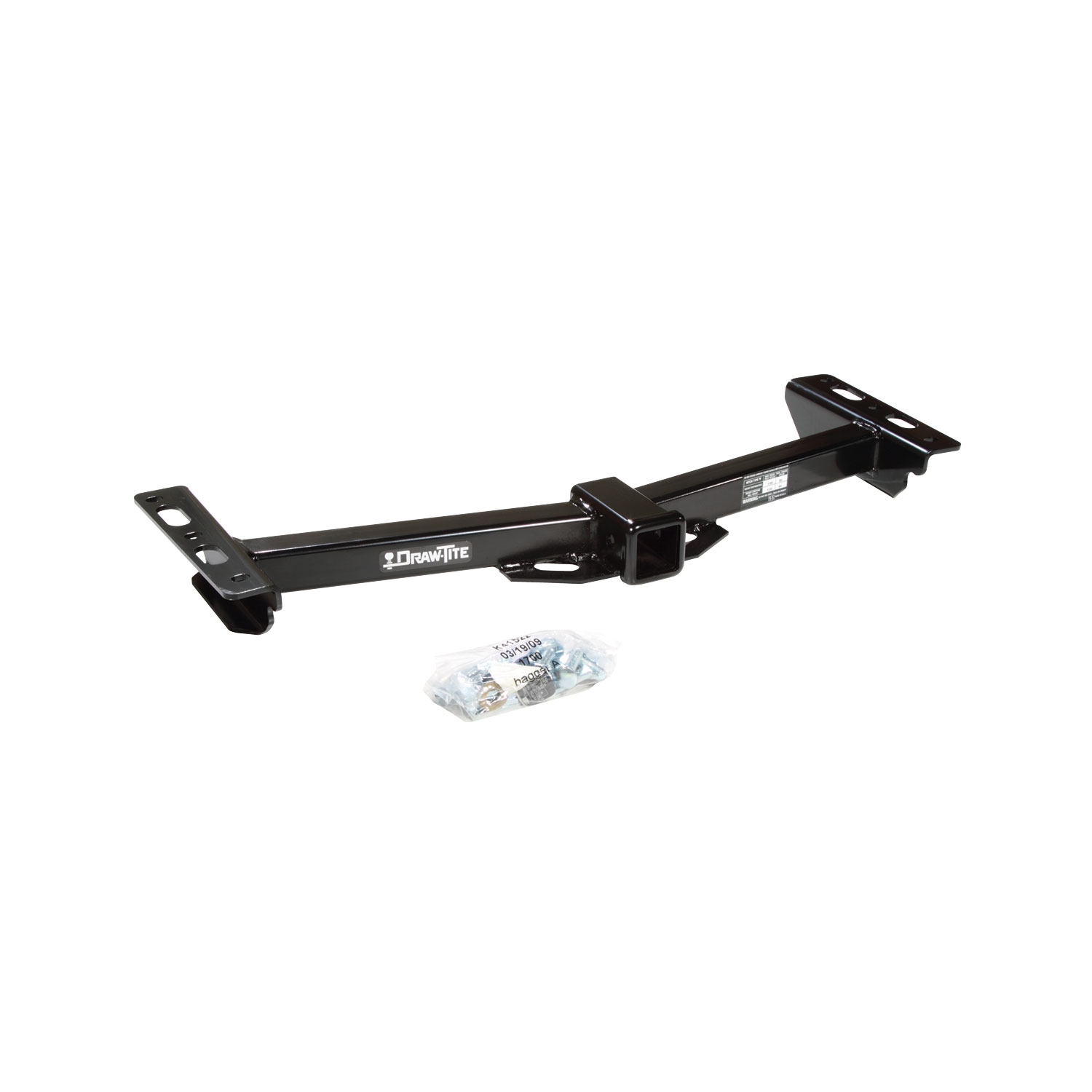

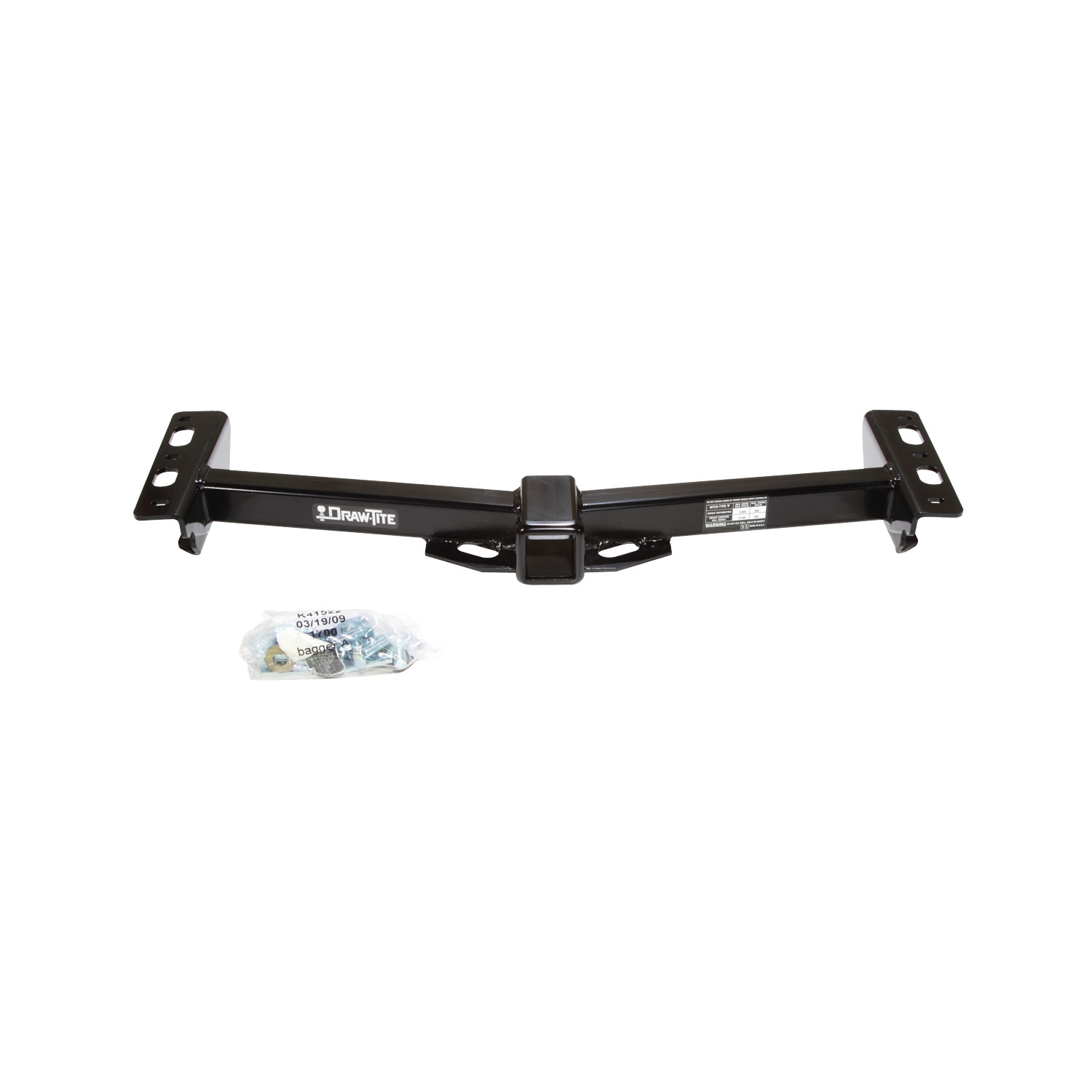

Class 3 Trailer Hitch, 2 Inch Square Receiver, Black
Description
DRAW-TITE Class 3 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 3 receiver hitch is rated for up to 5,000 lbs. gross trailer weight (GTW) and up to 500 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 5,500 lbs. weight distribution (WD) and 550 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
- CUSTOM DESIGNS: DRAW-TITE Class 3 trailer hitches are custom built according to manufacturer specifications to ensure a perfect fit.
- STRENGTH: Made of solid, all-welded steel for maximum strength and safety, each hitch is put through rigorous fatigue and stress testing to withstand road abuse (within specified capacities). Protected by a two-part black powder coat finish to resist rust and corrosion.
- TESTED: DRAW-TITE hitches are tested to meet and exceed V-5 and SAE J684 standards.
- CAPACITY: Rated for up to 5,000 lbs. GTW and up to 500 lbs. TW. Also suitable for use with Weight Distribution systems of up to 5,500 lbs. WD and 550 lbs. WDTW.
Specifications
| BRAND: | DRAW-TITE |
| PART NUMBER: | 41522 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 27 LBS |
| GROSS TOWING WEIGHT: | 5,000 LBS. |
| GROSS TONGUE WEIGHT: | 500 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | YES |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 5,500 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 550 LBS. |
Product Video
Installation Notes:
- Will not fit 8 ft. 2500/3500 Series with heavy-duty suspension or four door Crew Cab.
- Under vehicle spare tire stowage may be retained with installation of an aftermarket spare tire repositioner. Cutting of rollpan in license plate area required for receiver tube access. Does not fit with bumper.
- Hitch crosstube is visible beneath bumper.
Fitment Questions? Please call us 888-634-9494
Fits the following vehicles:
Vehicle Specific- 1988 - 1999 Chevrolet C1500 — Class 3 Trailer Hitch: 5000 lbs • 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 550/5,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes • With Aftermarket Roll Pan • Will not fit with heavy duty suspension • Cutting of rollpan in license plate area required for receiver tube access
- 1988 - 1999 Chevrolet C2500 — Class 3 Trailer Hitch: 5000 lbs • 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 550/5,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes • With Aftermarket Roll Pan • Will not fit with heavy duty suspension • Cutting of rollpan in license plate area required for receiver tube access
- 1988 - 2000 Chevrolet C3500 — Class 3 Trailer Hitch: 5000 lbs • 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 550/5,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes • With Aftermarket Roll Pan • Will not fit with heavy duty suspension • Cutting of rollpan in license plate area required for receiver tube access
- 1988 - 1999 Chevrolet K1500 — Class 3 Trailer Hitch: 5000 lbs • 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 550/5,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes • With Aftermarket Roll Pan • Will not fit with heavy duty suspension • Cutting of rollpan in license plate area required for receiver tube access
- 1988 - 1999 Chevrolet K2500 — Class 3 Trailer Hitch: 5000 lbs • 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 550/5,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes • With Aftermarket Roll Pan • Will not fit with heavy duty suspension • Cutting of rollpan in license plate area required for receiver tube access
- 1988 - 2000 Chevrolet K3500 — Class 3 Trailer Hitch: 5000 lbs • 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 550/5,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes • With Aftermarket Roll Pan • Will not fit with heavy duty suspension • Cutting of rollpan in license plate area required for receiver tube access
- 1988 - 1999 GMC C1500 — Class 3 Trailer Hitch: 5000 lbs • 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 550/5,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes • With Aftermarket Roll Pan • Will not fit with heavy duty suspension • Cutting of rollpan in license plate area required for receiver tube access
- 1988 - 2000 GMC C2500 — Class 3 Trailer Hitch: 5000 lbs • 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 550/5,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes • With Aftermarket Roll Pan • Will not fit with heavy duty suspension • Cutting of rollpan in license plate area required for receiver tube access
- 1988 - 2000 GMC C3500 — Class 3 Trailer Hitch: 5000 lbs • 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 550/5,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes • With Aftermarket Roll Pan • Will not fit with heavy duty suspension • Cutting of rollpan in license plate area required for receiver tube access
- 1988 - 1999 GMC K1500 — Class 3 Trailer Hitch: 5000 lbs • 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 550/5,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes • With Aftermarket Roll Pan • Will not fit with heavy duty suspension • Cutting of rollpan in license plate area required for receiver tube access
- 1988 - 2000 GMC K2500 — Class 3 Trailer Hitch: 5000 lbs • 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 550/5,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes • With Aftermarket Roll Pan • Will not fit with heavy duty suspension • Cutting of rollpan in license plate area required for receiver tube access
- 1988 - 2000 GMC K3500 — Class 3 Trailer Hitch: 5000 lbs • 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 550/5,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes • With Aftermarket Roll Pan • Will not fit with heavy duty suspension • Cutting of rollpan in license plate area required for receiver tube access
