Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
1996 - 2014 Chevrolet Express 1500
Confirmed to Fit
1996 - 2025 Chevrolet Express 2500
Confirmed to Fit
1996 - 2025 Chevrolet Express 3500
Confirmed to Fit
1996 - 2014 GMC Savana 1500
Confirmed to Fit
1996 - 2025 GMC Savana 2500
Confirmed to Fit
1996 - 2025 GMC Savana 3500
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
DRAW-TITE Class 5 trailer hitches are the choice of professionals and big toy haulers who need to get the job done! These Class 5 heavy-duty hitches are rated for up to 10,000 lbs. gross trailer weight (GTW) and up to 1,500 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 13,000 lbs. weight distribution (WD) and 1,300 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The 2 inch square receiver tube opening, bigger chain loops, tighter ball mount fit, and reinforced pin holes make these heavy-duty hitches ideal for toy haulers and commercial vehicles alike. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 41946 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 54 LBS |
| GROSS TOWING WEIGHT: | 10,000 LBS. |
| GROSS TONGUE WEIGHT: | 1,500 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | V |
| DRILLING REQUIRED: | YES |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 13,000 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 1,300 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw•Tite® and the Checkered Flag Foundation
6 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1996 - 2014 | Chevrolet Express 1500 | Class 5 Trailer Hitch: 10000 lbs 1,500/10,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,300/13,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 35 minutes |
| 1996 - 2025 | Chevrolet Express 2500 | Class 5 Trailer Hitch: 10000 lbs 1,500/10,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,300/13,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 35 minutes |
| 1996 - 2025 | Chevrolet Express 3500 | Class 5 Trailer Hitch: 10000 lbs 1,500/10,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,300/13,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 35 minutes |
| 1996 - 2014 | GMC Savana 1500 | Class 5 Trailer Hitch: 10000 lbs 1,500/10,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,300/13,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 35 minutes |
| 1996 - 2025 | GMC Savana 2500 | Class 5 Trailer Hitch: 10000 lbs 1,500/10,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,300/13,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 35 minutes |
| 1996 - 2025 | GMC Savana 3500 | Class 5 Trailer Hitch: 10000 lbs 1,500/10,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,300/13,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 35 minutes |

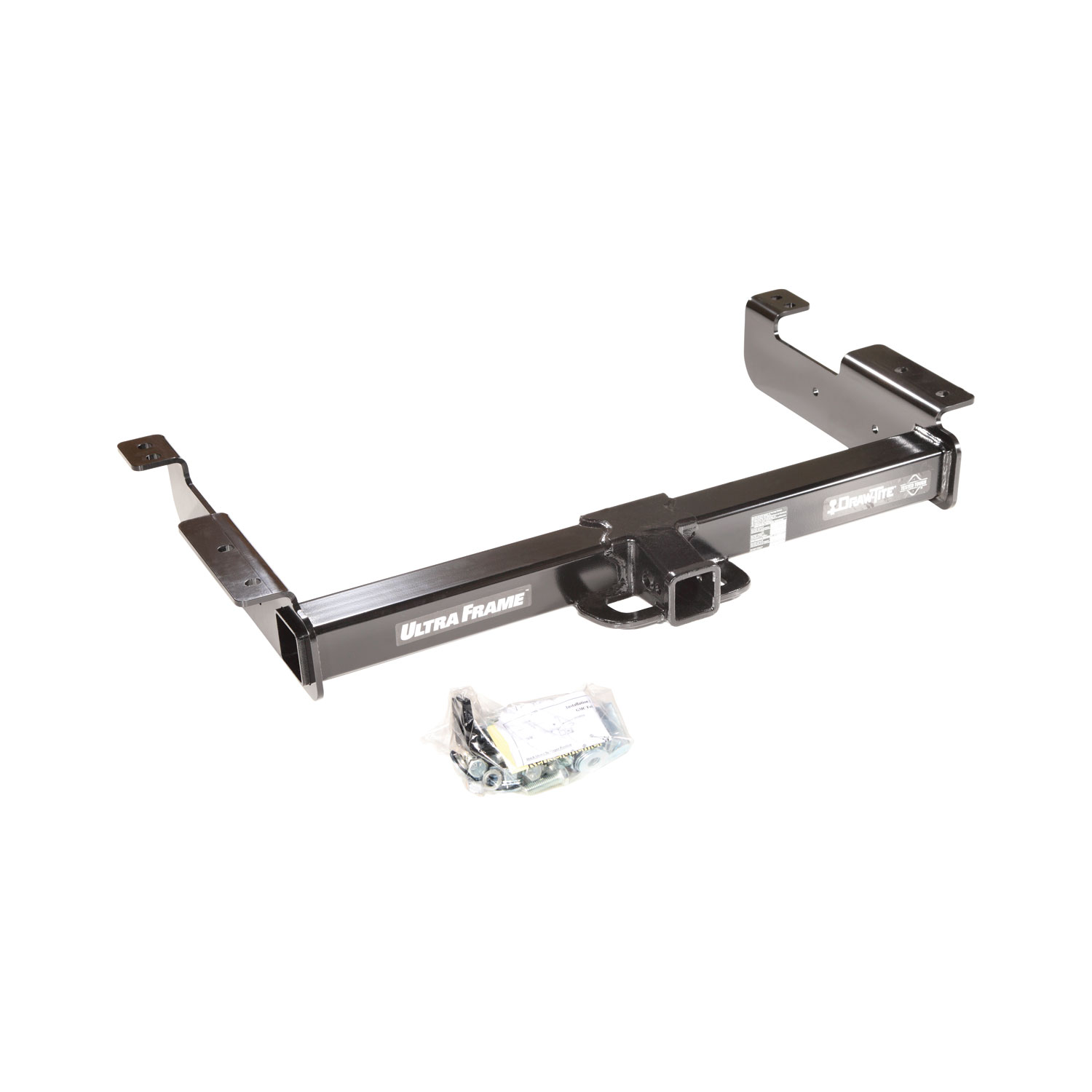

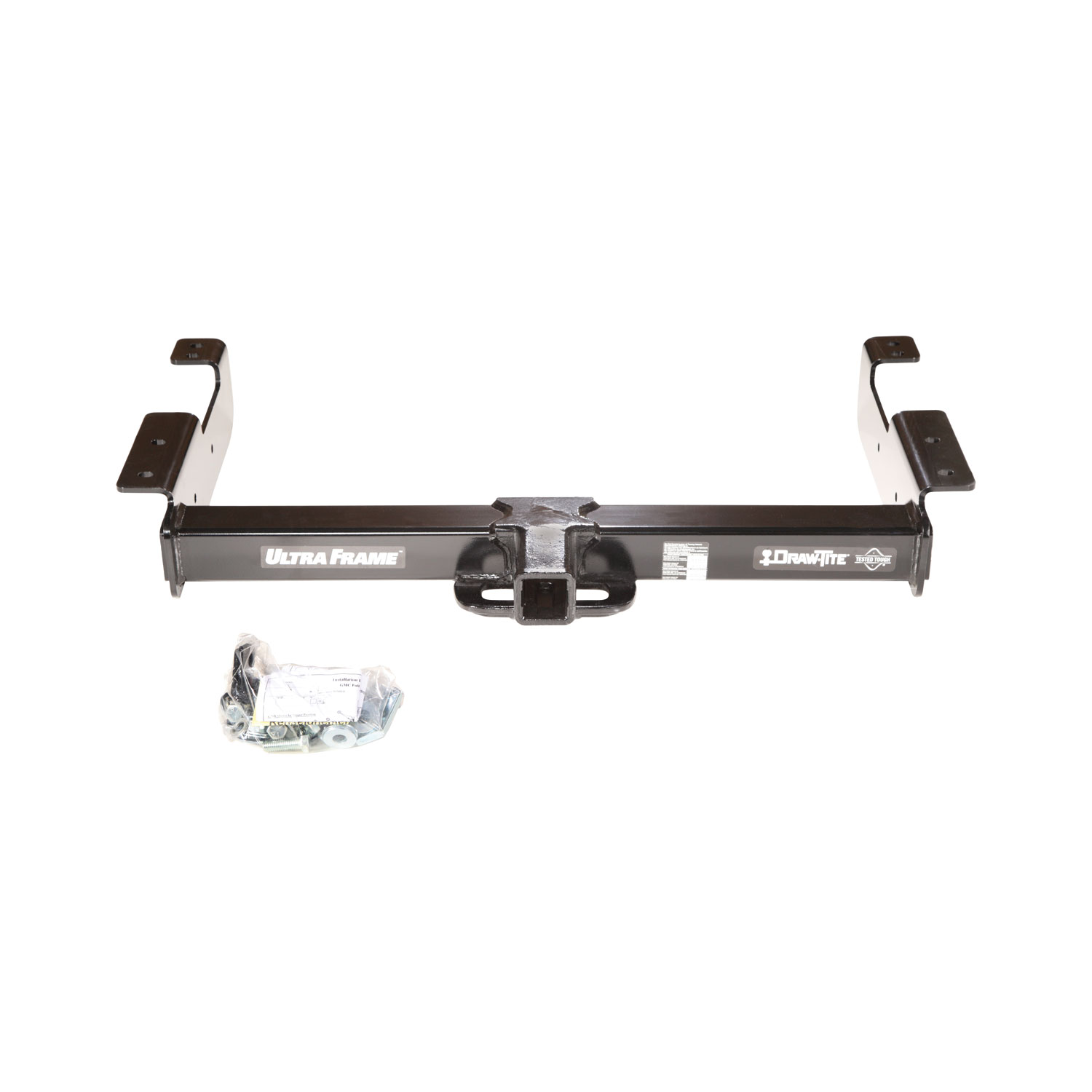

The Draw-tite Ultra Frame® Class 5 Trailer Hitch, 2" Square Receiver, Black for Select Chevrolet Express 1500, Chevrolet Express 2500, Chevrolet Express 3500, GMC Savana 1500, GMC Savana 2500, GMC Savana 3500 41946 (Part #DT41946) fits the following vehicles: 1996-2014 Chevrolet Express 1500; 1996-2025 Chevrolet Express 2500; 1996-2025 Chevrolet Express 3500; 1996-2014 GMC Savana 1500; 1996-2025 GMC Savana 2500; 1996-2025 GMC Savana 3500. Always verify your specific year, make, and model before ordering.
The Draw-tite Ultra Frame® Class 5 Trailer Hitch, 2" Square Receiver, Black for Select Chevrolet Express 1500, Chevrolet Express 2500, Chevrolet Express 3500, GMC Savana 1500, GMC Savana 2500, GMC Savana 3500 41946 (Part #DT41946) fits 1996-2014 Chevrolet Express 1500 models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Ultra Frame® Class 5 Trailer Hitch, 2" Square Receiver, Black for Select Chevrolet Express 1500, Chevrolet Express 2500, Chevrolet Express 3500, GMC Savana 1500, GMC Savana 2500, GMC Savana 3500 41946 (Part #DT41946) is designed to fit the 1996-2014 Chevrolet Express 1500.
The Draw-tite Ultra Frame® Class 5 Trailer Hitch, 2" Square Receiver, Black for Select Chevrolet Express 1500, Chevrolet Express 2500, Chevrolet Express 3500, GMC Savana 1500, GMC Savana 2500, GMC Savana 3500 41946 (Part #DT41946) Drilling is required for installation. Basic hand tools are typically all you need.
Yes, part number 41946 is designed for GMC full size vans. The manual confirms this is the correct hitch for this vehicle type. However, the manual does not specify which model years are covered, so you should verify the exact year and model of your van with the manufacturer or retailer before purchasing.
The 41946 hitch has two configurations: Weight Distributing type supports a maximum gross trailer weight of 13,000 lb (5,902 kg) with a maximum tongue weight of 1,300 lb (590 kg). Weight Carrying Ball Mount type supports a maximum gross trailer weight of 10,000 lb (4,540 kg) with a maximum tongue weight of 1,500 lb (681 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
You will need: wrenches in 13/16" and 15/16" sizes, and a 9/16" drill bit. A torque wrench is also required to tighten all fasteners to the specified 110 Lb.-Ft. (149 N·M).
Yes. You must enlarge 8 existing holes to 9/16" diameter. The manual specifies that you should not cut access or attachment holes with a torch; use a drill bit instead.

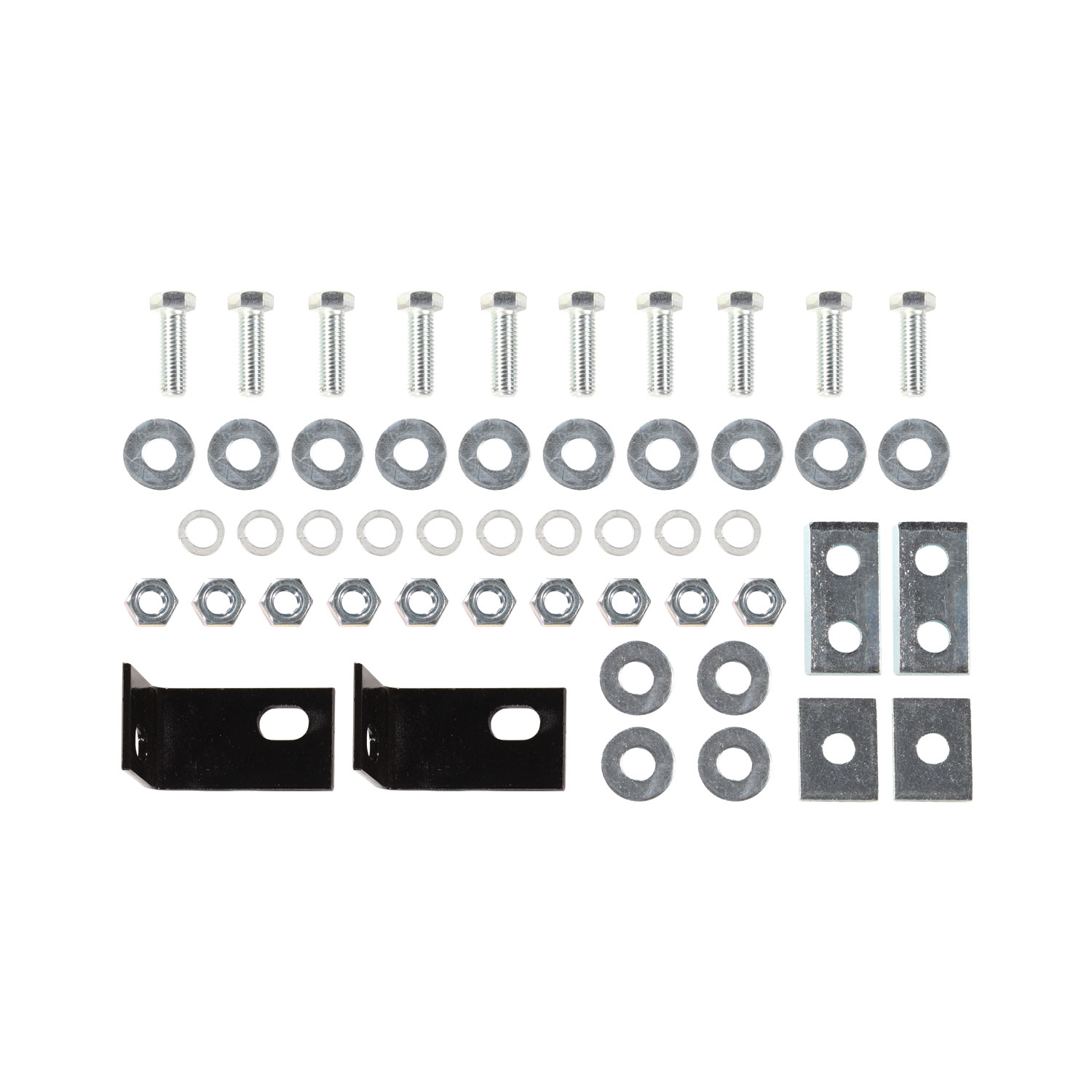

The hitch kit includes: 10 hex bolts 9/16"-12 X 1.75 GR5, 10 nuts 9/16"-12, 14 flat washers 9/16", 10 lock washers 9/16", 2 blocks 3/8" X 1-1/2" X 3", 2 blocks 1/4" X 1-1/2" X 2", 1 left-hand bracket, and 1 right-hand bracket. A separate fastener kit 41946F is also available.
All 9/16" fasteners must be tightened with a torque wrench to 110 Lb.-Ft. (149 N·M).
1. Enlarge the 8 existing holes to 9/16" diameter. 2. Insert bolts, brackets, and blocks through the existing access slots and into the attachment holes on each side. 3. Raise the hitch into position and fasten with flat washers, lock washers, and nuts as shown in the diagram. 4. Tighten all fasteners to 110 Lb.-Ft. (149 N·M) using a torque wrench.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball that has been damaged should be removed and replaced immediately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual recommends regular inspection but does not specify an exact interval.
Yes. The installation uses 8 existing holes that you will enlarge to 9/16" diameter, and existing access slots through which you will insert the bolts, brackets, and blocks. The manual indicates these are factory-provided attachment points.
The wiring access location is listed as SUV3 or SUV4. The manual does not provide further detail on wiring installation or harness part numbers.
Yes, part 41946 is designed for GMC full size vans.
You need 13/16" and 15/16" wrenches, a 9/16" drill bit, and a torque wrench.
Yes, you must enlarge 8 existing holes to 9/16" diameter using a drill bit. Do not use a torch.
All 9/16" fasteners must be torqued to 110 Lb.-Ft. (149 N·M).
Weight Distributing: 13,000 lb gross trailer weight, 1,300 lb tongue weight. Weight Carrying Ball Mount: 10,000 lb gross trailer weight, 1,500 lb tongue weight. Do not exceed your vehicle manufacturer's rating.
Wear eye protection. Work safely beneath the vehicle. Do not use a torch to cut holes. Plug holes if the hitch is removed. Replace any damaged hitch or ball immediately.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
