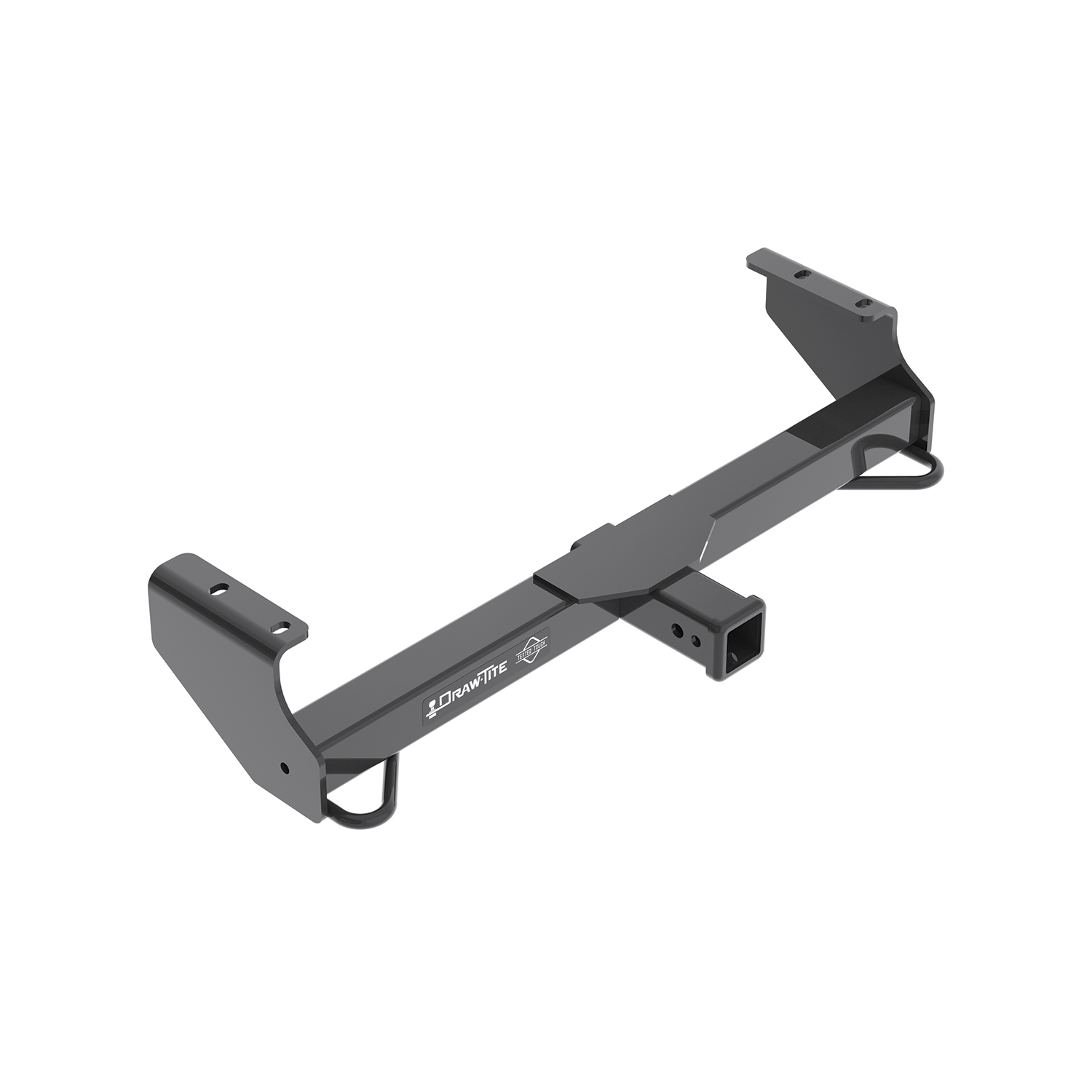

Draw-Tite Front Mounted Receiver hitches provide the perfect attachment point for a variety of accessories. Use it to connect spare tires, snowplows, winches, cargo carriers, and more! Each front mounted receiver hitch is custom built according to manufacturer make and model year specifications and bolts to the underside of the vehicle frame, making installation a breeze! This particular front mount receiver hitch is rated up to 500 lbs. tongue weight and up to 9,000 lbs. line pull with a 2 inch square tube receiver opening for your attachments. Each is made of solid, all-welded steel for maximum strength and safety with a black powder coat finish to resist rust and corrosion. Draw-Tite front hitches are tested to exceed V-5 and SAE J684 standards.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 65075 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 36.05 LBS |
| GROSS TOWING WEIGHT: | 500 LBS. |
| GROSS TONGUE WEIGHT: | 500 LBS. |
| RECEIVER SIZE: | 2 IN. |
| MAXIMUM LINE PULL: | 9,000 LBS. |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | FRONT |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
3 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2005 - 2024 | Nissan Frontier | Front Mount Receiver Uses all existing holes. No Drilling required Install Time is 35 minutes |
| 2005 - 2012 | Nissan Pathfinder | Front Mount Receiver Uses all existing holes. No Drilling required Install Time is 35 minutes |
| 2009 - 2012 | Suzuki Equator | Front Mount Receiver Uses all existing holes. No Drilling required Install Time is 35 minutes |
The Trailer Hitch for 05-23 Nissan Frontier 05-12 Pathfinder 09-12 Suzuki Equator (Part #DT65075) fits 2005-2024 Nissan Frontier models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
The Trailer Hitch for 05-23 Nissan Frontier 05-12 Pathfinder 09-12 Suzuki Equator (Part #DT65075) fits the following vehicles: 2005-2024 Nissan Frontier; 2005-2012 Nissan Pathfinder; 2009-2012 Suzuki Equator. Always verify your specific year, make, and model before ordering.
Yes, the Trailer Hitch for 05-23 Nissan Frontier 05-12 Pathfinder 09-12 Suzuki Equator (Part #DT65075) is designed to fit the 2005-2024 Nissan Frontier.
The Trailer Hitch for 05-23 Nissan Frontier 05-12 Pathfinder 09-12 Suzuki Equator (Part #DT65075) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the 65075 hitch fits 2005-Current Nissan Frontier models. For the most up-to-date information regarding specific application years and trim levels, visit the Cequent website.
Yes, the 65075 hitch is compatible with 2005-2012 Nissan Pathfinder models, which includes 2010.
Yes, the 65075 hitch fits 2009-2012 Suzuki Equator models in Sport and RMZ-4 trim levels.
The maximum winch line pull is 9,000 lb. (4,086 kg). However, you must not exceed the lower of your towing vehicle manufacturer's rating or this specification. Additionally, do not exceed 500 LB. (227 kg) cargo capacity or your truck's front Gross Axle Weight Rating (GAWR).
You will need a ratchet, torque wrench, 10mm, 17mm, and 19mm sockets, a socket extension, safety glasses, a utility knife, a marker, and a tape measure.
The fastener kit (part number 65075F) includes 4 M12 X 1.25 X 40mm Class 10.9 bolts, 4 pieces of 1/2" lock washers, and 4 pieces of 7/16" flat washers.
Yes. You must remove 6 hex fasteners holding the center lower air dam using a 10mm socket. The air dam may be returned to the vehicle owner or optionally trimmed. If trimmed, it is reinstalled with the same 6 fasteners.
Yes. You must remove 2 hex bolts per front tow hook and remove the front tow hook(s). These should be returned to the vehicle owner.
All M12 fasteners must be tightened with a torque wrench to 76 Lb.-Ft. (103 N·M). Proper torque is essential to keep the hitch secure to the vehicle when towing.
76 Lb.-Ft. (103 N·M).
The hitch is installed using 4 M12 X 1.25 X 40mm Class 10.9 bolts, 1/2" lock washers, and 7/16" flat washers. These fasteners are installed into existing weldnuts on the frame rail and tightened to 76 Lb.-Ft. (103 N·M) with a torque wrench.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
No. Do not cut, weld, or modify this receiver. Doing so may compromise the structural integrity and safety of the hitch.
Check all fasteners frequently to ensure they are tight and the hitch is securely mounted to your vehicle. Additionally, make sure the ball is properly tightened. Regular inspection is important for safe towing.
Load the trailer heavier in front. This helps maintain proper weight distribution and stability while towing.
Slow down when towing and never exceed any posted speed limit. Always wear your seatbelt while towing.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch.
The average installation time is 35 minutes for professional installers. If you do not feel comfortable performing this installation on your own or are in need of assistance, please contact a professional installer.
The 65075 hitch is covered by a Limited Lifetime Warranty from Cequent Performance Products, Inc. The warranty covers the original consumer purchaser only and warrants that the product will be free from material defects in both material and workmanship, ordinary wear and tear excepted. The warranty is valid only if products are returned for inspection and testing, the inspection discloses material nonconformance not caused by misuse, neglect, wear and tear, improper installation, unsuitable storage, improper repair, alteration, or accident, and the products were installed, maintained, and used in accordance with the manufacturer's instructions. Product replacement is the sole and exclusive remedy. For warranty claims, contact Cequent at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, or call 1-800-632-3290.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
The 65075 hitch requires removal of the center lower air dam (6 fasteners) and removal of the front tow hooks (2 bolts per hook). The air dam may be optionally trimmed and reinstalled. No permanent modifications to the vehicle frame are required; the hitch uses existing weldnuts on the frame rail.
Check all fasteners frequently to ensure they remain tight. If fasteners are found to be loose, retighten them to the specified torque of 76 Lb.-Ft. (103 N·M) using a torque wrench. Proper torque is essential to keep the hitch secure to the vehicle when towing.
